DAMP PROOF HOUSING DALI
DP HOUSING DALI 1200 P 1XLAMP IP65
GTIN: 4099854146442
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
- Prewired for easy installation of LED TUBE T8 EXTERNAL SYSTEM
- Toolless installation
- Robust housing
- Sustainable solution thanks to exchangeable light sources
- 5 years guarantee
Areas of application
- Parking lots, warehouses, production areas
- Dimmable installations
- Car parks and underpasses
- Garages
Product features
- Luminaire housing, available for 1 or 2 T8 LED tubes
- Dimmable EXTERNAL SYSTEM Driver is already installed
- Suitable for LEDVANCE LED TUBE T8 EXTERNAL SYSTEM
- DALI 2.0 interface for light management system integration
- Integrated electrical fuse
- Type of protection: IP65
Equipment / Accessories
- Through-wiring cable kit available
- Stainless steel clamps and M20 cable gland included
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 0/50/60 Hz |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Flickering metric (Pst LM) | < 1 |
| Stroboscope effect metric (SVM) | < 0.4 |
Dimensions & Weight
| Length | 1280.00 mm |
| Height | 70.00 mm |
| Width | 65.00 mm |
| Product weight | 966.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |

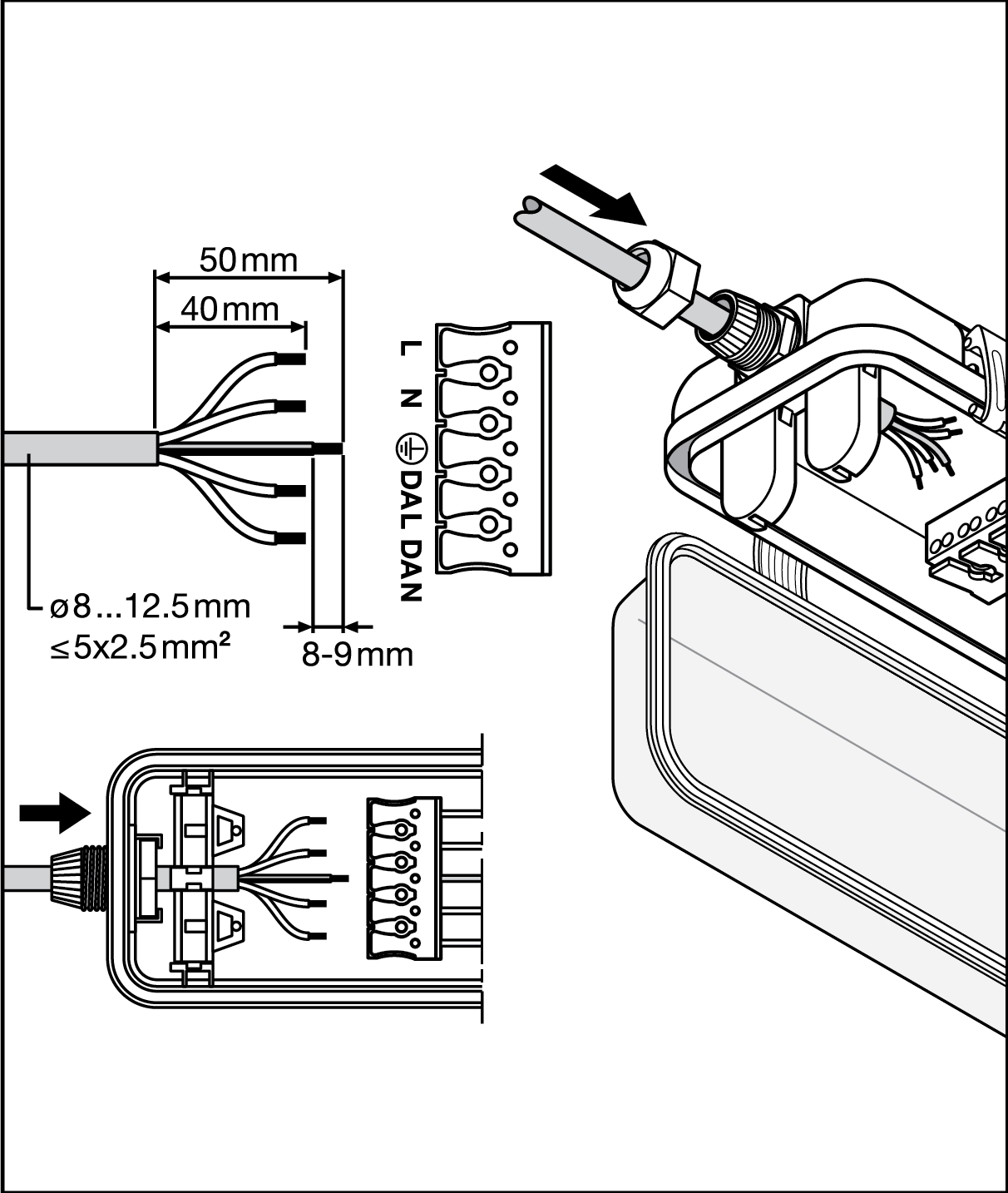

| Type of connection | Screwless terminal, 5-Pole (L, N, PE, DA+, DA-) |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | Yes |
| Type of dimming | DALI2 |
| IoT ready | Support of DALI data type PART 251, 252, 253 1) |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | No |
| Replaceable light source | No |
| Holder designation | G13 |
1) Internet of Things. Supports data transfer via gateway to cloud-based monitoring platforms, such as LEDVANCE VIVARES Cloud
Control gear
| ECG - Output ripple current | ≤ 5 % |
Certificates & Standards
| Standards | CE, TÜV Rheinland, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
Additional product data
| Product remark | When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime |
| Added function | VIVARES |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854146442 | Folding box 1 |
68 mm x 1,272 mm x 75 mm | 1096.00 g | 6.49 dm³ |
| 4099854146459 | Shipping box 9 |
1,287 mm x 216 mm x 237 mm | 10514.00 g | 65.88 dm³ |
| 4099854246036 | Shipping box 12 |
1,287 mm x 284 mm x 237 mm | 13802.00 g | 86.63 dm³ |
User instruction / safety instructions

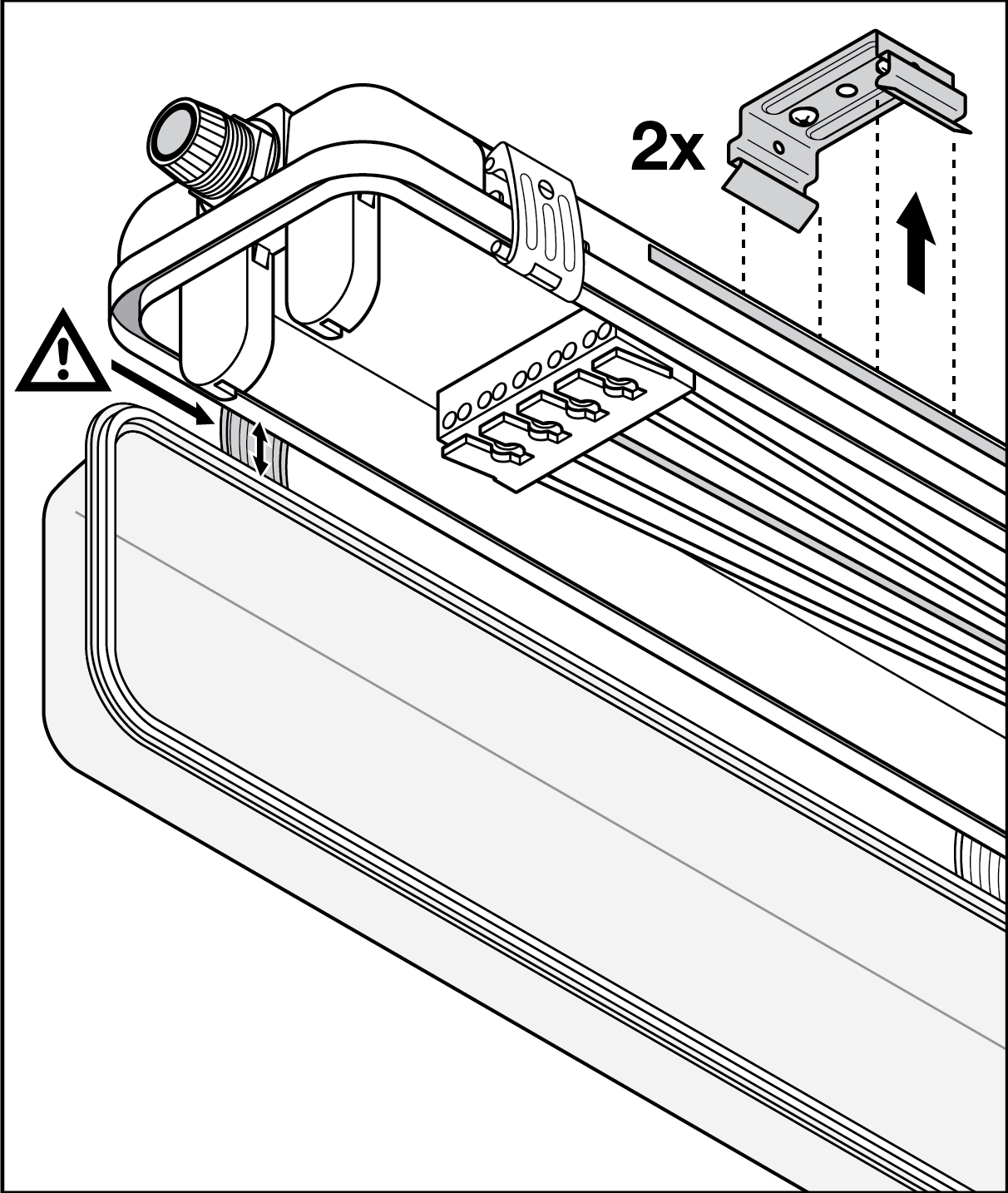

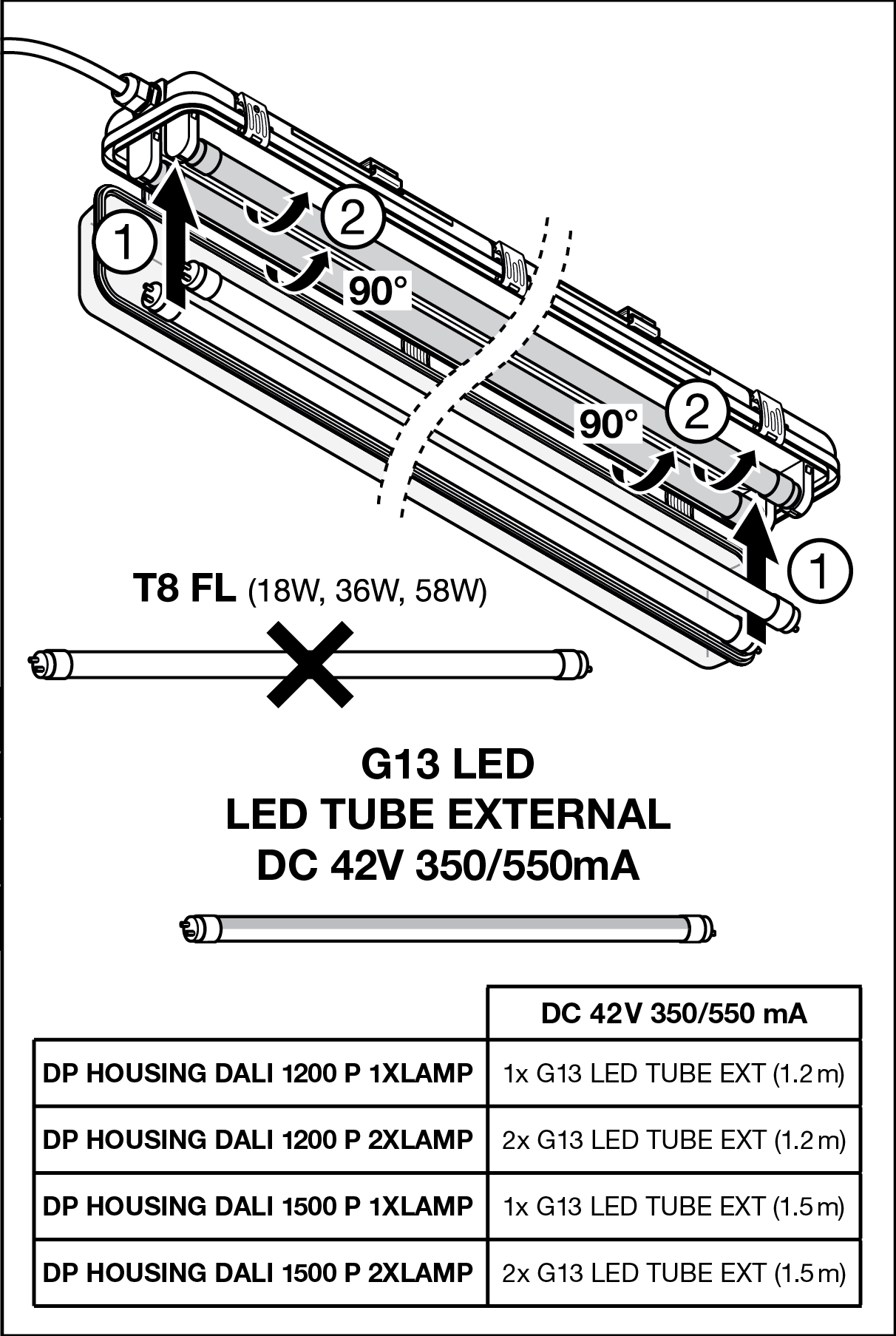

UI DP HOUSING DALI
UI DP HOUSING DALI
Legal information
LN INV DALI
LN INV DALI
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
CE Declaration DP HOUSING
CE Declaration DP HOUSING

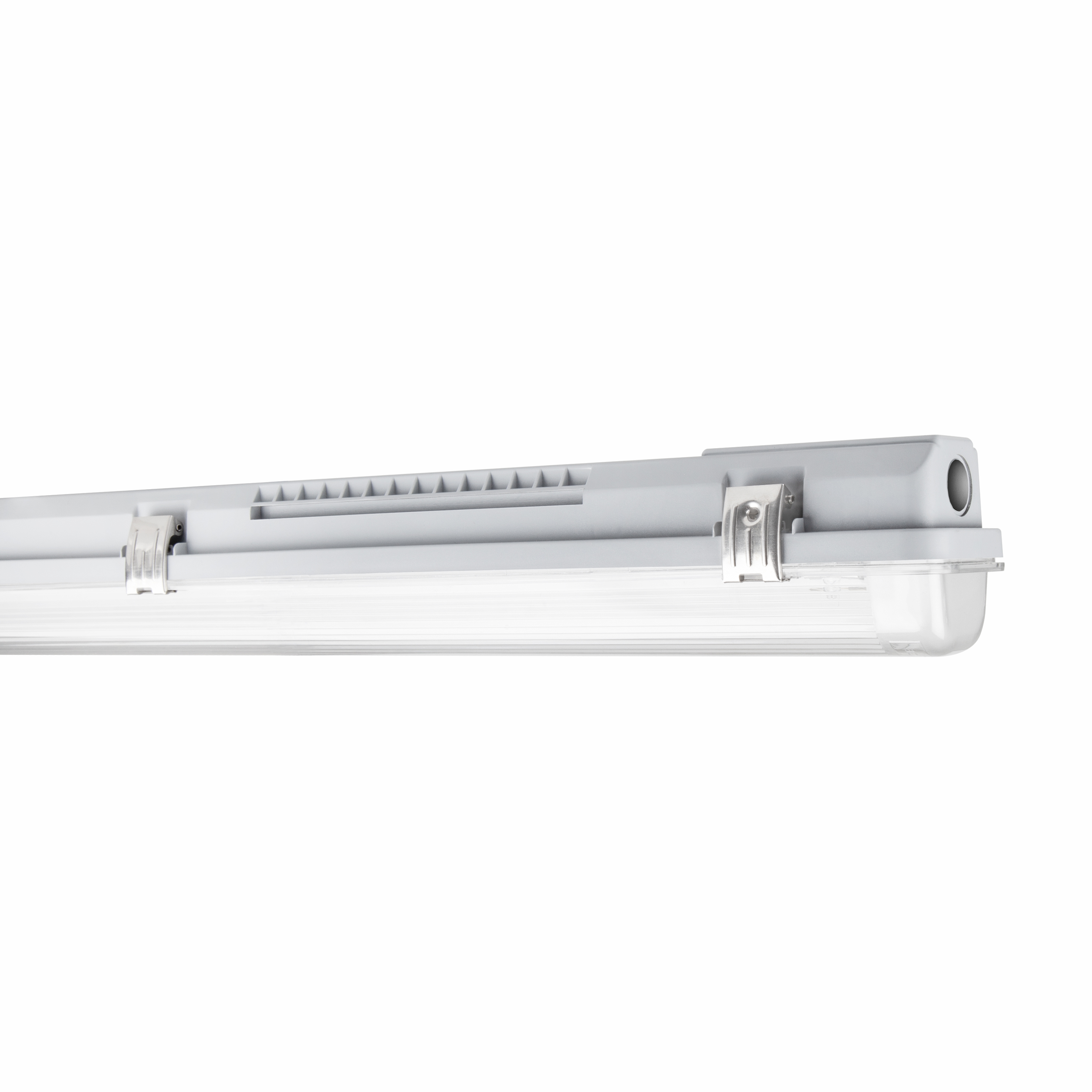

Product image: white background, diagonal
DP HOUSING 1200 P 1XLAMP IP65
DP HOUSING 1200 P 1XLAMP IP65

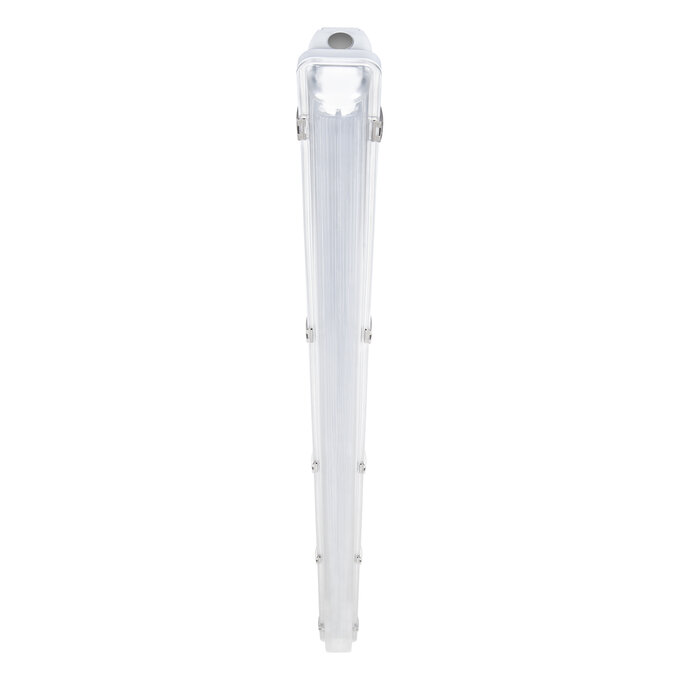

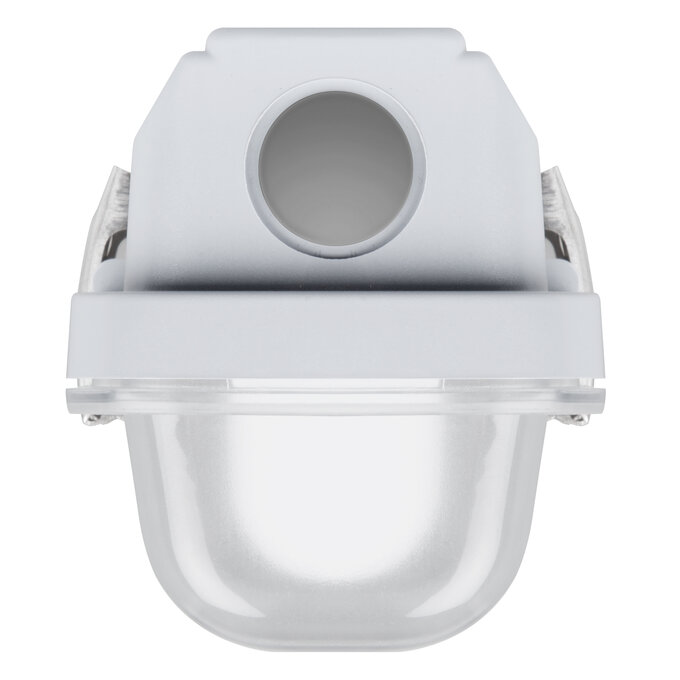

Product image: white background, upright
DP HOUSING 1200 P 1XLAMP IP65
DP HOUSING 1200 P 1XLAMP IP65
Product line drawing with letters
DP HOUSING 1200 P 1XLAMP IP65
DP HOUSING 1200 P 1XLAMP IP65
Product line drawing with numbers
DP HOUSING 1200 P 1XLAMP IP65
DP HOUSING 1200 P 1XLAMP IP65
Product line drawing - technical
DP HOUSING 1200 P 1XLAMP IP65
DP HOUSING 1200 P 1XLAMP IP65

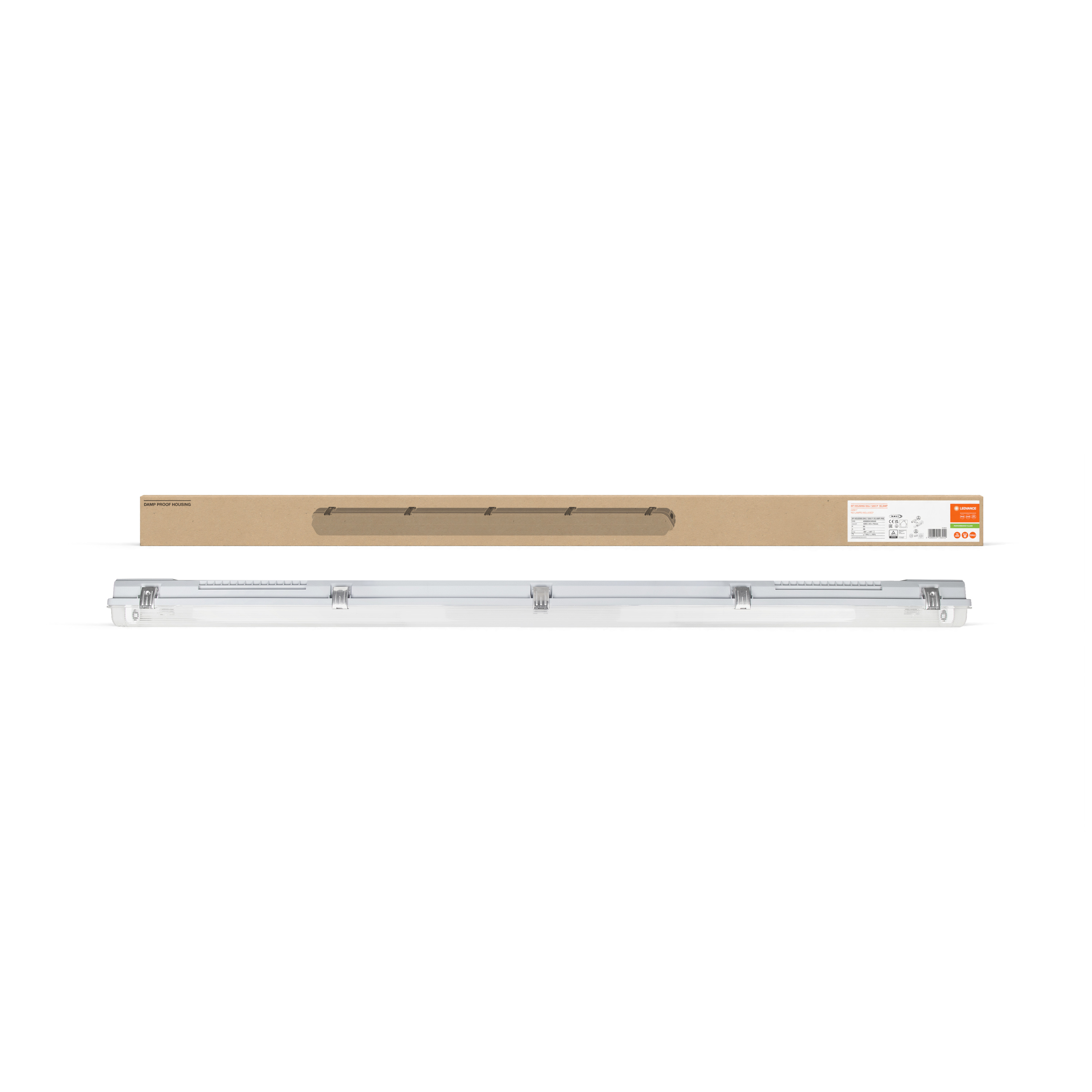

Combo Shot = Product Beauty Shot + Packaging Image
DP Housing DALI 1200 P 1xLamp
DP Housing DALI 1200 P 1xLamp

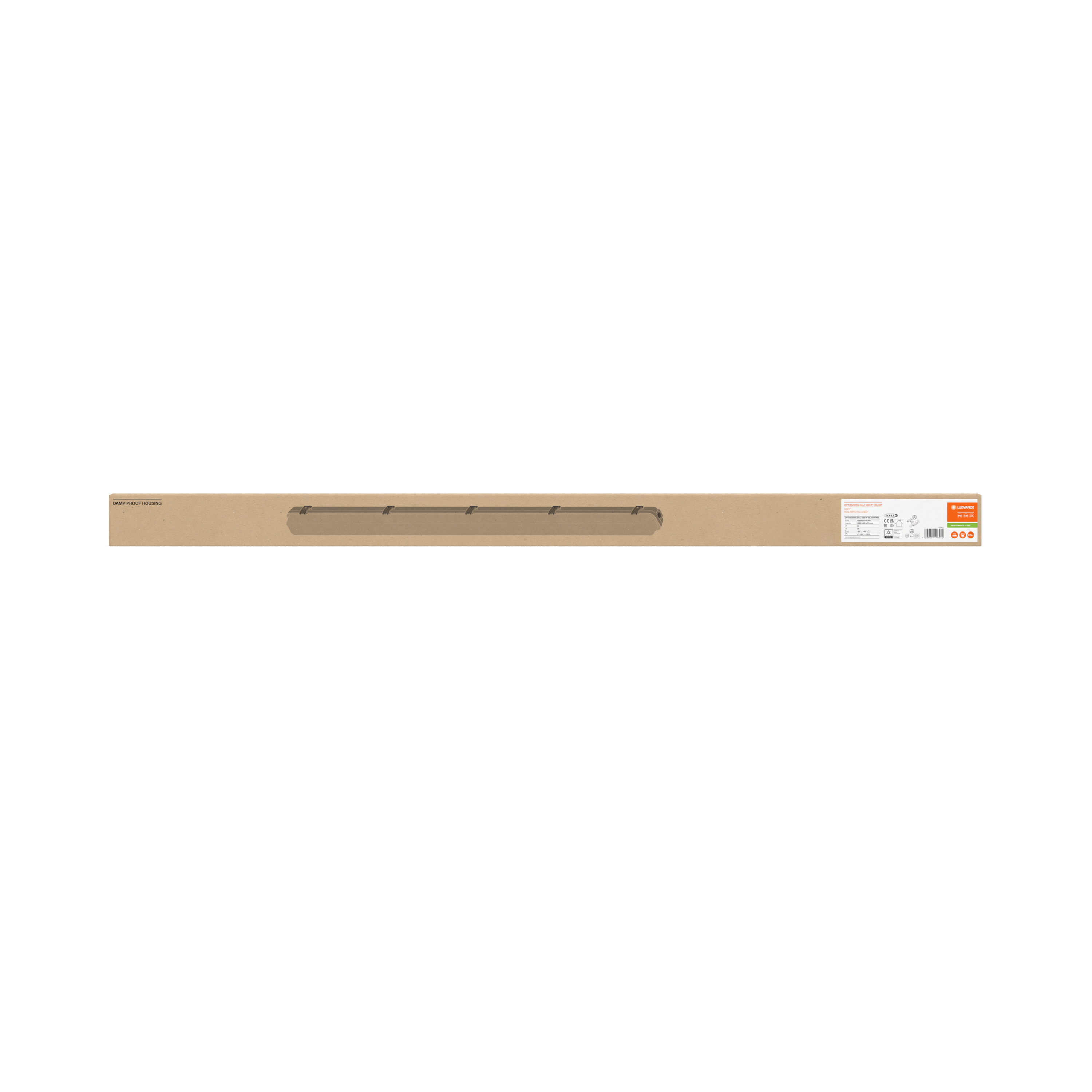

Packaging image, frontal
DP Housing DALI 1200 P 1xLamp
DP Housing DALI 1200 P 1xLamp
Catalog info 1
DP HOUSING DALI
DP HOUSING DALI
Catalog info 2
DP HOUSING DALI
DP HOUSING DALI
Catalog info 3
DP HOUSING DALI
DP HOUSING DALI
BIM Revit 3D
Damp Proof Housing G3
Damp Proof Housing G3
CAD STEP 3D
DP HOUSING G3 1 1200
DP HOUSING G3 1 1200
Tender documents
DAMP PROOF HOUSING DALI 1200 P 1XLAMP IP65-EN
DAMP PROOF HOUSING DALI 1200 P 1XLAMP IP65-EN
Application pictures

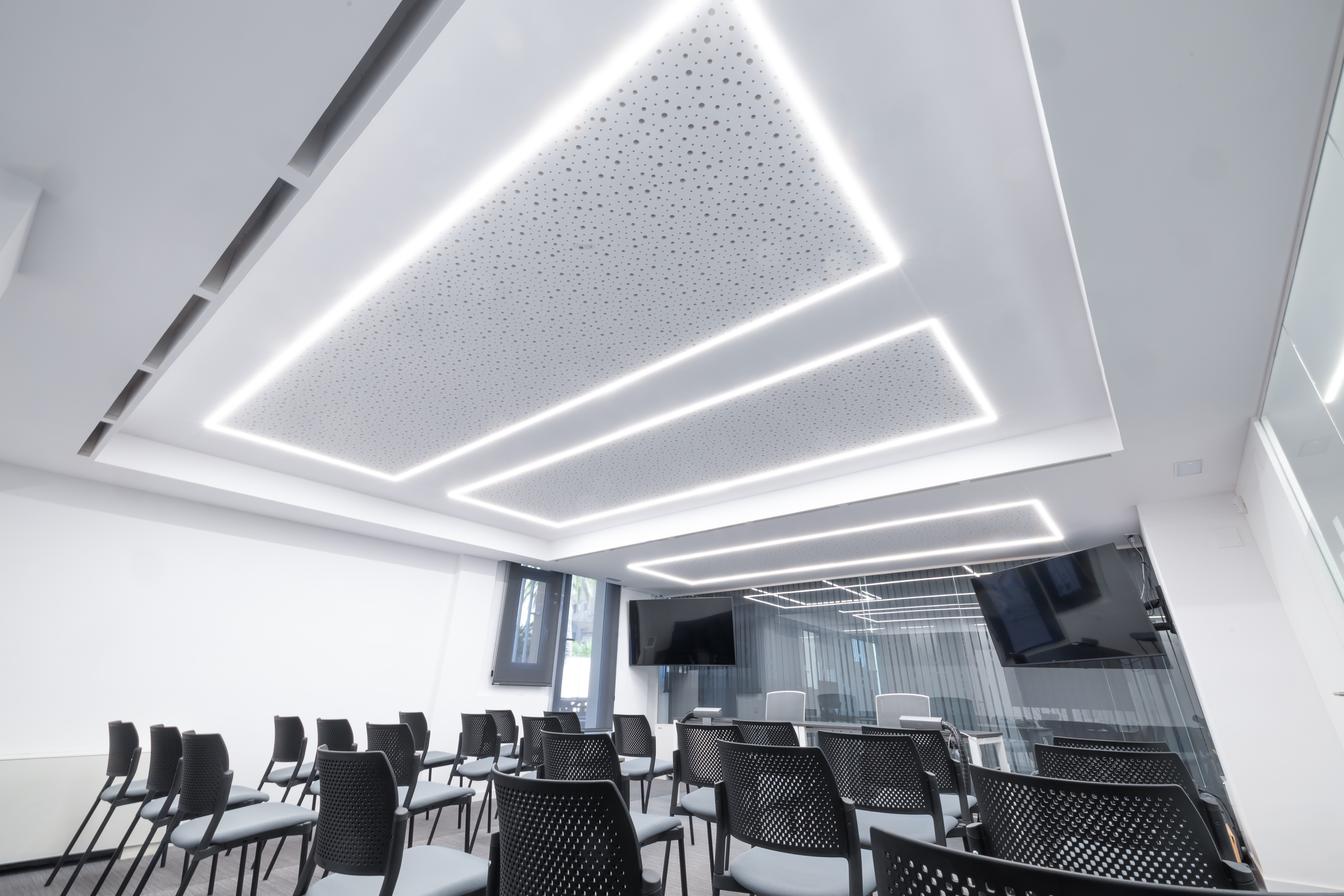

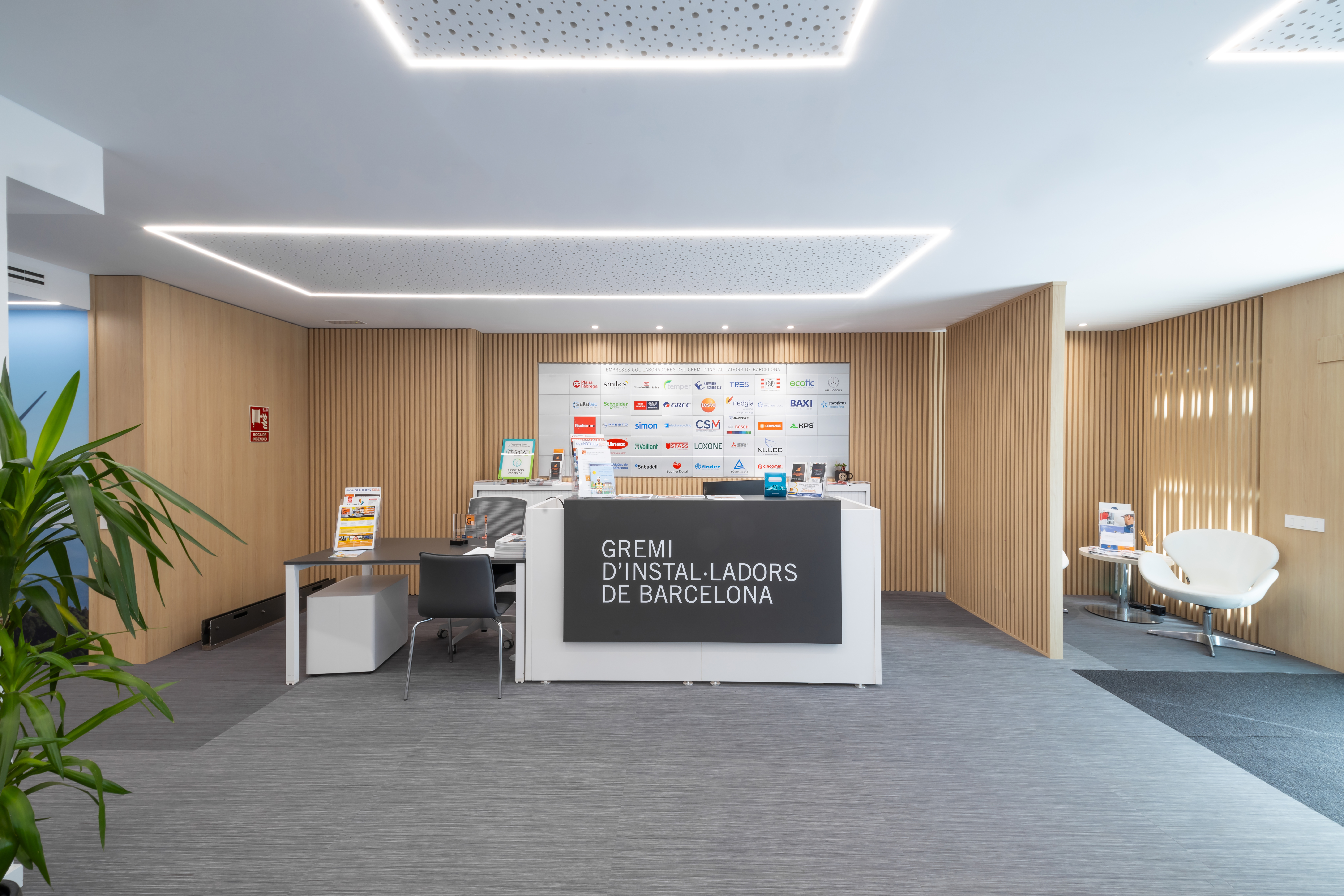

Oficinas del Gremi de Barcelona
Oficinas del Gremi de Barcelona
Application pictures

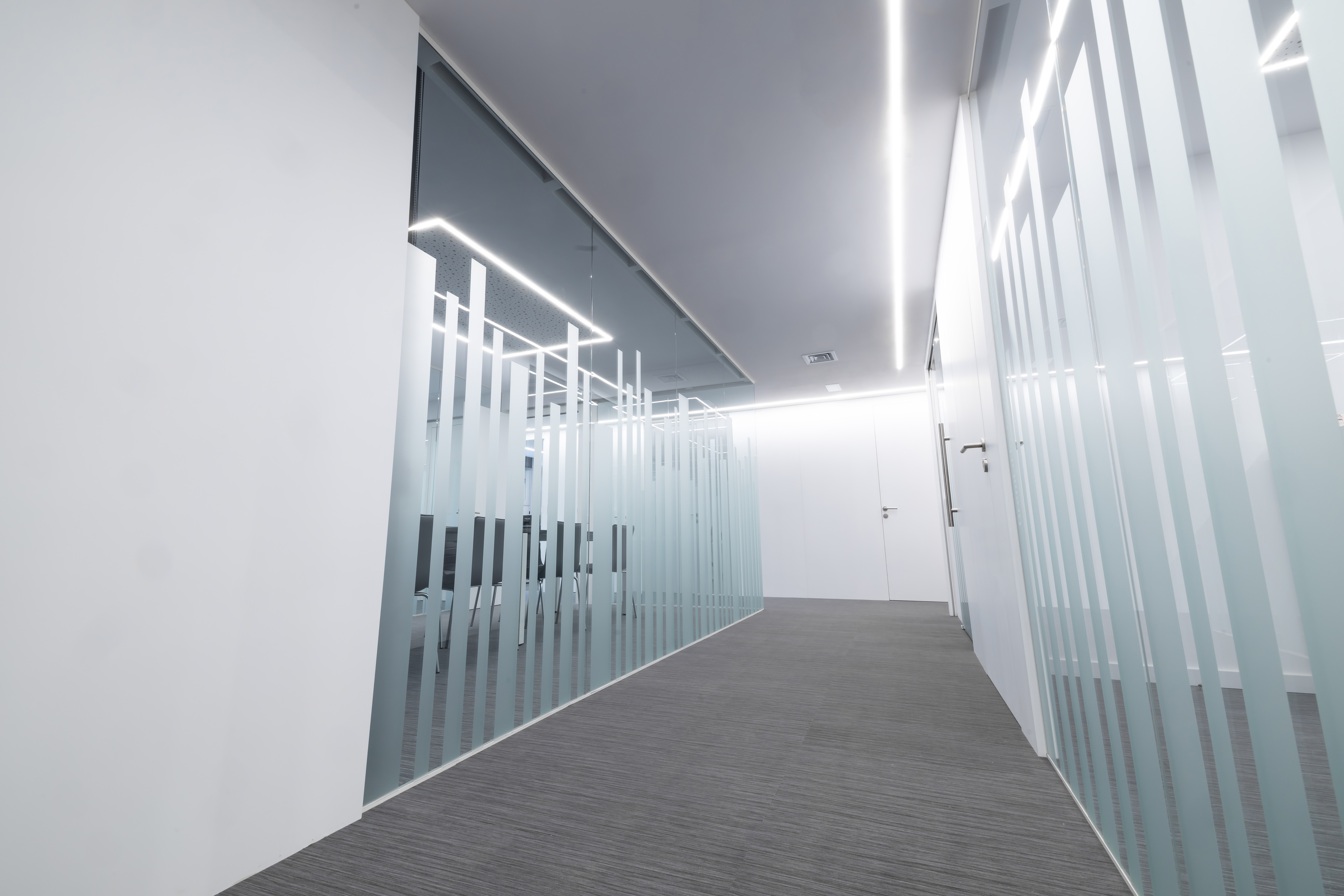

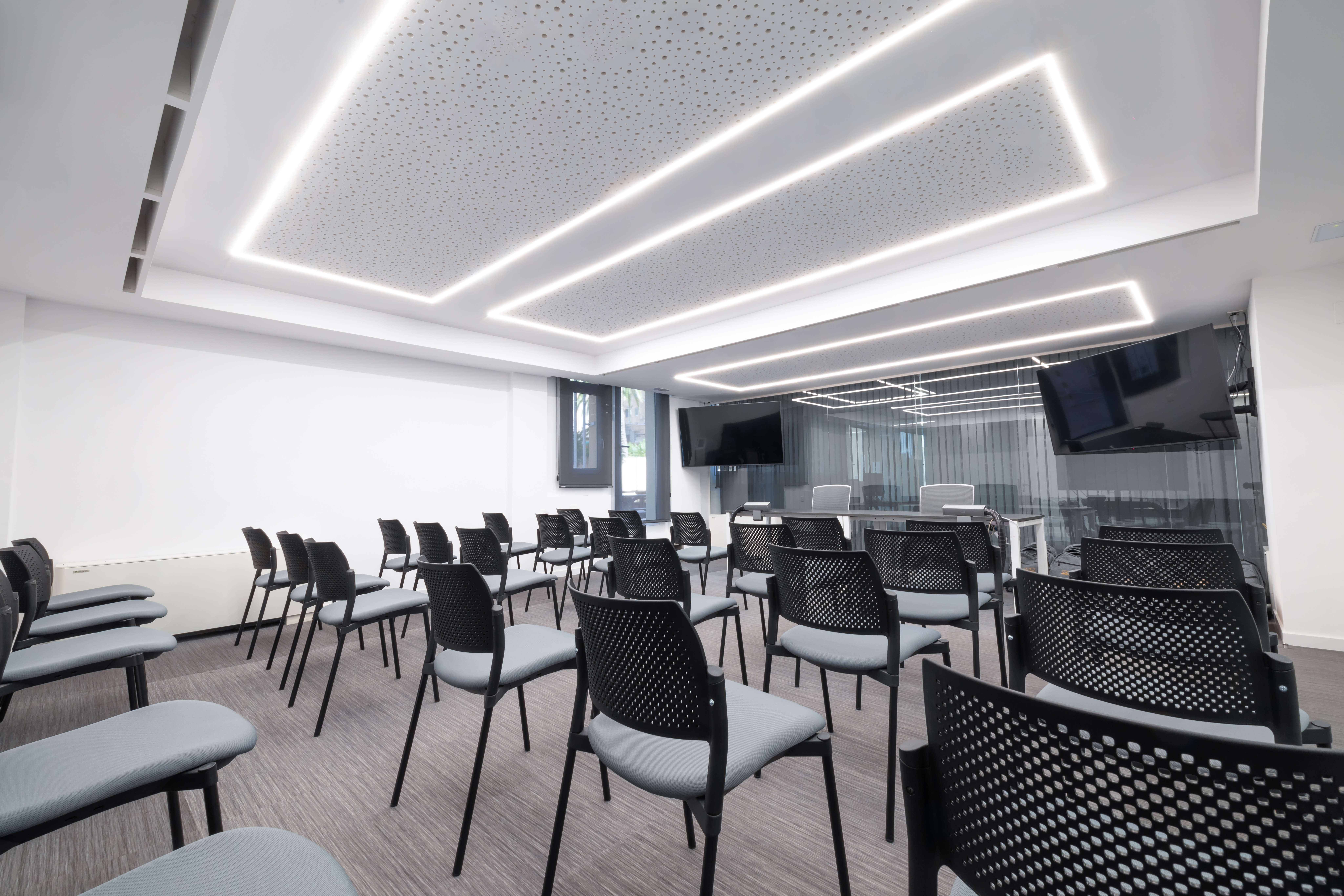

Oficinas del Gremi de Barcelona
Oficinas del Gremi de Barcelona
Application pictures

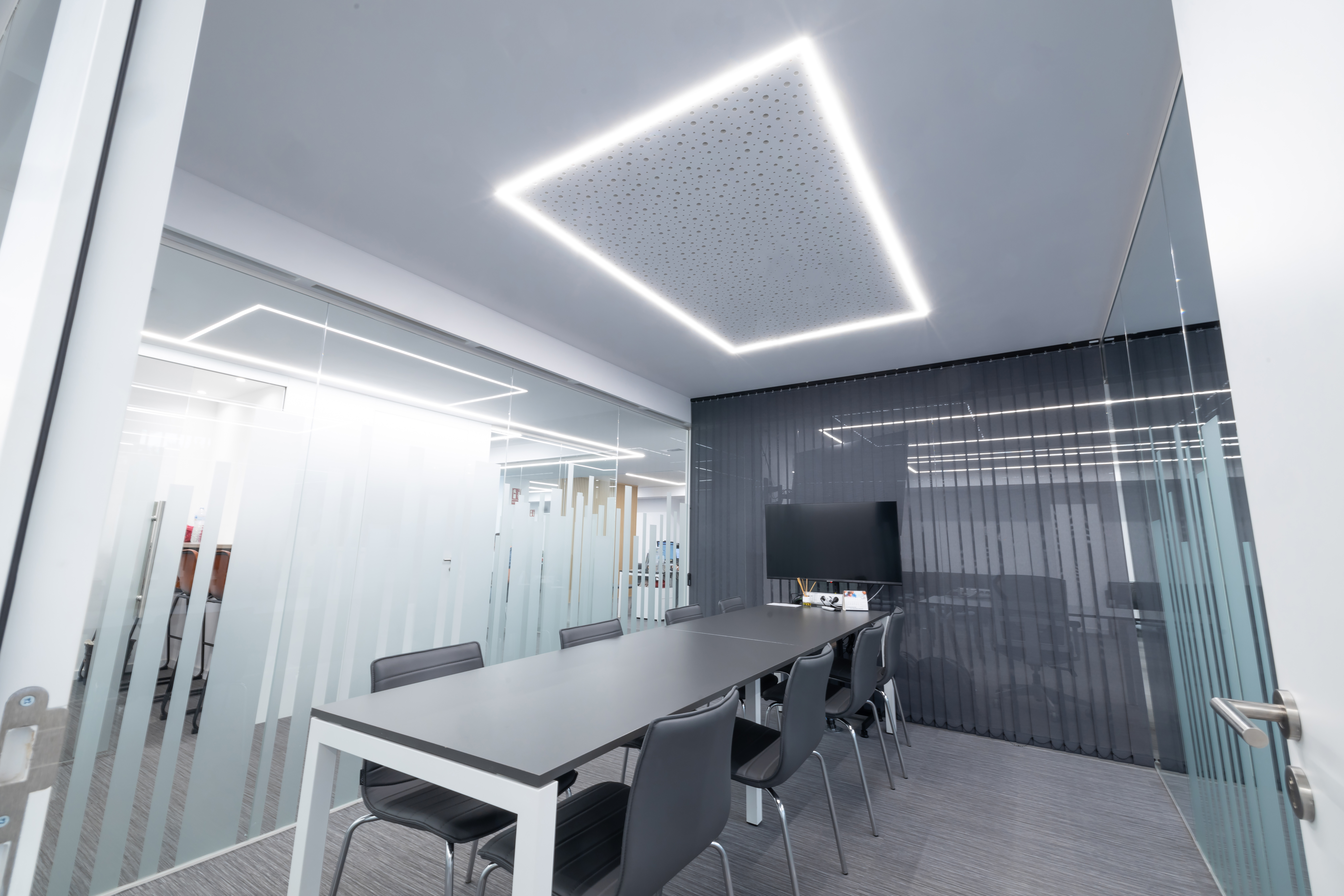

Oficinas del Gremi de Barcelona
Oficinas del Gremi de Barcelona
Application pictures

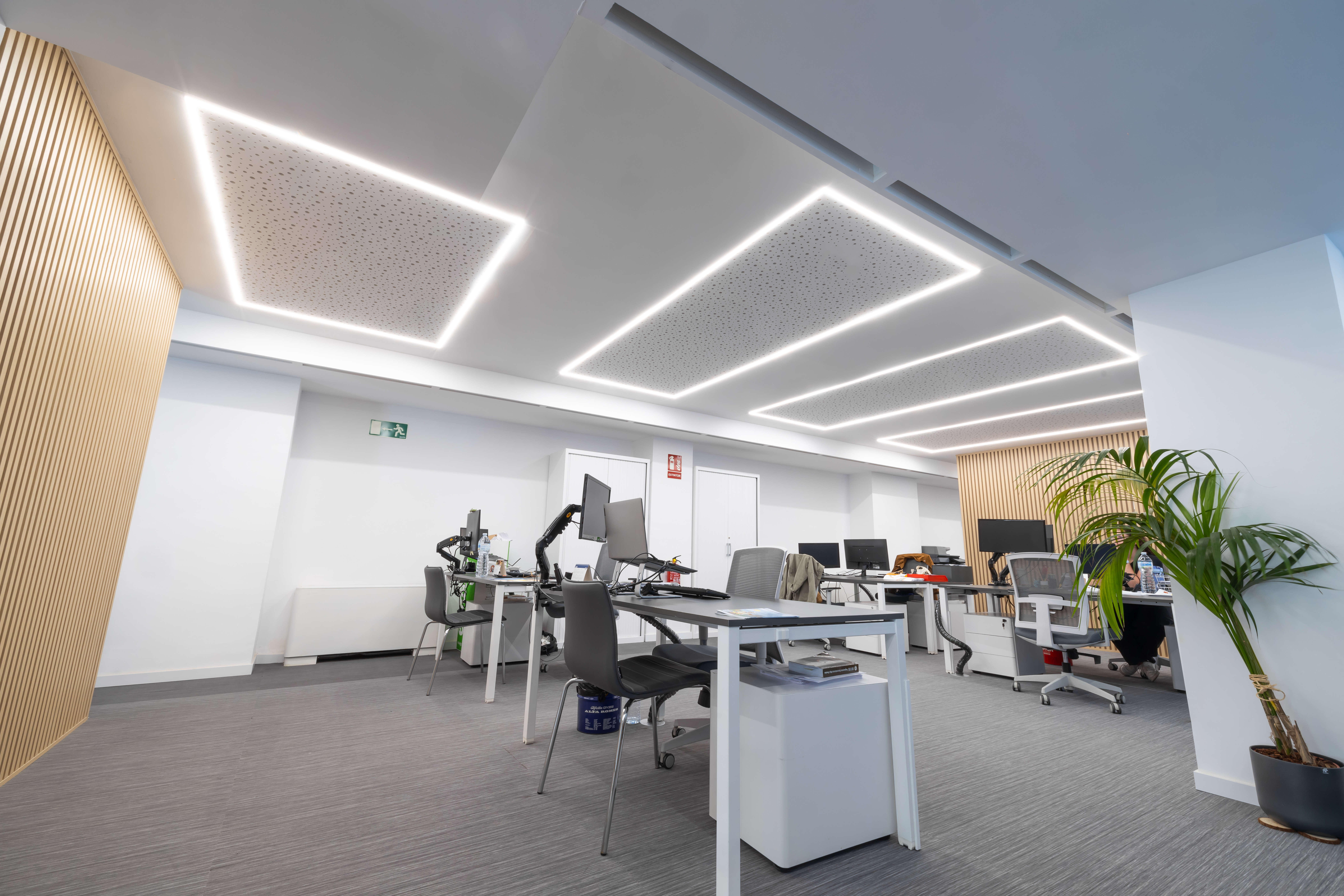

Oficinas del Gremi de Barcelona
