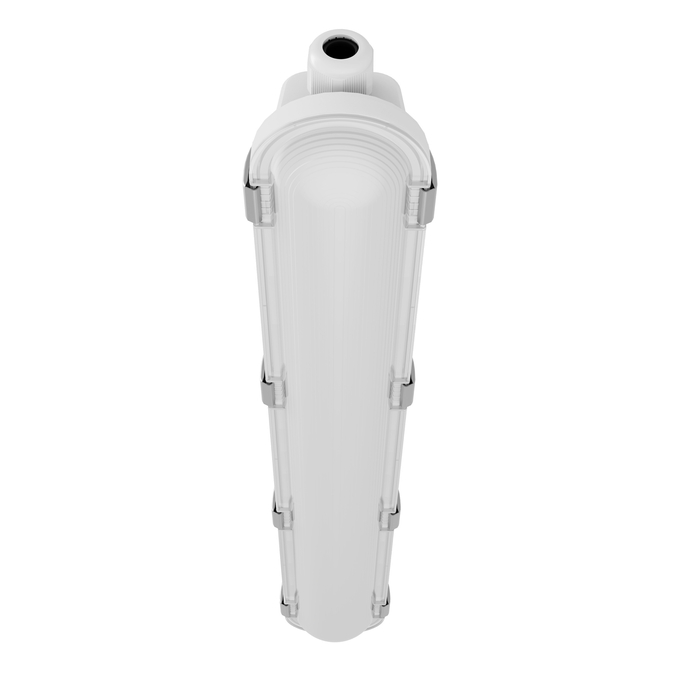

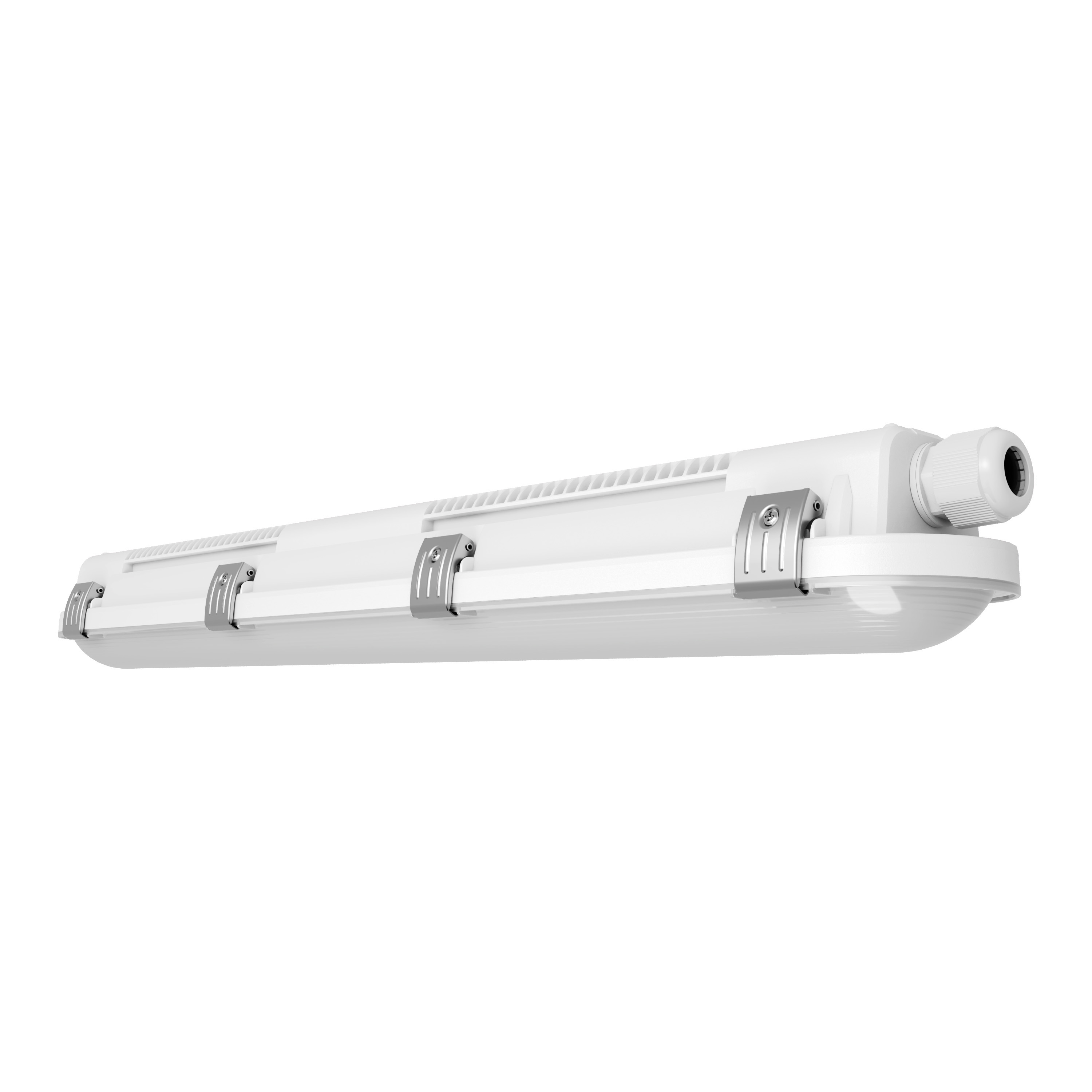

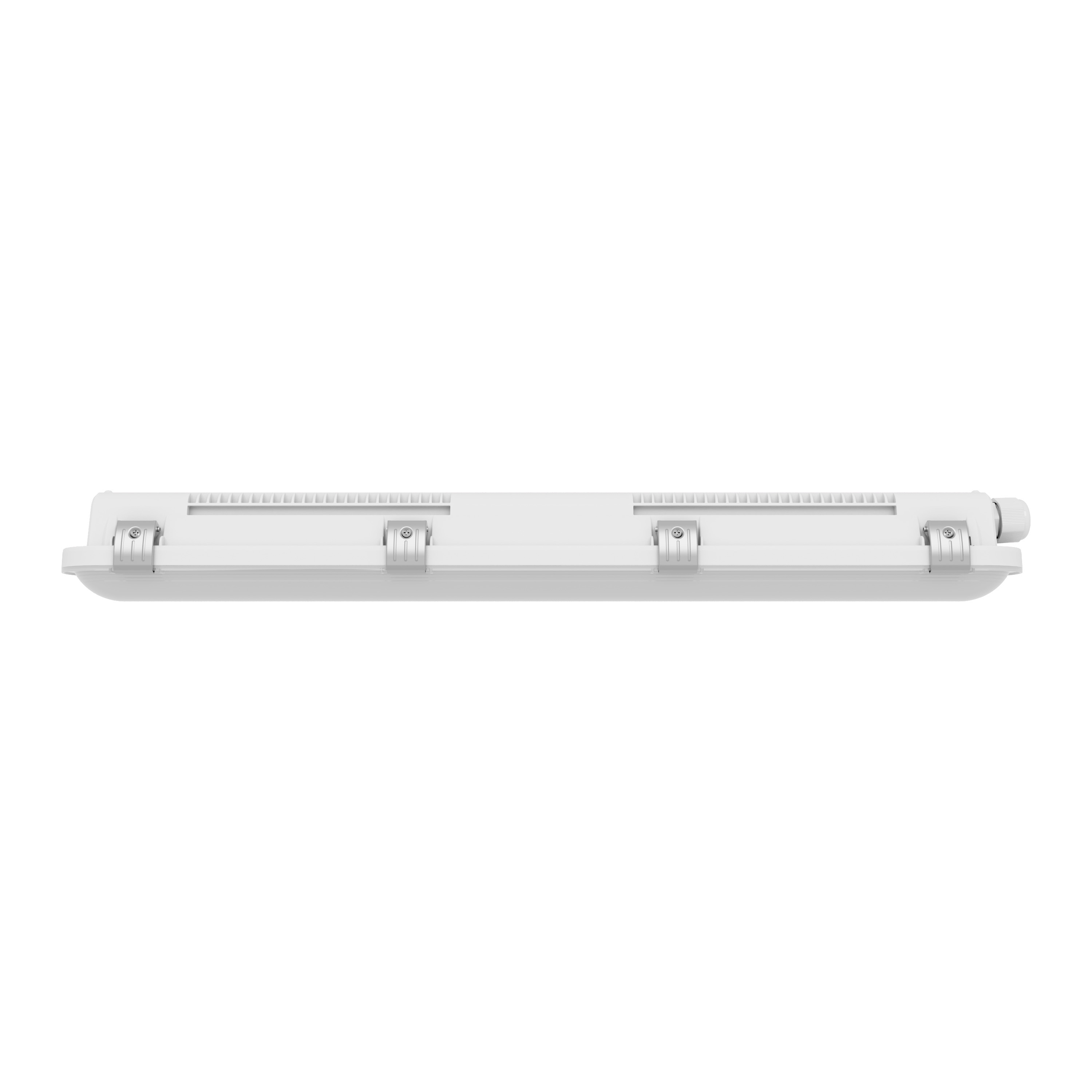

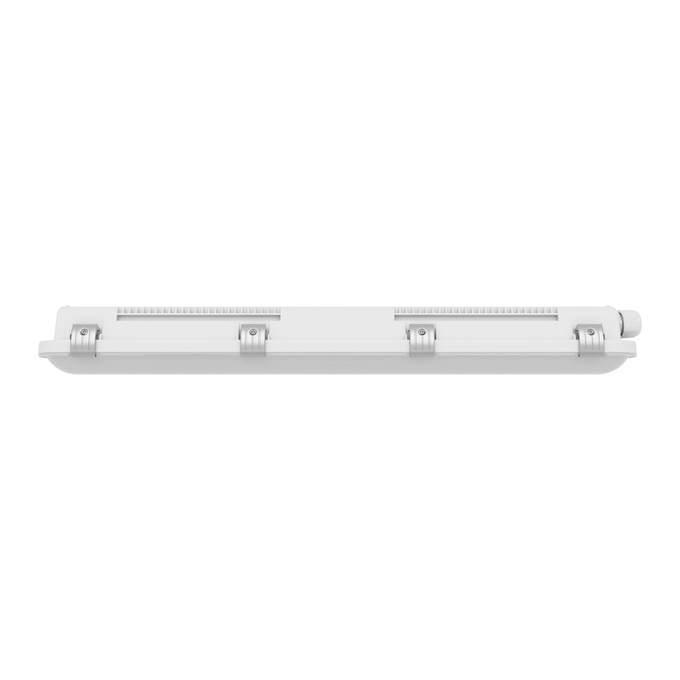

DP 5TH 600 P 13W ML 865 VW IP66

NEW

GTIN: 4099854848858 Folding box / 1 Show all packages

Download data sheet

Uniform light distribution
Energy savings up to 70 % (compared to luminaires that use fluorescent lamps)
Easy installation, no tools required for connection
Highly versatile due to selectable lumen steps (Multi Lumen) via dip switches on the driver
Low flicker ≤ 5 %
Good glare reduction (UGR < 25) up to 8000 lm
26 cm installation range for flexible mounting bracket positioning
Enables participation in funding programs in certain countries to replace light source and driver
7 years guarantee

Stainless steel clamps with safety screws included
Mounting accessories included (suspension kit, theft protection kit, 2nd cable gland and 2 grommets)

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.

Nominal wattage	13 W / 11 W / 9 W / 7 W
Nominal voltage	220…240 V
Mains frequency	0/50/60 Hz
Nominal current	63mA / 54mA / 44mA / 34 mA
Inrush current	14 A
Inrush current time T_h50	51 µs
Max. number of luminaires per miniature circuit breaker B16	53
Max. number of luminaires per miniature circuit breaker C10	42
Max. number of luminaires per miniature circuit breaker C16	68
Power factor λ	> 0.90
Total harmonic distortion	< 15 %
Protection class	I
Surge capability (L-N)	1 kV
Surge capability (L/N-Ground)	2 kV
Operating mode	Integrated LED driver

Luminous flux	2400 lm / 2020 lm / 1660 lm / 1280 lm
Luminous efficacy	185 lm/W / 184 lm/W / 183 lm/W
Color temperature	6500 K
Light color (designation)	Cool Daylight
Color rendering index Ra	> 80
Standard deviation of color matching	≤3 sdcm
Low flicker	Yes
Flickering metric (Pst LM)	< 1
Stroboscope effect metric (SVM)	< 0.4
Photobiological safety group acc. to EN62778	RG0
Beam angle	110 °
UGR	< 25

Nominal wattage	Color temperature	Luminous flux	Luminous efficacy
13 W	6500 K	2400 lm	185 lm/W
11 W	6500 K	2020 lm	184 lm/W
9 W	6500 K	1660 lm	184 lm/W
7 W	6500 K	1280 lm	183 lm/W

Product color	Grey
Housing color	Grey
RAL Color (most similar)	RAL 9018
Body material	Polycarbonate (PC)
Cover material	Polycarbonate (PC)
Light emitting surface material	Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12	850 °C
Mercury content	0.0 mg

Ambient temperature range	-30…+50 °C
Temperature range at storage	-40…+80 °C
Type of connection	Screwless terminal, 5-Pole
Type of protection	IP66
Protection class IK (shock resistance)	IK10 ¹⁾
Dimmable	No
Mounting type	Surface/Suspended
Mounting location	Ceiling; Wall
Application environment	Indoor
Mechanically adjustable	No
With light source	Yes
Replaceable light source	Yes

¹⁾ The IK10 rating applies only when all clips are fully secured with screws / otherwise, the luminaire will be rated as IK08

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Output current	55mA / 48mA / 40mA / 30 mA
ECG - Output ripple current	< 5 %

Type of Emergency Lighting (EL)	EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test	None

Standards	EPD
Luminaire with limited surface temperature, "D sign"	Yes
Ball shot safe	No
EPD	LEDV-00090-V01.01-EN
Replaceable light source (EPREL)	Only by an expert

Product remark	Available from September 2026; When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime
Added function	MULTI LUMEN

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
