DALI Sensor Coupler HF LS LI
DALI Sensor Coupler HF LS LI
GTIN: 4052899141728
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Sensor integration in DALI
- Small housing design
Areas of application
- Connection of light and presence sensors in DALI systems
- Ceiling or independent installation via ECO CI KIT possible
- Luminaire and ceiling integration
- Installation in industry and office luminaires
- Installation in IP protected luminaires possible
- Areas with high ceilings
Product features
- Mounting height: 2…13 m
- Combined daylight and motion detection
- Suitable for daylight-dependent control
- Presence detection via active radar sensor element
- Light sensor operating range: 20…800 lx (measured at sensor)
Equipment / Accessories
- Separate installation possible with ECO CI KIT
- Suitable for many OSRAM DALI control systems
Electrical data
| Nominal wattage | 0.45 W |
| Nominal voltage | 230 V |
| Mains frequency | 50 Hz |
Dimensions & Weight
| Length | 118.00 mm |
| Mounting hole spacing, length | 110,0 mm |
| Width | 30.00 mm |
| Height | 21.00 mm |
| Product weight | 50.00 g |
Temperatures & operating conditions
| Ambient temperature range | 0…+50 °C |
Additional product data
| Number of control outputs | 1 |
Capabilities
| Dimmable | No |
| Dimming interface | DALI |
| Number of control outputs | 1 |
| Type of installation | Luminaire integration/Ceiling integration |
Certificates & Standards
| Approval marks – approval | CE |
| Protection class | II |
| Type of protection | IP20 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4052899141728 | Folding box 1 |
128 mm x 37 mm x 27 mm | 64.00 g | 0.13 dm³ |
| 4052899141735 | Shipping box 25 |
200 mm x 140 mm x 147 mm | 1617.00 g | 4.12 dm³ |
User instruction / safety instructions
538505_Manual DALI Sensor Coupler HF LS LI
538505_Manual DALI Sensor Coupler HF LS LI
User instruction / safety instructions
DALI Sensor Coupler HF LS LI
DALI Sensor Coupler HF LS LI
Declarations of conformity
538499_CE declaration DALI Professional System
538499_CE declaration DALI Professional System
Product image: white background, diagonal
505625_DALI SENSORCOUP HF LS LI
505625_DALI SENSORCOUP HF LS LI

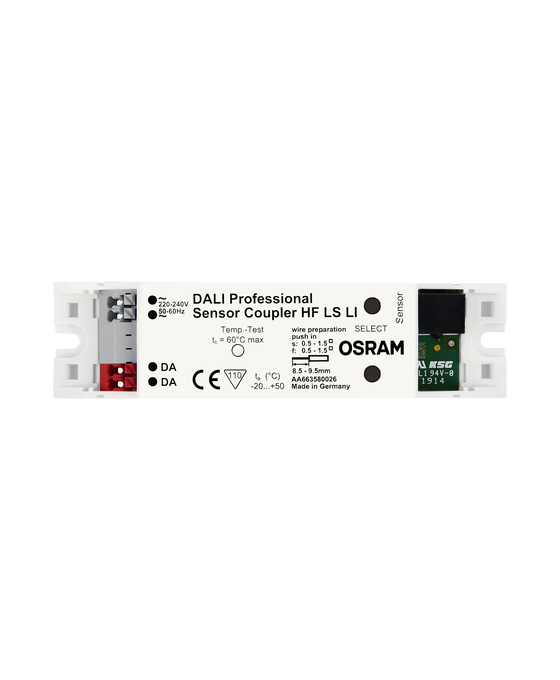

Product image: white background, horizontal
505643_DALI SENSORCOUP HF LS LI
505643_DALI SENSORCOUP HF LS LI
Product line drawing with letters
326385_DALI PRO SENSOR COUPLER
326385_DALI PRO SENSOR COUPLER
Product line drawing with numbers
318885_MULTIeco
318885_MULTIeco
Product line drawing, front, no dimensions
330760_DALI PRO SENSOR COUPLER
330760_DALI PRO SENSOR COUPLER
CAD data 3D PDF
DALI Sensor Coupler CAD pdf
DALI Sensor Coupler CAD pdf
| EAN | EFO number |
|---|---|
| 4052899141728 | 4518615 |
