DALI COUPLER LS HIGHBAY G2
DALI COUPLER LS HIGHBAY G2
GTIN: 4062172072137
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- DALI-2 certified
- Adaptable light sensor sensitivity for different mounting height
- Extended terminal section enables mains looping
- Flexible addressing via DALI-2
- Multiple couplers connectable to the same DALI line
Areas of application
- Industry
- Production halls
- Sports halls
- Logistic centers
- Areas with high ceilings
- Connection of light and presence sensors in DALI systems
- Suitable for indoor installations
- Production and assembly facilities
- Open-plan offices, corridors and storage rooms
- Corridors
- Strip lighting in factory halls
Product features
- Coupler for integration of light and presence information in DALI installations
- Integrated light sensor
- Adapter for integration of High Bay or Vision Sensor for motion detection
Equipment / Accessories
- High Bay Sensor for big installation heights
- Vision Sensor for wide detection range
Electrical data
| Nominal wattage | 0.10 W |
| Nominal voltage | 16 V |
| Mains frequency | 0 Hz |
Dimensions & Weight
| Length | 139.00 mm |
| Width | 118.00 mm |
| Height | 37.00 mm |
| Product weight | 74.00 g |
Colors & materials
| Product color | White |
Temperatures & operating conditions
| Ambient temperature range | -20…+50 °C |
Capabilities
| Dimmable | No |
| Dimming interface | DALI-2 |
| Maximum installation height | 13 m |
| Type of installation | On-top ceiling mounting |
| Operating range, light sensor | 20…800 lx |
Certificates & Standards
| Approval marks – approval | CE |
| Protection class | II |
| Type of protection | IP20 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4062172072137 | Folding box 1 |
126 mm x 41 mm x 127 mm | 122.00 g | 0.66 dm³ |
| 4062172072144 | Shipping box 20 |
270 mm x 225 mm x 285 mm | 2668.00 g | 17.31 dm³ |
User instruction / safety instructions
DALI2 COUPLER LS HIGHBAY
DALI2 COUPLER LS HIGHBAY
Declarations of conformity
DALI SENSOR LS PD LI
DALI SENSOR LS PD LI
Product image: white background, diagonal
341349_DALI HIGHBAY ADAPTER
341349_DALI HIGHBAY ADAPTER

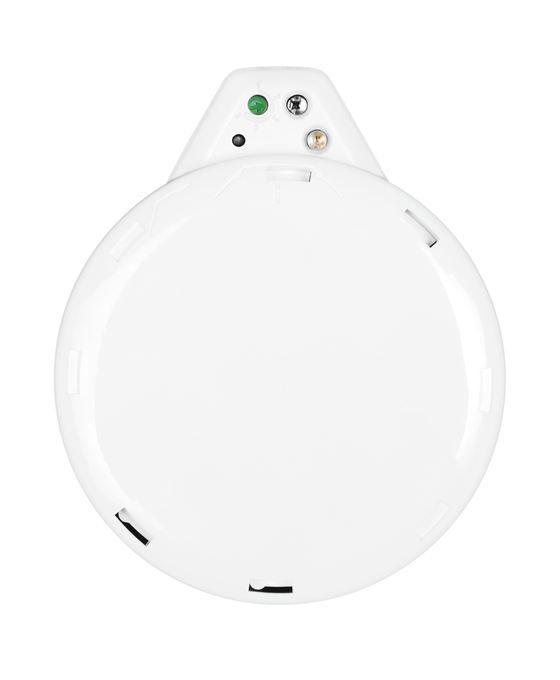

Product image: white background, upright
341350_DALI HIGHBAY ADAPTER
341350_DALI HIGHBAY ADAPTER
Product line drawing with letters
341353_DALI HIGHBAY ADAPTER
341353_DALI HIGHBAY ADAPTER
Product line drawing, front, no dimensions
341352_DALI HIGHBAY ADAPTER
341352_DALI HIGHBAY ADAPTER
| EAN | SEG number | ELDAS number |
|---|---|---|
| 4062172072137 | 7985357 | 535958210 |
