Phase out
LED STRIP SUPERIOR-800 PROTECTED

LS SUP -800/960/5/IP67

GTIN: 4058075237421 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Great scope of design options due to long and flexible LED strips
  • Easy installation, no tools required for connection
  • Easy mounting on many smooth surfaces thanks to self-adhesive tape
  • Suitable for use in damp conditions thanks to high type of protection
  • Maximum flexibility due to large range of accessories
  • Simple connection thanks to integrated cables on both sides
Areas of application
  • General indoor illumination
  • General outdoor illumination
  • Industry
  • Offices, retail outlets and conference rooms
  • Architecture lighting
  • Decorative illumination
Product features
  • Flexible and cuttable LED strip
  • Smallest cuttable unit: 50 mm
  • Lifetime (L80/B10): up to 60,000 h at Tp: 45°C
  • Luminous flux: 800 lm/m
  • Very good color rendering index Ra: > 90
  • Initial color consistency: ≤ 3 SDCM
  • Large range of color temperatures: from warm white to cool daylight
  • IESNA LM 79, LM80 compliant
  • Type of protection: IP67
  • Dimmable with suitable drivers, see also www.ledvance.com/dim
  • UV restistance (acc. IEC 60068-2-5)
  • Salt mist resistance (acc. IEC 60068-2-52)
Equipment / Accessories
  • Connectors, profiles and covers for several mounting options available
  • Endcaps have to be ordered separately
Electrical data
Nominal wattage 44.00 W
Construction wattage 44.00 W
Nominal wattage per meter 8,8 W
Nominal voltage 24 V 1)
Input voltage range 23…25 V 1)
Reverse Voltage 25 V 1)
Type of current DC
Nominal current 1980.000 mA
1) VDC
Photometrical data
Luminous efficacy 101 lm/W
Luminous flux 4475 lm
Luminous flux per meter 895 lm
Luminous flux per module chain 4475 lm
Color temperature 6000 K
Color rendering index Ra > 90
Light color LED Daylight
Light color (designation) Cool Daylight
Standard deviation of color matching ≤3 sdcm
Light technical data
Beam angle 120 °
LED MODULE INFORMATION
Number of LEDs per meter 140
Number of LEDs per module 700
Number of LEDs per smallest unit 7
Dimensions & Weight
Length 5000.00 mm
Length – smallest unit 50,0 mm
Cable length 500.000
Width 13.00 mm
Height 3.70 mm
Prewired Yes
Conductor cross section 0.5 mm²
LED pitch 7.14 mm
Short pitch Yes
Product weight 265.00 g
Colors & materials
Cover material Silicone
Temperatures & operating conditions
Ambient temperature range -20…+50 °C 1)
Maximum temperature at tc test point 70 °C 2)
Temperature range in operation -20…+70 °C 3)
Performance temp. acc. to IEC 62717 45 °C
1) Providing that temperature at Tc point is below max value during operation
2) Exceeding the maximum specified ratings can reduce expected life time or destroy the LED strip
3) At the Tc point
Lifespan
Nominal lamp life time 60000 h
Capabilities
Dimmable Yes 1)
Lowest bending radius 50 mm
Self-adhesive Yes
Reverse polarity protection Up to maximum 25 VDC
1) Dimmable with suitable drivers, see also www.ledvance.com/dim
Certificates & Standards
Approval marks – approval ENEC 25, TUV, RoHS, CE, REACH
Standards Acc. to IEC 62031, Acc. to IEC 62493, Acc. to IEC TR 62778, Acc. to EN 50581, Acc. to EN 62031
Type of protection IP67
Energy consumption 48.40 kWh/1000h
Energy efficiency class A+
Salt mist resistance acc. IEC 60068-2-52 Yes
UV resistance acc. IEC 60068-2-5 Yes
LOGISTICAL DATA
Temperature range at storage -35…+85 °C
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075237421 Folding box
1		 336 mm x 30 mm x 334 mm 346.00 g 3.37 dm³
4058075237438 Shipping box
10		 343 mm x 333 mm x 345 mm 3783.00 g 39.41 dm³
4058075258860 Shipping box
20		 700 mm x 347 mm x 363 mm 8835.00 g 88.17 dm³
User instruction / safety instructions
LED STRIP SUPERIOR IP67
PDF (2.12 MB)
Declarations of conformity
EU Declaration of Conformity 3956203 LS SUP
PDF (279.22 KB)

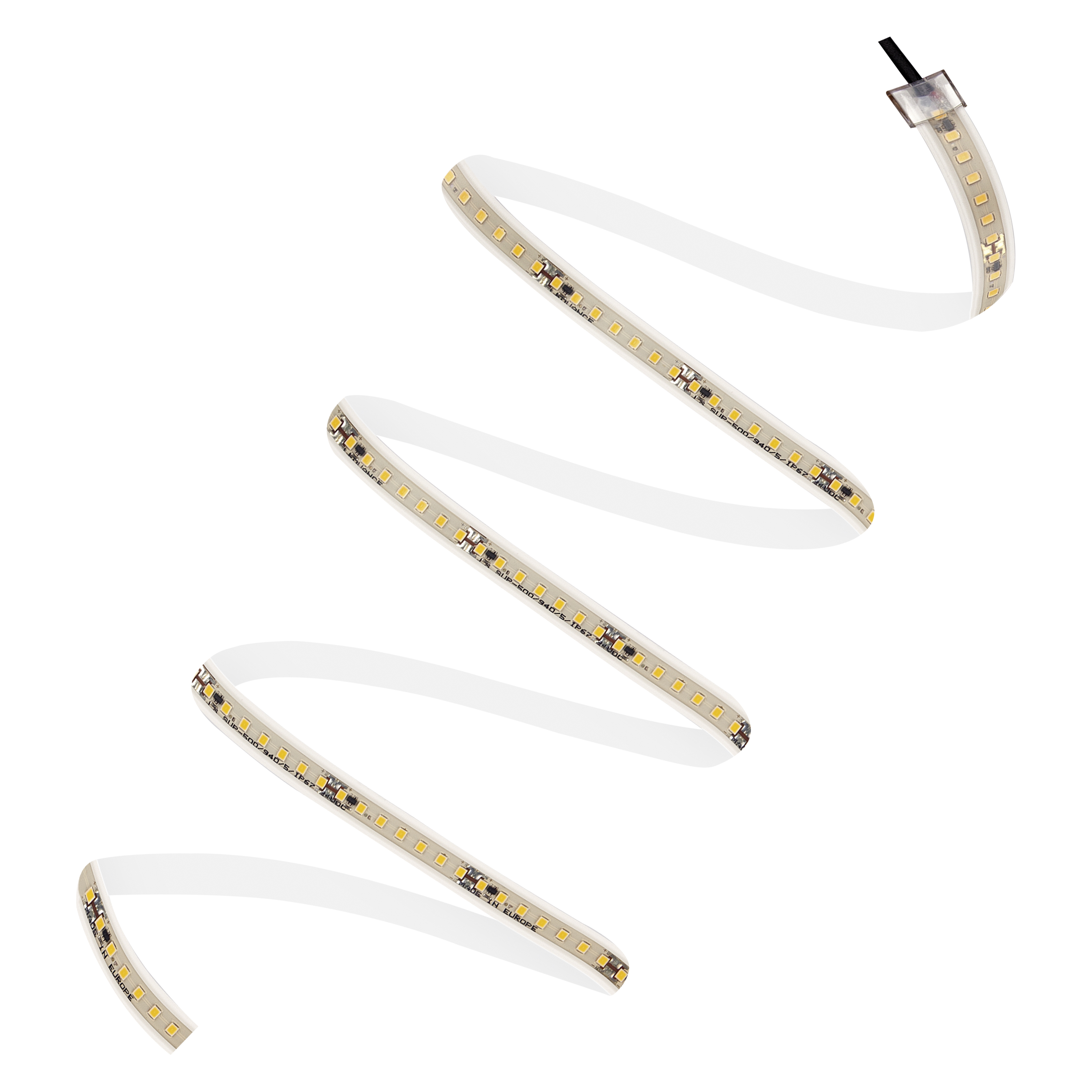

Product image: white background, diagonal
LED Strips SUPERIOR Protected
JPG (1.17 MB)

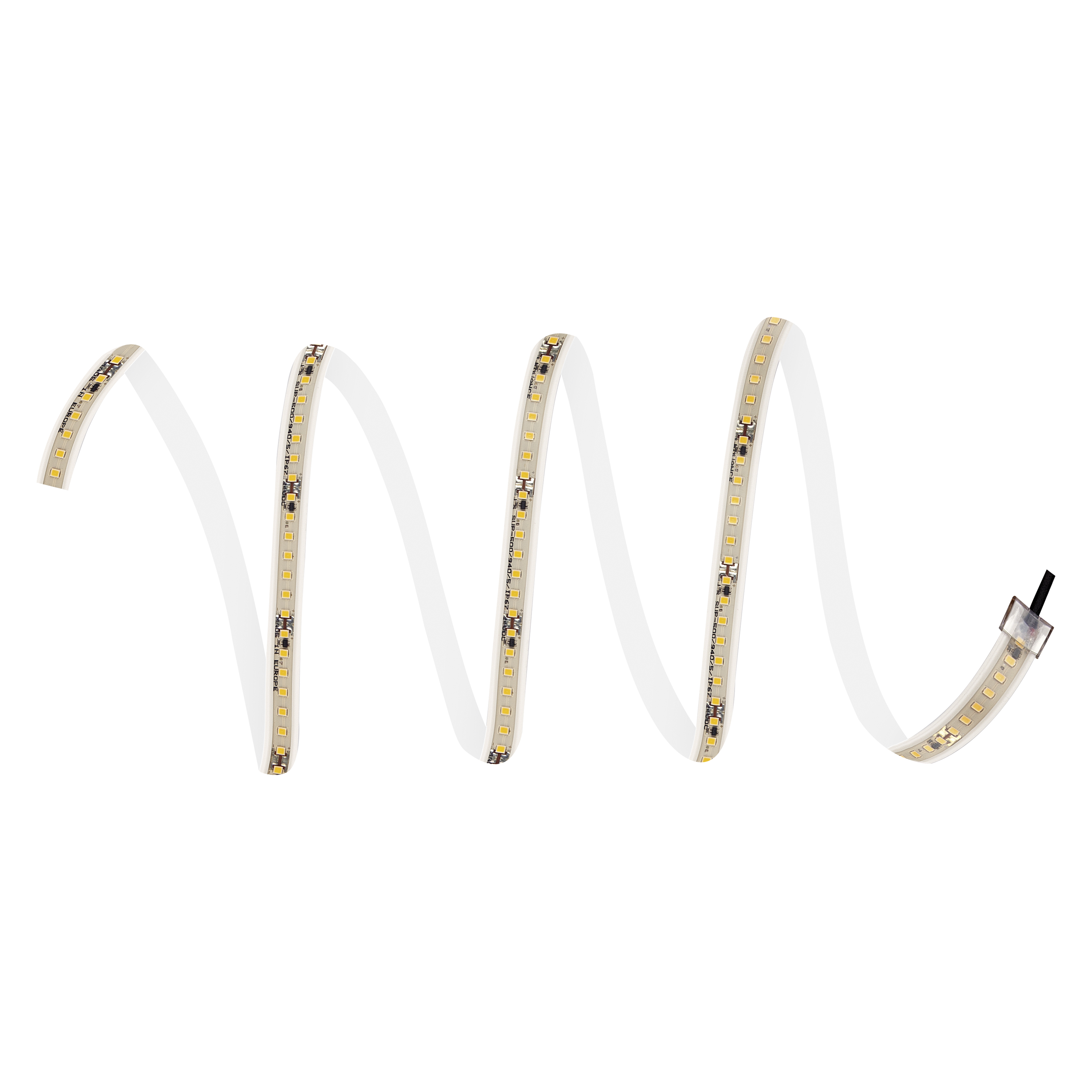

Product image: white background, horizontal
LED Strips SUPERIOR Protected
JPG (1.03 MB)
Product line drawing with letters
LED Strips SUPERIOR Protected
SVG (59.42 KB)
Product line drawing with numbers
LED Strip Superior Protected - 5m
SVG (65.01 KB)
Product line drawing, front, no dimensions
LED Strips SUPERIOR Protected
SVG (49.81 KB)
Product line drawing - technical
LED Strip Superior Protected - 5m
SVG (49.81 KB)
Packaging image, spacial
LED STRIP SUP 800 960 5 IP67 MiEU
TIF (64.97 MB)
LDT file (Eulumdat)
LS SUP-800-960-5-IP67
LDT (4.02 KB)
EAN STK number ELDAS number
4058075237421 4246029 941602280
