CV Power supplies 24 V
OT SLIM 160/220-240/24
GTIN: 4062172135894
Unpacked / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Installation in cold and hot environments
- Very stable output power
- High electronical reversible short-circuit, overload, overtemperature protection
- Independent installation possible
Areas of application
- Facades, public squares, cruise ships
- Signage
- Suitable for indoor and outdoor installations
Product features
- Type of protection: IP20
- Wide operating temperature range: -20…+50 °C
- Lifetime: up to 50,000 h (temperature at max. tc )
Electrical data
| Nominal wattage | 174.00 W |
| Nominal output power | 160 W |
| Nominal voltage | 220…240 V |
| Nominal output voltage | 24.2 V |
| Input voltage AC | 195.5…276 V |
| Input voltage DC | 176…250 V |
| U-OUT (working voltage) | 24 V |
| Inrush current | 60 A |
| Mains frequency | 50/60 Hz |
| Total harmonic distortion | < 5 % |
| Power factor λ | 0.95 |
| Device power loss | 13.9 W |
| Max. ECG no. on circuit breaker 16 A (B) | 5 |
| Max. ECG no. on circuit breaker 25 A (B) | 5 |
| Surge capability (L-N) | 1 kV |
| Galvanic isolation | SELV |
Dimensions & Weight
| Length | 404.00 mm |
| Mounting hole spacing, length | 356.0 mm |
| Width | 30.00 mm |
| Height | 21.50 mm |
| Cable cross-section, input side | 0.75…1.5 mm² |
| Cable cross-section, output side | 0.75…1.5 mm² |
| Wire preparation length, input side | 5,0 mm |
| Wire preparation length, output side | 5,0 mm |
| Product weight | 285.00 g |
Colors & materials
| Casing material | Plastic |
| Body material | Plastic |
Temperatures & operating conditions
| Ambient temperature range | -25…+45 °C |
| Maximum temperature at tc test point | 75 °C |
| Max.housing temperature in case of fault | 110 °C |
| Permitted rel. humidity during operation | 5…85 % 1) |
1) Maximum 56 days/year at 85 %
Lifespan
| ECG lifetime | 50000 h |
Capabilities
| Dimmable | No |
| Overload protection | Automatic reversible |
| Short-circuit protection | Automatic reversible |
| Suitable for fixtures with prot. class | I, II |
| Type of connection, output side | Screw terminal |
Certificates & Standards
| Approval marks – approval | CE, CB, ENEC, CCC, EAC, RCM, BIS |
| Standards | Acc. to IEC 61347-2-13, Acc. to IEC 62384, Acc. to EN 55015, Acc. to IEC 61000-3-2, Acc. to IEC 61000-3-3 |
| Protection class | II |
| Type of protection | IP20 |
LOGISTICAL DATA
| Temperature range at storage | -40…+85 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4062172135894 | Unpacked 1 |
|||
| 4062172135900 | Shipping box 30 |
417 mm x 192 mm x 165 mm | 8996.00 g | 13.21 dm³ |
User instruction / safety instructions
14614288 OT SLIM
14614288 OT SLIM
Declarations of conformity
OT SLIM
OT SLIM

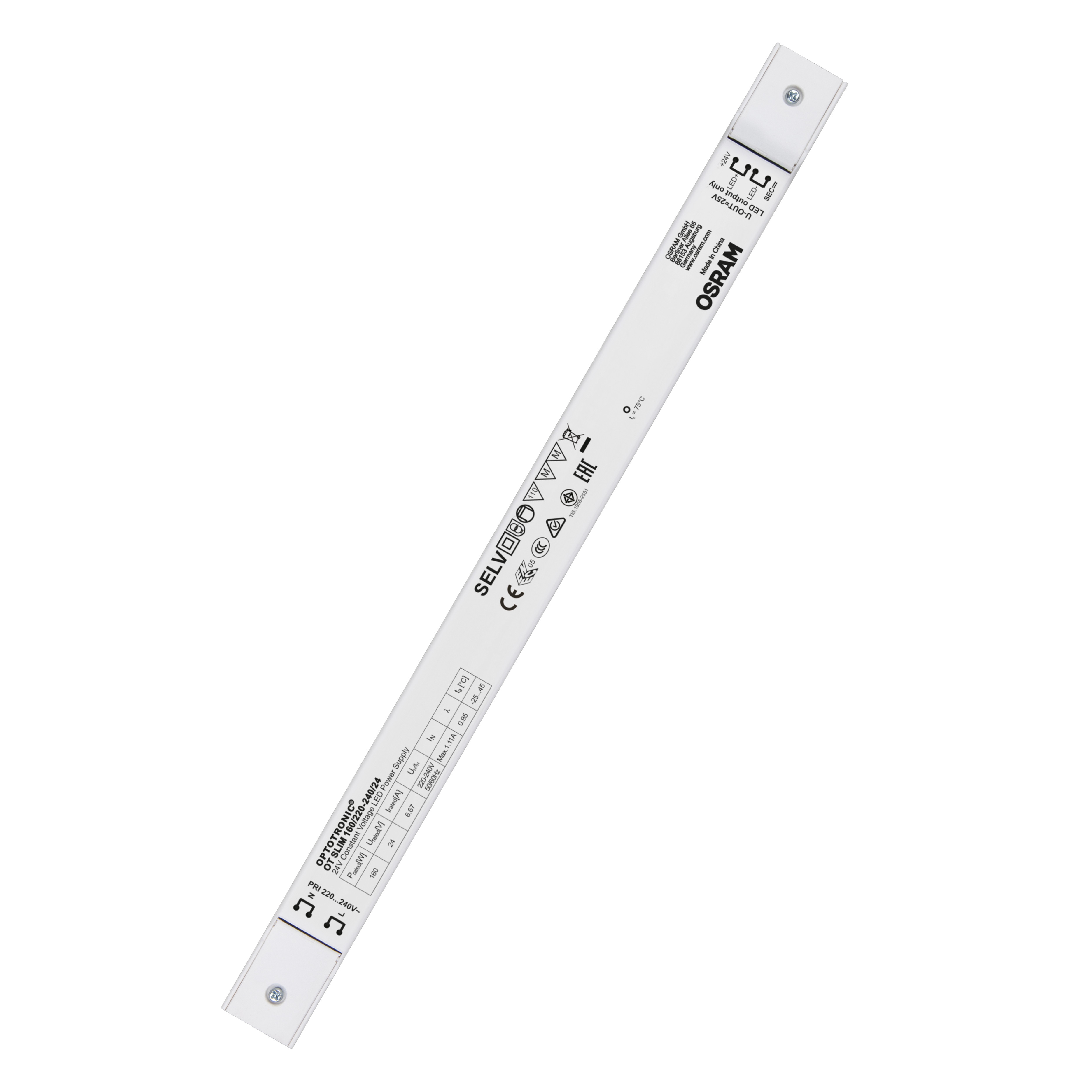

Product image: white background, diagonal
OT SLIM 160
OT SLIM 160

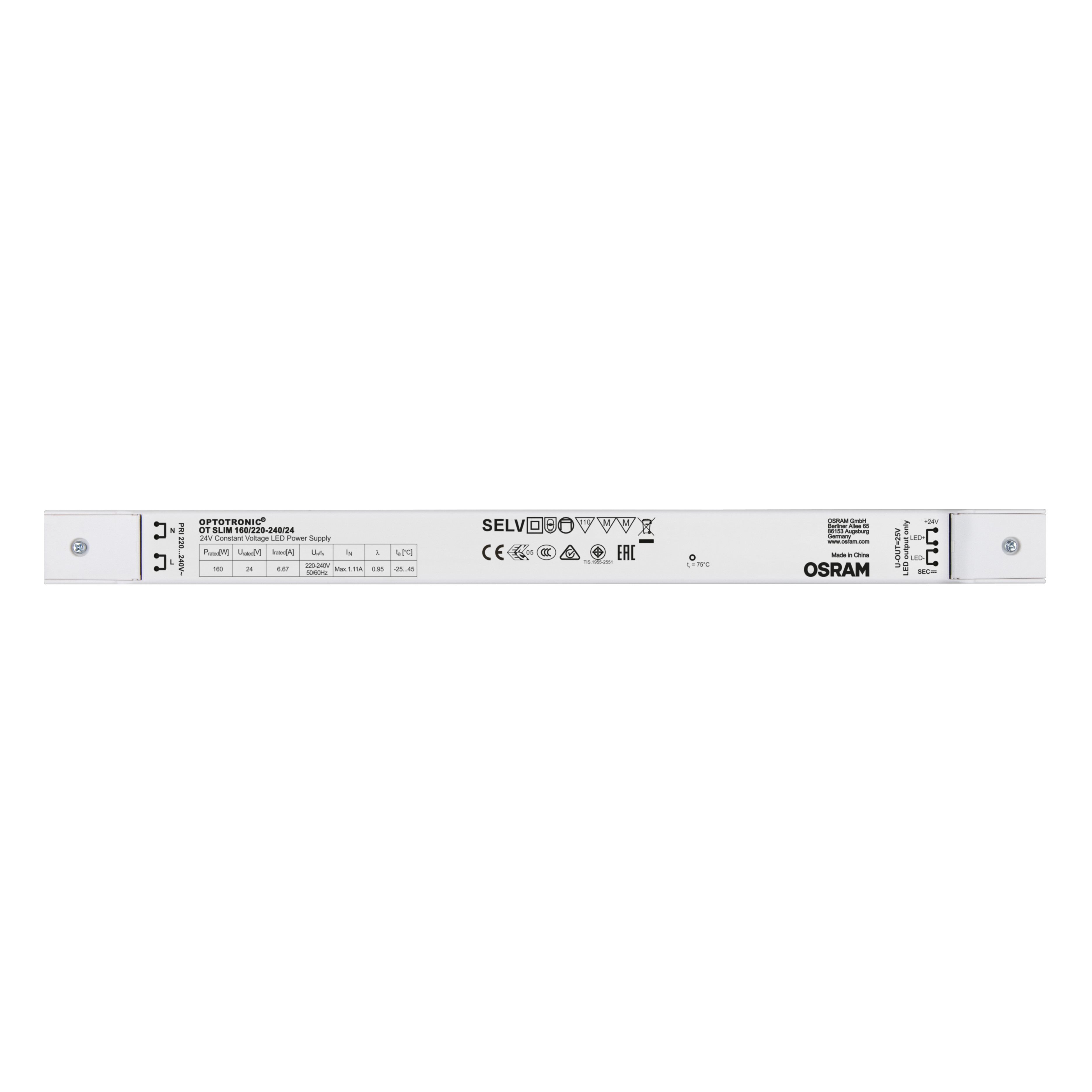

Product image: white background, horizontal
OT SLIM 160
OT SLIM 160

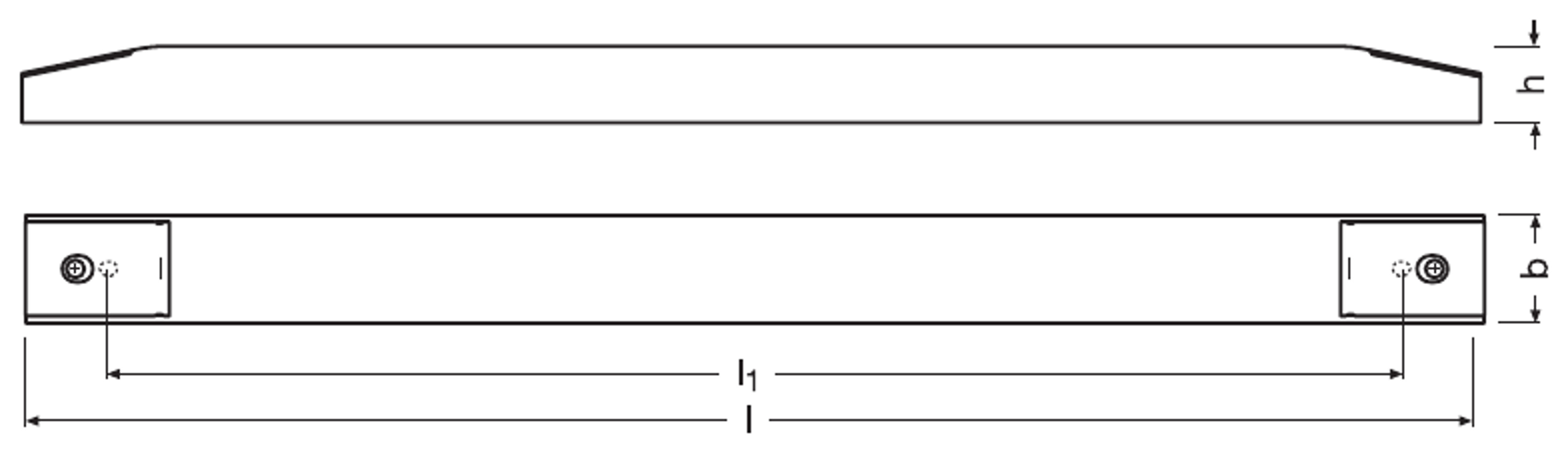

Product line drawing with letters
OT SLIM 160
OT SLIM 160

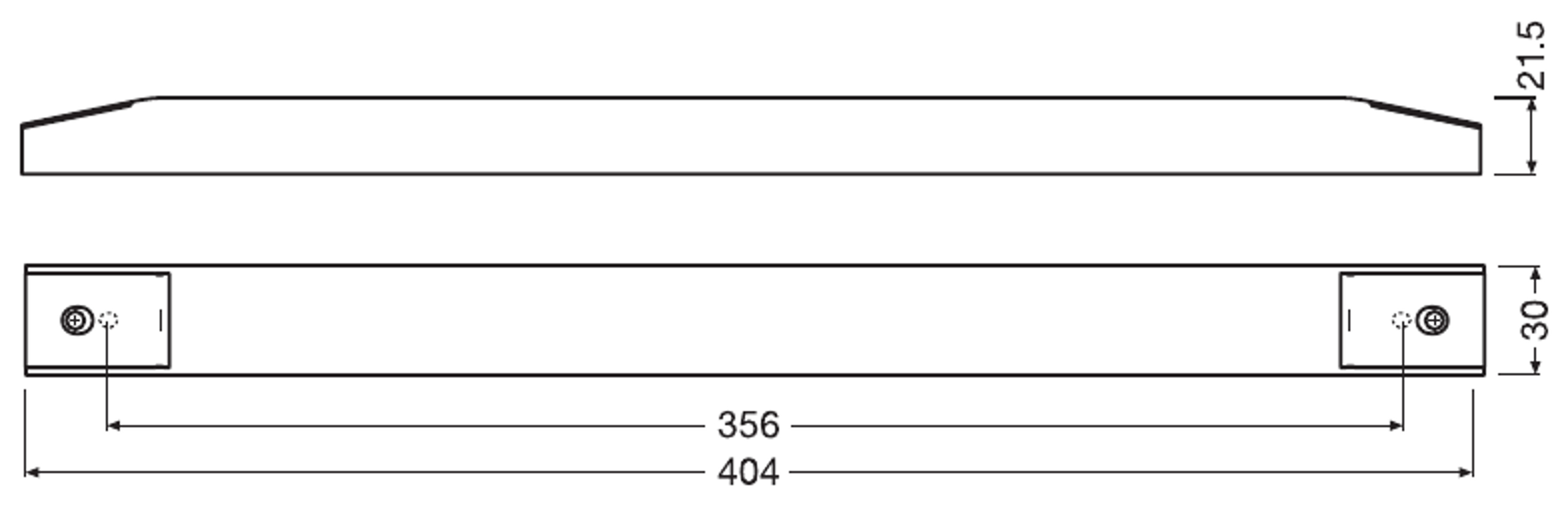

Product line drawing with numbers
OT SLIM 160
OT SLIM 160
CAD STEP 3D
OT SLIM 160-220-240-24
OT SLIM 160-220-240-24
| EAN | ELDAS number |
|---|---|
| 4062172135894 | 919492150 |
