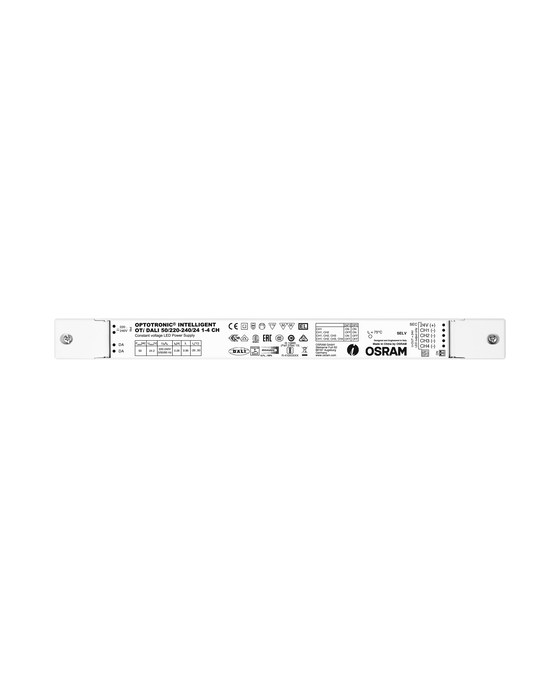

OTi DALI 50/220…240/24 1…4 CH

GTIN: 4052899452916 Unpacked / 1 Show all packages

Contact sales

Intelligent power matching thanks to Smart power supply
Slim form factor for mounting on the cove or in linear luminaires
No stroboscopic effect thanks to patented high PWM frequency management (> 2 kHz)
Suitable for installation in emergency lighting systems according to EN 60598-2-22
Available as single-channel or multi-channel with DT6 and DT8 in one device
DALI message detection "LED Module failure"
IP rating: IP20

Dimmable via Touch DIM
LED driver whose output power can be shared arbitrarily among the 2 or 4 channels
Dimming range: 0.1…100 %
Line frequency: 0 Hz | 50 Hz | 60 Hz

Nominal wattage	50.00 W
Nominal output power	50 W
Nominal voltage	220…240 V
Nominal output voltage	24 V ¹⁾
Input voltage AC	198…264 V
Input voltage DC	176…276 V
U-OUT (working voltage)	24.2 V
Nominal current	0.26 A
Inrush current	43 A
Mains frequency	50…60 Hz
Total harmonic distortion	< 5 %
Power factor λ	> 0.95
ECG efficiency	92 %
Device power loss	5 W
Max. ECG no. on circuit breaker 10 A (B)	9
Max. ECG no. on circuit breaker 16 A (B)	15
Max. ECG no. on circuit breaker 25 A (B)	27
Surge capability (L/N-Ground)	2 kV
Surge capability (L-N)	1 kV
Galvanic isolation	SELV
Power loss in stand-by mode	0.3 W

¹⁾ DC voltage

Length	346.00 mm
Mounting hole spacing, length	300.6 mm
Width	32.00 mm
Height	22.00 mm
Cable cross-section, input side	0,5…2,5 mm²
Cable cross-section, output side	0.2…1.5 mm²
Wire preparation length, input side	6,0 mm
Wire preparation length, output side	5,0 mm
Product weight	191.00 g

Casing material	Plastic
Body material	Plastic

Ambient temperature range	-20…+45 °C
Maximum temperature at tc test point	70 °C
Max.housing temperature in case of fault	115 °C
Permitted rel. humidity during operation	5…85 % ¹⁾

¹⁾ Maximum 56 days/year at 85 %

ECG lifetime

50000 h ¹⁾

¹⁾ At T_case = 70°C at T_c point / 10% failure rate

Encapsulated

Yes

Dimmable	Yes
Dimming interface	DALI-2
Dimming range	0…100 %
Overheating protection	Automatic reversible
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
No-load proof	Yes
Max. cable length to lamp/LED module	10 m
Suitable for fixtures with prot. class	I, II
Type of connection, output side	Screw terminal

Approval marks – approval	CE, ENEC 10, VDE, VDE-EMC, RCM, EAC, CCC, BIS
Standards	Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 62384, Acc. to EN 60598-2-22, Acc. to EN 62386, Acc. to EN 55015
Protection class	II
Type of protection	IP20

Temperature range at storage

-40…+85 °C

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
