LED DRIVER VALUE
DR-VAL -15/220-240/350
GTIN: 4058075240193
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Suitable for operation with many discrete LED and COB LED
- Excellent price/performance ratio
- 3 years guarantee
- Quick and simple installation
- High efficiency and reliability
Areas of application
- Suitable for LED luminaires and LED modules
- Applicable for luminaires of protection classes I and II
- For indoor SELV installations
- Offices, shopping centers, hospitals, restaurants, hotels
Product features
- Available in 15 W, 20 W, 30 W, 45 W and 60 W
- Integrated cable clamp for independent installation
- Lifetime: up to 35,000 h (at max. tc temperature)
- Type of protection: IP20
- Dedicated, constant output current
- Low ripple current < 5%
- Supply voltage: 220…240 V
- Operating frequency: 50/60 Hz
- Operated with less than 60 V: Safety extra-low voltage (SELV)
- Short-circuit and overlaod protection
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 15.00 W |
| Nominal output power | 15 W 1) |
| Nominal voltage | 220…240 V |
| Nominal output voltage | 30…46 V 2) |
| Input voltage AC | 198…264 V 3) |
| U-OUT (working voltage) | 60 V |
| Type of current | DC |
| Nominal current | 140 mA |
| Nominal output current | 350 mA 4) |
| Inrush current | 6 A |
| Output current tolerance | ±5 % |
| Output ripple current (100 Hz) | < 5 % |
| Mains frequency | 50…60 Hz |
| Total harmonic distortion | 13 % 5) |
| Power factor λ | 0.90 6) |
| ECG efficiency | 84 % 7) |
| Device power loss | 2,6 W 8) |
| Max. ECG no. on circuit breaker 10 A (B) | 32 |
| Max. ECG no. on circuit breaker 16 A (B) | 50 |
| Max. ECG no. on circuit breaker 25 A (B) | 78 |
| Surge capability (L-N) | 0.5 kV |
| Galvanic isolation | SELV |
1) Partial load 11…16 W
2) Maximum 60 V
3) Permitted voltage range
4) ±10%
5) At full load, 220…240 V, 50 Hz
6) Full load at 230 V
7) At full load and 230 V
8) At maximum LED load of 17 W
2) Maximum 60 V
3) Permitted voltage range
4) ±10%
5) At full load, 220…240 V, 50 Hz
6) Full load at 230 V
7) At full load and 230 V
8) At maximum LED load of 17 W
Dimensions & Weight
| Length | 105.00 mm |
| Mounting hole spacing, length | 91 mm |
| Width | 42.00 mm |
| Height | 24.00 mm |
| Cable cross-section, input side | 0.5…1.5 mm² |
| Cable cross-section, output side | 0.5…1.5 mm² |
| Prewired | No |
| Wire preparation length, input side | 5…6 mm |
| Wire preparation length, output side | 5…6 mm |
| Product weight | 70.00 g |
Colors & materials
| Product color | White |
| Casing material | Plastic |
| Body material | Plastic |
Temperatures & operating conditions
| Ambient temperature range | -10…+50 °C |
| Maximum temperature at tc test point | 80 °C |
| Max.housing temperature in case of fault | 95 °C |
| Temperature range in operation | -10…+50 °C |
| Permitted rel. humidity during operation | 10…90 % 1) |
1) Maximum 56 days/year at 90%
Lifespan
| ECG lifetime | 35000 h 1) |
1) At maximum Tc = 80°C / 10% failure rate
Additional product data
| Encapsulated | No |
Capabilities
| Dimmable | No |
| Dimming interface | Not dimmable |
| Overheating protection | No |
| Overload protection | Yes |
| Short-circuit protection | Yes |
| Max. cable length to lamp/LED module | 2,0 m |
| Suitable for fixtures with prot. class | I, II |
| Suitable for emergency lighting | No |
| Type of connection, output side | Screw terminal |
Certificates & Standards
| Approval marks – approval | CE |
| Standards | Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 62384 |
| Protection class | II |
| Type of protection | IP20 |
LOGISTICAL DATA
| Temperature range at storage | -20…+75 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075240193 | Folding box 1 |
46 mm x 28 mm x 111 mm | 79.00 g | 0.14 dm³ |
| 4058075240209 | Shipping box 10 |
249 mm x 126 mm x 90 mm | 977.00 g | 2.82 dm³ |
| 4058075254121 | Shipping box 60 |
400 mm x 268 mm x 216 mm | 6325.00 g | 23.16 dm³ |
User instruction / safety instructions
LED DRIVER VALUE CC INDOOR
LED DRIVER VALUE CC INDOOR
Declarations of conformity
EU Declaration of Conformity 3581723
EU Declaration of Conformity 3581723
PRODUCT DATASHEET
DR-VAL-15/220-240/350
DR-VAL-15/220-240/350

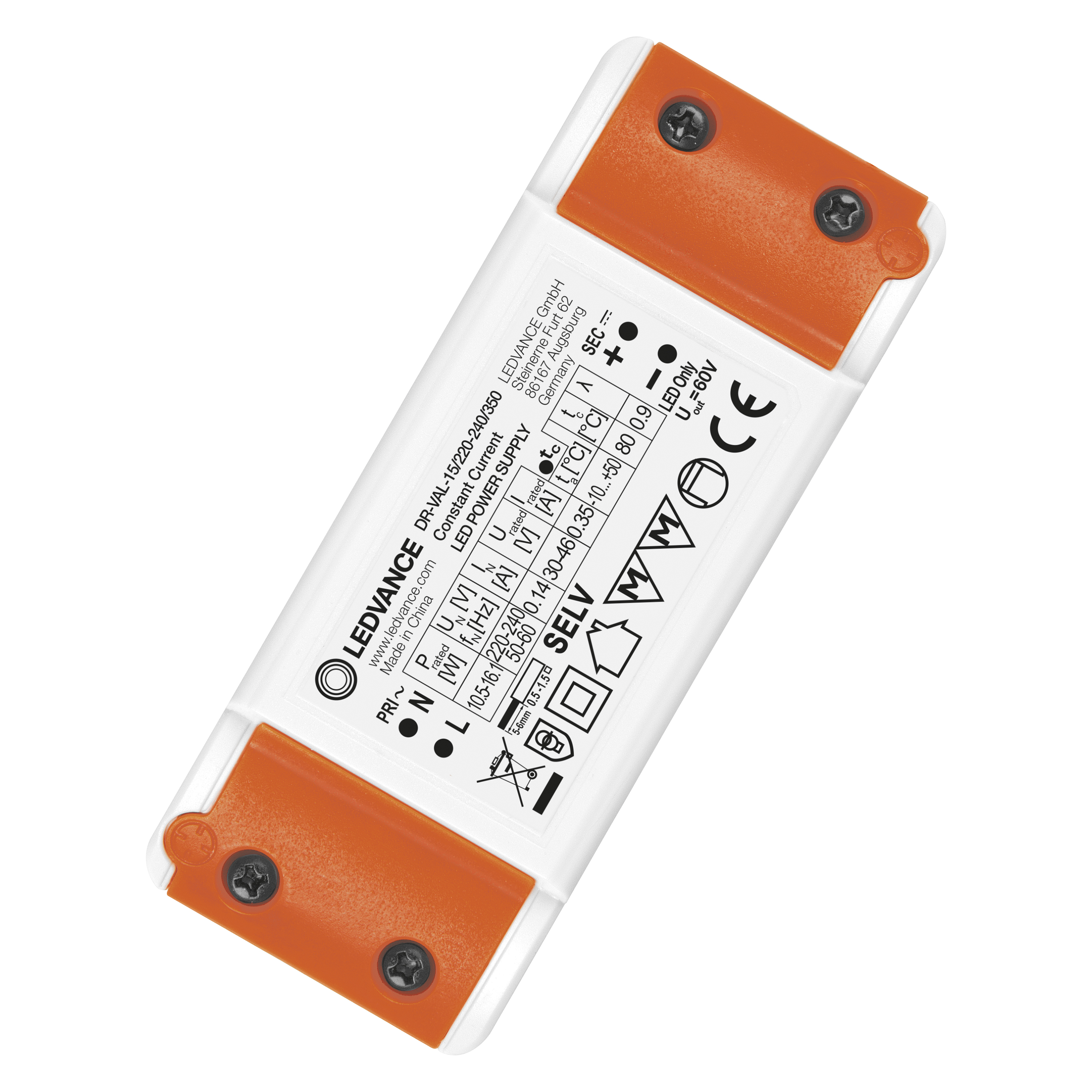

Product image: white background, diagonal
DR-VAL-CC
DR-VAL-CC

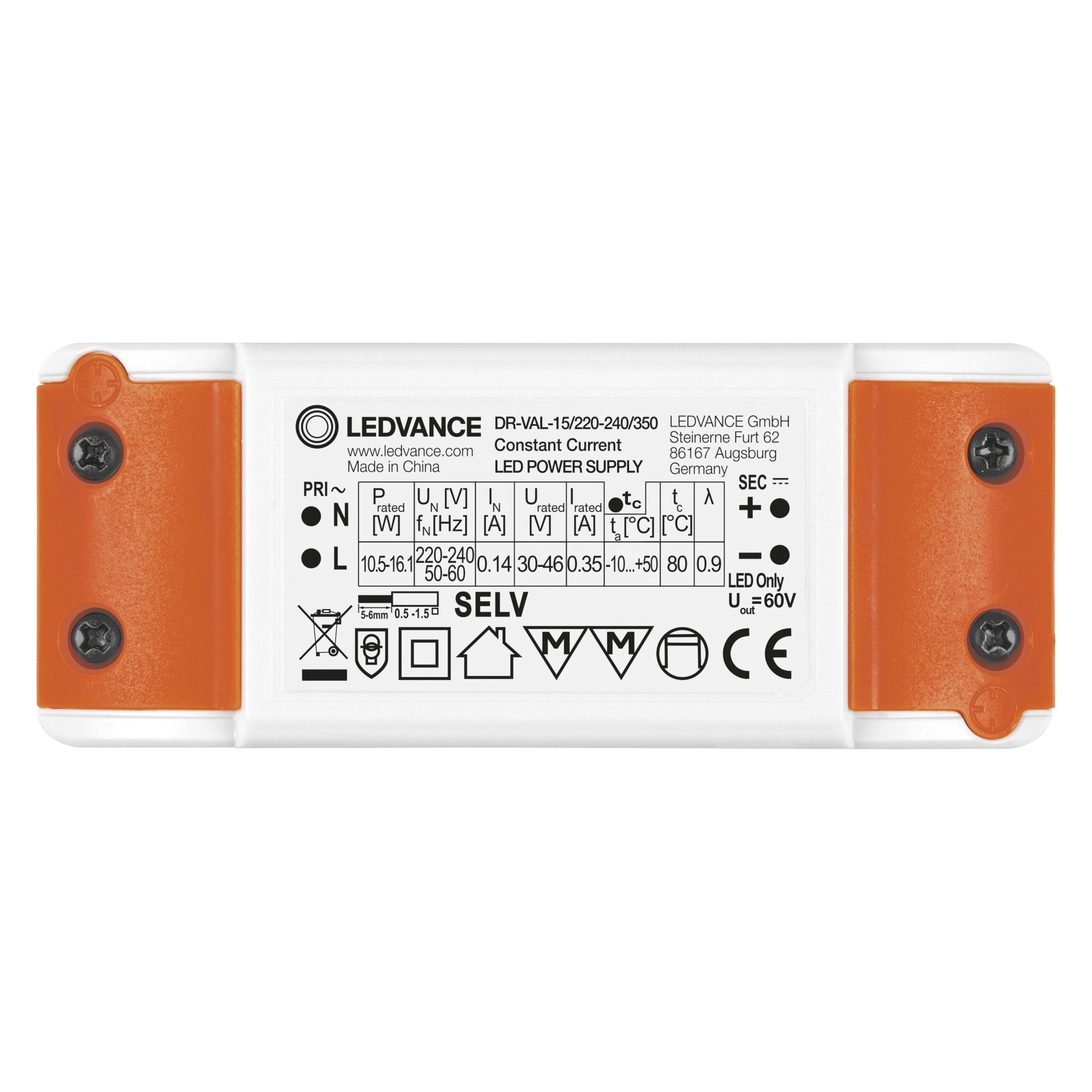

Product image: white background, horizontal
