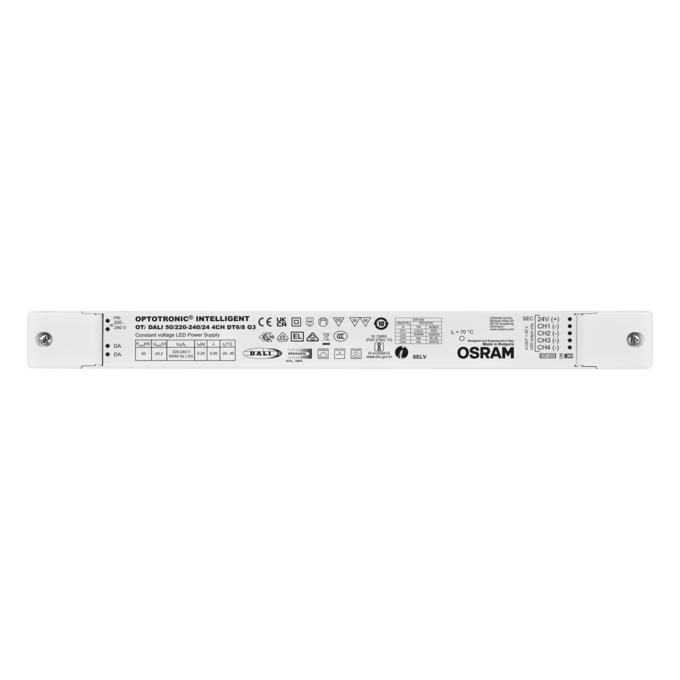

OTi DALI 50/220-240/ 24 4CH DT6/8 G3

GTIN: 4062172274289 Unpacked / 1 Show all packages

Contact sales

Intelligent power matching thanks to Smart power supply
Slim form factor for mounting on the cove or in linear luminaires
No stroboscopic effect thanks to patented high PWM frequency management (> 2 kHz)
Suitable for installation in emergency lighting systems according to EN 60598-2-22
Available as single-channel or multi-channel with DT6 and DT8 in one device
DALI message detection "LED Module failure"
IP rating: IP20

Dimmable via Touch DIM
LED driver whose output power can be shared arbitrarily among the 2 or 4 channels
Dimming range: 0.1…100 %
Line frequency: 0 Hz | 50 Hz | 60 Hz

Nominal wattage	50.00 W
Nominal output power	50 W
Nominal voltage	220…240 V
Nominal output voltage	24 V ¹⁾
Input voltage range	220…240 V
Input voltage AC	198…264 V
Input voltage DC	176…276 V
U-OUT (working voltage)	24.2 V
Inrush current	41 A
Mains frequency	50/60 Hz
Total harmonic distortion	< 5 %
Power factor λ	> 0.95
ECG efficiency	92 % ²⁾
Device power loss	4 W
Max. ECG no. on circuit breaker 10 A (B)	22
Max. ECG no. on circuit breaker 16 A (B)	36
Max. ECG no. on circuit breaker 25 A (B)	33
Surge capability (L/N-Ground)	2 kV
Surge capability (L-N)	1 kV
Galvanic isolation	SELV
Flickering metric (Pst LM)	≤1

¹⁾ DC voltage
²⁾ at 230 V, 50 Hz

Flickering metric (Pst LM)	≤1
Stroboscope effect metric (SVM)	≤0.4

Length	346 mm
Mounting hole spacing, length	300.6 mm
Width	32.00 mm
Height	22.00 mm
Cable cross-section, input side	0,5…2,5 mm²
Cable cross-section, output side	0.2…1.5 mm²
Wire preparation length, input side	6,0 mm
Wire preparation length, output side	5,0 mm
Product weight	191.00 g

Casing material	Plastic
Body material	Plastic

Ambient temperature range	-20…+45 °C
Maximum temperature at tc test point	75 °C
Max.housing temperature in case of fault	110 °C
Permitted rel. humidity during operation	5…85 % ¹⁾

¹⁾ Maximum 56 days/year at 85 %

ECG lifetime

50000 h

Dimmable	Yes
Dimming interface	DALI-2, Corridor, Touch DIM
Dimming range	0…100 %
Overheating protection	Automatic reversible
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
No-load proof	Yes
Suitable for fixtures with prot. class	I,II
Type of connection, output side	Screw terminal

Approval marks – approval	BIS, CCC, EAC, EL, ENEC 10, RCM, VDE, VDE-EMC
Standards	Acc. to EN 55015, Acc. to EN 60598-2-22, Acc. to EN 61000-3-2, Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 61547, Acc. to EN 62384, Acc. to EN 62386
Protection class	II
Type of protection	IP20

Temperature range at storage

-40…+85 °C

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
