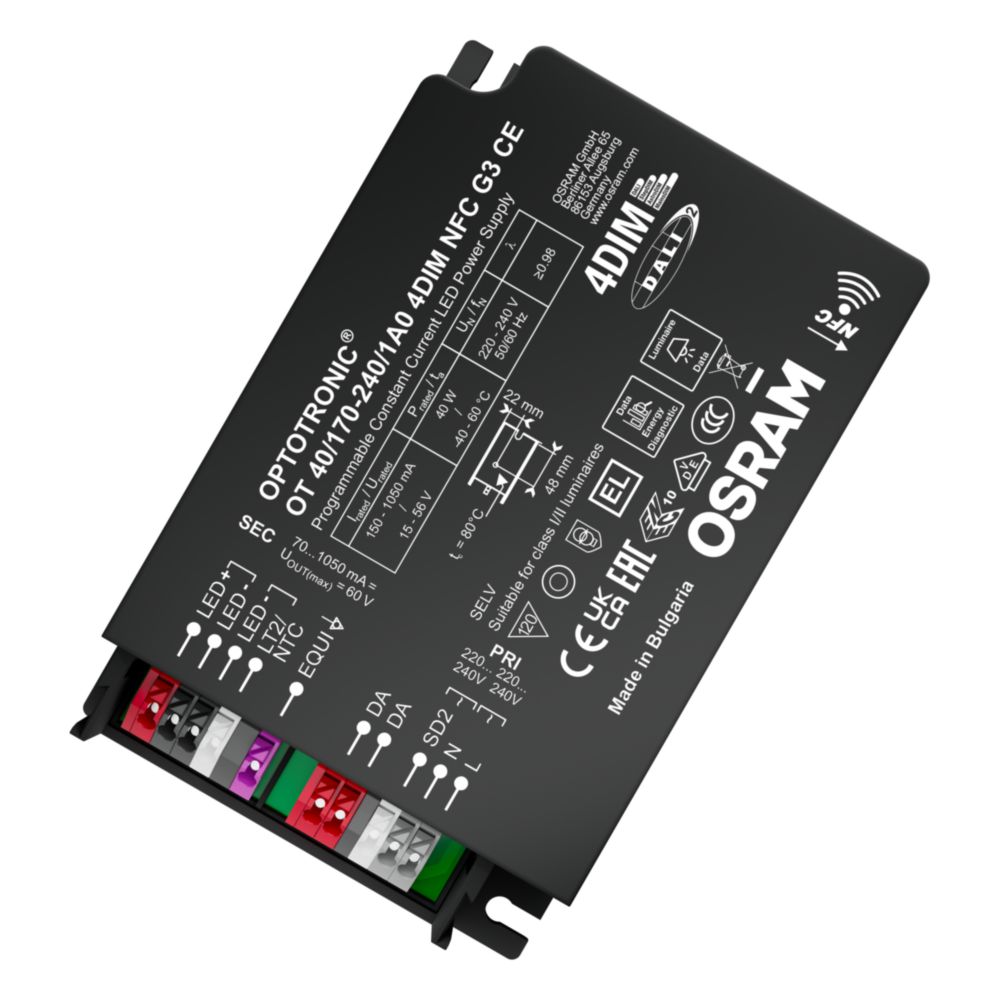

OT 40/170-240/1A0 4DIM NFC G3 CE

Coming soon

OPTOTRONIC 4DIM NFC IP20

GTIN: 4062172218955 Unpacked / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

PRODUCT DETAILS

Product benefits

4DIM functionality in one device (StepDIM, AstroDIM, MainsDIM, DALI)
DALI-2 certified incl. Parts 251, 252, 253
Easy and fast wireless luminaire programming
Very high efficiency
High surge protection: up to 10 kV (in protection class I or II)
Great flexibility due to wide operating temperature range of -40…55 °C or 60 °C
High surge DALI protection: 1 kV
Protection through double isolation between mains input and LED output
Optimized NFC for programming from the top: easy accessibility in luminaires

Areas of application

Street and urban lighting
Industry
Suitable for outdoor applications in luminaires with IP > 54
Suitable for use in outdoor luminaires of protection class I and II

Product features

Supply voltage: 220…240 V
Wide current output range: 150 mA…1050 mA or 1500 mA
Easy and fast wireless luminaire programming via NFC
Flexible current setting with one additional wire (LEDset2)
AstroDIM for autonomous dimming with five independent levels (astro, time mode)
Allows for energy saving in twilight phases
MainsDIM function for dimming via reduction of line voltage amplitude
Isolated DALI interface for bidirectional telemanagement systems
Standby power consumption: < 0.35 W
Constant Lumen Output (CLO)
Integrated customizable thermal management (Driver Guard)

Safety advice

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.

Electrical data

Nominal wattage	40.00 W
Nominal output power	40 W ¹⁾
Nominal voltage	220…240 V
Nominal output voltage	15…56 V
Input voltage range	220…277 V
Input voltage AC	170…264 V ²⁾
Input voltage DC	176…276 V ³⁾
U-OUT (working voltage)	60 V
Nominal current	1.05 A
Nominal output current	150…1050 mA
Inrush current	31 A ⁴⁾
Output current tolerance	±3 % ⁵⁾
Output ripple current (100 Hz)	> 4 %
Mains frequency	0/50/60 Hz
Total harmonic distortion	> 5 % ⁶⁾
Power factor λ	0.99 ⁷⁾
ECG efficiency	90 % ⁸⁾
Device power loss	4.5 W
Max. ECG no. on circuit breaker 10 A (B)	18
Max. ECG no. on circuit breaker 16 A (B)	30
Max. ECG no. on circuit breaker 25 A (B)	46
Surge capability (L/N-Ground)	10 kV
Surge capability (L-N)	6 kV
Galvanic isolation	SELV
Flickering metric (Pst LM)	≤1

¹⁾ Max. 75% in DC operating mode
²⁾ Permitted voltage range
³⁾ Additional fuse needed in DC operation
⁴⁾ At 186 µs
⁵⁾ +/- 5% for LEDset down to 150mA
⁶⁾ At full power
⁷⁾ At full load
⁸⁾ at 230 V, 50 Hz

Photometrical data

Flickering metric (Pst LM)	≤1
Stroboscope effect metric (SVM)	≤0.4

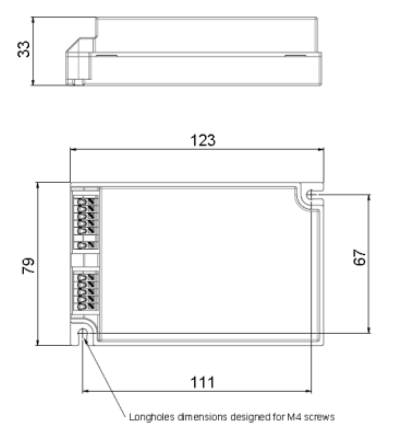

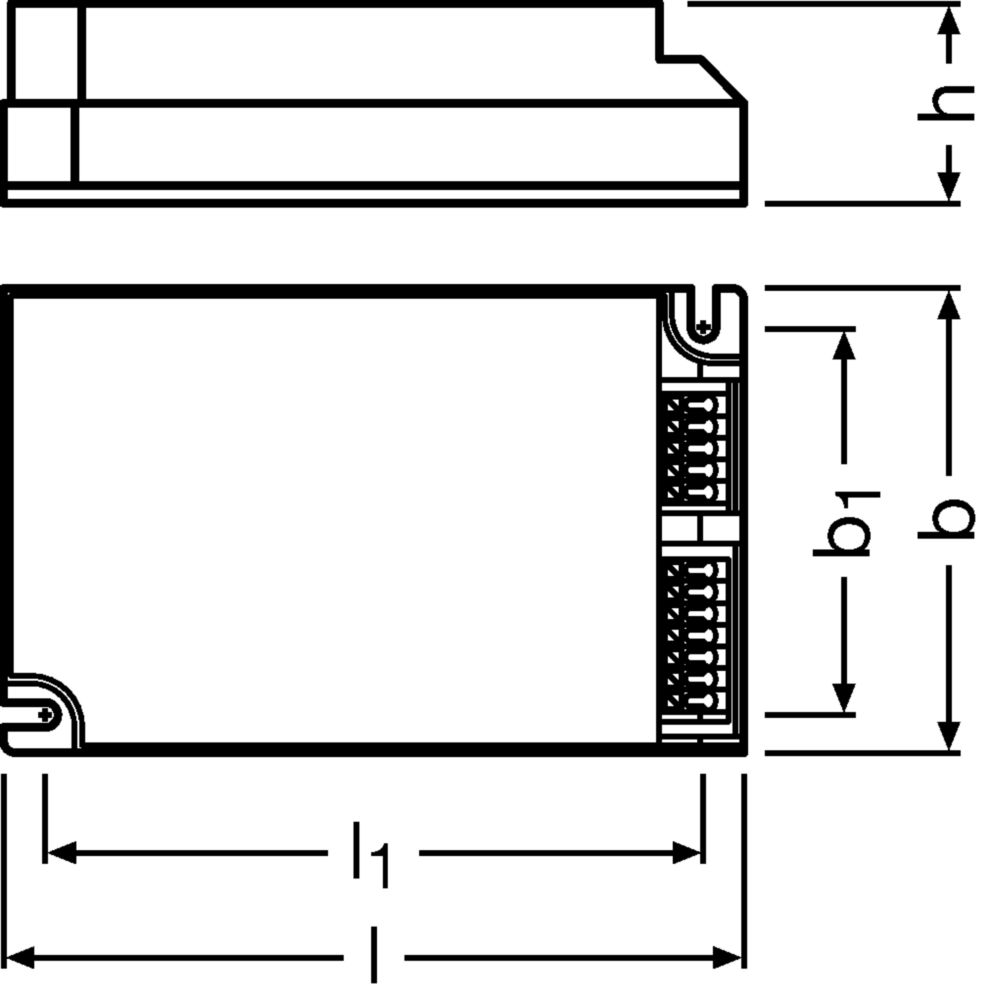

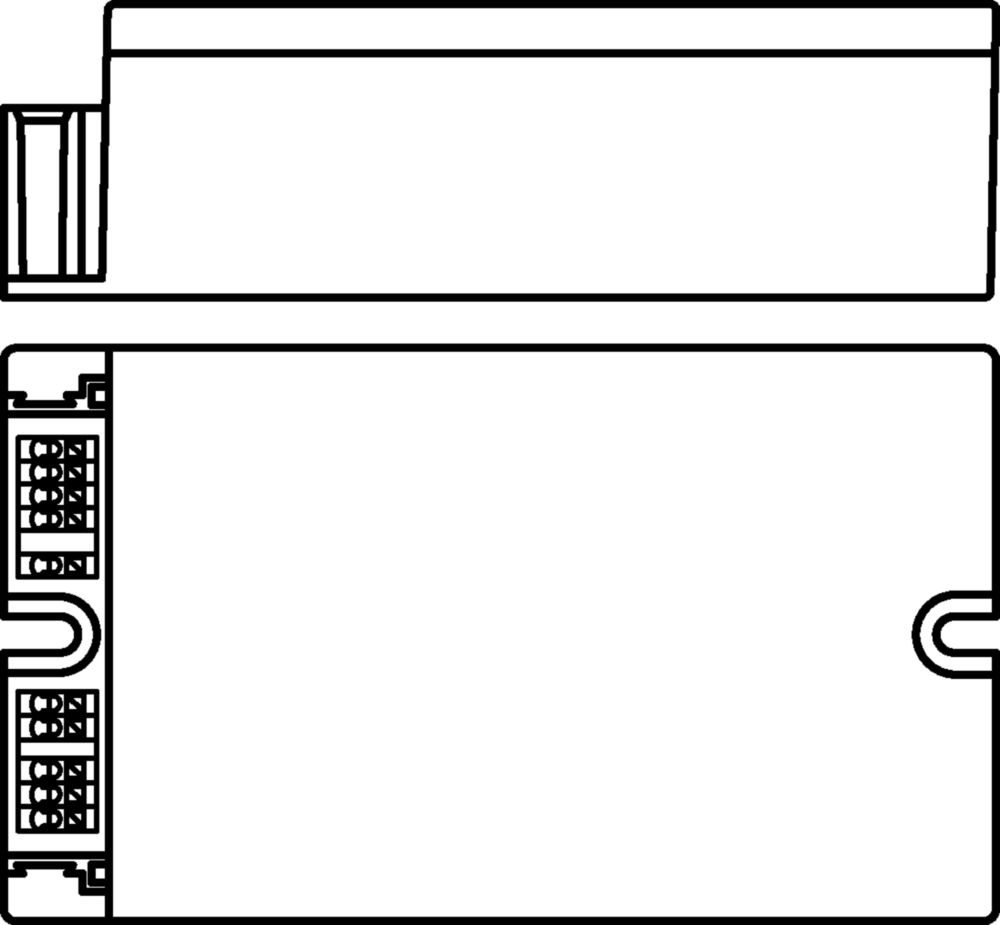

Dimensions & Weight

Length	123.00 mm
Mounting hole spacing, length	111,0 mm
Width	79.00 mm
Height	33.00 mm
Cable cross-section, input side	0.2…1.5 mm²
Cable cross-section, output side	0.2…1.5 mm²
Wire preparation length, input side	8,5…9,5 mm
Wire preparation length, output side	8,5…9,5 mm
Product weight	210.00 g

Colors & materials

Product color	Black
Casing material	Plastic
Body material	Plastic

Temperatures & operating conditions

Ambient temperature range	-40…+60 °C
Maximum temperature at tc test point	80 °C
Max.housing temperature in case of fault	120 °C
Permitted rel. humidity during operation	5...95 % ¹⁾

¹⁾ The luminaire manufacturer must ensure that condensation water cannot be created within the fixture.

Lifespan

ECG lifetime

50000 h, 100000 h ¹⁾

¹⁾ At maximum T_c = 90°C / 10% failure rate / At Tc = 78°C / 10% failure rate

Additional product data

Product remark

Available from March 2025

Capabilities

Dimmable	Yes
Dimming interface	4DIM, AstroDIM, DALI, MainsDIM, StepDIM
Dimming range	10…100 %
Overheating protection	Automatic reversible
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
No-load proof	Yes
Max. cable length to lamp/LED module	2,0 m ¹⁾
Suitable for fixtures with prot. class	I, II
Suitable for emergency lighting	Yes
Type of connection, output side	Push terminal

¹⁾ Output wires must be routed as close as possible to each other

Certificates & Standards

Approval marks – approval	CCC, CE, DALI-2, EL, ENEC, RCM, VDE
Standards	Acc. to EN 61347-1, Acc. to ENEC 61347-2-13, Acc. to EN 62384, Acc. to EN 55015:2006 + A1:2007 + A2:2009, Acc. to EN 61547, Acc. to FCC 47 part 15 class B, Acc. to IEC 61000-3-2, Acc. to IEC 61000-3-3, Acc. to IEC 62386-101, Acc. to IEC 62386-102, Acc. to IEC 62386-207, UL-8750
Protection class	I/II
Type of protection	IP20

LOGISTICAL DATA

Temperature range at storage

-40…+85 °C

Energy labelling regulation data acc EU 2019/2015

Networked standby power for CLS

< 0.35 W

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
