LED DRIVER DALI Cable Clamp
DR AY DALI-P CLAMP DUO
GTIN: 4099854400605
BAG / 2
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Simple and quick cable mounting
- Sufficient space for cable connection
Areas of application
- Downlights, Panels, Linear luminaires
- Suitable for different cable types
- Suitable for indoor applications.
Product features
- Optional cable clamp for LEDVANCE Dali CC Driver
- Easy to install
- Toolless installation
Equipment / Accessories
- DR AY ZB+DALI CLAMP DUO suitable for DR DALI-26 PFM, DR DALI-44 PFM
- DR AY ZB+DALI CLAMP suitable for DR DALI-60 PFM
- DR AY DALI-P-CLAMP DUO suitable for DR DALI-P-30, DR DALI-P-42
- DR AY DALI-P-CLAMP DUO suitable for DR ZB NF P 30, DR ZB NF P 45
Dimensions & Weight
| Length | 47.20 mm |
| Width | 45.00 mm |
| Height | 25.00 mm |
| Product weight | 23.4 g |
Colors & materials
| Product color | White/Orange |
| Casing material | Plastic |
| Body material | Plastic |
Temperatures & operating conditions
| Ambient temperature range | -20…+45 °C |
| Max.housing temperature in case of fault | <110 °C |
| Temperature range in operation | -20…+45 °C |
Capabilities
| Suitable for emergency lighting | Yes |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854400605 | BAG 2 |
250 mm x 350 mm x 25 mm | 49.00 g | 2.19 dm³ |
| 4099854405167 | Shipping box 40 |
269 mm x 214 mm x 198 mm | 1246.00 g | 11.40 dm³ |
Declarations of conformity
DR_AY DALI-P_CLAMP DUO
DR_AY DALI-P_CLAMP DUO
EU Data Act
Field Assistant - NFC Progam Application
Field Assistant - NFC Progam Application

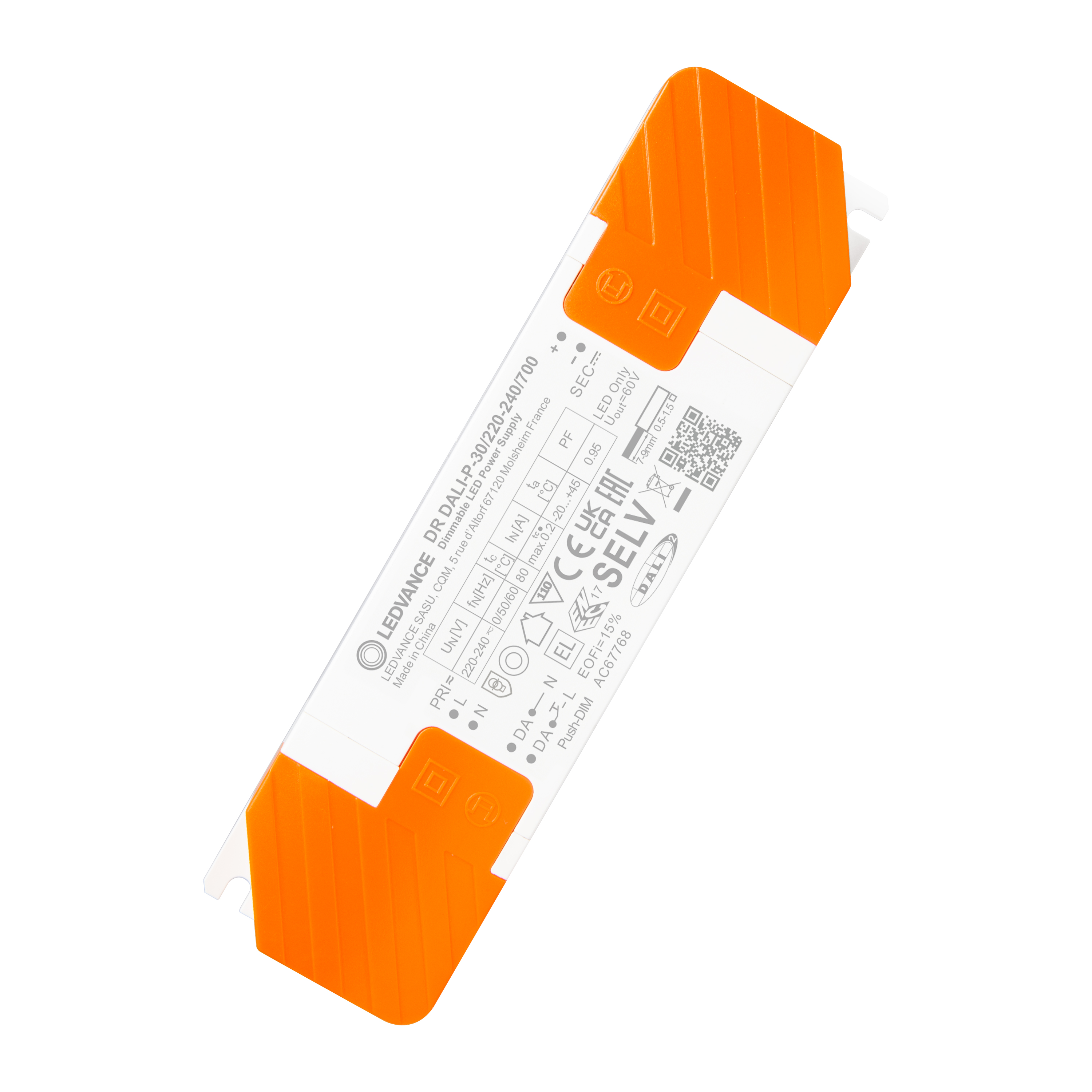

Product image: white background, diagonal
DR AY DALI-P-CLAMP DUO
DR AY DALI-P-CLAMP DUO

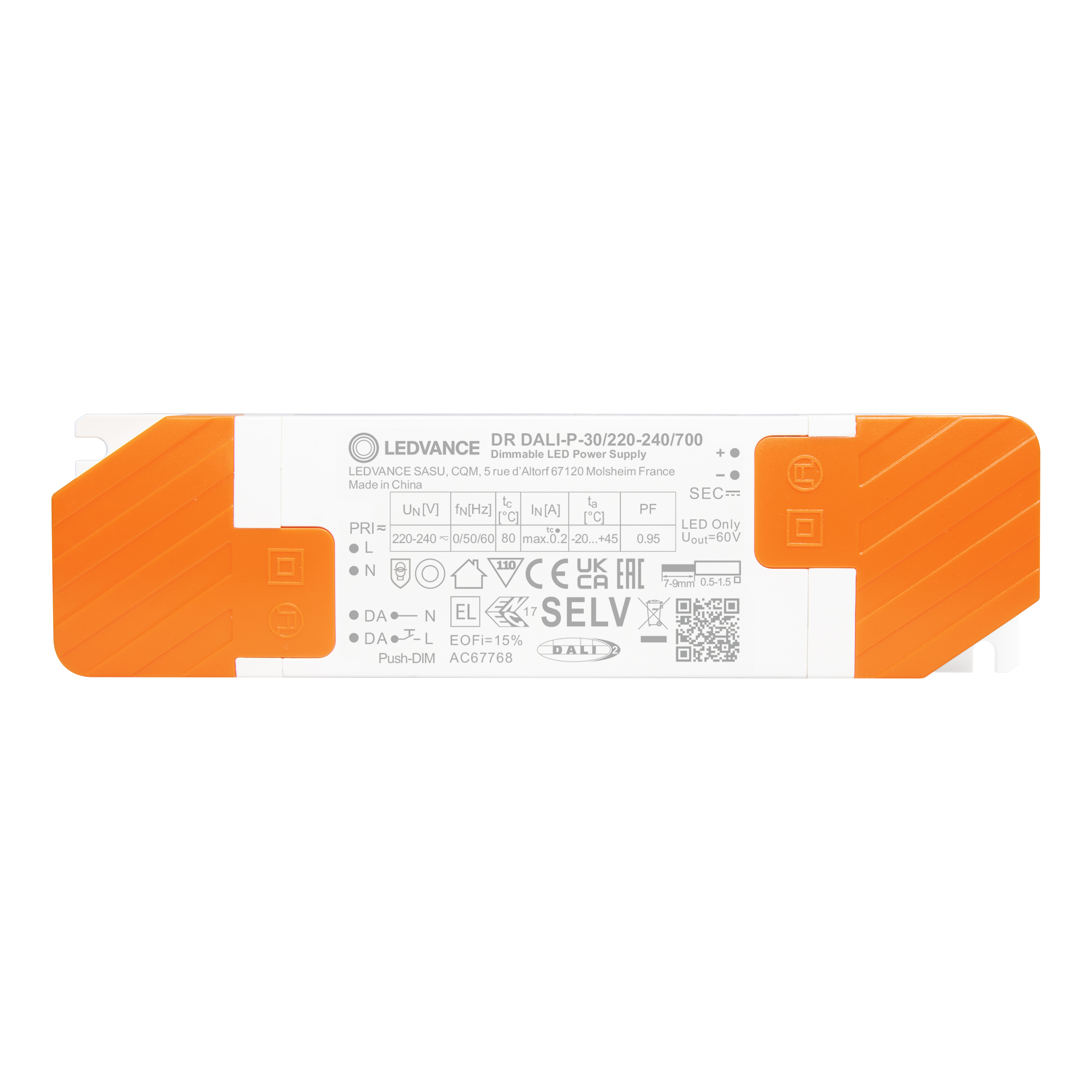

Product image: white background, upright
DR AY DALI-P-CLAMP DUO
DR AY DALI-P-CLAMP DUO

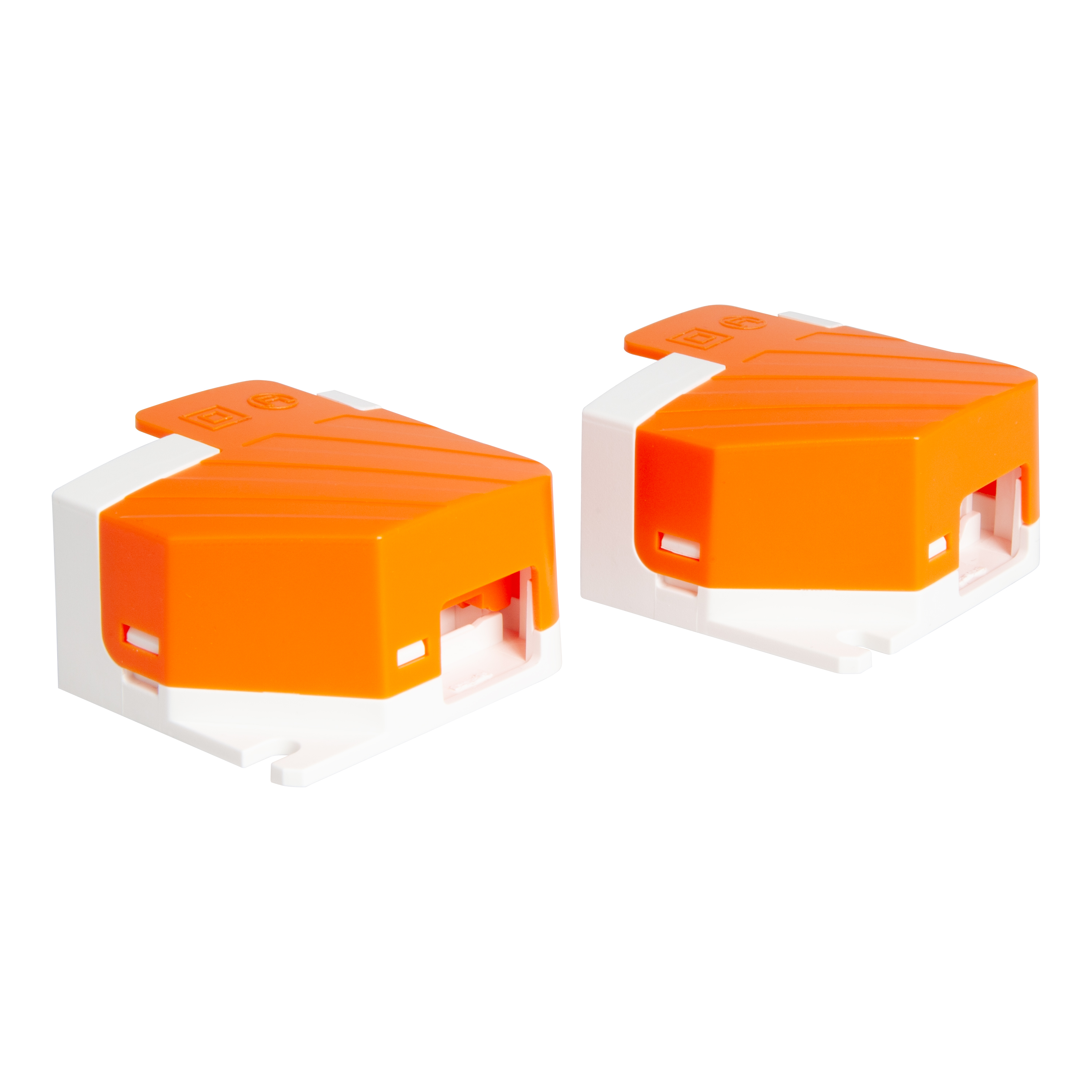

Product image: white background, spacial
DR AY DALI-P-CLAMP DUO
DR AY DALI-P-CLAMP DUO
Product line drawing with letters
DR AY DALI-P-CLAMP DUO
DR AY DALI-P-CLAMP DUO
Product line drawing with numbers
DR AY DALI-P-CLAMP DUO
DR AY DALI-P-CLAMP DUO
Product line drawing - technical
DR AY DALI-P-CLAMP DUO
DR AY DALI-P-CLAMP DUO

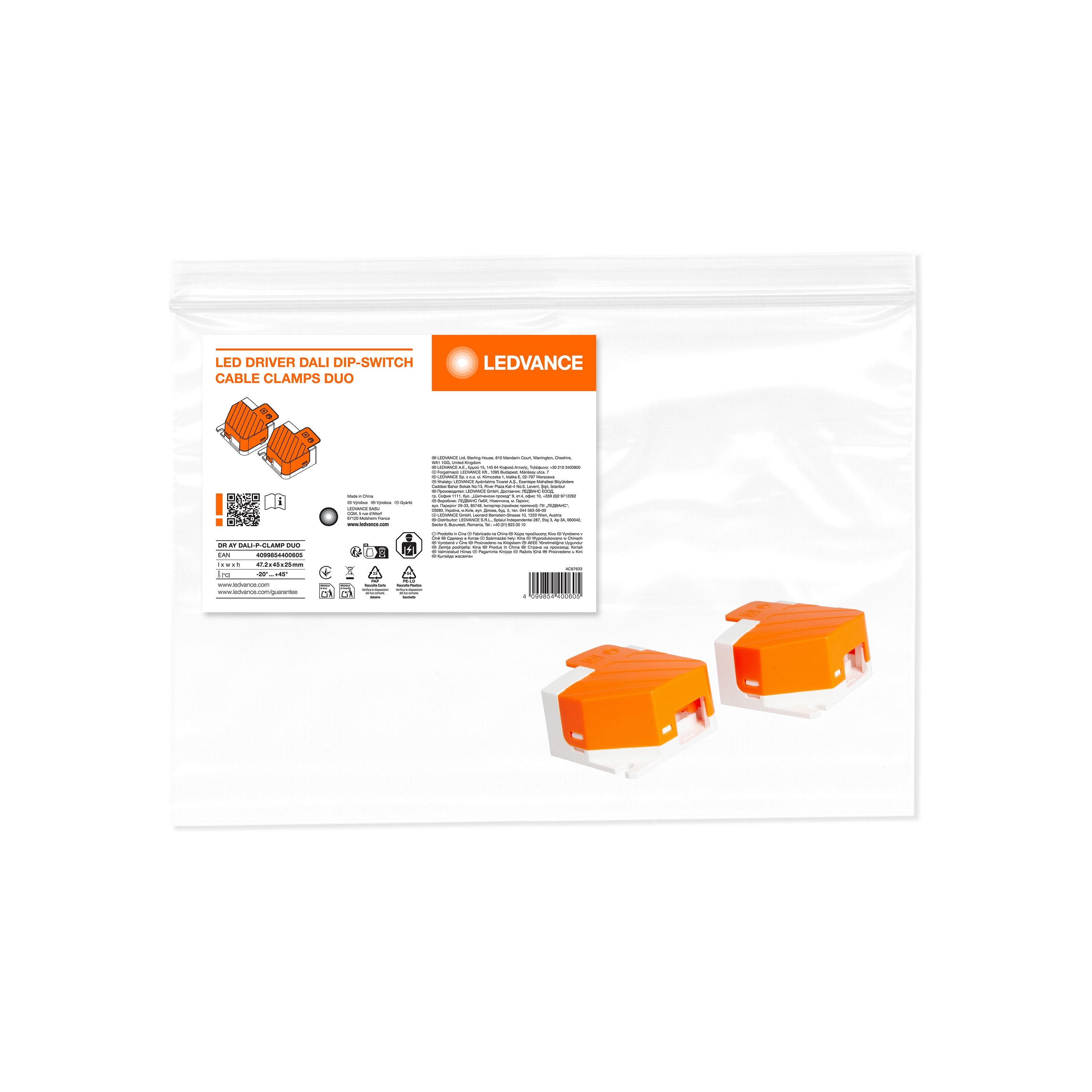

Packaging image, frontal
DR AY DALI-P-CLAMP DUO
DR AY DALI-P-CLAMP DUO
| EAN | SEG number | STK number |
|---|---|---|
| 4099854400605 | 7982663 | 4031485 |
