LED DRIVER SUP

DR-SUP -200/220-240/24

GTIN: 4058075437845 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Perfectly matched to 24 V LED flexible strips
  • Long reliable life at maximum permitted temperatures
  • 5 years guarantee
  • Maintenance-free operation and minimal installation costs
  • Quick and simple installation
  • High efficiency and reliability
Areas of application
  • Cove lighting, even in tight spaces
  • Wallwasher effect lighting in living rooms, dining rooms, bedrooms, entrances
  • Offices, shopping centers, hospitals, restaurants, hotels
  • For indoor SELV installations
Product features
  • Available in 30 W, 60 W, 100 W and 200 W
  • Integrated cable clamp for independent installation
  • Lifetime: up to 60,000 h (at max. tc temperature)
  • Type of protection: IP20
  • Low ripple current < 5%
  • Supply voltage: 220…240 V
  • Operating frequency: 50/60 Hz
  • Operated with less than 60 V: Safety extra-low voltage (SELV)
  • Reversible overtemperature, overload, short-circuit and open-circuit protection
Electrical data
Nominal wattage 200.00 W
Nominal output power 200 W 1)
Nominal voltage 220…240 V
Nominal output voltage 24 V 2)
Input voltage AC 198…264 V 3)
U-OUT (working voltage) 25 V
Type of current DC
Nominal current 1000 mA
Nominal output current 8340 mA
Inrush current 130 A
Output ripple current (100 Hz) 1.5 %
Mains frequency 50…60 Hz
Total harmonic distortion < 10 % 4)
Power factor λ 0.97 4)
ECG efficiency 92 % 5)
Device power loss 16 W 6)
Max. ECG no. on circuit breaker 10 A (B) 6
Max. ECG no. on circuit breaker 16 A (B) 9
Max. ECG no. on circuit breaker 25 A (B) 14
Surge capability (L-N) 1 kV
Galvanic isolation SELV
1) From 1 to 200 W
2) Maximum 24 V
3) Permitted voltage range
4) At full load
5) At full load and 230 V
6) At maximum LED load of 200 W
Dimensions & Weight
Length 328.00 mm
Mounting hole spacing, length 270,0 mm
Width 43.00 mm
Height 30.00 mm
Cable cross-section, input side 0.5…1.5 mm²
Cable cross-section, output side 0.5…1.5 mm²
Prewired No
Wire preparation length, input side 8,0 mm
Wire preparation length, output side 8,0 mm
Product weight 345.00 g
Colors & materials
Product color White
Casing material Plastic
Body material Plastic
Temperatures & operating conditions
Ambient temperature range -20…+50 °C
Maximum temperature at tc test point 80 °C
Max.housing temperature in case of fault 110 °C
Temperature range in operation -20…+50 °C
Permitted rel. humidity during operation 5…85 %
Lifespan
ECG lifetime 60000 h 1)
1) At maximum Tc = 80°C / 10% failure rate
Additional product data
Encapsulated No
Capabilities
Dimmable No
Dimming interface Not dimmable
Overheating protection Yes
Overload protection Yes
Short-circuit protection Yes
Max. cable length to lamp/LED module 2,0 m
Suitable for fixtures with prot. class II
Suitable for emergency lighting No
Type of connection, output side Fixed connection (terminal)
Certificates & Standards
Approval marks – approval CE, CB, ENEC
Standards Acc. To IEC/EN61347-1, Acc. to IEC 61347-2-13, Acc. to GB 19510.1, Acc. to GB 19510.14, Acc. to EN 55015, Acc. to IEC 61000-3-2, Acc. to IEC 61000-3-3, Acc. to IEC 61000-4-2, 3, 4, 5, 6, 8, 11, Acc. to IEC 61547, Acc. to IEC 62384
Protection class II
Type of protection IP20
LOGISTICAL DATA
Temperature range at storage -40…+85 °C
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075437845 Folding box
1		 330 mm x 44 mm x 34 mm 370.00 g 0.49 dm³
4058075437852 Shipping box
10		 345 mm x 182 mm x 110 mm 3863.00 g 6.91 dm³
User instruction / safety instructions
DR-SUP 220-240 24
PDF (3.03 MB)
Declarations of conformity
DR SUP LL
PDF (161.6 KB)

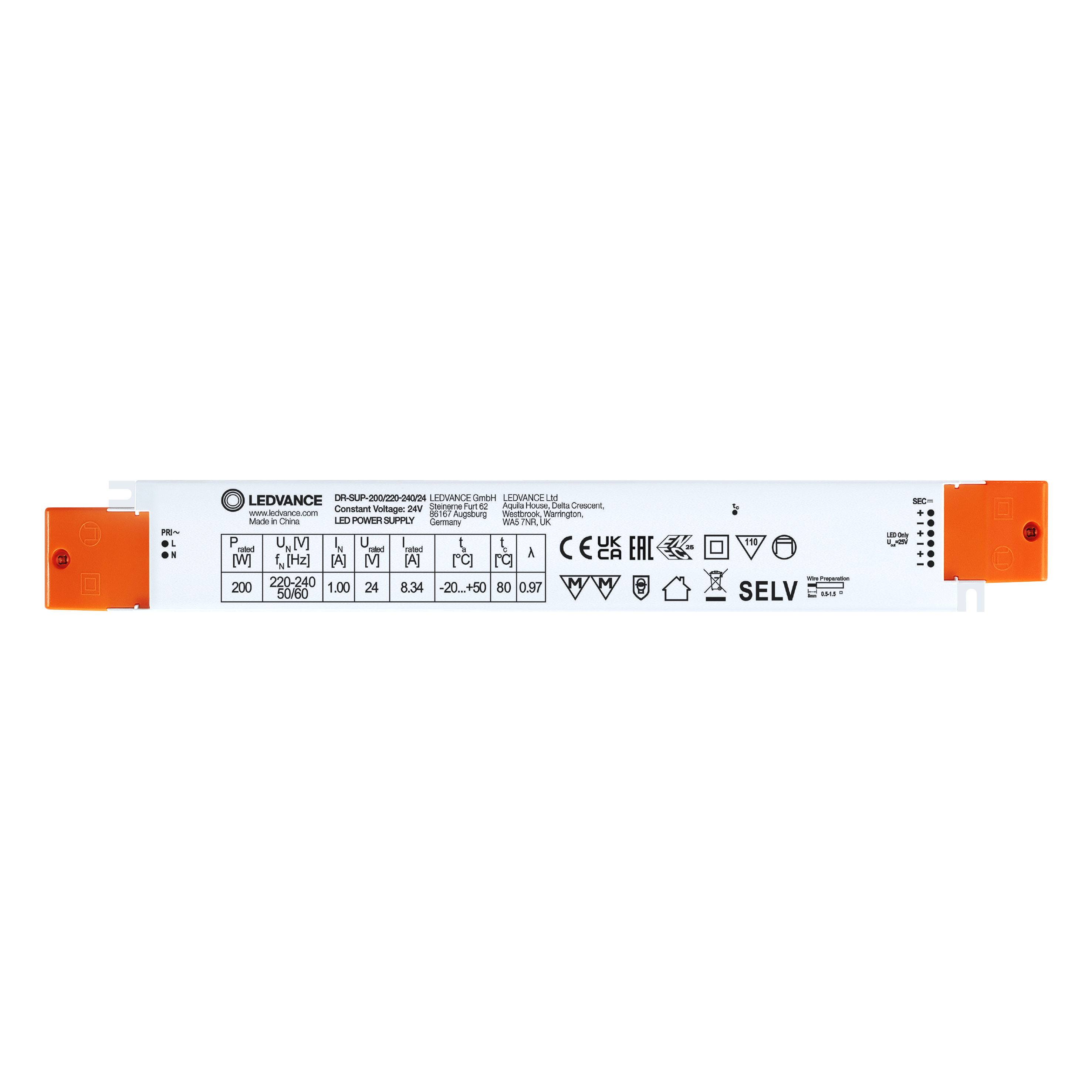

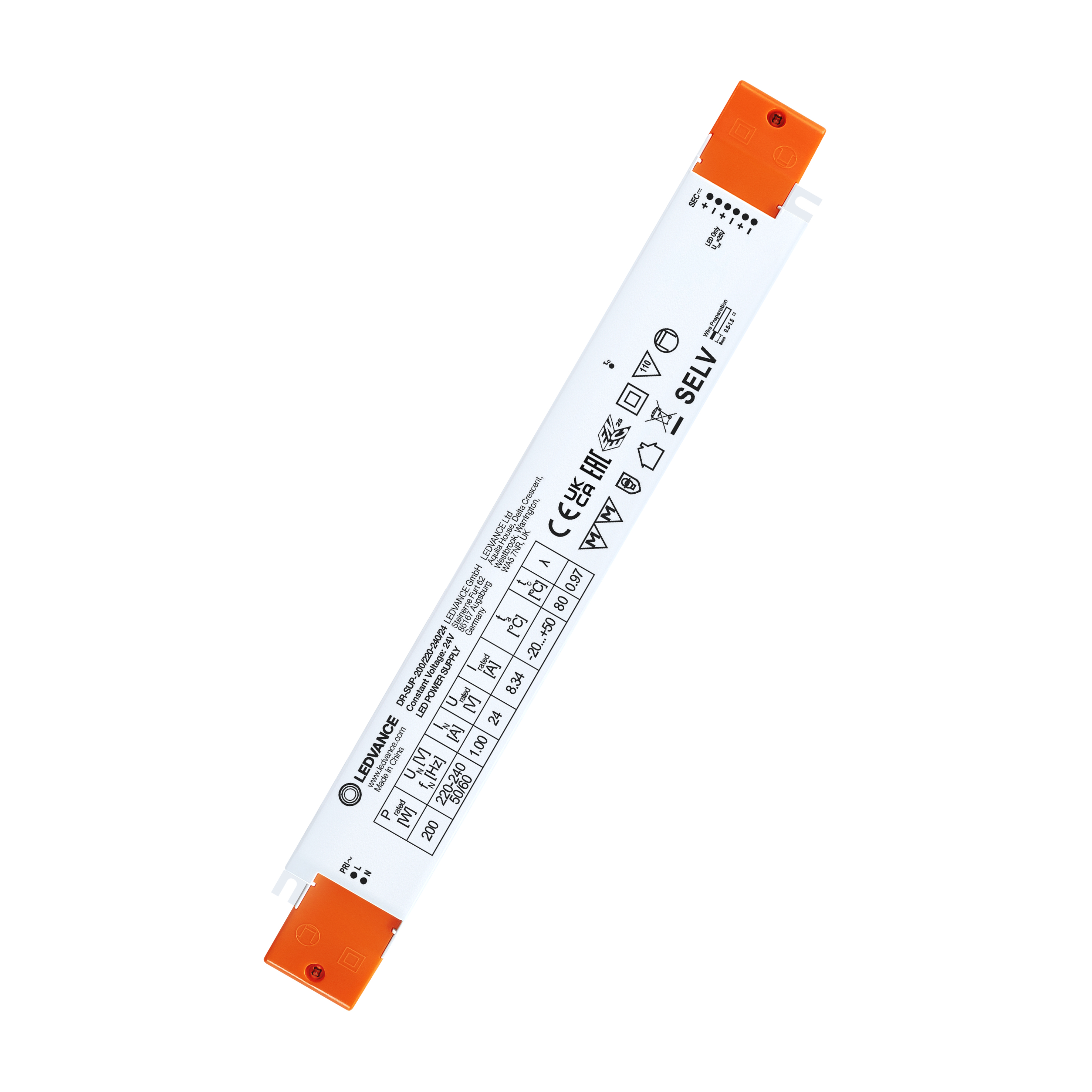

Product image: white background, diagonal
DR SUP 200/220-240/24
JPG (1.2 MB)
Product image: white background, horizontal
DR SUP 200/220-240/24
JPG (1.12 MB)
Product line drawing with letters
DR SUP 200/220-240/24
SVG (15.17 KB)
Product line drawing with letters
DR SUP 200/220-240/24
SVG (12.37 KB)
Product line drawing with numbers
DR SUP 200/220-240/24
SVG (18.57 KB)
Product line drawing with numbers
DR SUP 200/220-240/24
SVG (18.24 KB)
Product line drawing, front, no dimensions
DR SUP 200/220-240/24
SVG (9.61 KB)
Product line drawing, front, no dimensions
DR SUP 200/220-240/24
SVG (10.23 KB)
Application pictures

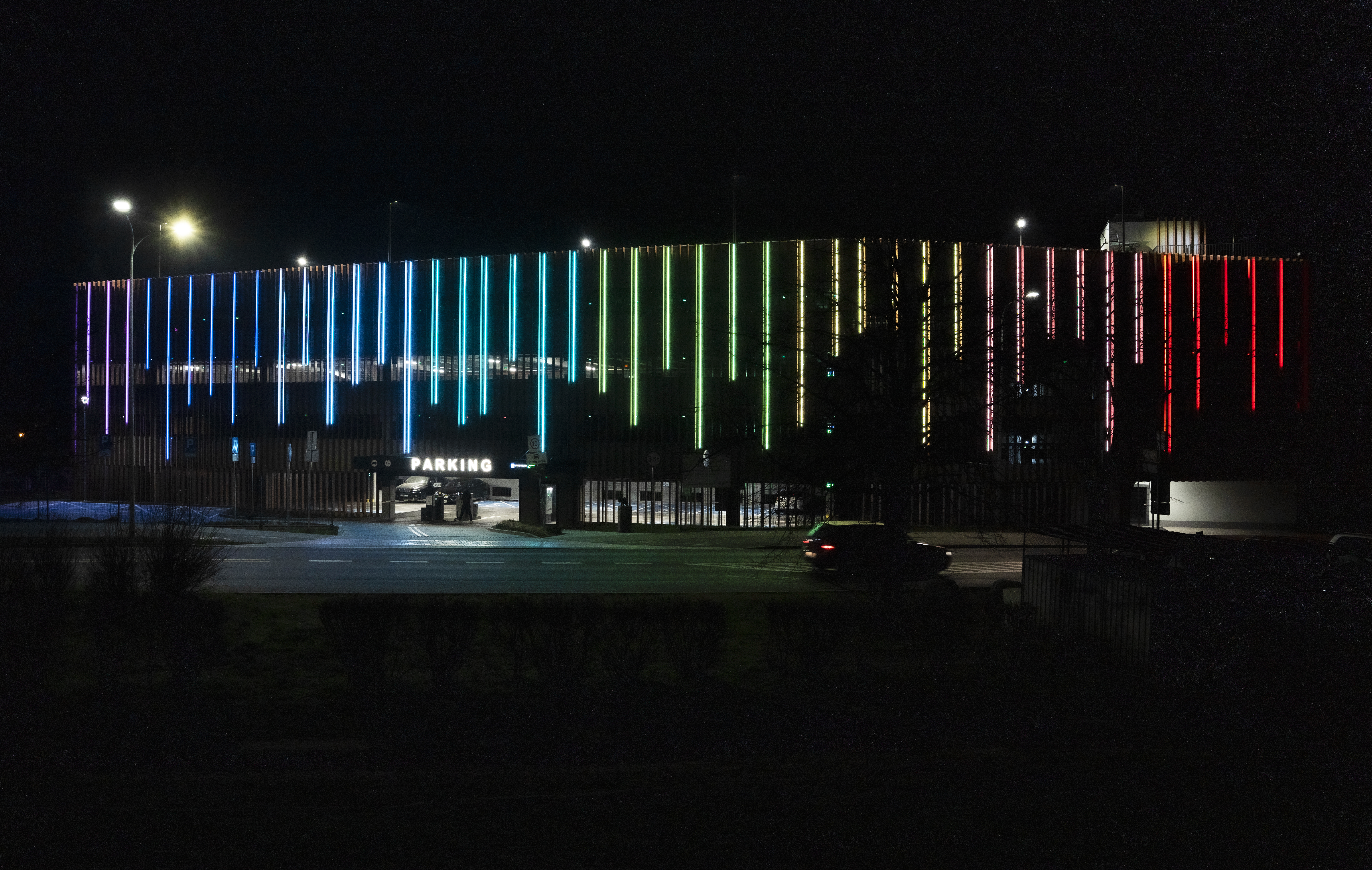

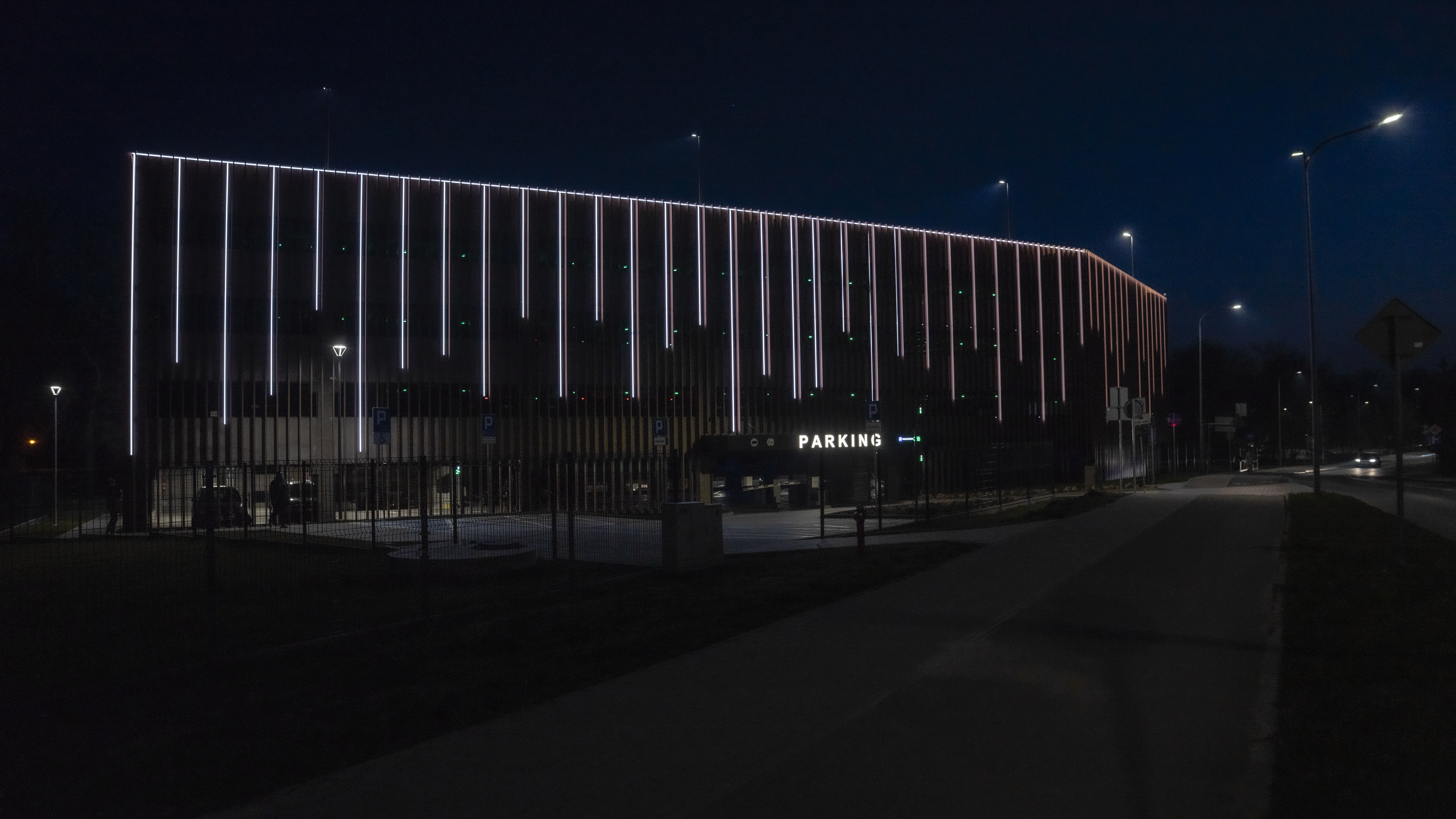

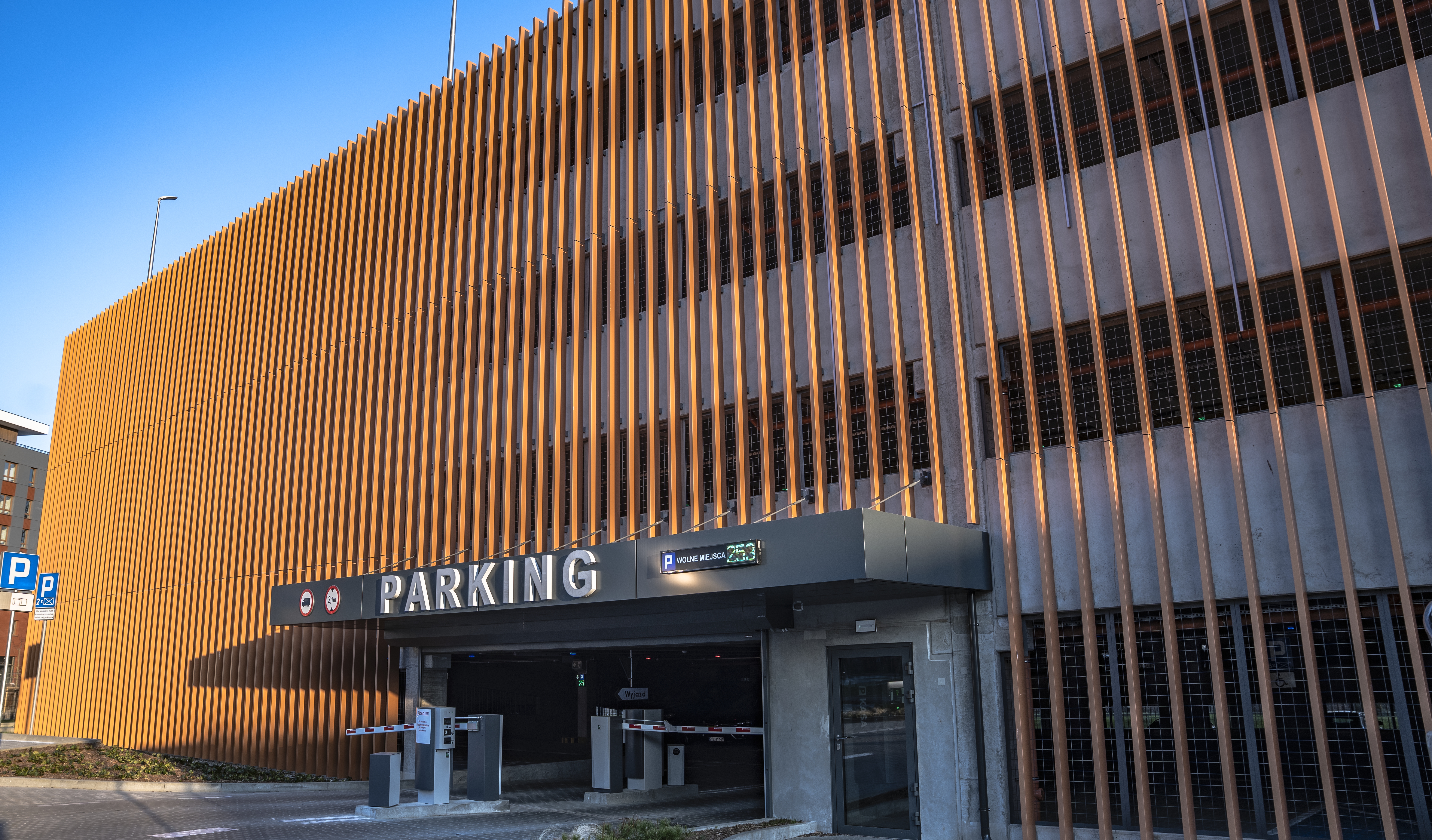

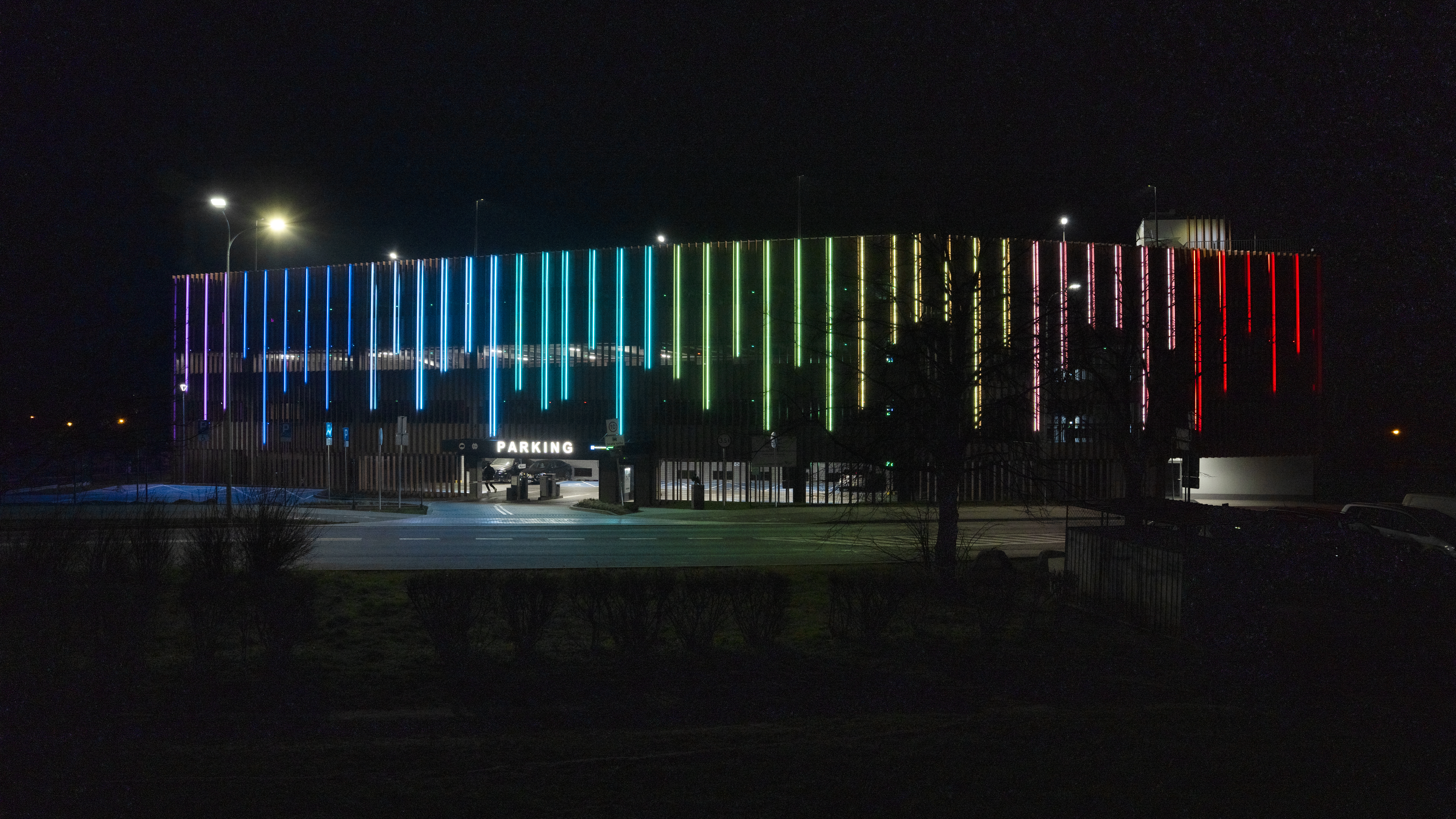

Carpark in Kołobrzeg Poland
JPG (14.51 MB)
Application pictures

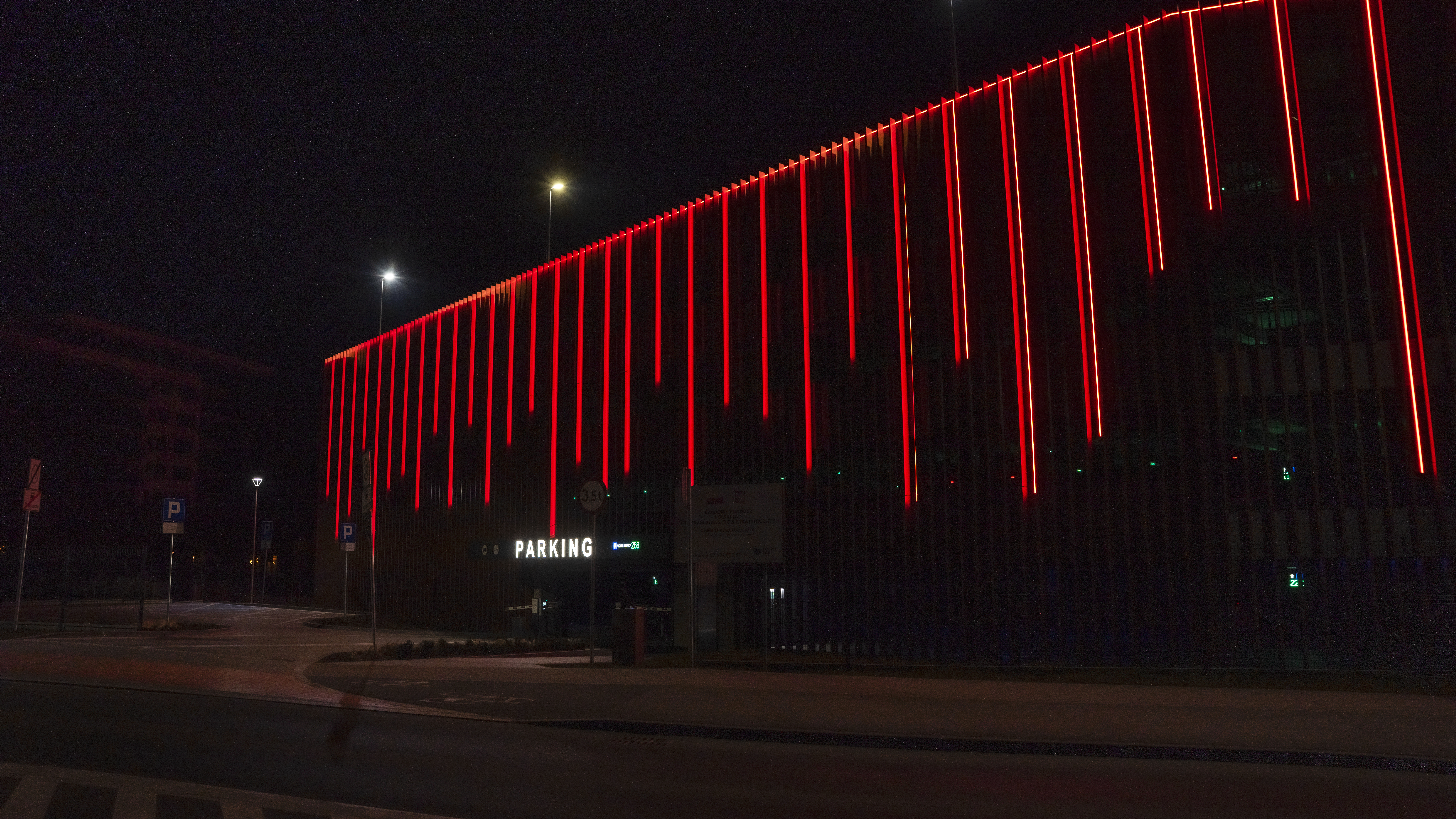

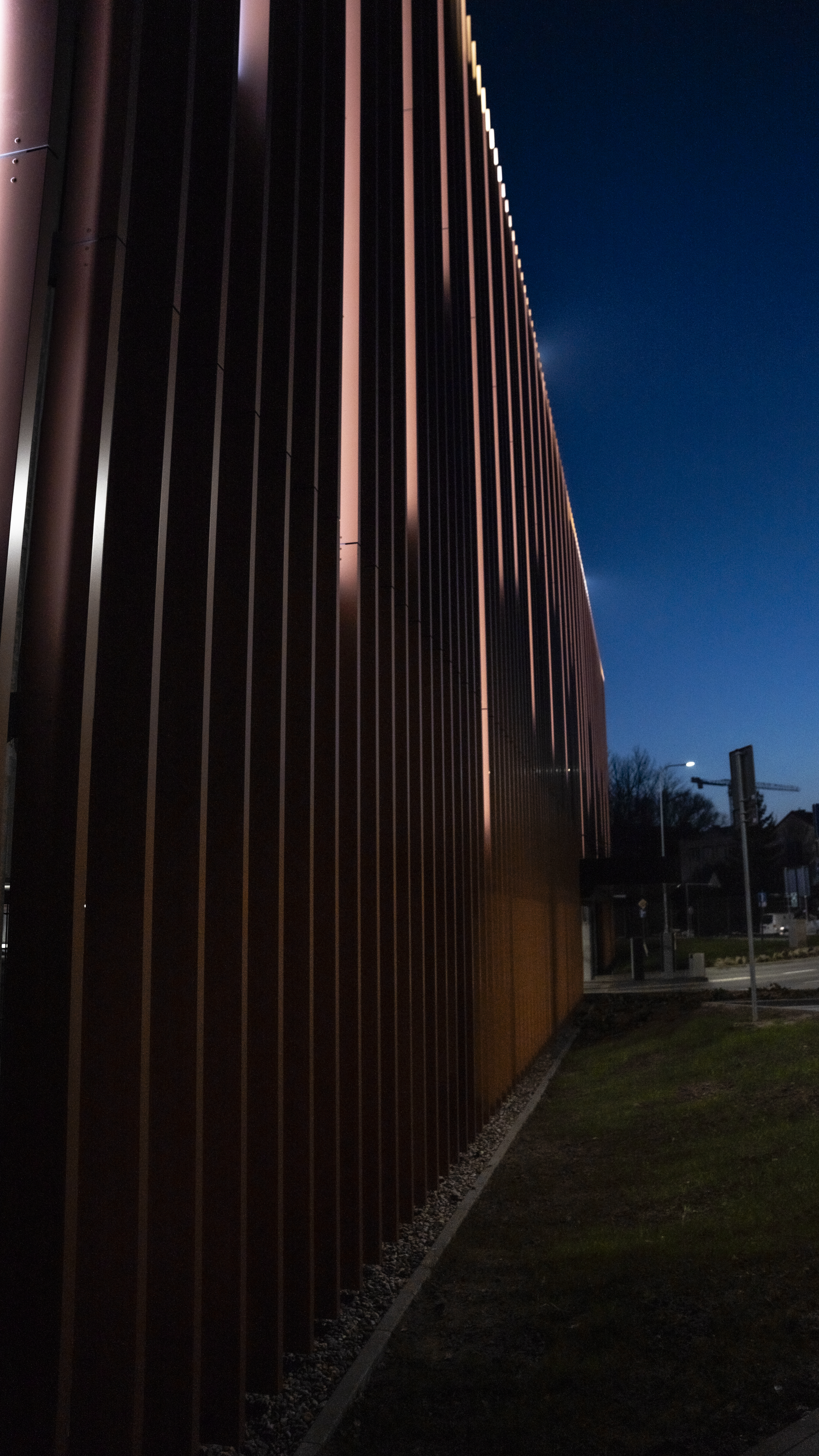

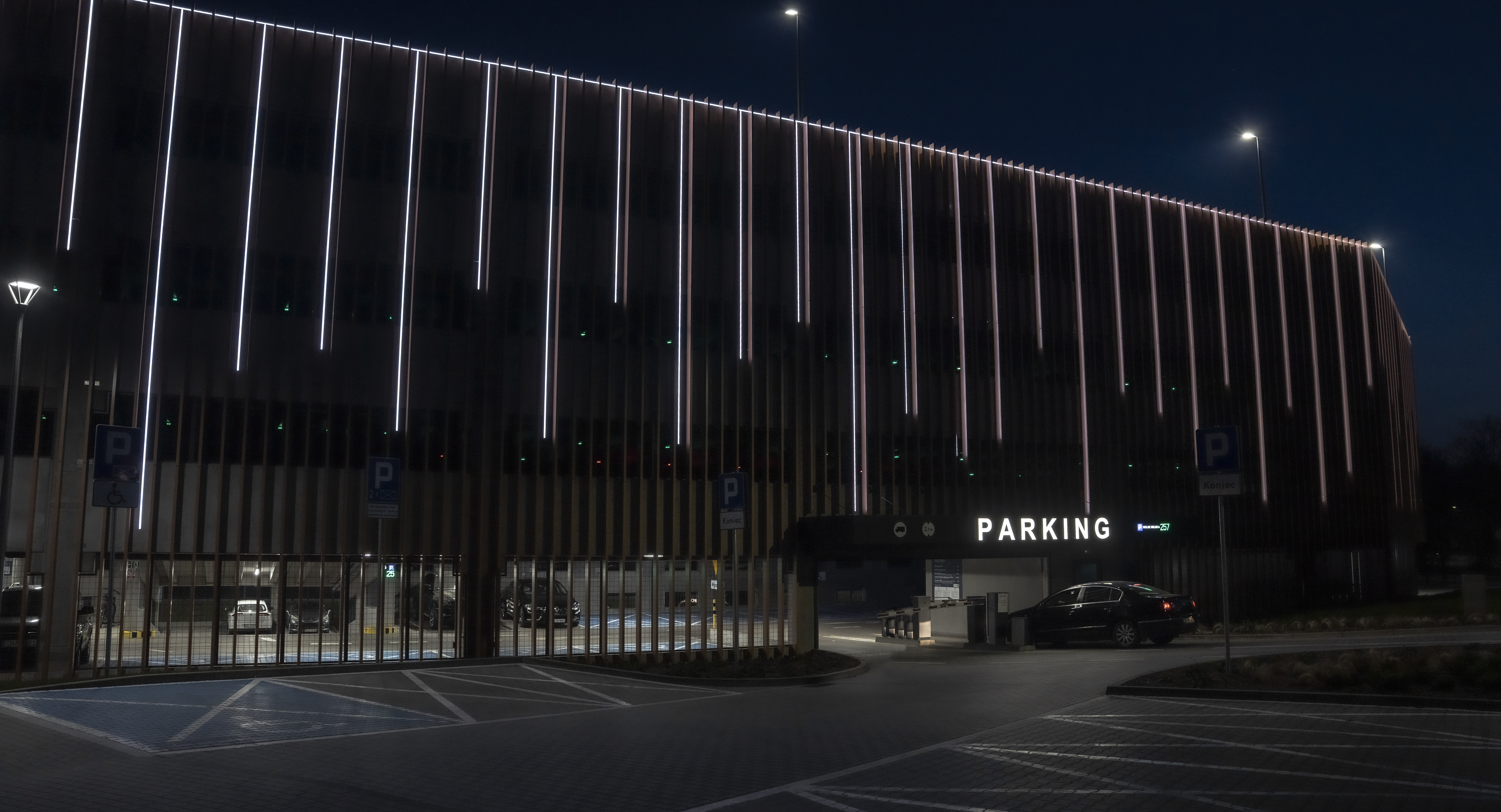

Carpark in Kołobrzeg Poland
JPG (12.14 MB)
Application pictures

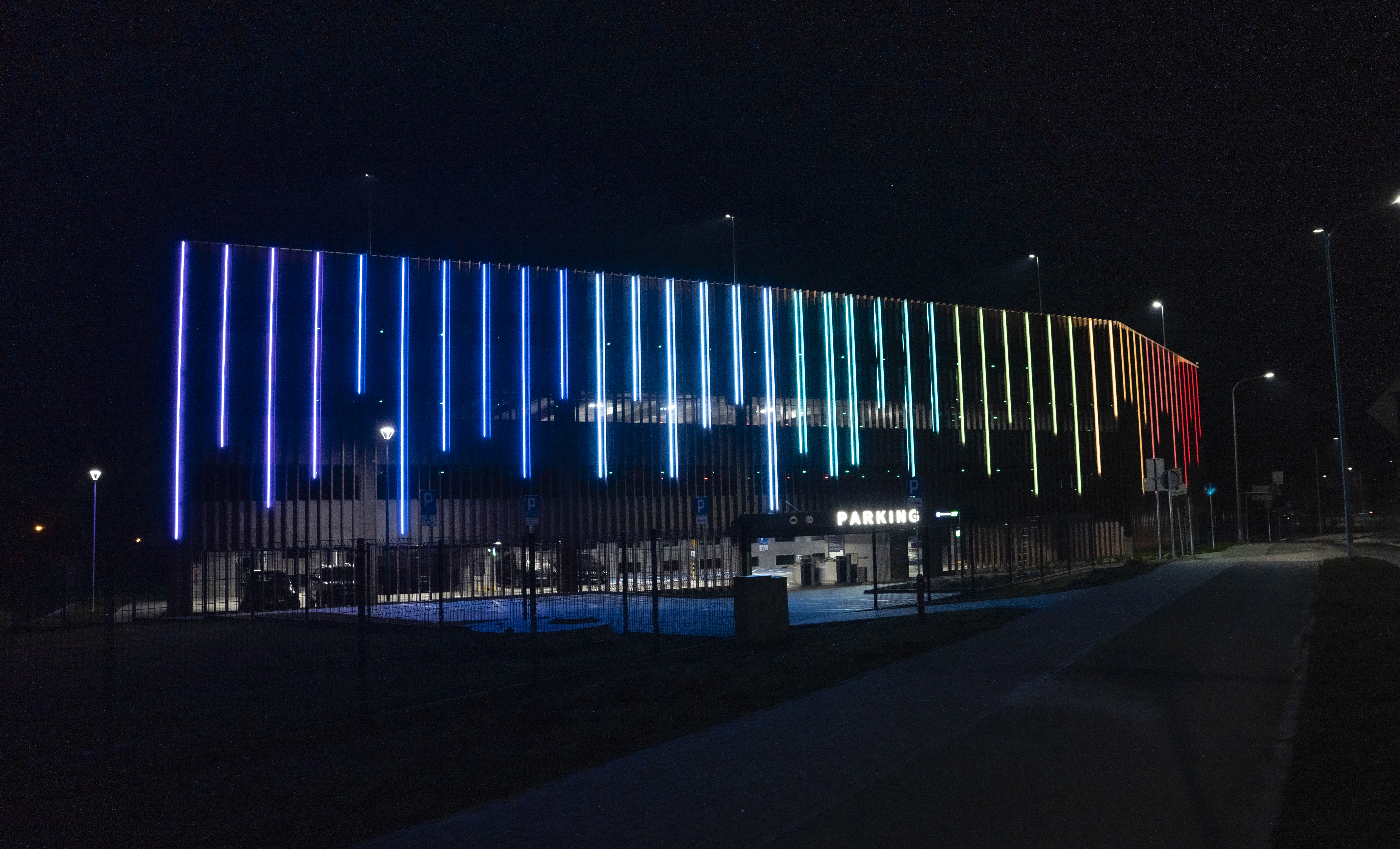

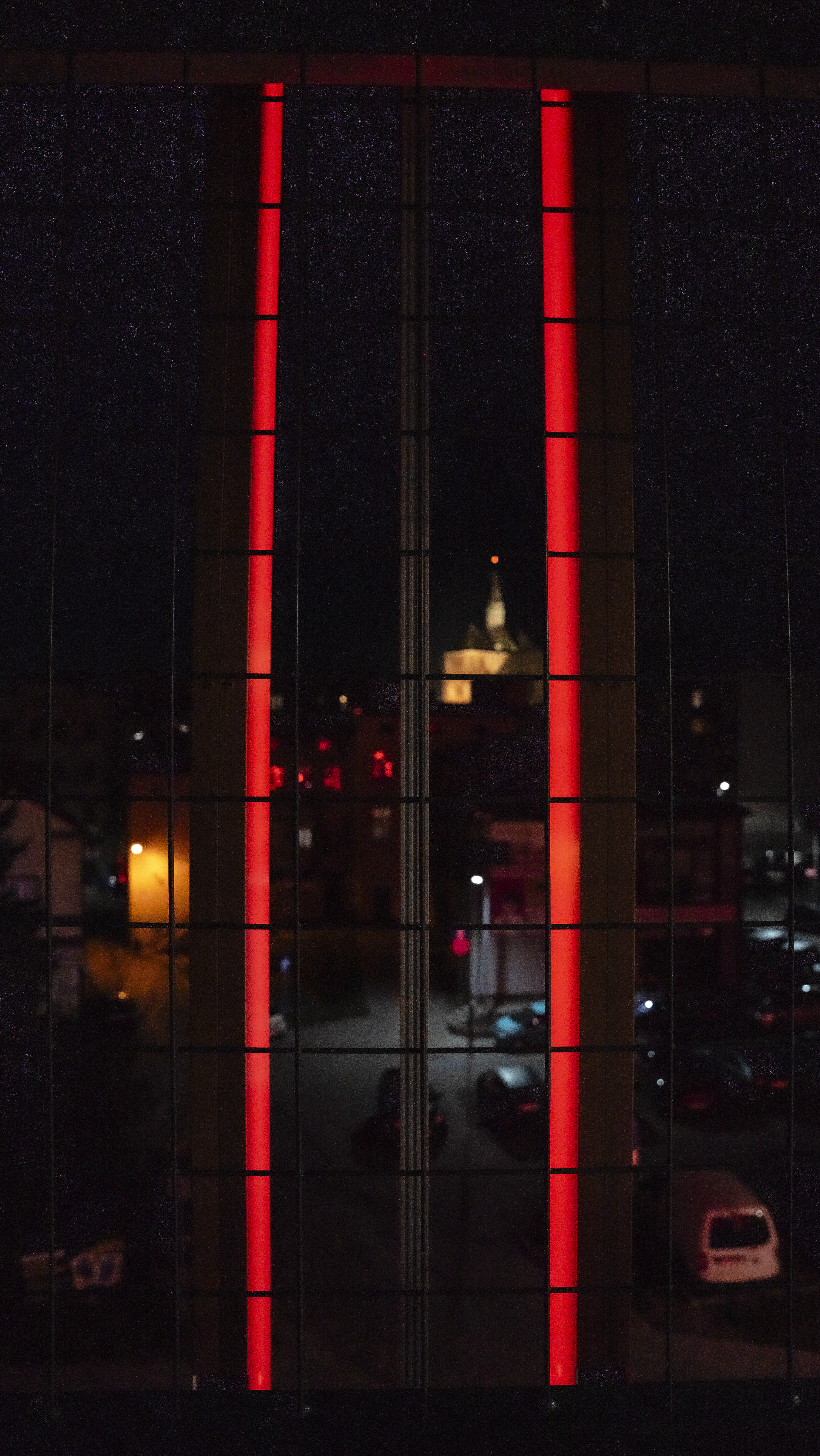

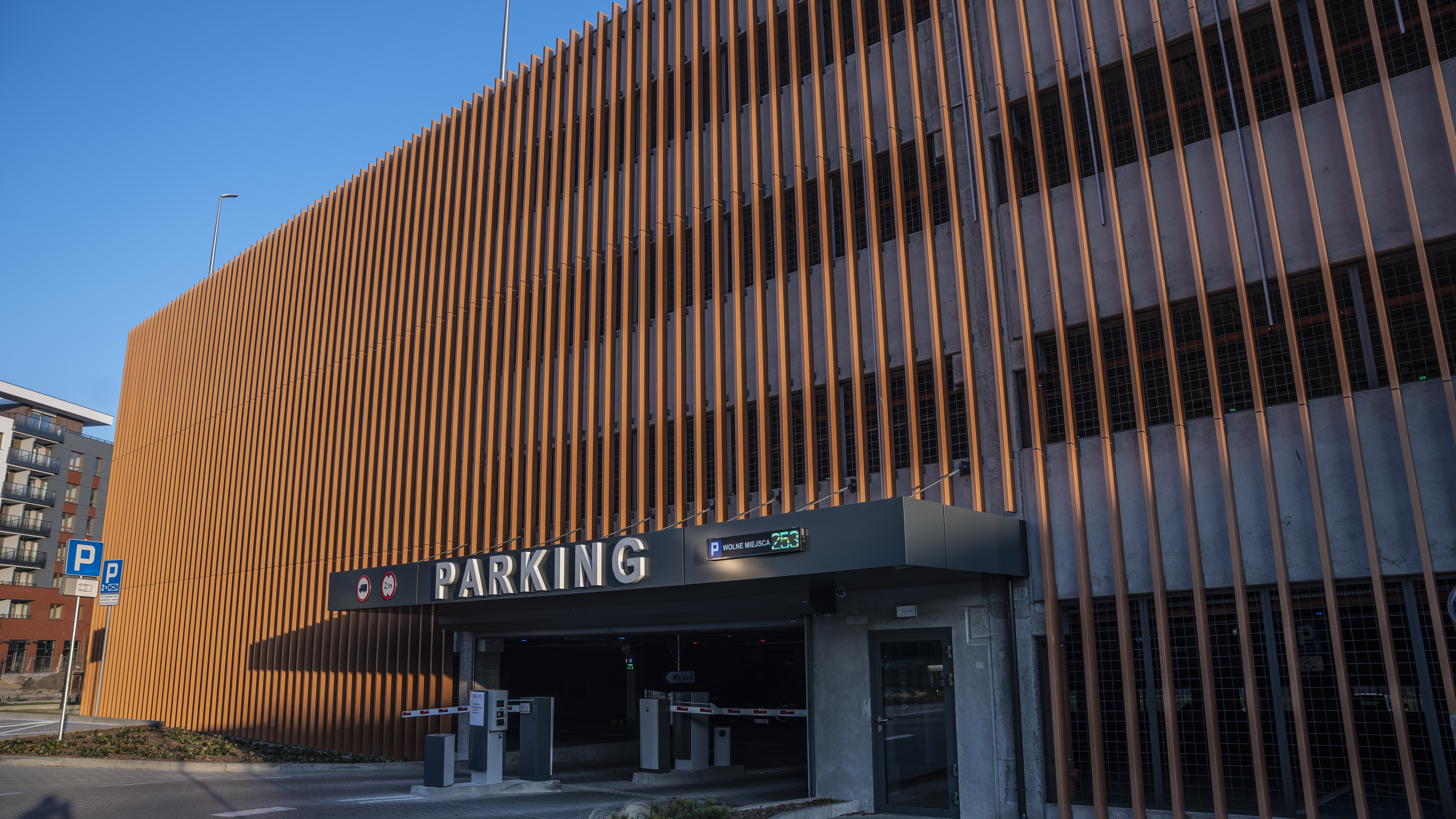

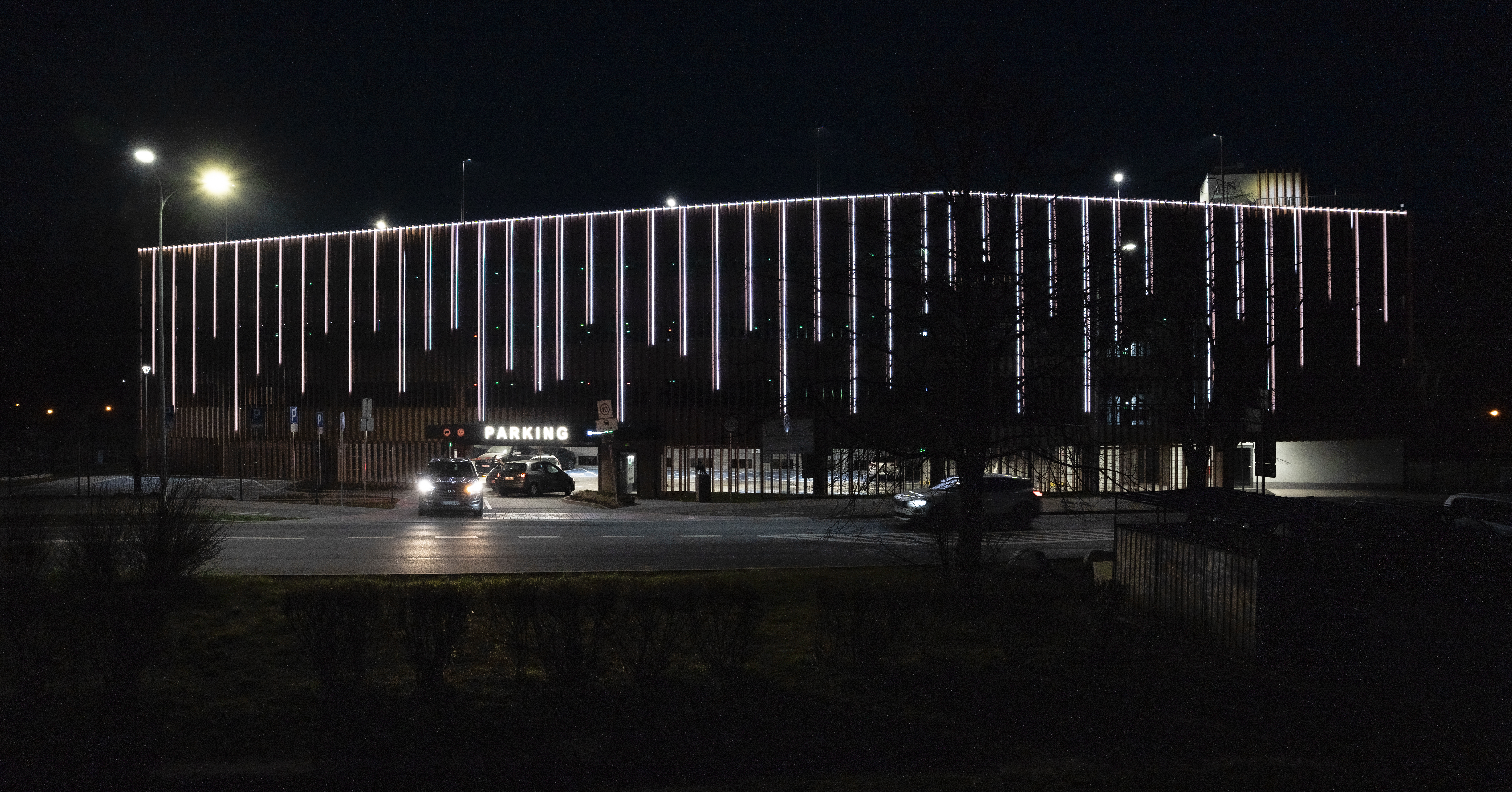

Carpark in Kołobrzeg Poland
JPG (10.72 MB)
Application pictures

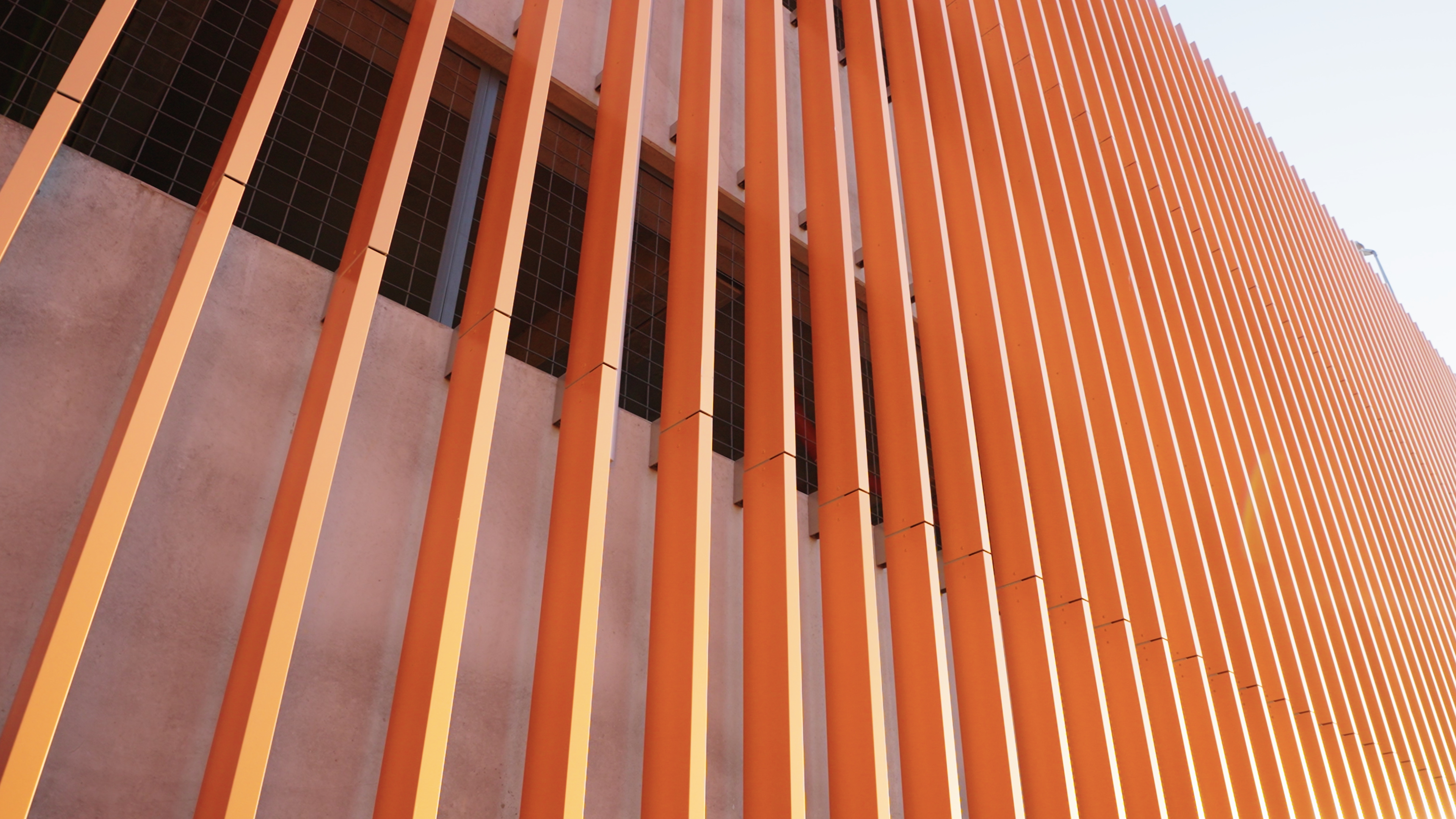

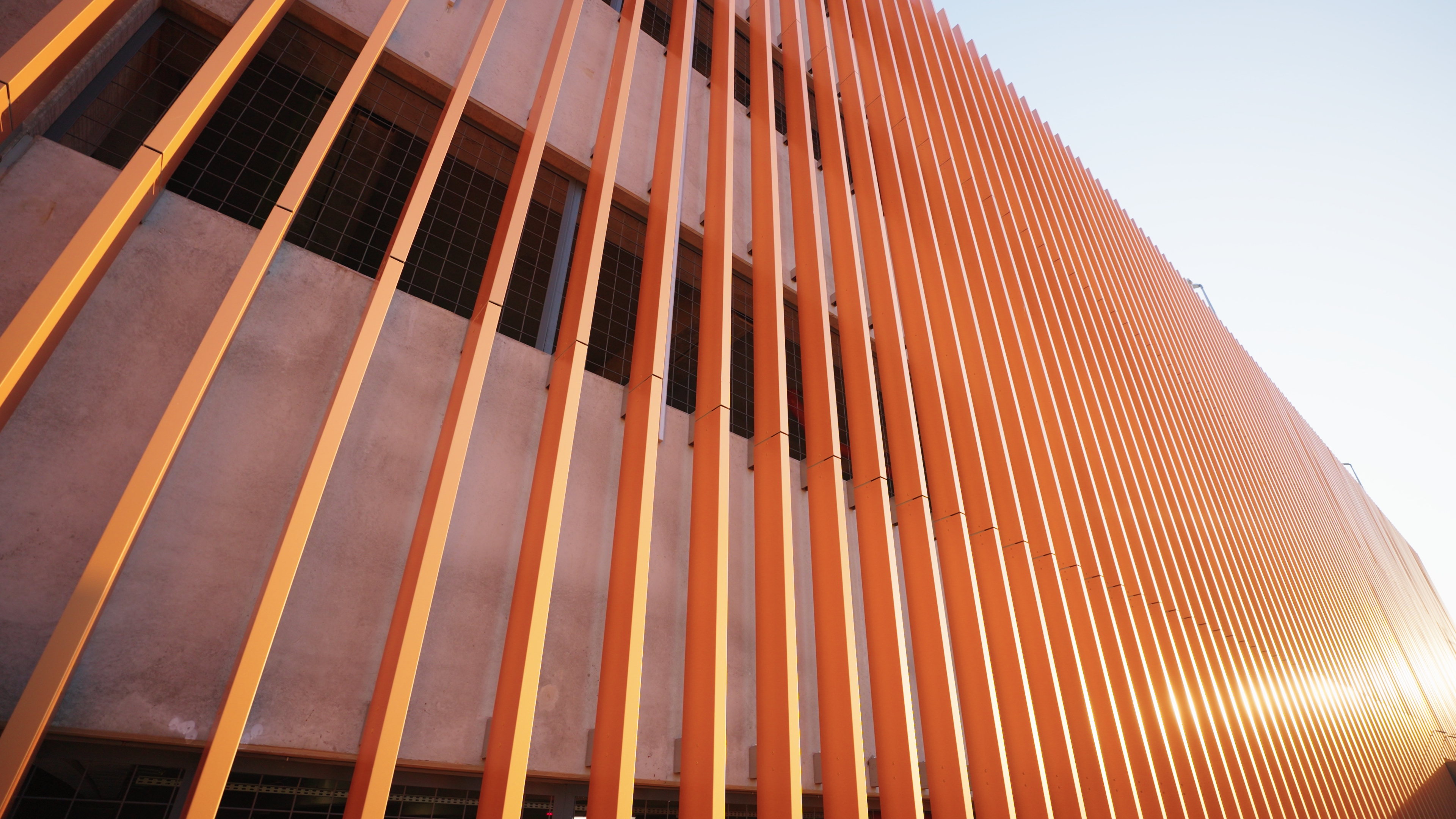

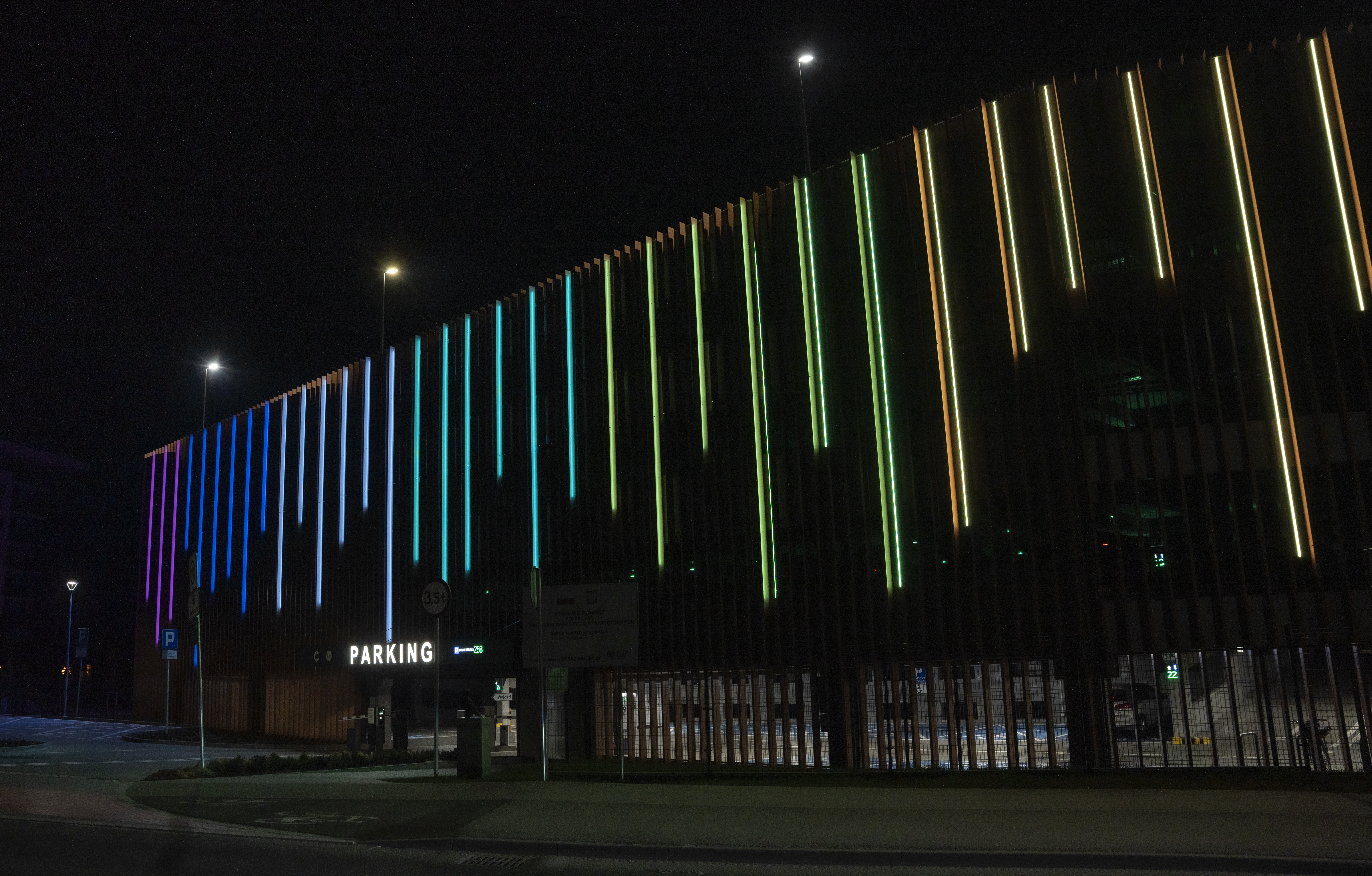

Carpark in Kołobrzeg Poland
JPG (15.53 MB)
Application pictures

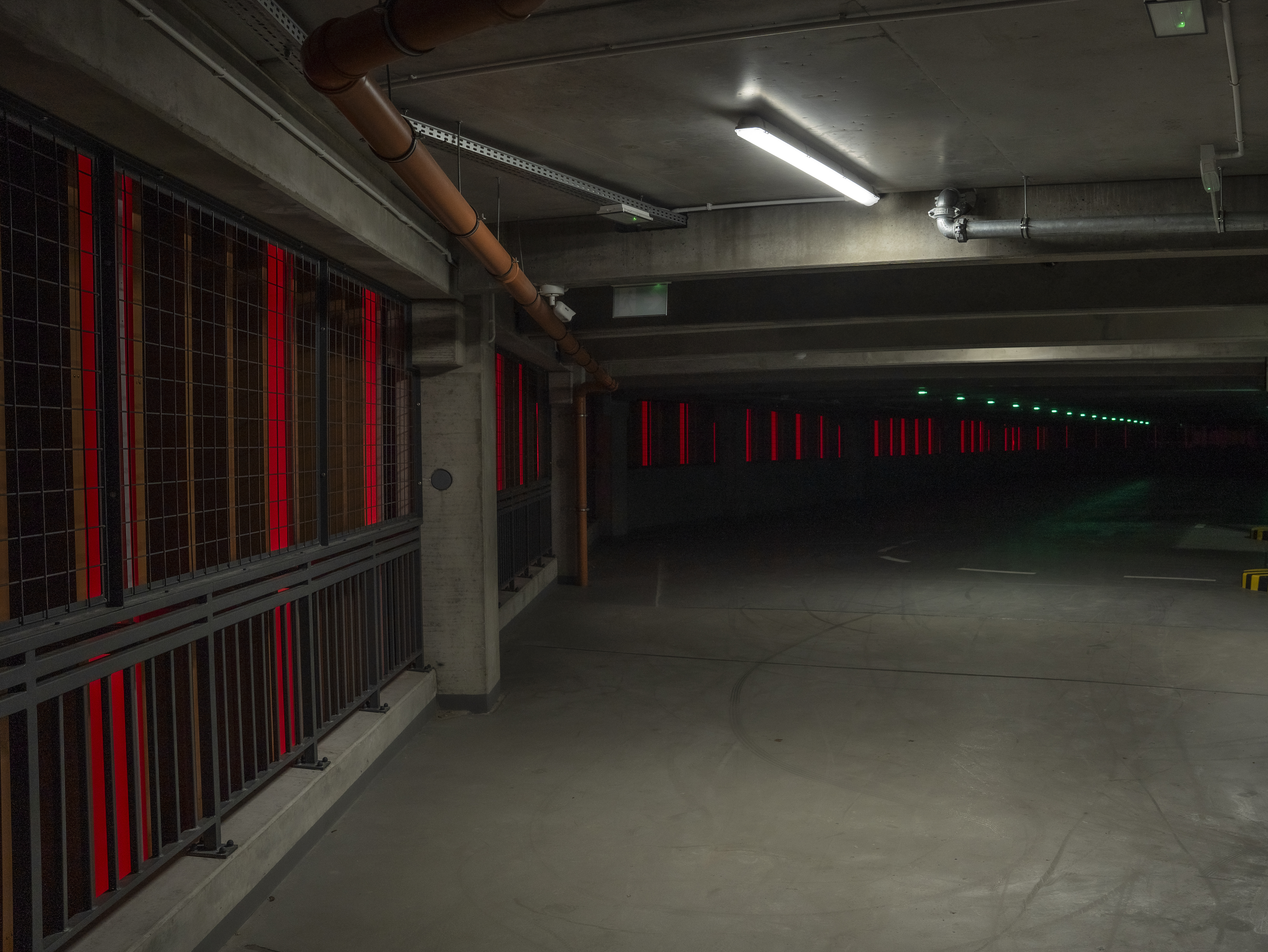

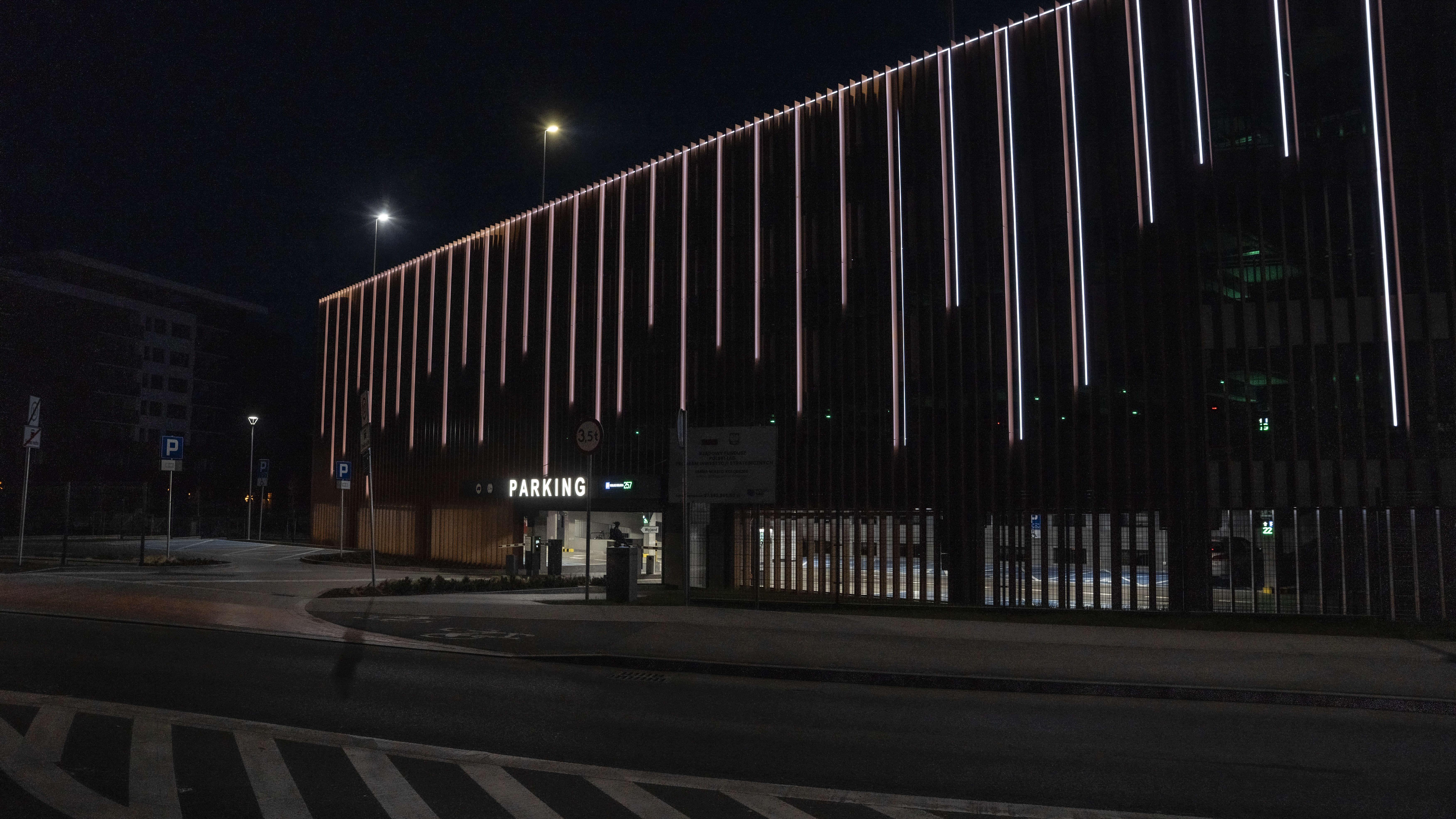

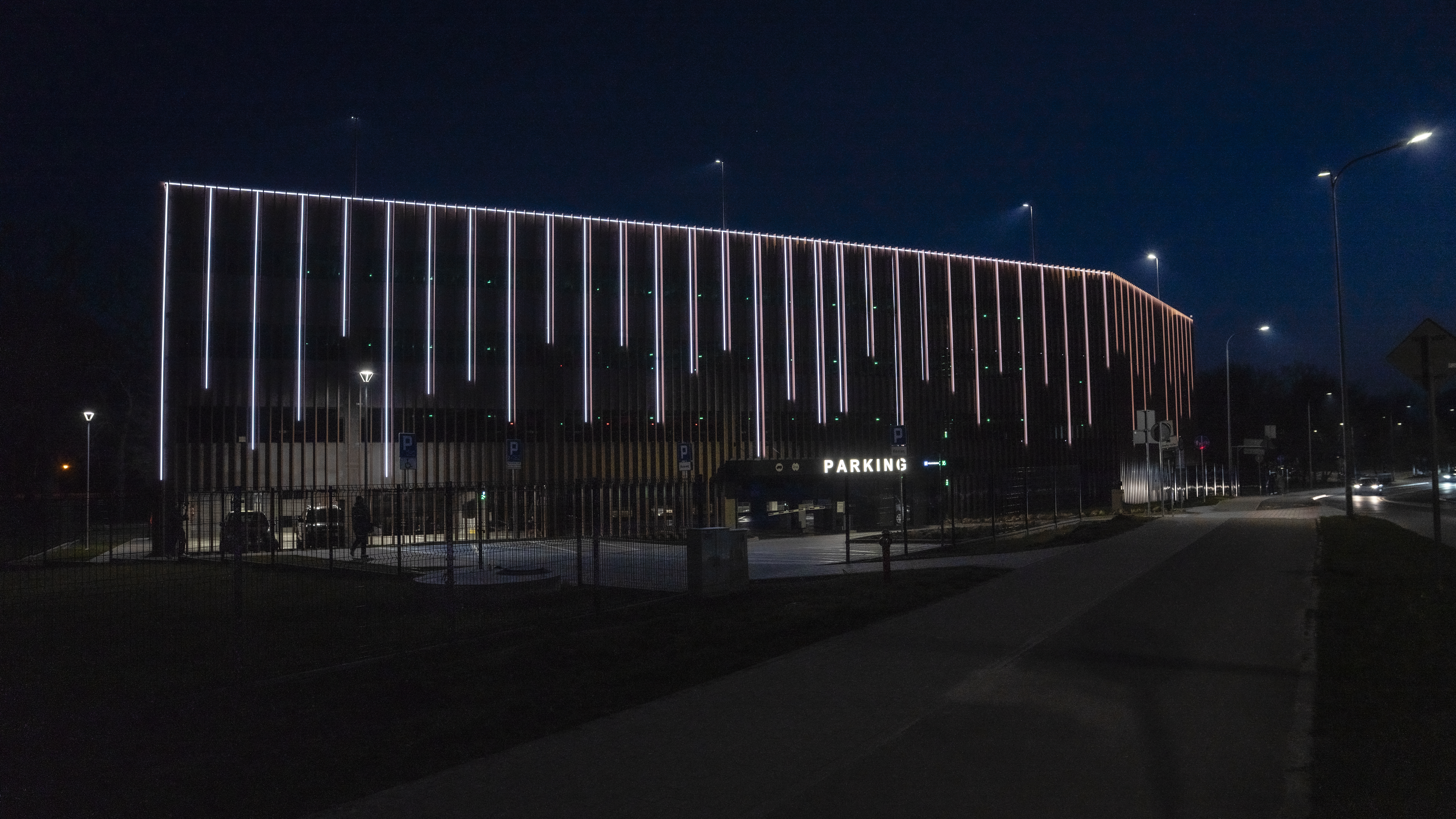

Carpark in Kołobrzeg Poland
JPG (13.4 MB)
Application pictures

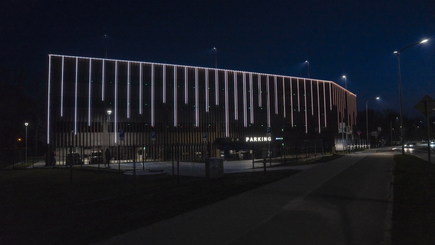

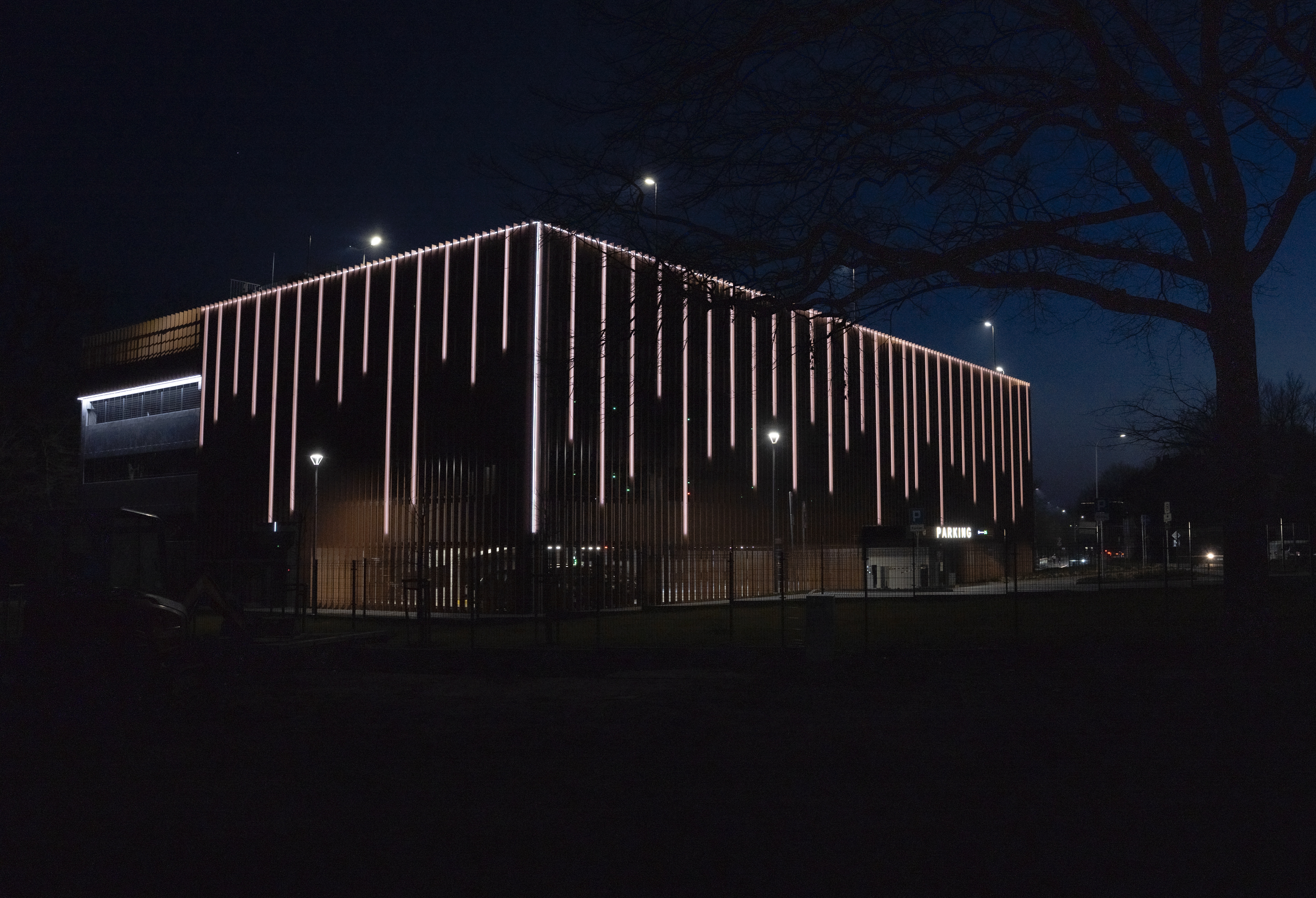

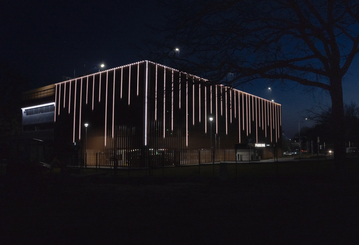

Carpark in Kołobrzeg Poland
JPG (27.3 MB)
Application pictures

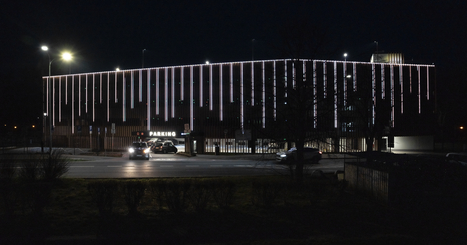

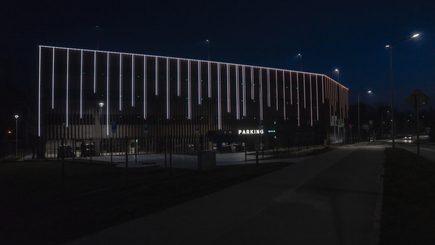

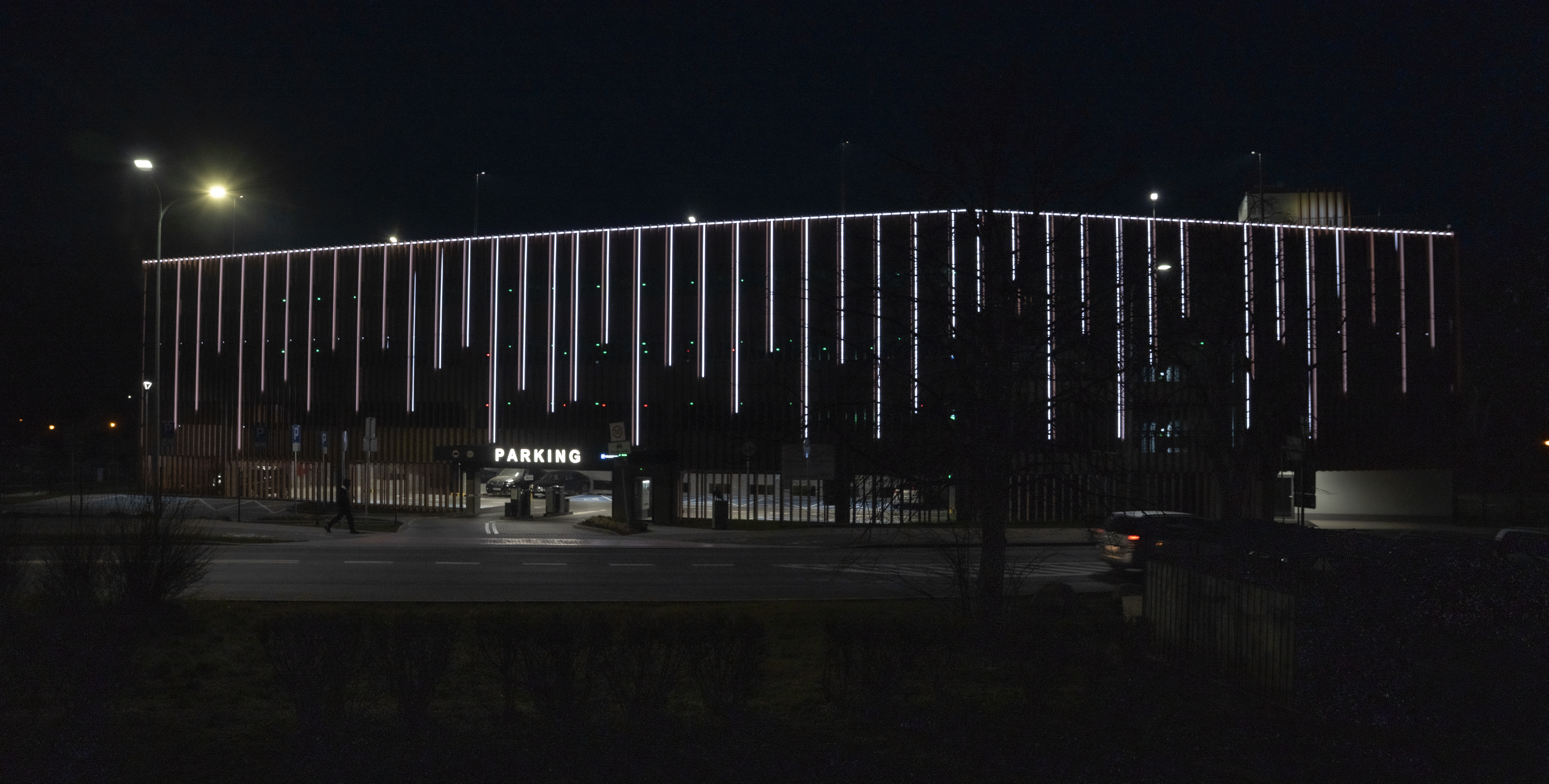

Carpark in Kołobrzeg Poland
JPG (19.13 MB)
Application pictures

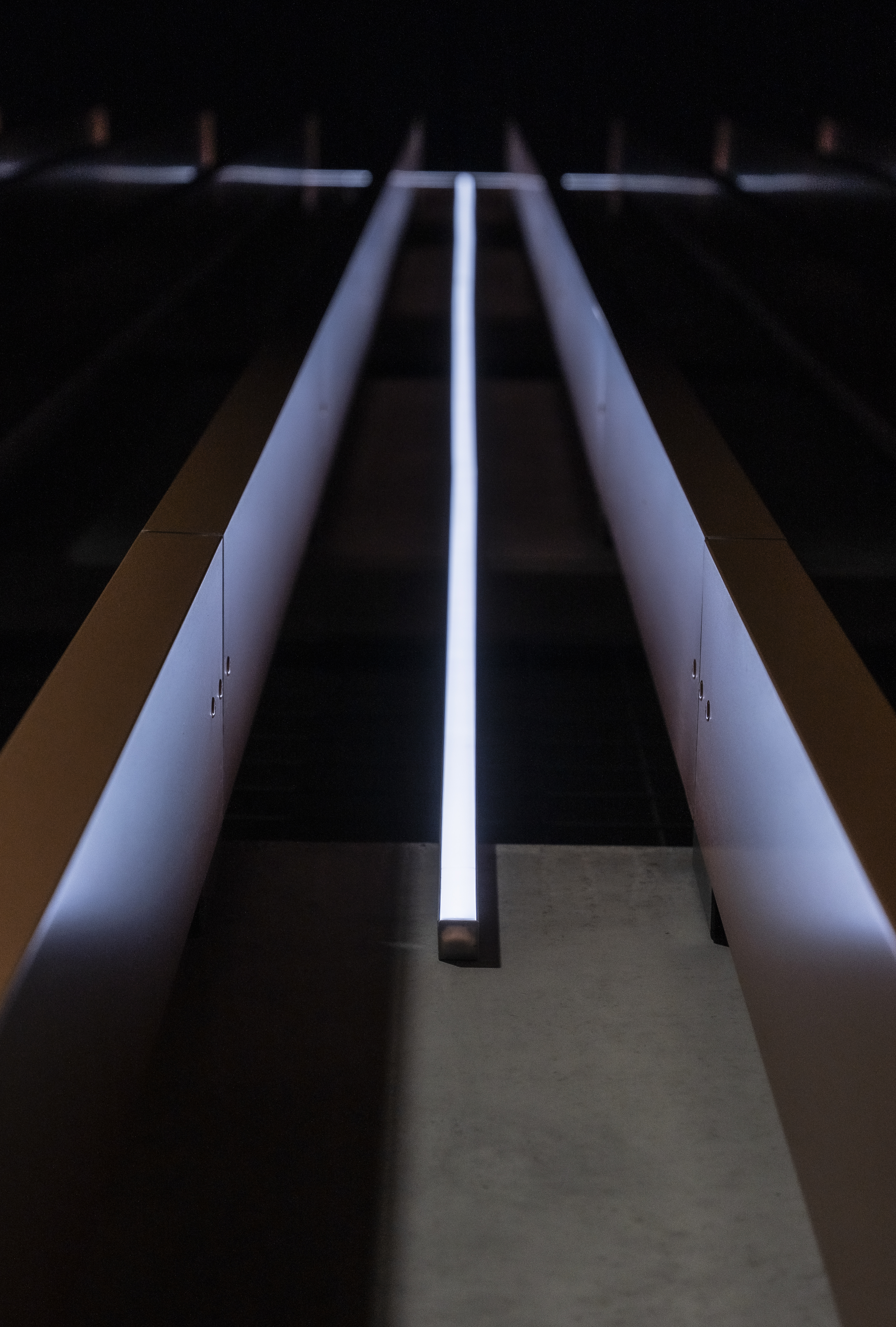

Carpark in Kołobrzeg Poland
