PARATHOM DIM PAR16
LED PAR 16 50 36° DIM 4.5W 930 GU10
GTIN: 4058075608276
Folding box / 5
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Quick, simple and safe replacement without rewiring
- Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
- Low maintenance costs thanks to long lifetime
- No UV and near-IR radiation in the light beam
- Stepless dimming
- Very high dimmer compatibility, see also www.ledvance.com/dim
- Instant 100 % light, no warm-up time
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- Shops and exhibition rooms
- Domestic applications
- Commercial applications
- Accent lighting
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to high voltage halogen lamps
- High color consistency: ≤ 5 sdcm
- Dimmable
- Lamp made of glass
- Very high color rendering CRI > 90
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For dimming conformity see www.ledvance.com/dim
- For further products and actual information concerning LED lamps see www.ledvance.com/ledlamps
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 4.5 W |
| Construction wattage | 4.50 W |
| Nominal voltage | 220…240 V |
| Operating mode | AC Mains |
| Claimed equiv. conventional lamp power | 50 W |
| Nominal current | 27 mA |
| Type of current | AC |
| Inrush current | 1 A |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Max. lamp number on MCB B10 A | 80 |
| Max. lamp number on MCB B16 A | 130 |
| Power factor λ | 0.70 |
Photometrical data
| Luminous intensity | 690 cd |
| Luminous flux | 350 lm |
| Nominal useful luminous flux 90° | 350 lm |
| Luminous efficacy | 77 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 3000 K |
| Color rendering index Ra | ≥90 |
| Light color | 930 |
| Standard deviation of color matching | ≤5 sdcm |
| Rated peak intensity | 690 cd |
| Rated LLMF at 6,000 h | 0.80 |
| Flickering metric (Pst LM) | 1.0 |
| Stroboscope effect metric (SVM) | 0.4 |
Light technical data
| Beam angle | 36 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 54.00 mm |
| Diameter | 51.00 mm |
| Maximum diameter | 51 mm |
| Product weight | 48.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 87 °C |
Lifespan
| Lifespan L70/B50 at 25 °C | 15000 h |
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | GU10 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | Yes 1) |
1) Check dimmer compatibility at ledvance.com/compatibility
Certificates & Standards
| Energy efficiency class | F 1) |
| Energy consumption | 5.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE, EAC |
| Photobiological safety group acc. to EN62778 | RG1 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
| Order reference | LPPAR16D5036 4, |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | LED |
| Non-directional or directional | DLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | GU10 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Claim of equivalent power | Yes |
| Length | 54.00 mm |
| Height | 51.00 mm |
| Width | 51.00 mm |
| Chromaticity coordinate x | 0.430 |
| Chromaticity coordinate y | 0.392 |
| R9 Colour rendering index | 0.00 |
| Beam angle correspondence | NARROW_CONE_90 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 522955 |
| Model number | AC33737 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075608276 | Folding box 5 |
52 mm x 186 mm x 57 mm | 267.00 g | 0.55 dm³ |
| 4058075608283 | Shipping box 50 |
382 mm x 268 mm x 72 mm | 2829.00 g | 7.37 dm³ |
Declarations of conformity
Product image: white background, diagonal
PAR16 35-50-80 GU10
PAR16 35-50-80 GU10
Product image: white background, upright
PAR16 35-50-80 GU10
PAR16 35-50-80 GU10
Product line drawing with letters
666401_PAR16 35/50/80 2016
666401_PAR16 35/50/80 2016
Product line drawing, front, no dimensions
666421_PAR16 35/50/80 2016
666421_PAR16 35/50/80 2016

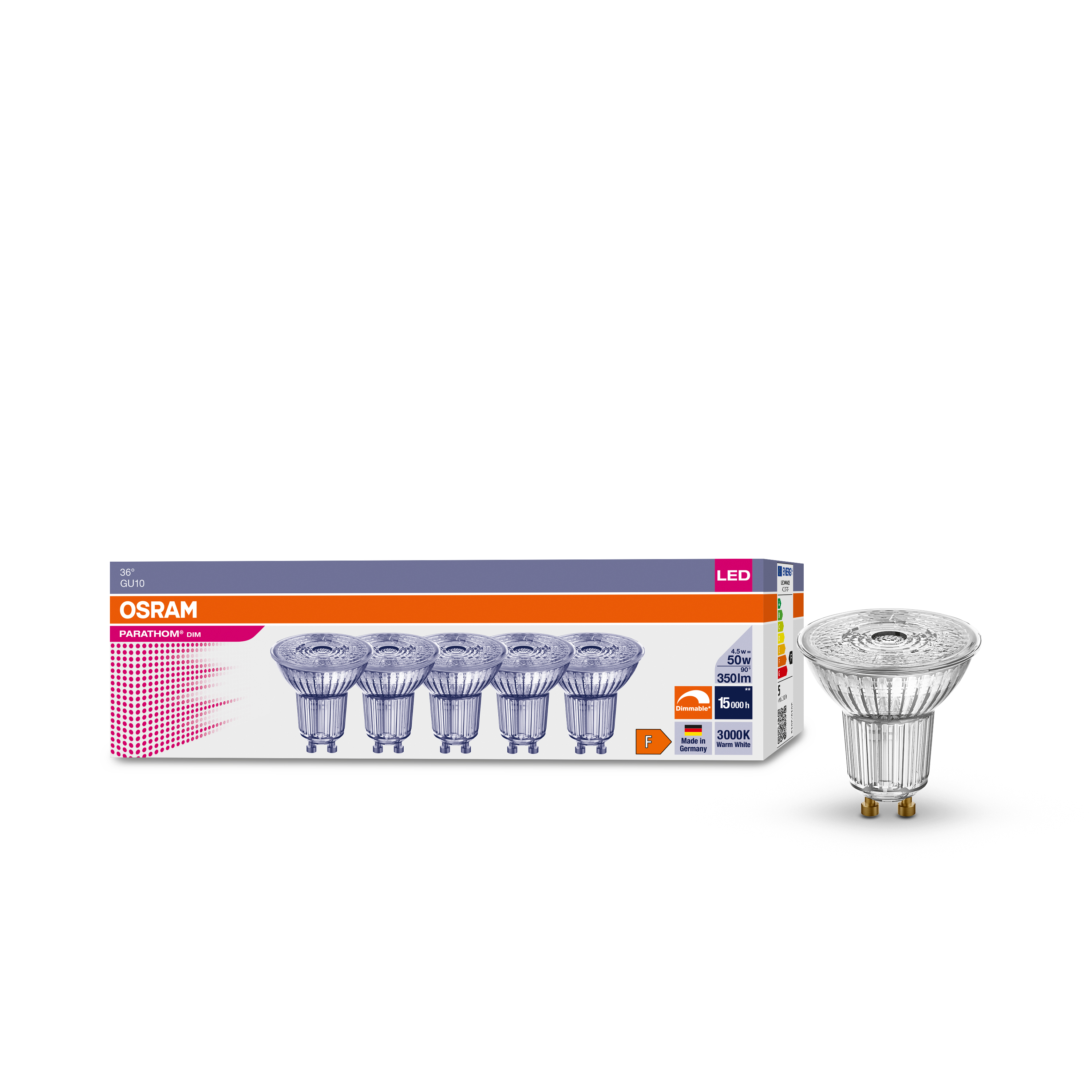

Combo Shot = Product Beauty Shot + Packaging Image
PARA DIM PAR16 50 DIM ba36 4.5W 930 GU10 MiG
PARA DIM PAR16 50 DIM ba36 4.5W 930 GU10 MiG

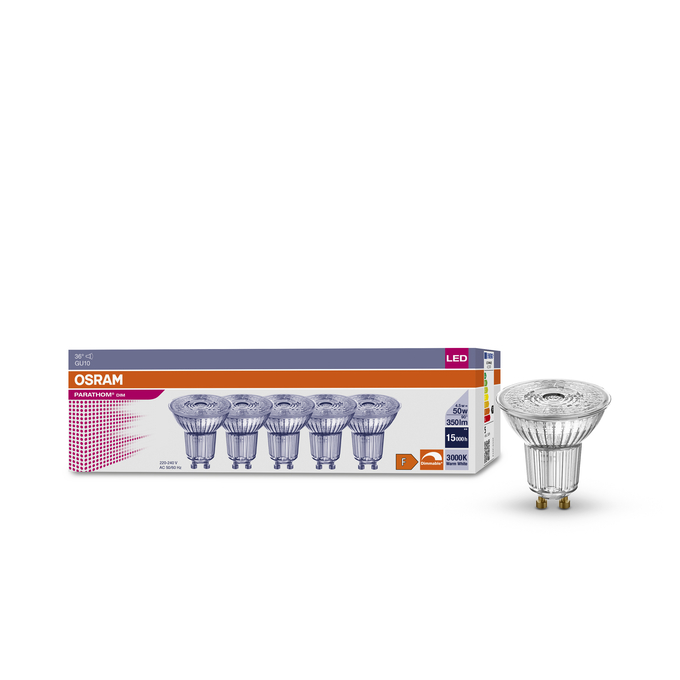

Combo Shot = Product Beauty Shot + Packaging Image
PARADIMPAR164.5W930GLG U10
PARADIMPAR164.5W930GLG U10

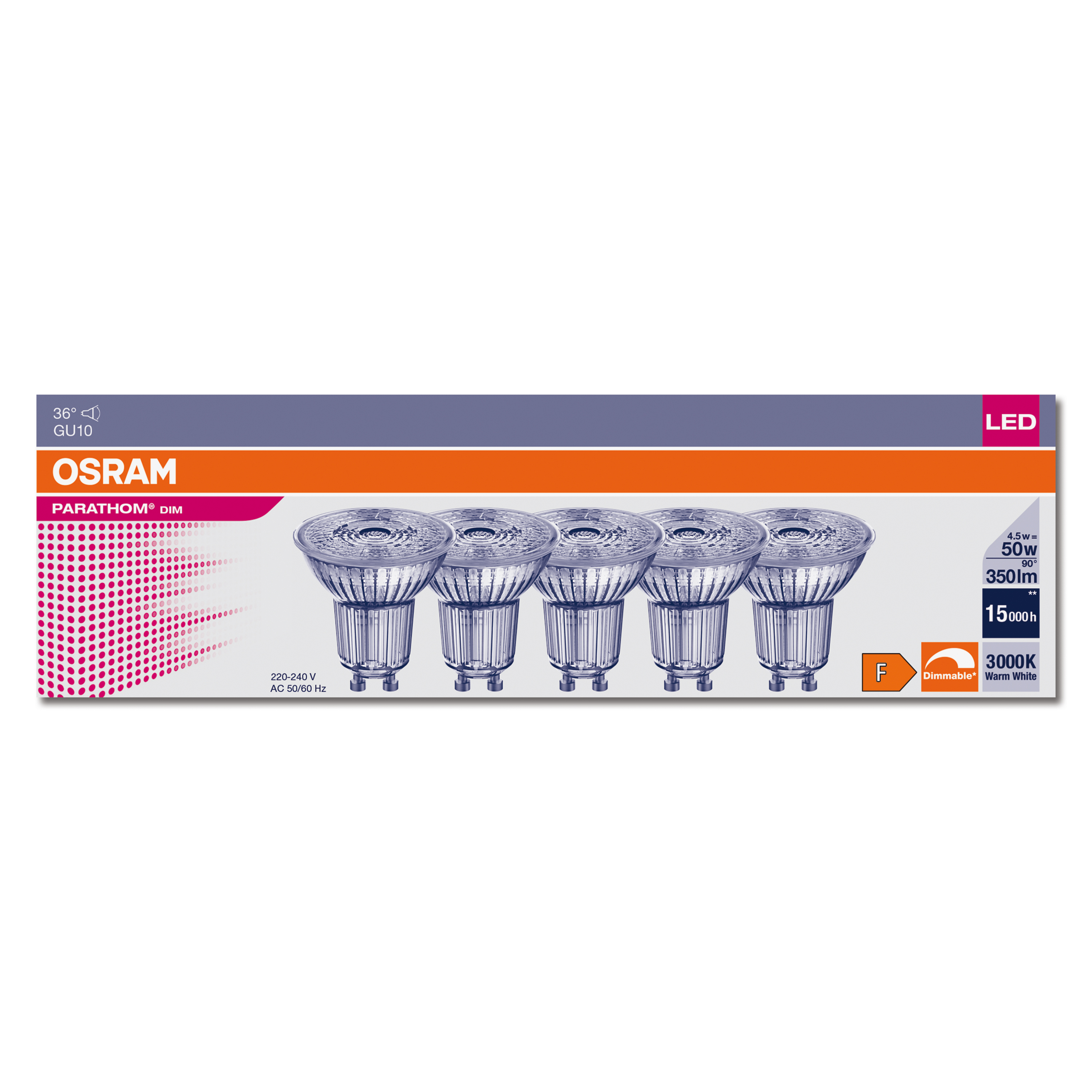

Packaging image, frontal
PARADIMPAR164.5W930GLG U10
PARADIMPAR164.5W930GLG U10

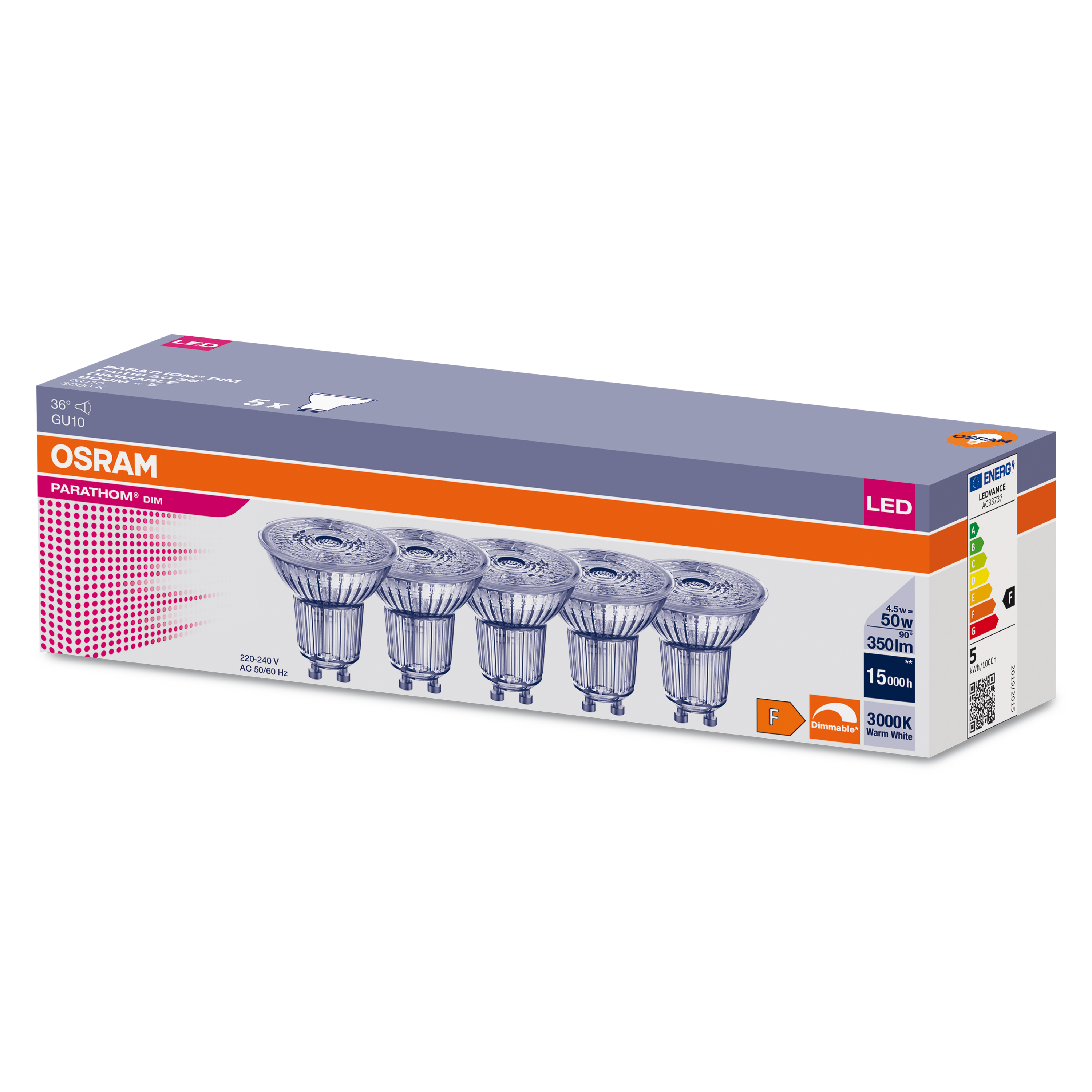

Packaging image, spacial
PARADIMPAR164.5W930GLG U10
PARADIMPAR164.5W930GLG U10
Energy label
EL-4058075608276-AC337 37
EL-4058075608276-AC337 37
Spectral power distribution
Everlight 67-23ST RKE 3000K
Everlight 67-23ST RKE 3000K
| EAN | STK number | ELDAS number |
|---|---|---|
| 4058075608276 | 4731735 | 941810330 |
