DULUX LED D/E13 HF & AC MAINS V 6W 840 G24Q-1
OSRAM DULUX LED D/E HF & AC MAINS
DULUX LED D/E13 HF & AC MAINS 6W 840 G24Q-1
GTIN: 4058075559103
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy installation
- Low energy consumption
- Easy relamping thanks to compact design
- Operation directly on 230 V AC mains possible
Areas of application
- Supermarkets and department stores
- Walkways and corridors
- Hotels, restaurants
Product features
- LED replacement for conventional compact fluorescent lamps for use in ECG luminaires or on AC mains
- Single-ended four-pin plug-in G24q base
- Rotatable base around its longitudinal axis (± 90°)
- Lifetime up to 30,000 h
- Type of protection: IP20
- Mercury-free lamps
Safety advice
- Always check the latest update of the compatibility list available on www.ledvance.com/ecg-compatibility.
- Not suitable for operation with conventional control gear.
- The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- All electrical connections must be made by a qualified person.
- Not suitable for emergency lighting.
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Electrical data
| Nominal wattage | 6 W |
| Construction wattage | 6.00 W |
| Nominal voltage | 220…240 V |
| Operating mode | ECG, AC Mains 1) |
| Nominal current | 28 mA |
| Type of current | AC |
| Inrush current | 3 A |
| Suitable for DC input | Yes |
| Input voltage DC | 186…260 V 2) |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Max. lamp number on MCB B10 A | 320 |
| Max. lamp number on MCB B16 A | 510 |
| Total harmonic distortion | ≤ 30 % |
1) Check ECG compatibility at ledvance.com/compatibility
2) Permitted voltage range
2) Permitted voltage range
Photometrical data
| Luminous flux | 660 lm |
| Luminous efficacy | 110 lm/W |
| Light color (designation) | Cool White |
| Color temperature | 4000 K |
| Color rendering index Ra | 80 |
| Light color | 840 |
| Rated LLMF at 6,000 h | 0.90 |
| Flickering metric (Pst LM) | 1.0 |
| Stroboscope effect metric (SVM) | 0.4 |
Dimensions & Weight
| Overall length | 130.00 mm |
| Diameter | 32.50 mm |
| Tube diameter | 33,0 mm |
| Product weight | 58.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+45 °C 1) |
| Maximum temperature at tc test point | 70 °C |
1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h |
Additional product data
| Base (standard designation) | G24q-1 |
| Mercury-free | Yes |
| Design / version | Frosted |
Certificates & Standards
| Type of protection | IP20 |
| Standards | CE, EAC, UKCA |
| Photobiological safety group acc. to EN62778 | RG0 |
Country-specific categorizations
| Order reference | DULUX LED D/E13 |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | G24q-1 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Claim of equivalent power | No |
| Length | 130.00 mm |
| Height | 32.50 mm |
| Width | 32.50 mm |
| Chromaticity coordinate x | 0.381 |
| Chromaticity coordinate y | 0.379 |
| R9 Colour rendering index | 0.00 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.90 |
| Displacement factor | 0.90 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 604651,1412840,2206860 |
| Model number | AC35185,AC47829,AC71186 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075559103 | Folding box 1 |
37 mm x 49 mm x 137 mm | 71.00 g | 0.25 dm³ |
| 4058075559110 | Shipping box 10 |
203 mm x 110 mm x 151 mm | 801.00 g | 3.37 dm³ |
User instruction / safety instructions
OSRAM DULUX D/E LED
OSRAM DULUX D/E LED
Extended installation guide
Installation instructions LED TUBE T8, T5 und DULUX LED 2024 10 EN
Installation instructions LED TUBE T8, T5 und DULUX LED 2024 10 EN
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
DULUX LED
DULUX LED
Declarations of conformity
LEDTUBE
LEDTUBE
PRODUCT DATASHEET
DULUXDELEDHF&ACMains6W 4000Kde
DULUXDELEDHF&ACMains6W 4000Kde
Product datasheet -> old version of product
DULUXLEDDE13HF&ACMAINS 6W840G24Q1en
DULUXLEDDE13HF&ACMAINS 6W840G24Q1en

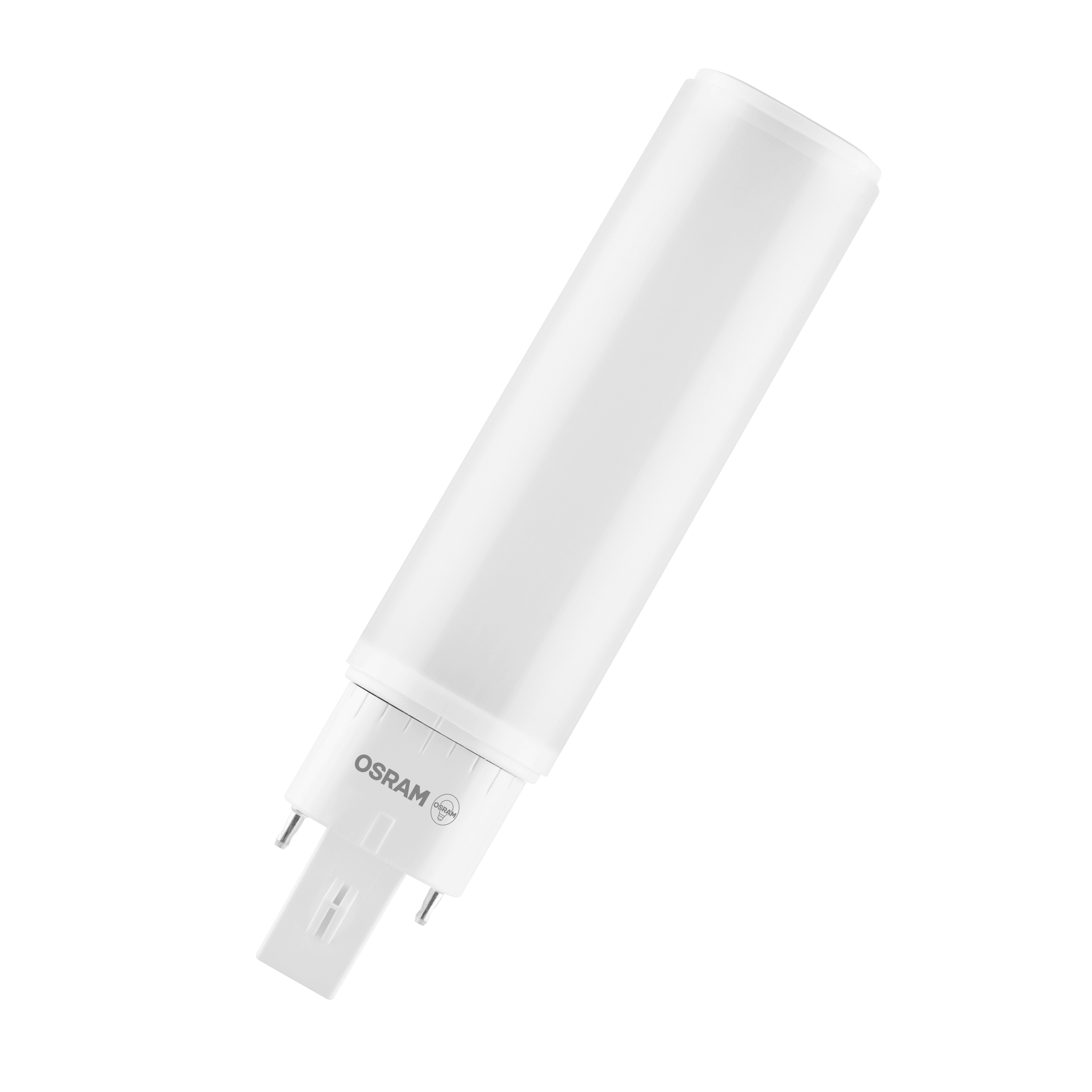

Product image: white background, diagonal with OSRAM logo
DULUX LED DE13 HF G24Q-1
DULUX LED DE13 HF G24Q-1

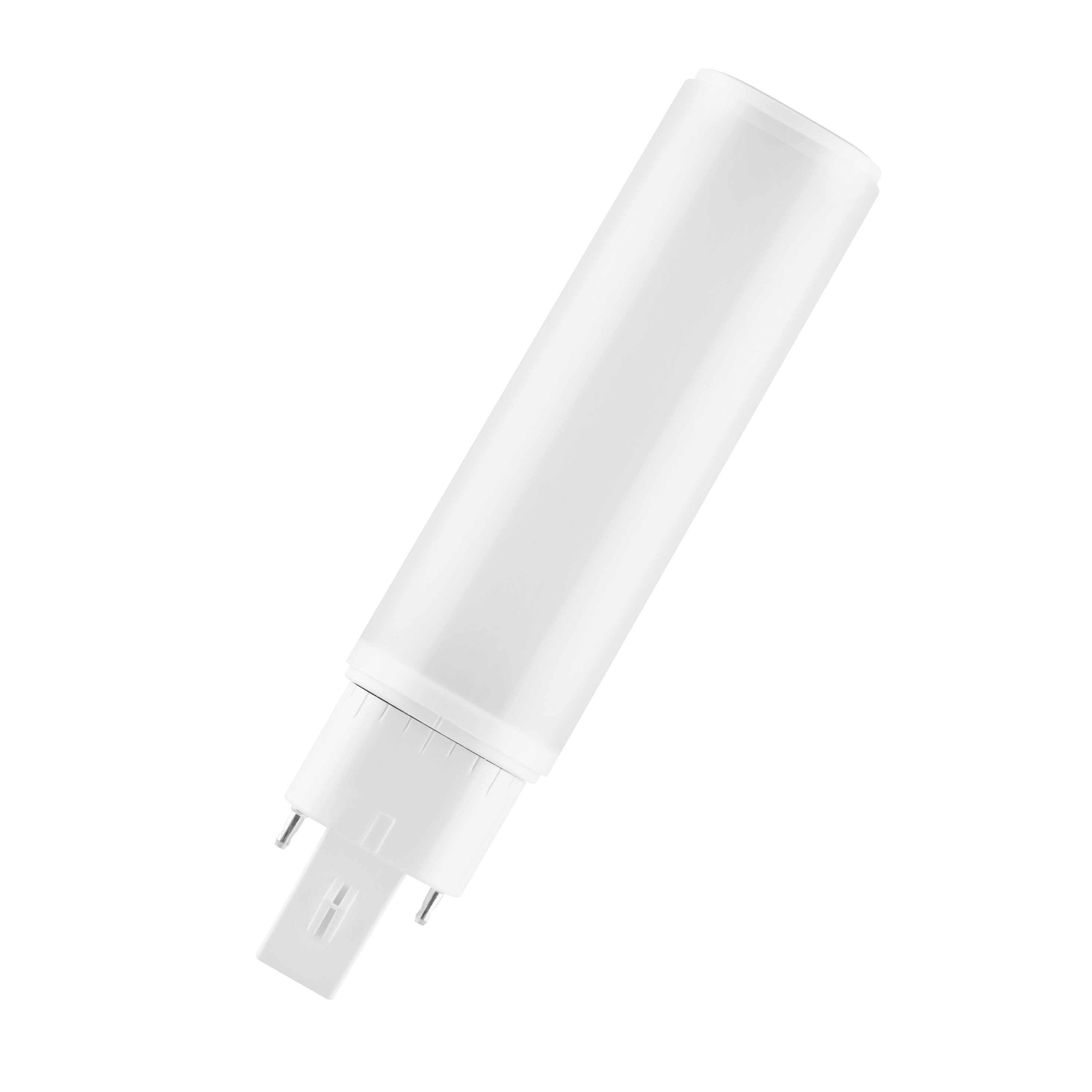

Product image: white background, diagonal
DULUX LED D/E HF 6W
DULUX LED D/E HF 6W

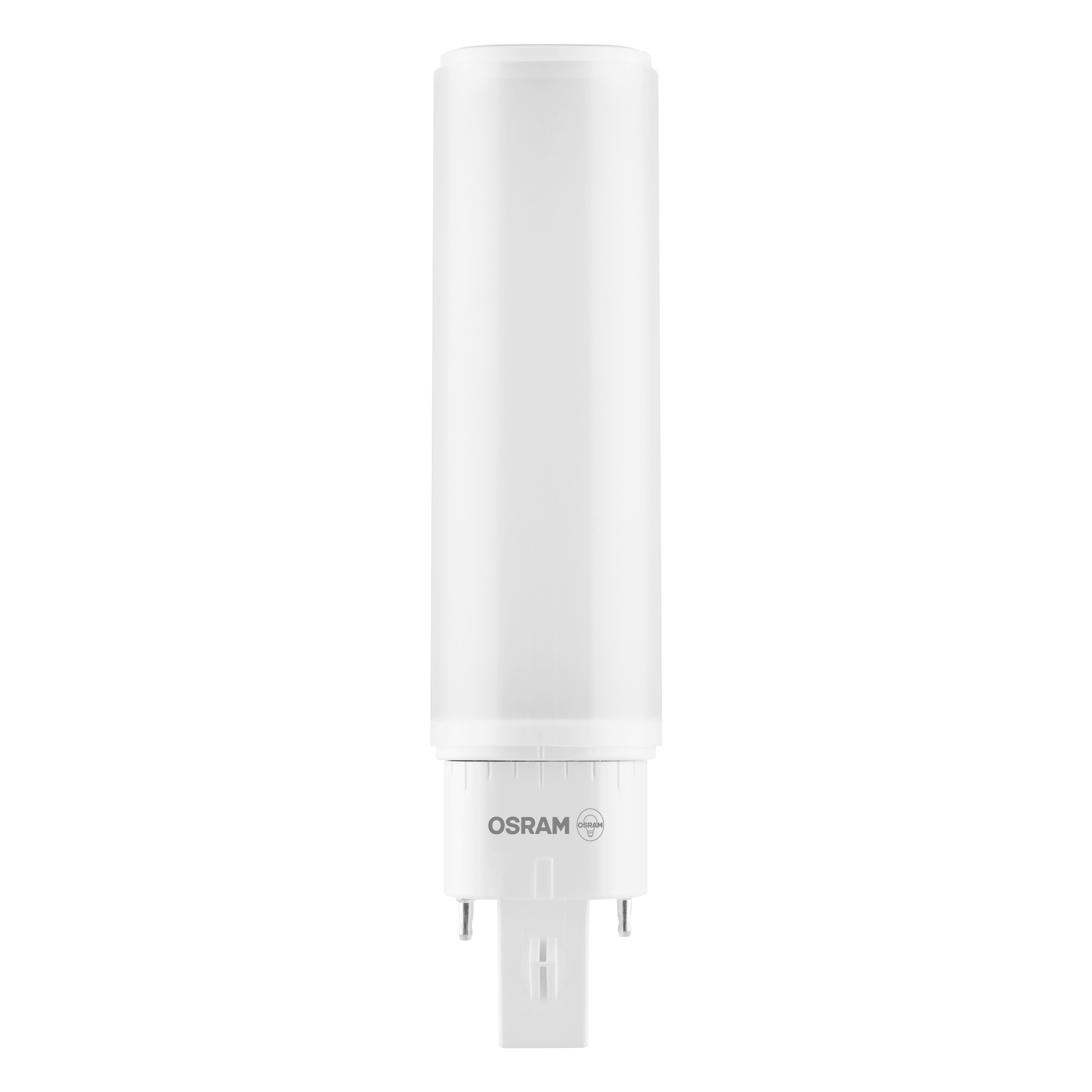

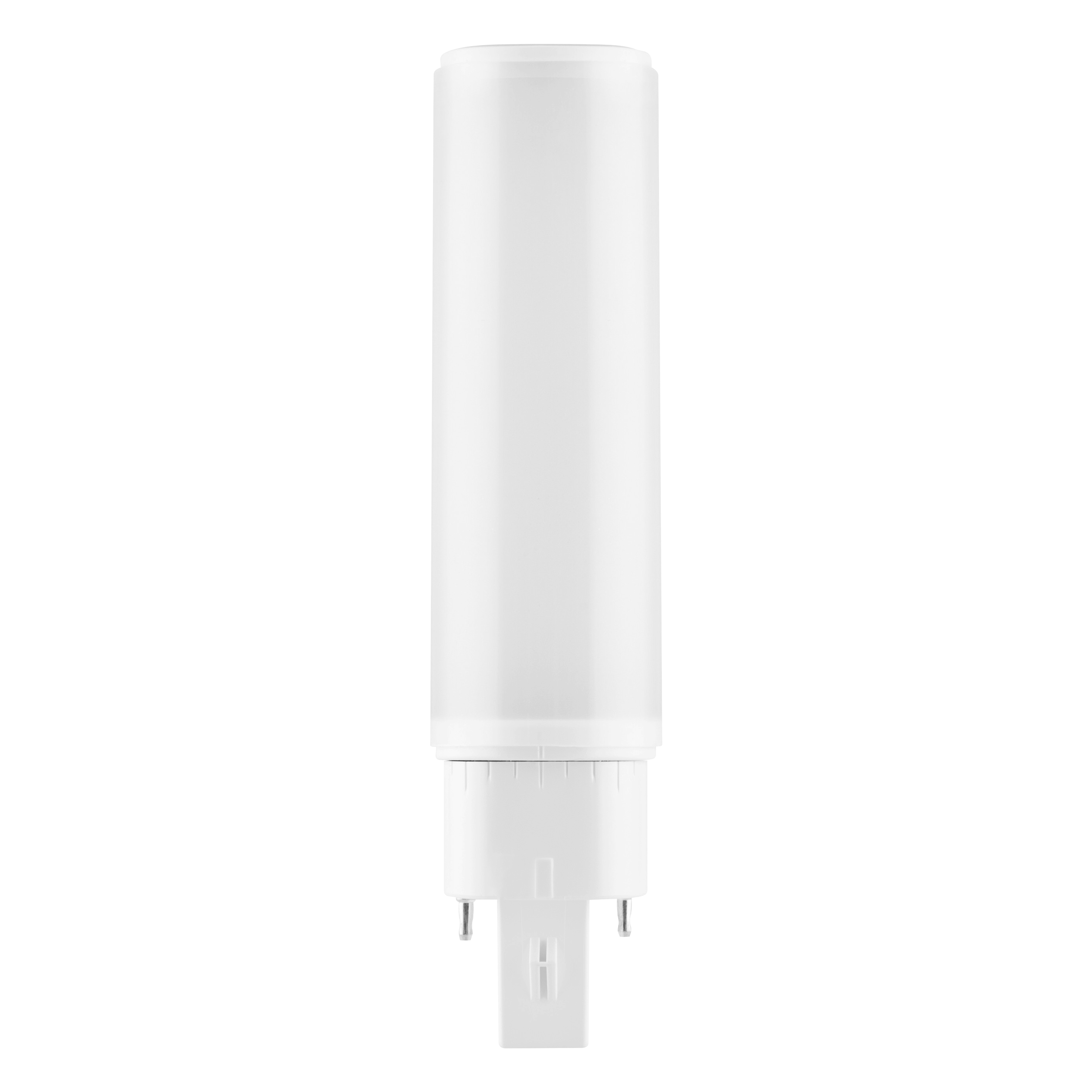

Product image: white background, upright, OSRAM logo
DULUX LED DE13 HF G24Q-1
DULUX LED DE13 HF G24Q-1

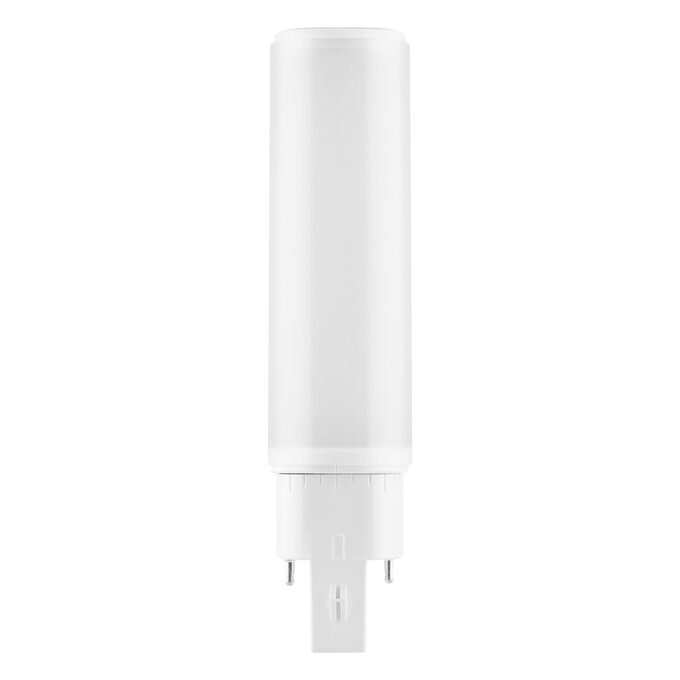

Product image: white background, upright
DULUX LED D/E HF 6W
DULUX LED D/E HF 6W
Product line drawing with letters
DULUX LED D/E HF 6W
DULUX LED D/E HF 6W
Product line drawing with numbers
DULUX LED D/E 13
DULUX LED D/E 13
Product line drawing - technical
DULUX LED D/E HF 6W
DULUX LED D/E HF 6W

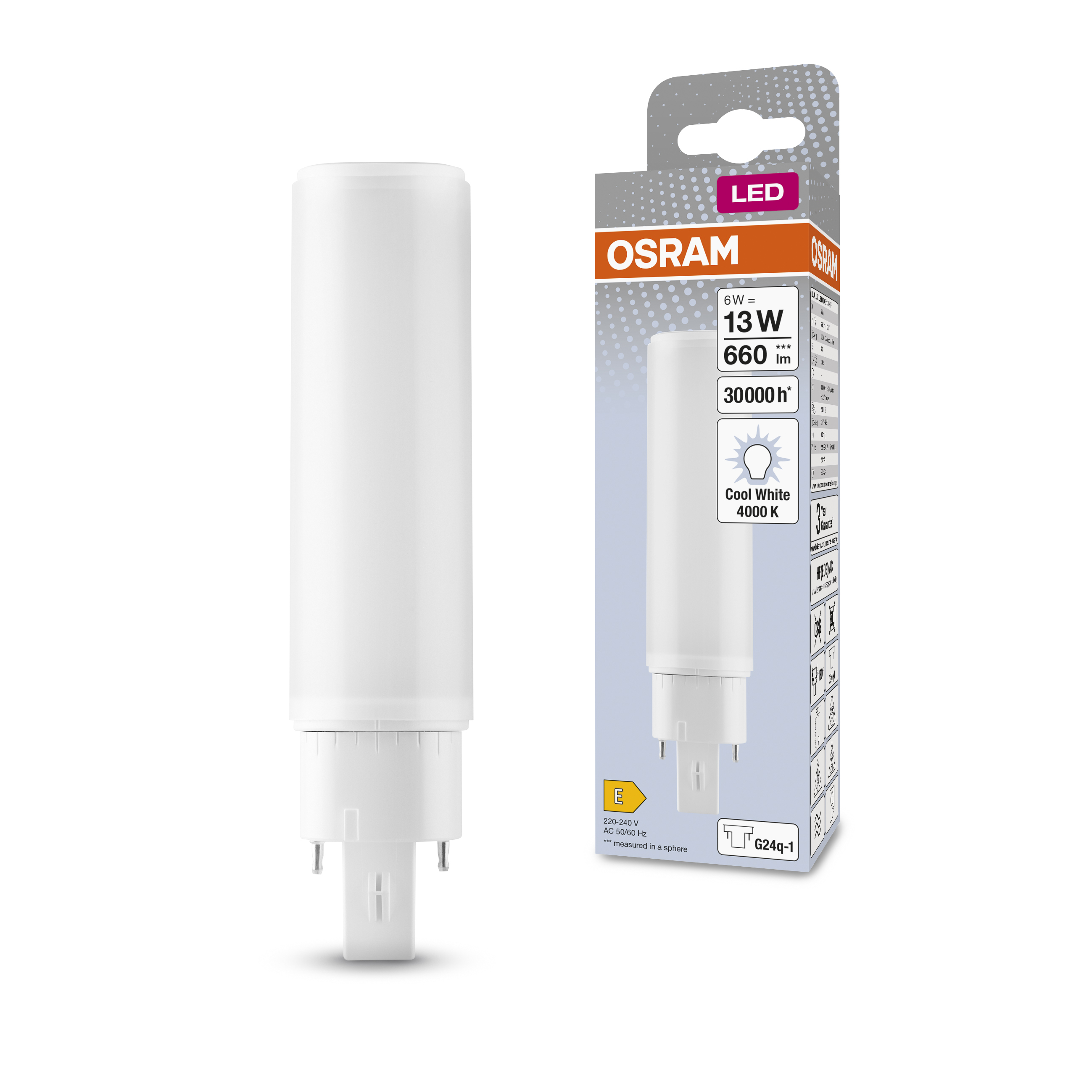

Combo Shot = Product Beauty Shot + Packaging Image
DULUX LED DE13 HF 6W 840 G24q-1 MiCh
DULUX LED DE13 HF 6W 840 G24q-1 MiCh

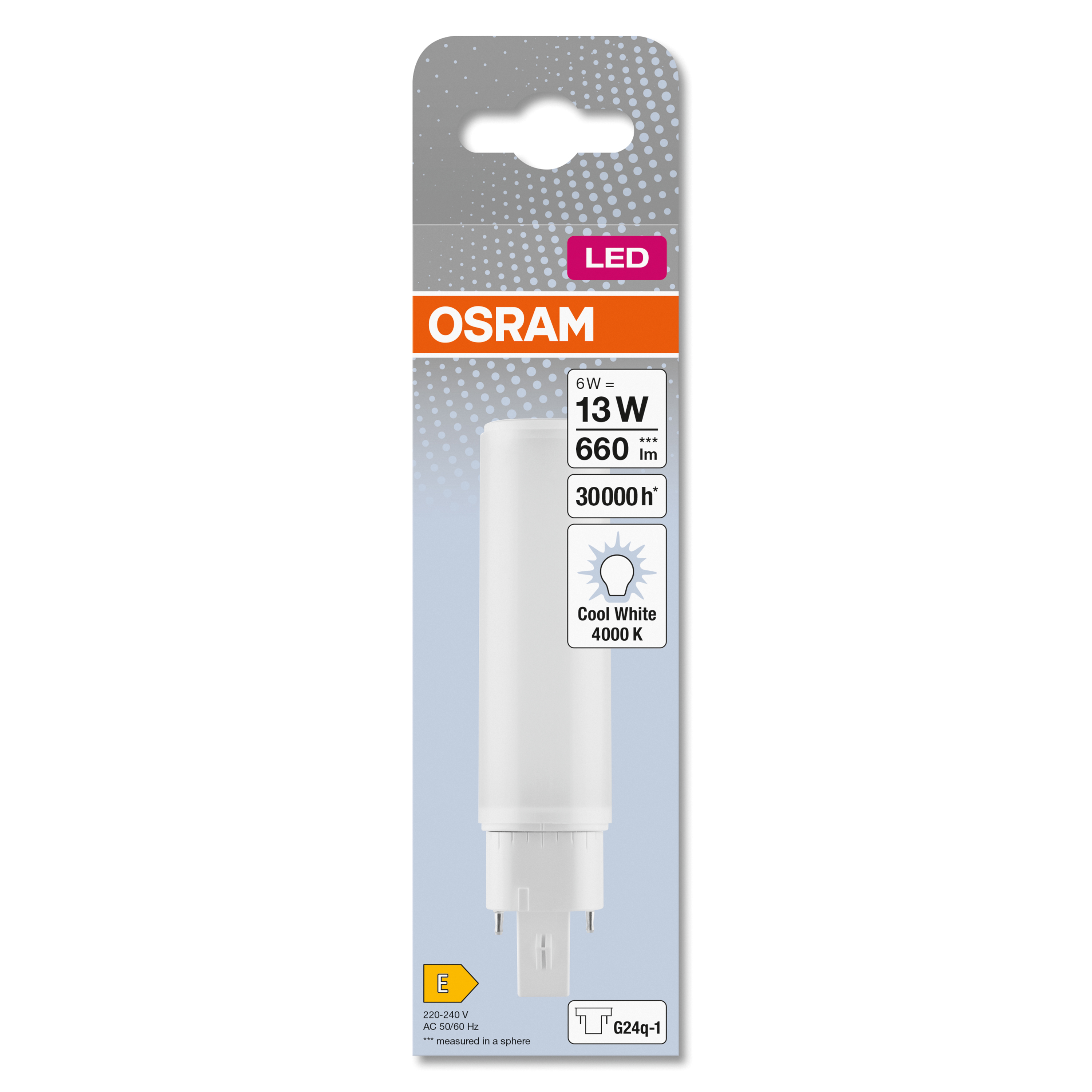

Packaging image, frontal
DULUX LED DE13 HF 6W 840 G24q-1 MiCh
DULUX LED DE13 HF 6W 840 G24q-1 MiCh

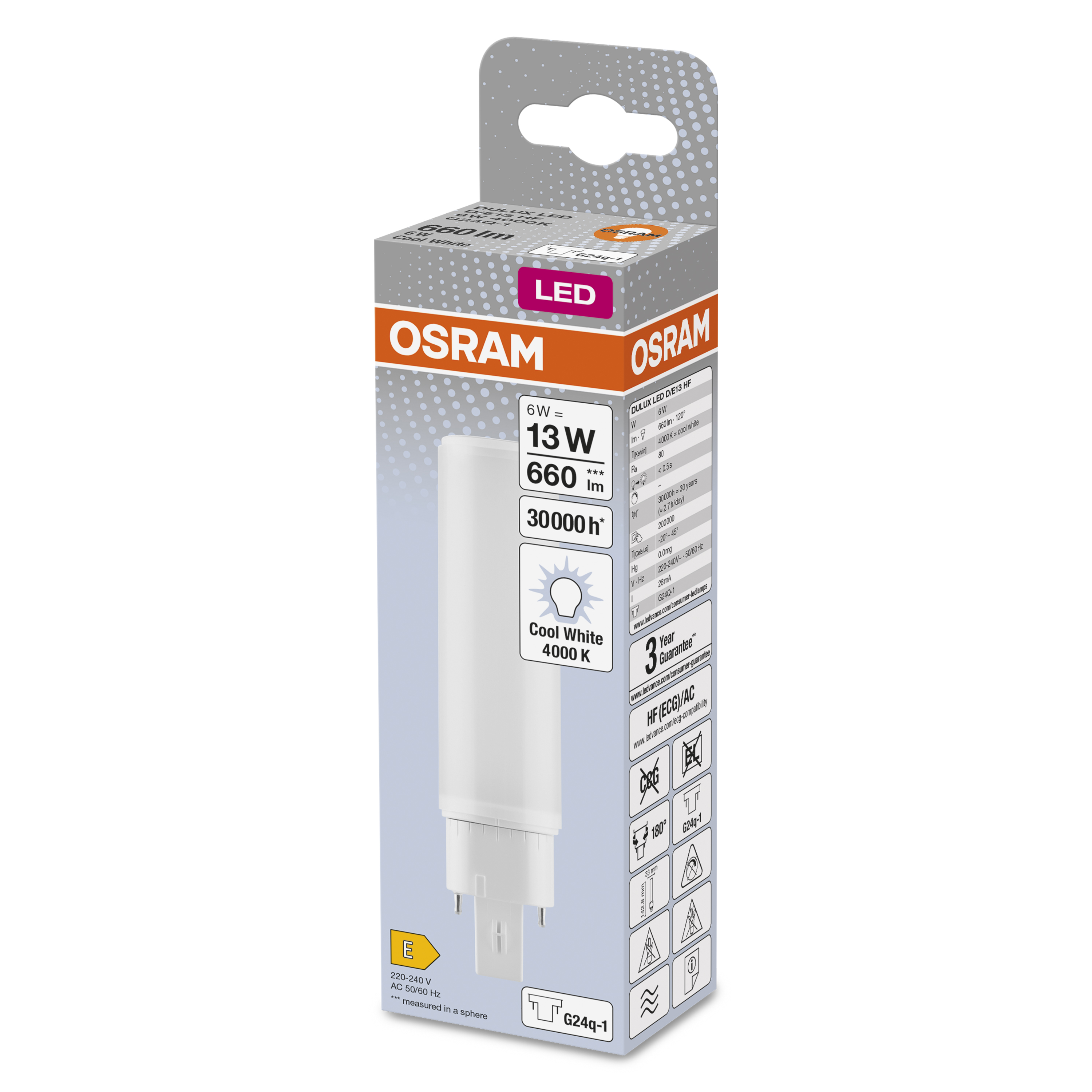

Packaging image, spacial
DULUX LED DE13 HF 6W 840 G24q-1 MiCh
DULUX LED DE13 HF 6W 840 G24q-1 MiCh
Catalog info 6
LIFETIME CURVE TC_DULUX LED DE 6W 13W
LIFETIME CURVE TC_DULUX LED DE 6W 13W
Energy label
EL-4058075559103-AC351 85
EL-4058075559103-AC351 85
Energy label
EL-4058075559103-AC478 29
EL-4058075559103-AC478 29
Energy label
EL-4058075559103-AC711 86
EL-4058075559103-AC711 86
IES file (IES)
DULUXDE13LED 6W840230VHFG24Q-1
DULUXDE13LED 6W840230VHFG24Q-1
LDT file (Eulumdat)
DULUXDE13LED 6W840230VHFG24Q-1
DULUXDE13LED 6W840230VHFG24Q-1
Light distribution curve type polar
DULUXDE13LED 6W840230VHFG24Q-1
DULUXDE13LED 6W840230VHFG24Q-1

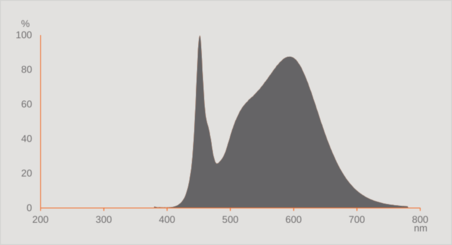

Spectral power distribution
EPREL data spectral diagram PROF LEDr 4000K
EPREL data spectral diagram PROF LEDr 4000K

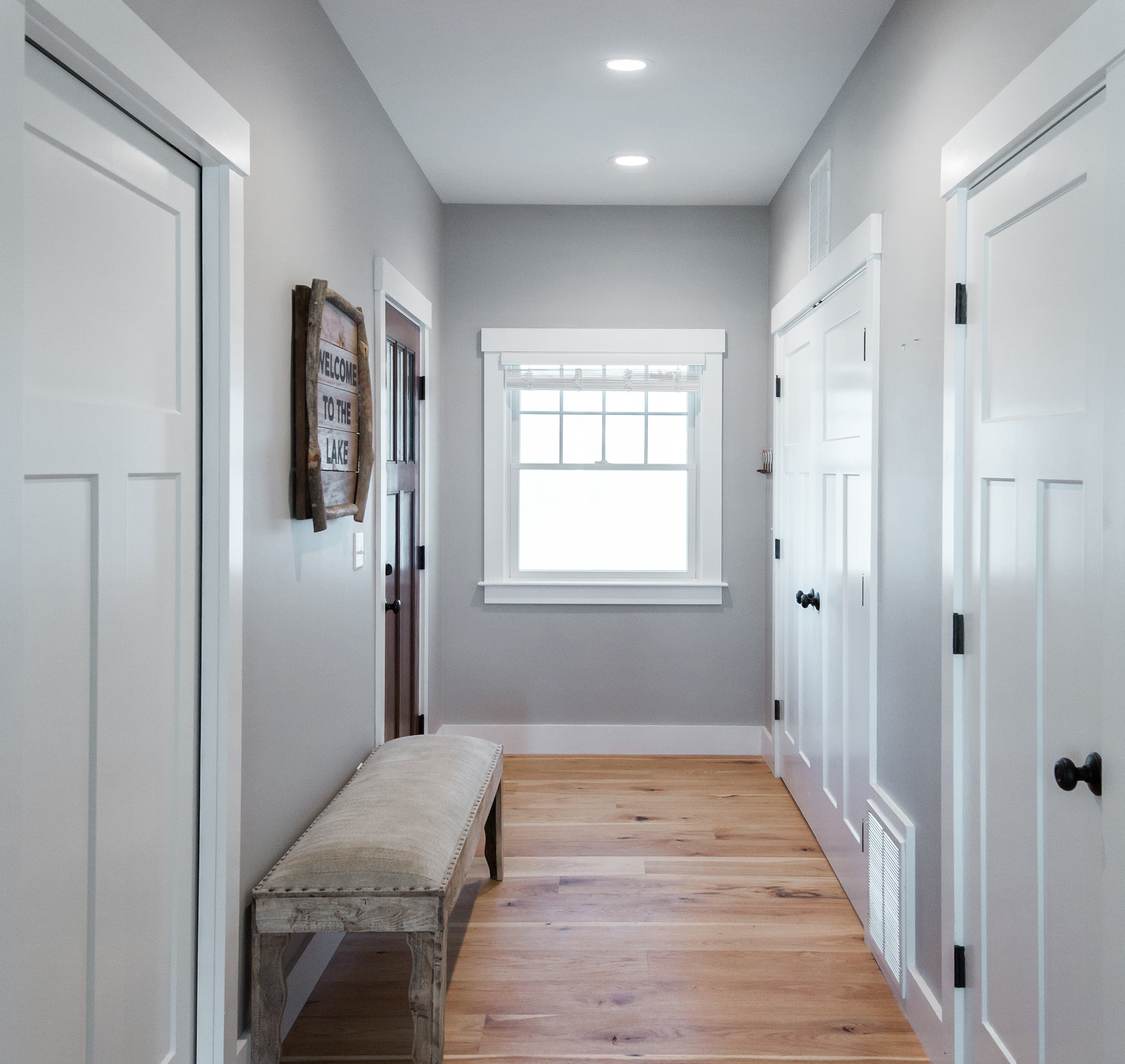

Application pictures
