Vintage 1906 LED SPECIAL Shapes

Vintage 1906 Big Oval 15 Filament Magnetic 4.5W 818 Smoke E27

GTIN: 4058075836181 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lamps with innovative LED "filament" technology
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED lamps for line voltage
  • Lamp made of glass
  • Lifetime up to 15,000 h
  • Beam angle: up to 360°
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 4.5 W
Construction wattage 4.50 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 15 W
Nominal current 38 mA
Type of current AC
Inrush current 2.725 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 210
Max. lamp number on MCB B16 A 275
Total harmonic distortion ≤180 %
Power factor λ ≥ 0.40
Photometrical data
Luminous intensity not applicable
Luminous flux 150 lm
Luminous efficacy 33 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Comfort warm white
Color temperature 1800 K
Color rendering index Ra 80
Light color 818
Standard deviation of color matching ≤9 sdcm
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤ 0.4
Light technical data
Beam angle 220 °
Warm-up time (60 %) 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 270.00 mm
Diameter 170.00 mm
Maximum diameter 170 mm
Product weight 255.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 46.6 °C
Lifespan
Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93
Additional product data
Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Certificates & Standards
Type of protection IP20
Standards CE, UKCA, EAC
Photobiological safety group acc. to EN62778 RG1
Country-specific categorizations
Order reference 1906LBOVL 4,5W/
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Standby power 0 W
Claim of equivalent power Yes
Length 270.00 mm
Height 170.00 mm
Width 170.00 mm
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor ≥ 0.5
LED light source replaces a fluorescent light source No
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075836181 Folding box
1		 185 mm x 185 mm x 356 mm 413.00 g 12.18 dm³
4058075836198 Shipping box
4		 394 mm x 394 mm x 388 mm 2415.00 g 60.23 dm³
On-Pack-Info
ELR - exempt lamps
PDF (1.88 MB)
Declarations of conformity
LED Lamp
PDF (219.97 KB)

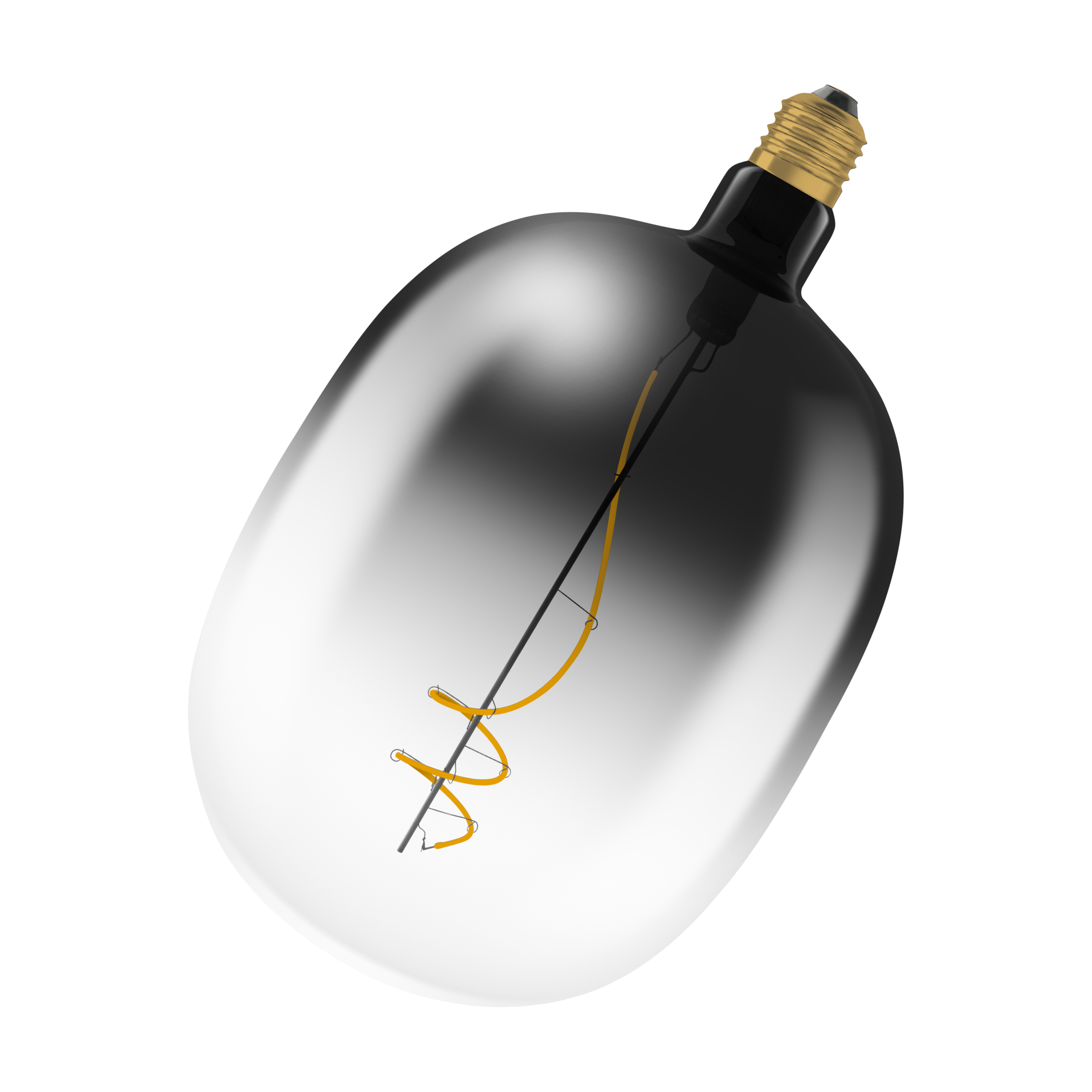

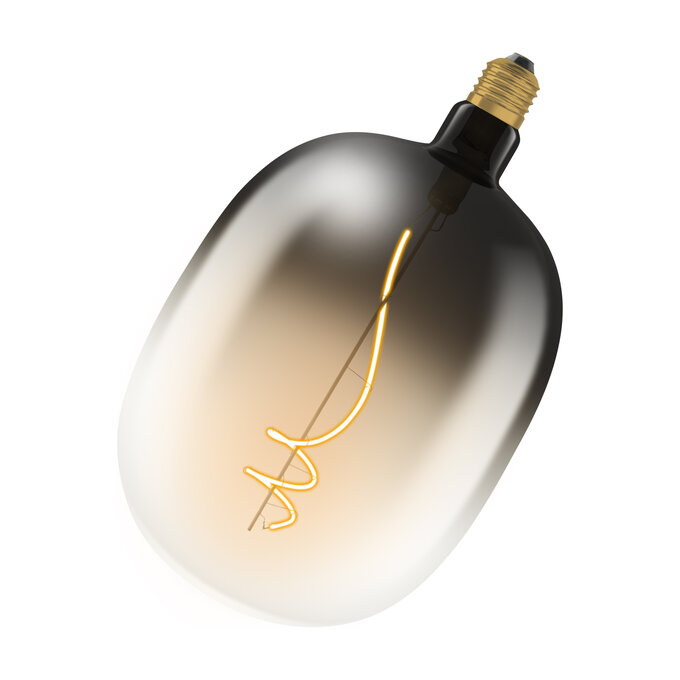

Product image: white background, diagonal
1906 LED Oval 818 230V SMOKE E27 OSRAM
JPG (1.18 MB)

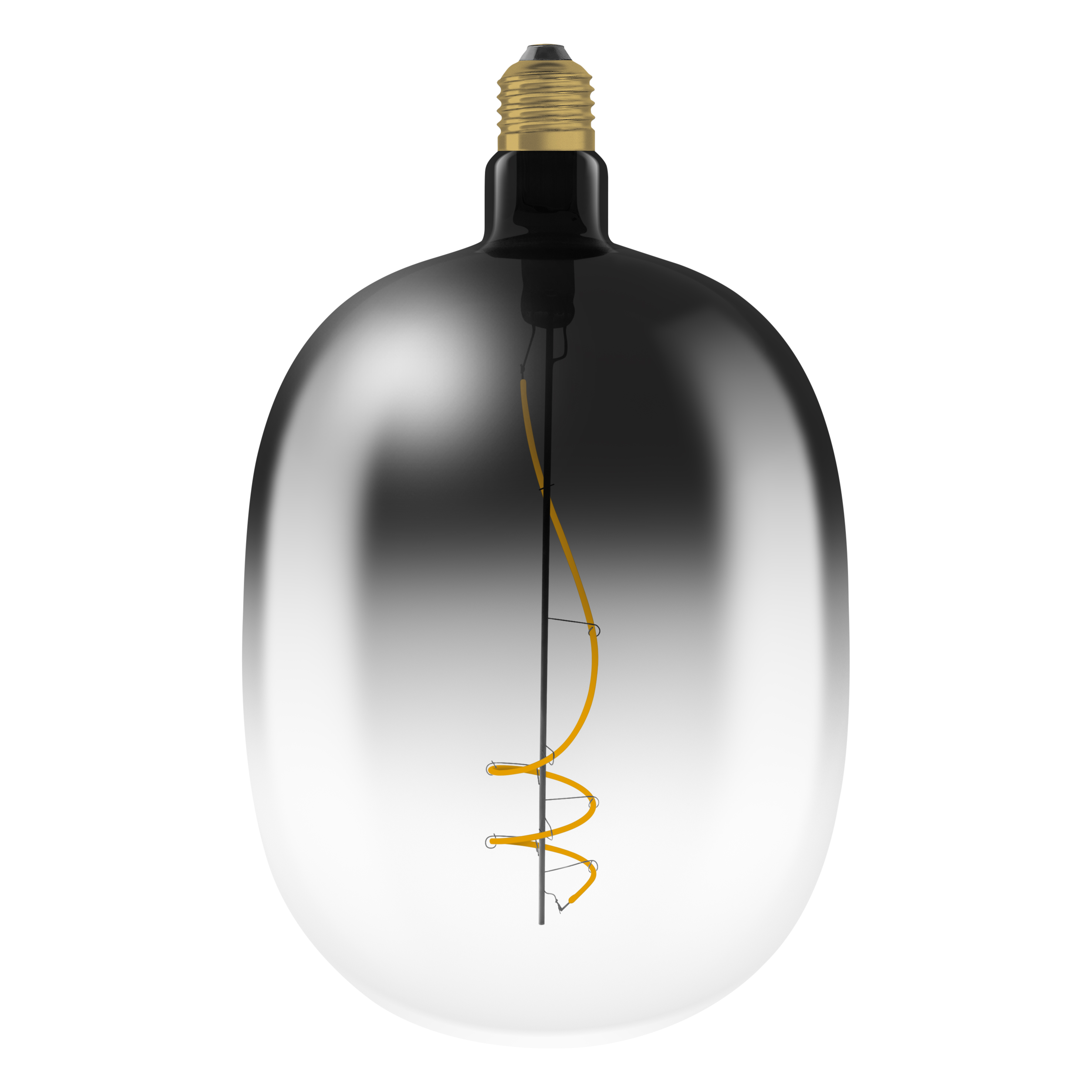

Product image: white background, upright
1906 LED Oval 818 230V SMOKE E27 OSRAM
JPG (1.17 MB)

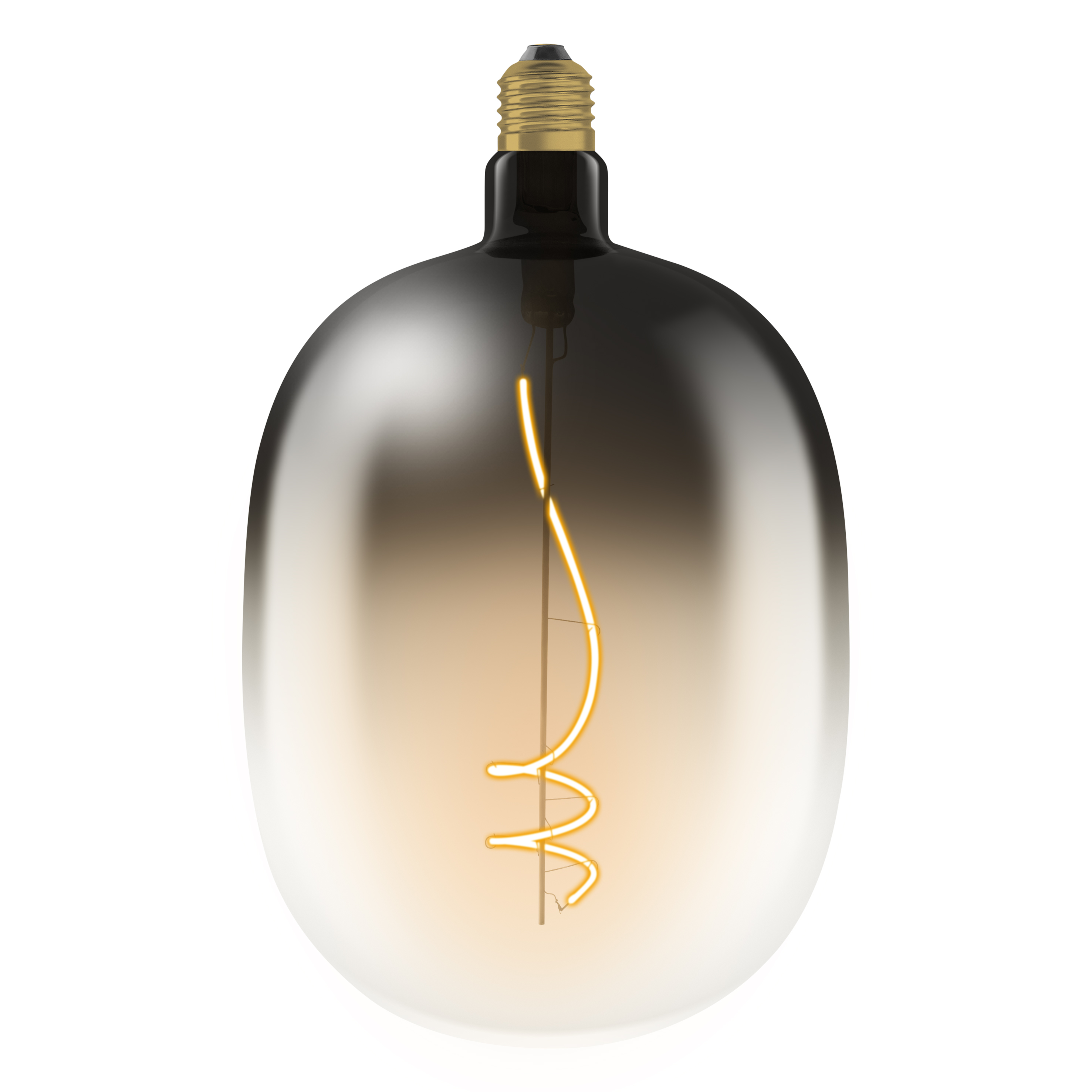

Product image: white background, upright, switched on
1906 LED Oval 818 230V SMOKE E27 OSRAM
JPG (1.12 MB)
Product line drawing with letters
1906 LED Oval 818 230V SMOKE E27 OSRAM
SVG (10.97 KB)
Product line drawing with numbers
1906 LED Oval 818 230V SMOKE E27 OSRAM
SVG (15.57 KB)
Product line drawing - technical
1906 LED Oval 818 230V SMOKE E27 OSRAM
SVG (7.27 KB)

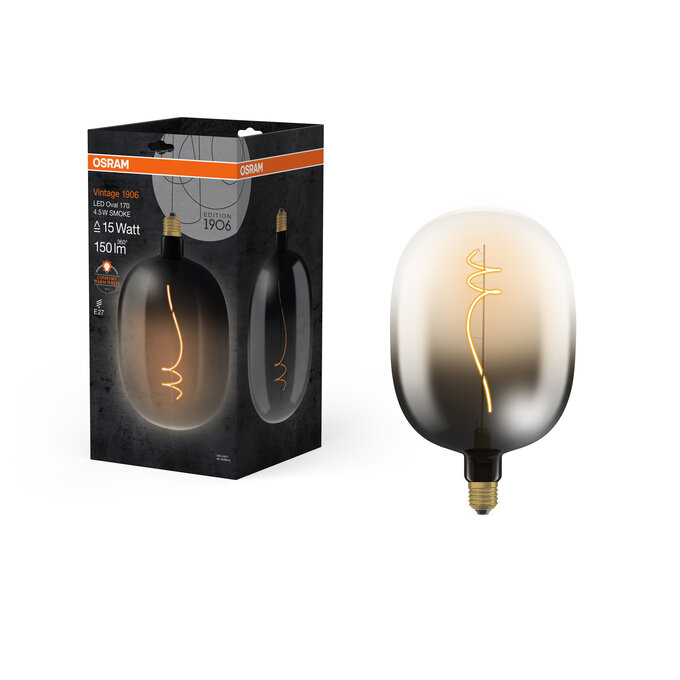

Combo Shot = Product Beauty Shot + Packaging Image
LED V1906 OVAL 170 4.5W 818 SM E27
JPG (1.06 MB)
Packaging image, frontal
LED V1906 OVAL 170 4.5W 818 SM E27
JPG (1.11 MB)
Packaging image, spacial
LED V1906 OVAL 170 4.5W 818 SM E27
JPG (1.27 MB)

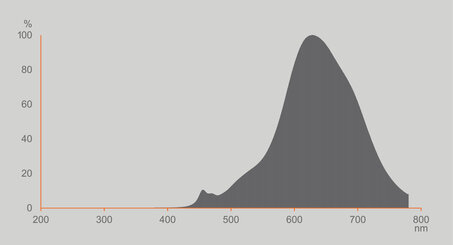

Spectral power distribution
