Vintage 1906 Edison 15 Filament Big Grape 4W 818 Smoke E27

Vintage 1906 LED CLASSIC A

GTIN: 4058075269903 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

PRODUCT DETAILS

Product benefits

Lower energy consumption than incandescent or halogen lamps
Instant 100 % light, no warm-up time
Can be easily fitted instead of ordinary light bulbs
Lamps with innovative LED "filament" technology

Areas of application

Perfect for decorative installations
Domestic applications
General illumination
Outdoor use in suitable outdoor luminaires only

Product features

LED lamps for line voltage
Lamp made of glass
Lifetime up to 15,000 h
Beam angle: up to 360°
Good quality of light; color rendering index R_a: ≥ 80; constant chromaticity

Safety advice

Do not touch the lamp if broken.
Must not be used if outer bulb is defective.

Electrical data

Nominal wattage	4 W
Construction wattage	4.00 W
Nominal voltage	220…240 V
Operating mode	AC Mains
Claimed equiv. conventional lamp power	15 W
Nominal current	32 mA
Type of current	AC
Inrush current	1.5 A
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp number on MCB B10 A	400
Max. lamp number on MCB B16 A	480
Power factor λ	> 0.50

Photometrical data

Luminous flux	140 lm
Nominal useful luminous flux 90°	140 lm
Luminous efficacy	35 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Warm Comfort Light
Color temperature	1800 K
Color rendering index Ra	80
Light color	818
Standard deviation of color matching	≤6 sdcm
Rated LLMF at 6,000 h	0.80
Flickering metric (Pst LM)	1.0
Stroboscope effect metric (SVM)	≤0.4

Light technical data

Beam angle	330 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Dimensions & Weight

Overall length	290.00 mm
Diameter	160.00 mm
Maximum diameter	160 mm
Product weight	255.00 g

Temperatures & operating conditions

Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	65 °C

Lifespan

Lifespan L70/B50 at 25 °C	15000 h
Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

Additional product data

Base (standard designation)	E27
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Clear
Product remark	All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable

Certificates & Standards

Energy efficiency class	G ¹⁾
Energy consumption	4.00 kWh/1000h
Type of protection	IP20
Standards	CE, EAC
Photobiological safety group acc. to EN62778	RG1

¹⁾ This product is exempt from the EU Energy Labelling Regulation (EU Directive 2019/2015)

Country-specific categorizations

Order reference

1906LEDBGRP 4W/

LOGISTICAL DATA

Temperature range at storage

-20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	E27
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	0 W
Networked standby power for CLS	0 W
Claim of equivalent power	Yes
Length	290.00 mm
Height	160.00 mm
Width	160.00 mm
Chromaticity coordinate x	0.549
Chromaticity coordinate y	0.408
R9 Colour rendering index	0.00
Beam angle correspondence	SPHERE_360
Survival factor	0.90
Displacement factor	0.40
LED light source replaces a fluorescent light source	No
EPREL ID	523247
Model number	AC32475,AC32475

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075269903	Folding box 1	185 mm x 185 mm x 356 mm	413.00 g	12.18 dm³
4058075269910	Shipping box 4	394 mm x 394 mm x 388 mm	2415.00 g	60.23 dm³

Declarations of conformity
EC Declaration of Conformity Classic A lamp

PDF (480.28 KB)

PRODUCT DATASHEET
1906 LED CLAS A 12 5 W 1800K E27

PDF (238.83 KB)

PRODUCT DATASHEET
Vintage1906BIGGRAPE154 W1800KE27en

PDF (361.39 KB)

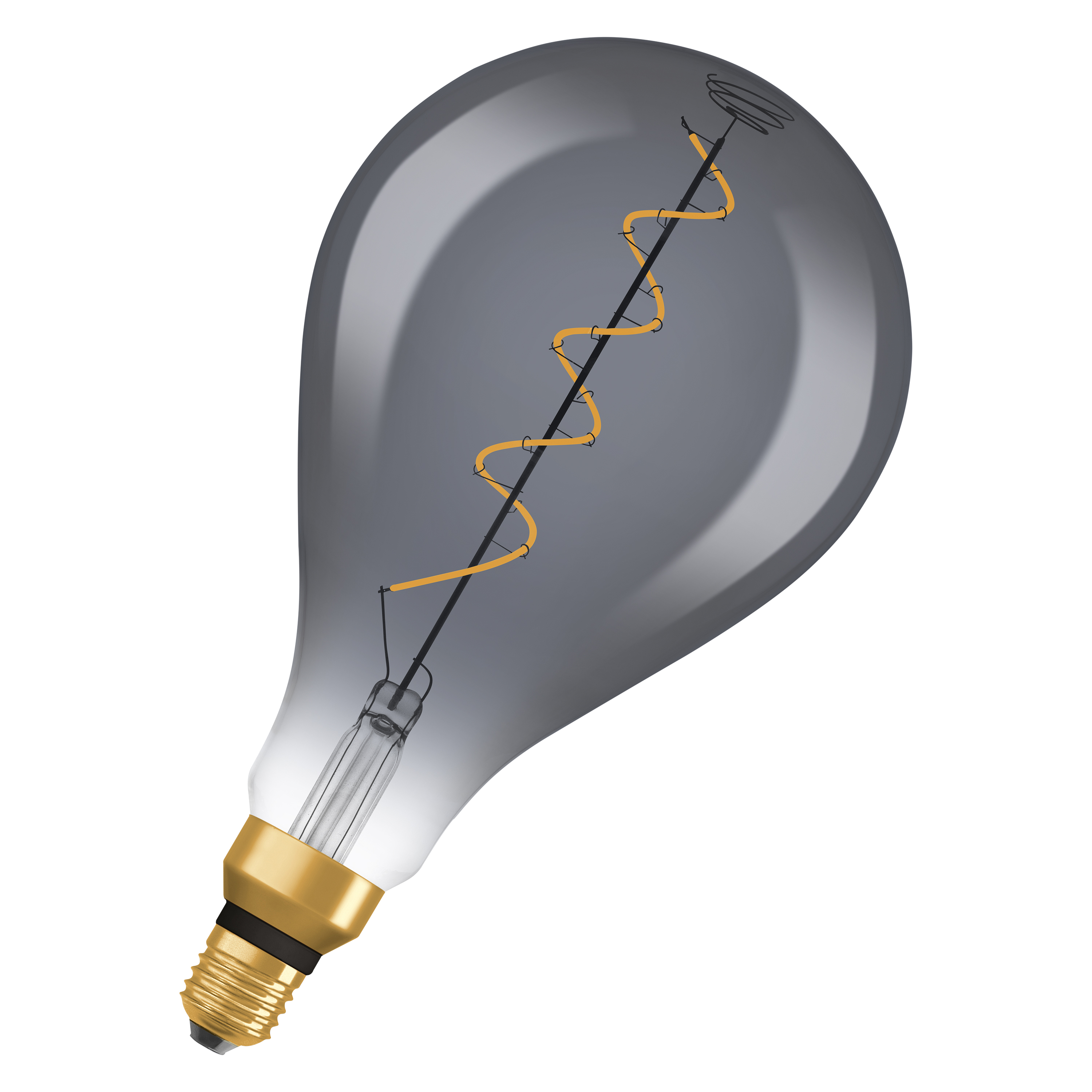

Product image: white background, diagonal
1906LEDBGRP 4W/818 230VSFIL E27 4X1OSRAM

JPG (898.25 KB)

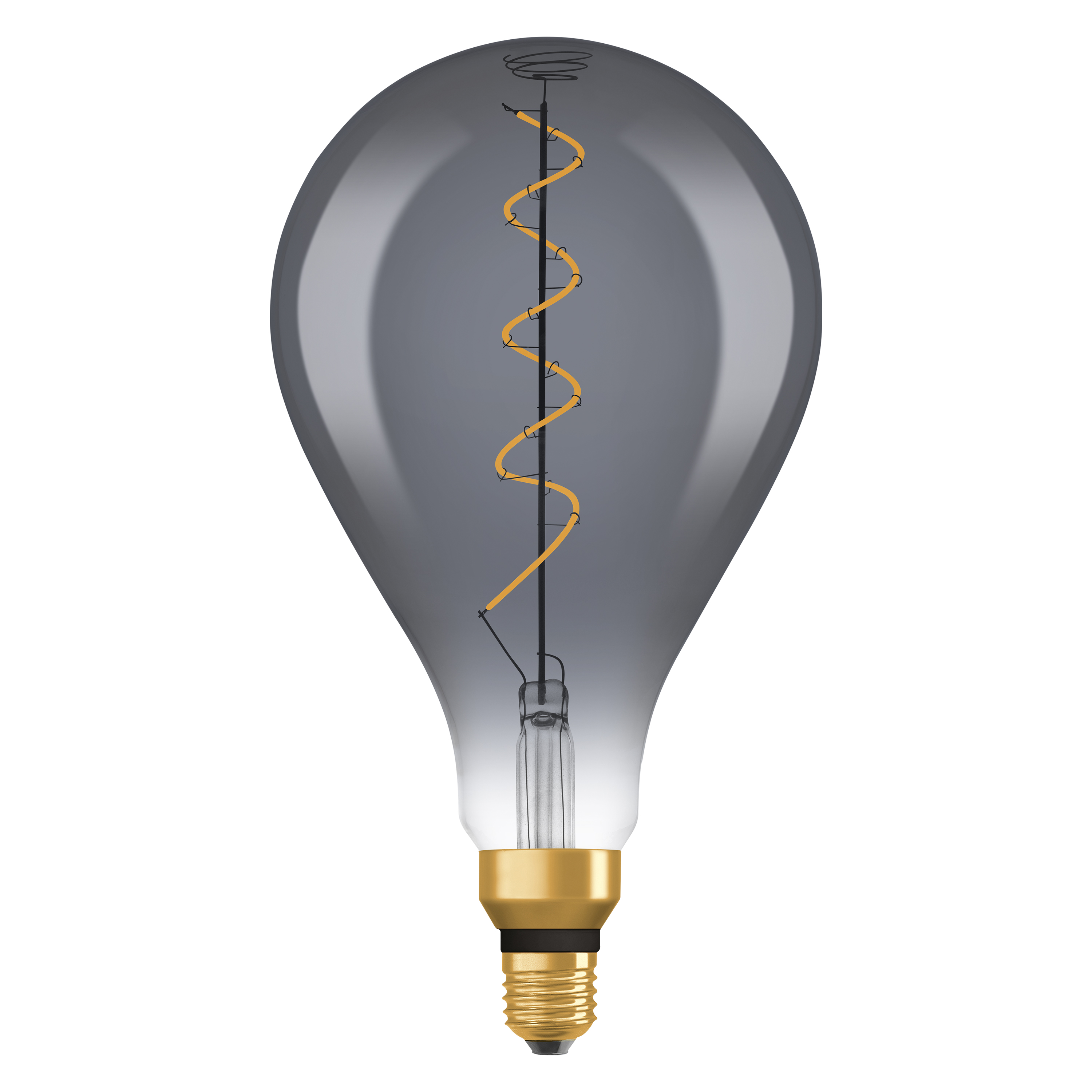

Product image: white background, upright
1906LEDBGRP 4W/818 230VSFIL E27 4X1OSRAM

JPG (737.41 KB)

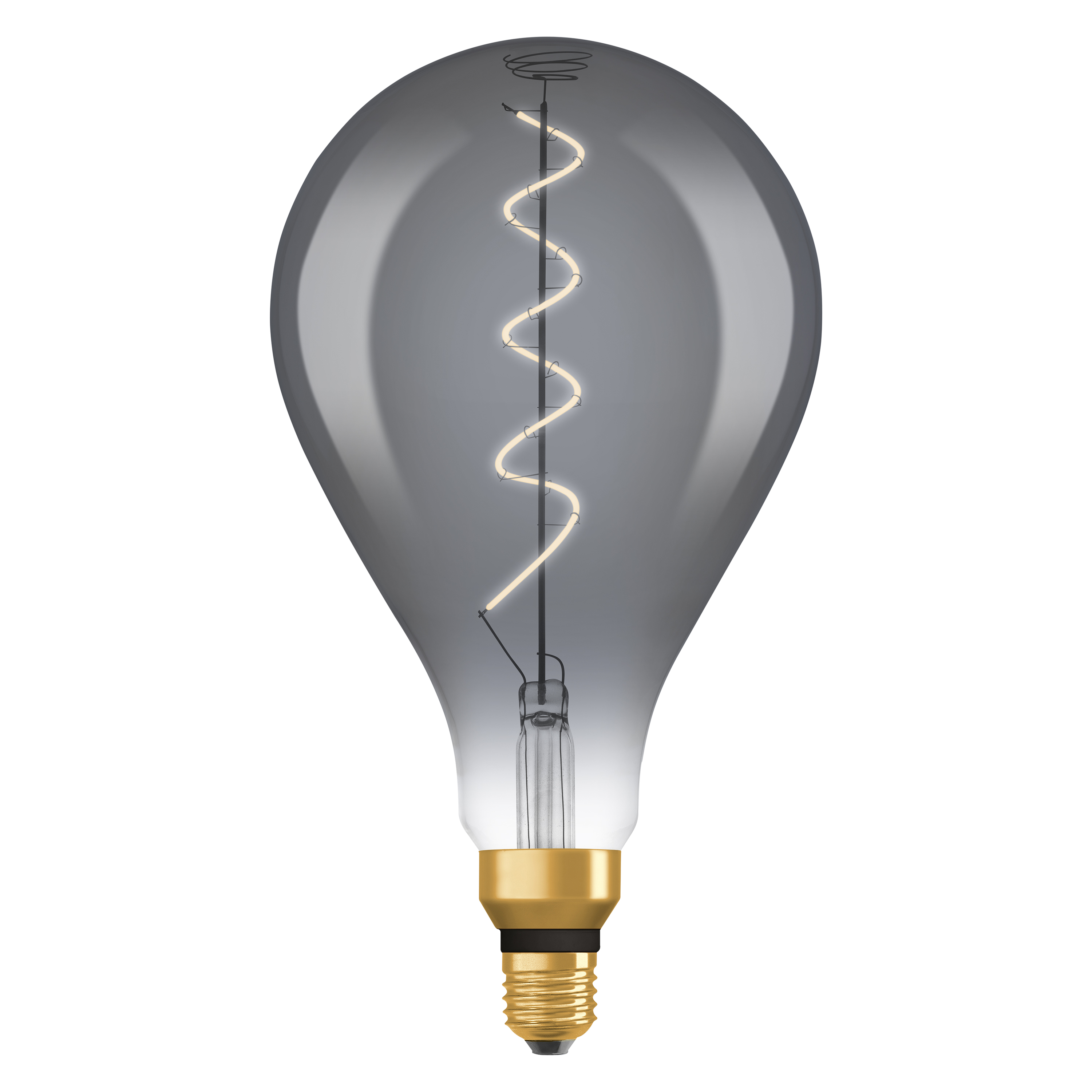

Product image: white background, upright, switched on
1906LEDBGRP 4W/818 230VSFIL E27 4X1OSRAM

JPG (731.12 KB)

Product infographic (application image with text and graphic)
Vintage Edition 1906 E-Com_Grafik V2 1200x1200px 2023 EN

JPG (809.28 KB)

Product infographic (application image with text and graphic)
Vintage Edition 1906 E-Com Grafik V1 1200x1200px 2023 EN

JPG (629.63 KB)

Product line drawing with letters
1906LEDBGRP 4W/818 230VSFIL E27 4X1OSRAM

SVG (84.59 KB)

Product line drawing with numbers
Vintage 1906 LED CL A160 FIL GOLD 28 non-dim E27

EPS (1.01 MB)

Product line drawing - technical
1906LEDBGRP 4W/818 230VSFIL E27 4X1OSRAM

SVG (82.98 KB)

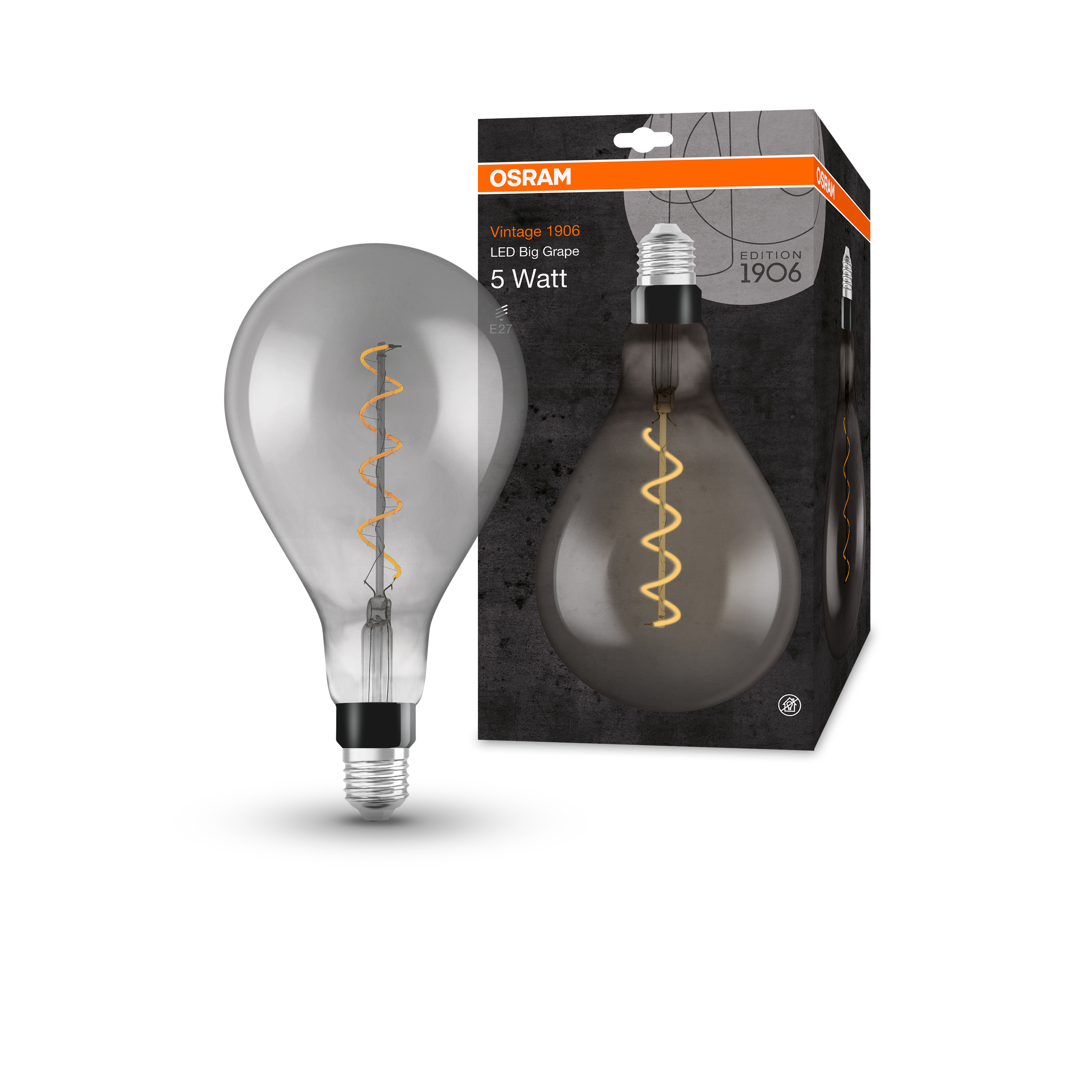

Combo Shot = Product Beauty Shot + Packaging Image
1906LEDBGRP 5W-818 230V FILSME274X1

JPG (1.78 MB)

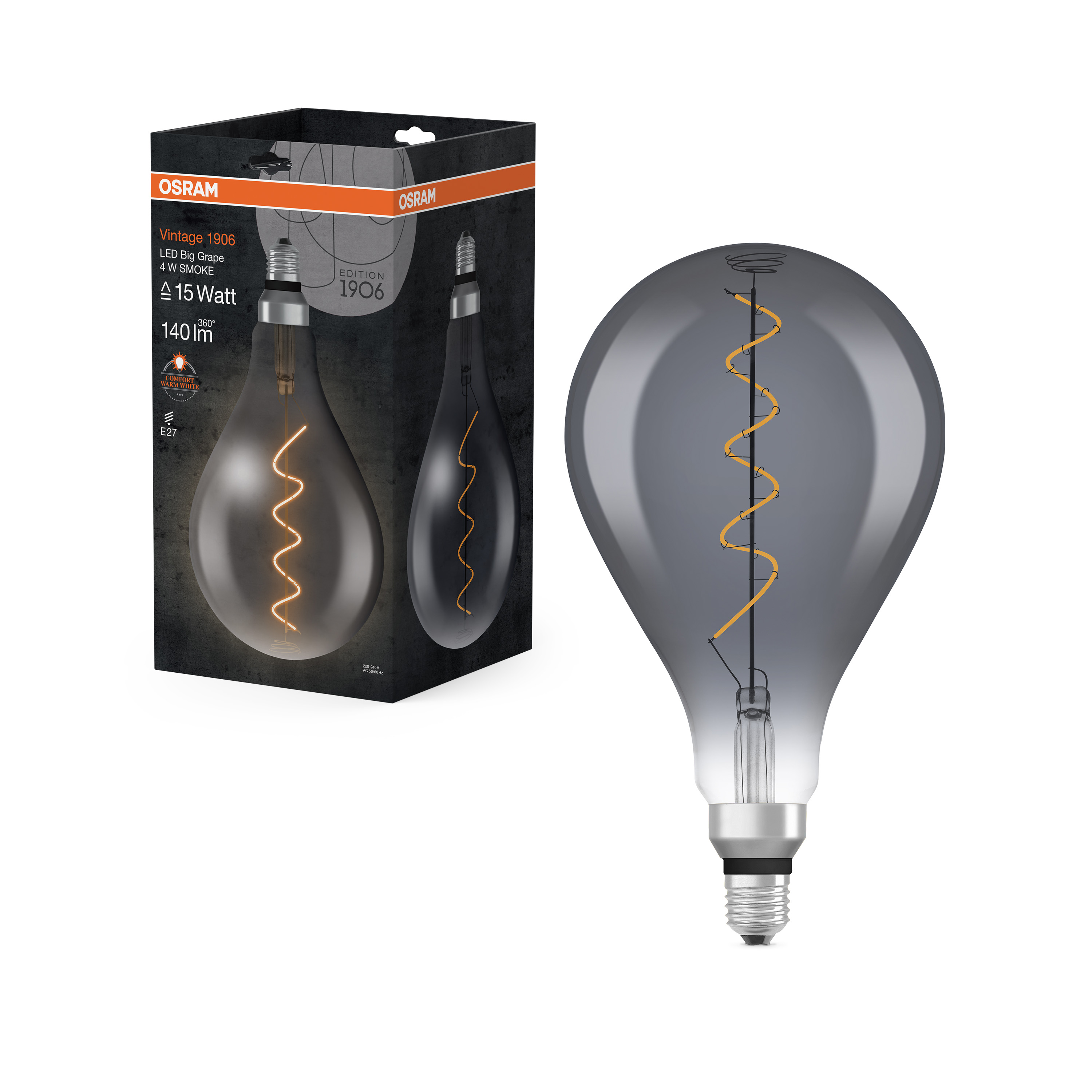

Combo Shot = Product Beauty Shot + Packaging Image
LED V1906 BIG GRAPE 4W 818 FIL SMOKE E27 MiCh

JPG (1.81 MB)

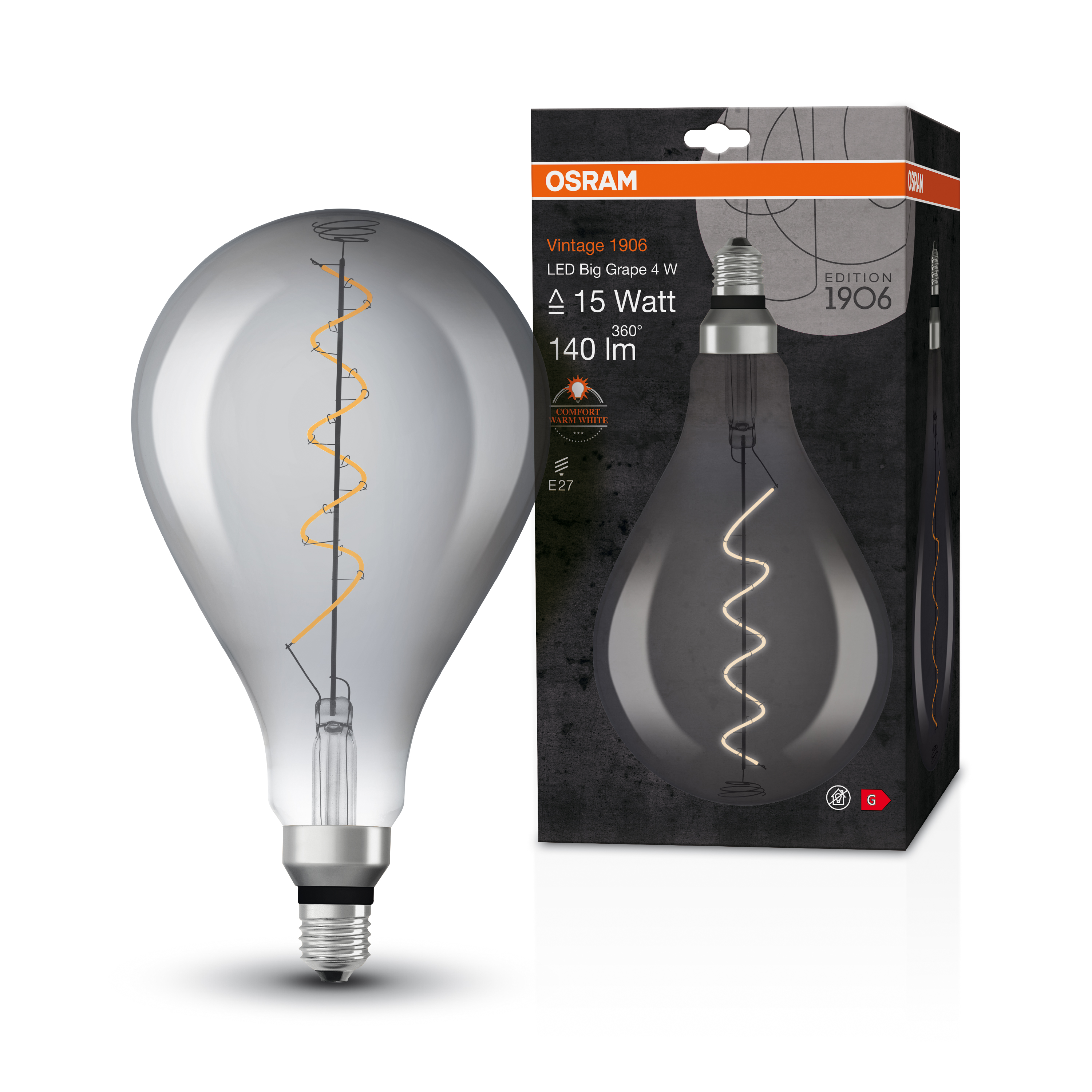

Combo Shot = Product Beauty Shot + Packaging Image
