POWERSTAR HQI-T

HQI-T 400 W/N/SI

GTIN: 4050300376431 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • E40 screw base for simple lamp handling
  • UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
  • Factories and workshops
  • Sports halls and multi-purpose halls
  • Industrial installations
  • Docks and port facilities
  • Marshaling yards, container transshipment facilities
  • Buildings, monuments, bridges
  • Approved only for use in enclosed luminaires
  • Outdoor applications only in suitable luminaires
Product features
  • POWERSTAR® quartz technology
  • Light colors: neutral white (N), daylight (D)
Safety advice
  • Disconnect mains before installation.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
Electrical data
Nominal wattage 360 W
Construction wattage 360.00 W
Ignition voltage 0.75/1.3 kVp 1)
Operating mode Conventional control gear (CCG) and ignitor
Nominal current 3.42 A
PFC capacitor at 50 Hz 45 µF
1) Minimum / Maximum
Photometrical data
Luminous flux 31000 lm
Luminous efficacy 82 lm/W
Color temperature 4100 K
Color rendering index Ra 67
Light color 641
Rated LLMF at 2,000 h 0.76
Rated LLMF at 4,000 h 0.67
Rated LLMF at 6,000 h 0.60
Rated LLMF at 8,000 h 0.51
Rated lamp efficacy (standard co.) 82 lm/W
UV protection Yes
Dimensions & Weight
Overall length 285.00 mm
Light center length (LCL) 160,0 mm
Diameter 57,0 mm
Maximum diameter 57 mm
Product weight 154.00 g
Temperatures & operating conditions
Maximum permitted outer bulb temperature 400 °C
Maximum permitted base edge temperature 250 °C
Lifespan
Rated lamp survival factor at 2,000 h 0.95
Rated lamp survival factor at 4,000 h 0.87
Rated lamp survival factor at 6,000 h 0.82
Rated lamp survival factor at 8,000 h 0.75
Lifespan B50 10000 h
Operation mode LLMF/LSF 50 Hz
Additional product data
Base (standard designation) E40
Mercury content 55.2 mg
Mercury-free No
Design / version Clear
Product remark With HQI® control gear
Capabilities
Dimmable No
Burning position Any
Enclosed luminaire required Yes
Hot restart No
Certificates & Standards
Energy efficiency class A
Energy consumption 440.00 kWh/1000h
Country-specific categorizations
ILCOS MT/UB-400/637-H/S/SL-E40-57.2/248
Order reference HQI-T CL 400W/N
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E40
Length 285.00 mm
Height 57,0 mm
Width 57,0 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300376431 Folding box
1		 251 mm x 61 mm x 61 mm 196.00 g 0.93 dm³
4050300376448 Shipping box
10		 361 mm x 170 mm x 305 mm 2447.33 g 18.72 dm³
User instruction / safety instructions
High-Intensity-Dischar ge lamps. Operation instructions
PDF (563.46 KB)

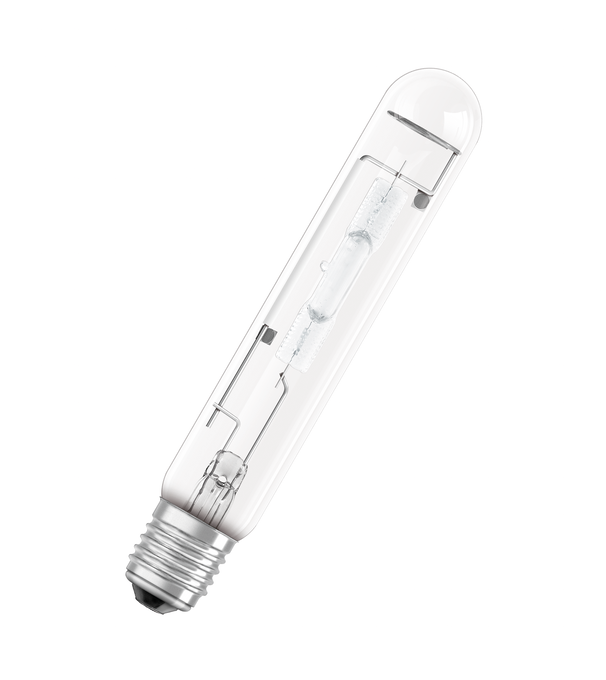

Product image: white background, diagonal
323966_HQI-T 400W/N/SI SUPER E40 12X1 OSRAM
TIF (19.98 MB)
Product image: white background, upright
320571_POWERSTAR HQI-T 250W D PRO
TIF (23.26 MB)
Product line drawing with letters
355_METAL HALIDE LAMPS POWERSTAR HQI-T
SVG (12.05 KB)
Product line drawing, front, no dimensions
322771_POWERSTAR HQI -T
SVG (7.2 KB)
Spectral power distribution
502830_HQI_T_E_N_SI
SVG (13.48 KB)
EAN STK number
4050300376431 4834718
