POWERSTAR HQI-E clear
HQI-E 250 W/N/SI CL
GTIN: 4008321278500
Round wrap / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- E40 screw base for simple lamp handling
- UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
- Factories and workshops
- Exhibition halls and trade fairs
- Sports halls and multi-purpose halls
- Approved only for use in enclosed luminaires
- Outdoor applications only in suitable luminaires
Product features
- POWERSTAR® quartz technology
- Light color: neutral white (N)
Electrical data
| Nominal wattage | 250 W |
| Construction wattage | 246.90 W |
| Nominal voltage | 220 V |
| Ignition voltage | 0.75/1.3 kVp |
| Nominal current | 2.1 A |
| PFC capacitor at 50 Hz | 32 µF |
Photometrical data
| Luminous flux | 21500 lm |
| Luminous efficacy | 92 lm/W |
| Color temperature | 4700 K |
| Color rendering index Ra | 59 |
| Light color | 547 |
| Rated LLMF at 2,000 h | 0.80 |
| Rated LLMF at 4,000 h | 0.70 |
| Rated LLMF at 6,000 h | 0.65 |
| Rated LLMF at 8,000 h | 0.58 |
| Rated lamp efficacy (standard co.) | 85 lm/W |
Dimensions & Weight
| Overall length | 228.00 mm |
| Light center length (LCL) | 160,0 mm |
| Diameter | 91.00 mm |
| Product weight | 167.00 g |
Temperatures & operating conditions
| Maximum permitted outer bulb temperature | 400 °C |
| Maximum permitted base edge temperature | 250 °C |
Lifespan
| Rated lamp survival factor at 2,000 h | 0.95 |
| Rated lamp survival factor at 4,000 h | 0.90 |
| Rated lamp survival factor at 6,000 h | 0.85 |
| Rated lamp survival factor at 8,000 h | 0.75 |
| Lifespan B50 | 9000 h |
| Operation mode LLMF/LSF | 50 Hz |
Additional product data
| Base (standard designation) | E40 |
| Mercury content | 34.9 mg |
| Design / version | Clear |
Capabilities
| Dimmable | No |
| Burning position | Any |
| Enclosed luminaire required | Yes |
Country-specific categorizations
| ILCOS | MC/UB-250/637-H/S/SL-E40-88.9/216 |
| Order reference | HQI-E 250W/N/SI |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E40 |
| Length | 228.00 mm |
| Height | 91.00 mm |
| Width | 91.00 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4008321278500 | Round wrap 1 |
300 mm x 335 mm x 32 mm | 199.00 g | 3.22 dm³ |
| 4008321278517 | Shipping box 12 |
390 mm x 292 mm x 267 mm | 3016.00 g | 30.41 dm³ |
User instruction / safety instructions
High-Intensity-Dischar ge lamps. Operation instructions
High-Intensity-Dischar ge lamps. Operation instructions

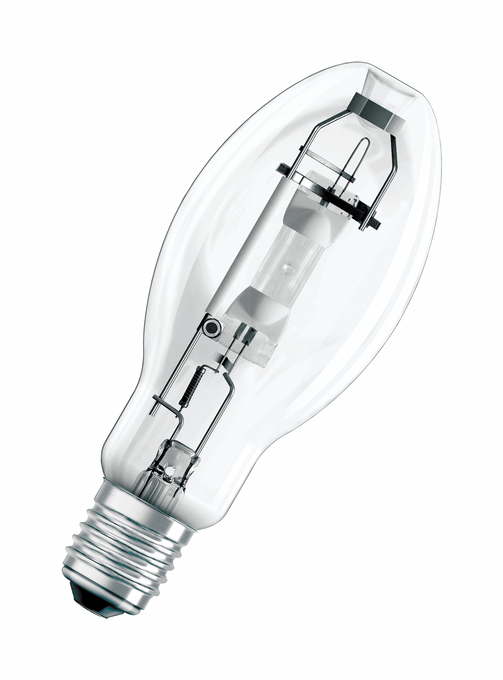

Product image: white background, diagonal
327284_POWERSTAR HQI-E 250W CLEAR
327284_POWERSTAR HQI-E 250W CLEAR

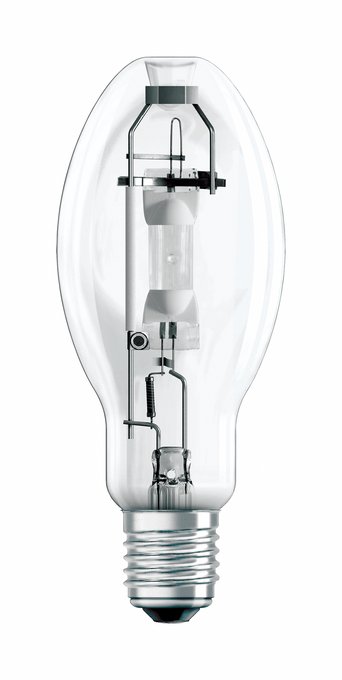

Product image: white background, upright
