OSRAM DULUX D

DULUX D 18 W/6500 K G24d-2

GTIN: 4008321830913 Folding box / 1 Show all packages
Download data sheet
Contact sales
5-year warranty

PRODUCT DETAILS

Product benefits
  • Improved maintenance
Areas of application
  • Offices, public buildings
  • Shops
  • Supermarkets and department stores
  • Hotels, restaurants
  • Industry
Product features
  • Good color rendering index
  • Short and compact pin-base lamp with double-turn tubes
  • Single-ended two-pin plug-in G24d base
Equipment / Accessories
  • Suitable for operation on conventional control gear
Safety advice
Electrical data
Nominal wattage 18 W
Construction wattage 18.00 W
Photometrical data
Luminous flux 1130 lm
Luminous flux at 25 °C 1140 lm
Color temperature 6500 K
Color rendering index Ra 80…89
Light color 865
Rated LLMF at 2,000 h 0.77
Rated LLMF at 4,000 h 0.70
Rated LLMF at 6,000 h 0.69
Rated LLMF at 8,000 h 0.68
Rated lamp efficacy (standard co.) 63 lm/W
Dimensions & Weight
Overall length 151.00 mm
Diameter 11.00 mm
Product weight 44.00 g
Temperatures & operating conditions
Rated ambient temp.w.max.luminous 25.0 °C
Lifespan
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.99
Rated lamp survival factor at 6,000 h 0.95
Rated lamp survival factor at 8,000 h 0.81
Operation mode LLMF/LSF 50 Hz
Additional product data
Base (standard designation) G24d-2
Mercury content 1.3 mg
Capabilities
Suitable for indoor Yes
Dimmable No
Certificates & Standards
Energy efficiency class B
Energy consumption 22.17 kWh/1000h
Country-specific categorizations
Order reference DULUX D 18W/865
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) G24d-2
Length 153.00 mm
Height 11.00 mm
Width 11.00 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321830913 Folding box
1		 36 mm x 36 mm x 160 mm 61.00 g 0.21 dm³
4058075498006 Shipping box
50		 368 mm x 184 mm x 175 mm 2992.00 g 11.85 dm³
4008321830920 Shipping box
10		 187 mm x 81 mm x 175 mm 703.00 g 2.65 dm³

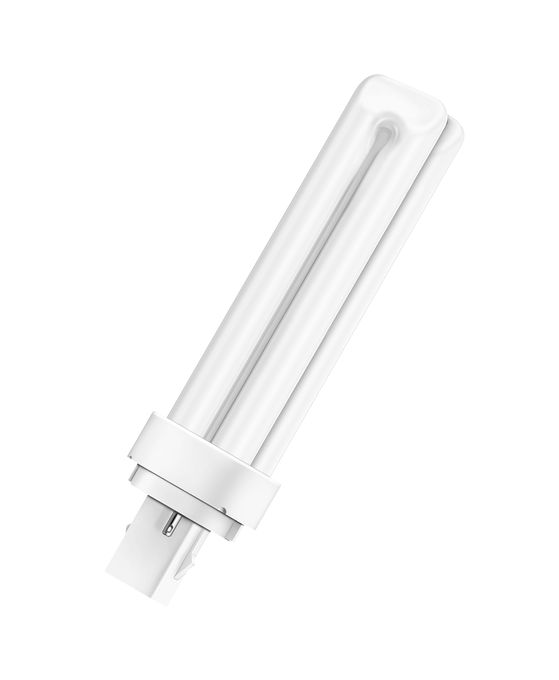

Product image: white background, diagonal
DULUX D 18W G24D-2
TIF (10.32 MB)

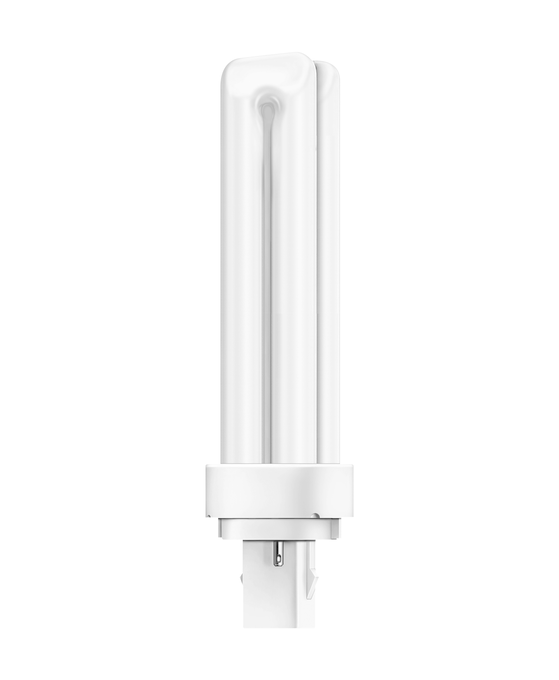

Product image: white background, upright
