OSRAM SUBSTITUBE T5 PLUG & PLAY REPLACEMENT OF FL T5 TUBES

SubstiTUBE T5

T5 luminaires can now be easily upgraded to the latest energy-saving LED technology without doing the least bit of rewiring – thanks to OSRAM SubstiTUBE Advanced T5. With their integrated ECG, the innovative LED tubes with a diameter of 16 mm are true plug-&-play replacements for conventional T5 fluorescent lamps with 49 W and 80 W. The splinter protection makes them ideal for use in particularly sensitive production areas.

OSRAM SubstiTUBE T5

OSRAM SUBSTITUBE T5 HF HE/HO:

  • Retrofit use for T5 fluorescent lamps with 49 W and 80 W
  • Compatible with a lot of commercial electronical ballasts
  • Look & feel of a fluorescent lamp thanks to the glass body
  • Glass tube coated with splinter protection
  • Luminous flux of up to 5,600 lm
  • High efficiency of up to 152 lm/W
  • Light colors: 830, 840, 865
  • Extremely long lifespan of up to 60,000 hours.
  • Suitable for the operation at low temperatures
  • Five-year guarantee. For further information and full guarantee terms and conditions, please visit www.ledvance.com/guarantee  .

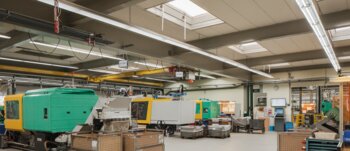

IDEAL AREAS OF USE:

  • Industrial production, warehouses
  • Supermarkets and shops
  • Parking garages
  • Public buildings
  • Receptions, offices, corridors
OSRAM SubstiTUBE T5 HF HE/HO: Ideal areas of use

OSRAM SUBSTITUBE T5 AC:

  • Hassle free application – Cut and remove ballast and connect to AC mains
  • No energy loss from ballast thanks to AC mains connection
  • Look & feel of a fluorescent lamp thanks to the glass body
  • Glass tube coated with splinter protection
  • Luminous flux of up to 4,100 lm
  • Long lifespan of up to 50,000 hours.
  • Suitable for the operation at low temperatures
  • Five-year guarantee. For further information and full guarantee terms and conditions, please visit www.ledvance.com/guarantee  .

IDEAL AREAS OF USE:

  • Industrial production, warehouses
  • Supermarkets and shops
  • Parking garages
  • Public buildings
  • Receptions, offices, corridors
Ideal areas of use: OSRAM SubstiTUBE T5 AC
