Smart moodlights

SMART+ Wifi Mood Light Black RGB + TW

GTIN: 4099854014079 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Flexible positioning, can be placed horizontal or vertical
  • Easy and quick installation for an end consumer friendly use. Dual usage either with Remote Control or the SMART Wi-Fi App
  • Plug and Play due to EU Plug
  • Soft light thanks to indirect light distribution
Areas of application
  • Living areas
  • Meeting and conference rooms
  • Home Entertainment areas
  • Gaming corners
  • Accent lighting
  • For indoor use only
Product features
  • Network protocol: WiFi
  • Smart control for adjustable color temperature and RGB color control
  • Network independent control with IR remote control
  • Music rhythm function: With behalf of the Smart Wi-Fi App and integrated voice-receivers the Luminaire reacts to sound and music
  • DIY function: You can adjust the color segment per segment and create your own lighting scenes or just use already available lighting scenes
  • Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
  • Control via app or voice control requires compatible Smart home system
  • Remote control with batteries included for network independent operation
  • Connecting cables included to link both mood light bars
  • For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 8.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 45.000 mA
Protection class II
Photometrical data
Luminous flux 240 lm
Total luminous flux of contained light sources 480 lm
Luminous efficacy 30 lm/W
Color temperature 2700…6500 K
Reference control setting of contained light source (Kelvin) 2700 K 1)
Light color (designation) Tunable White, RGB
Color rendering index Ra > 80
Standard deviation of color matching ≤6 sdcm
Photobiological safety group acc. to EN62778 RG1
Beam angle 120 °
1) Performing a reset will restore the default values set by the manufacturer
Dimensions & Weight
Length 90.00 mm
Height 280.00 mm
Width 60.00 mm
Product weight 427.00 g
Materials & Colors
Product color Black
Housing color Black
Body material Plastic
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Type of connection Plug type C (EU)
Type of protection IP20
Dimmable Yes
Mounting type Standing
Application environment Indoor
Adjustable Yes
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 15000
BATTERY
Type of Battery Li metal button cell battery
Battery size [GMS] CR2025
Number of included batteries 1
Nominal voltage of battery 3 V
Nominal capacity of battery 160 mAh
Certificates & Standards
Standards CE
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854014079 Folding box
1
75 mm x 278 mm x 100 mm 504.00 g 2.09 dm³
4099854014086 Shipping box
8
403 mm x 288 mm x 150 mm 4564.00 g 17.41 dm³
User instruction / safety instructions
UI MOOD LIGHT BAR
Declarations of conformity
SMART WIFI MOOD LIGHT BAR RGBTW

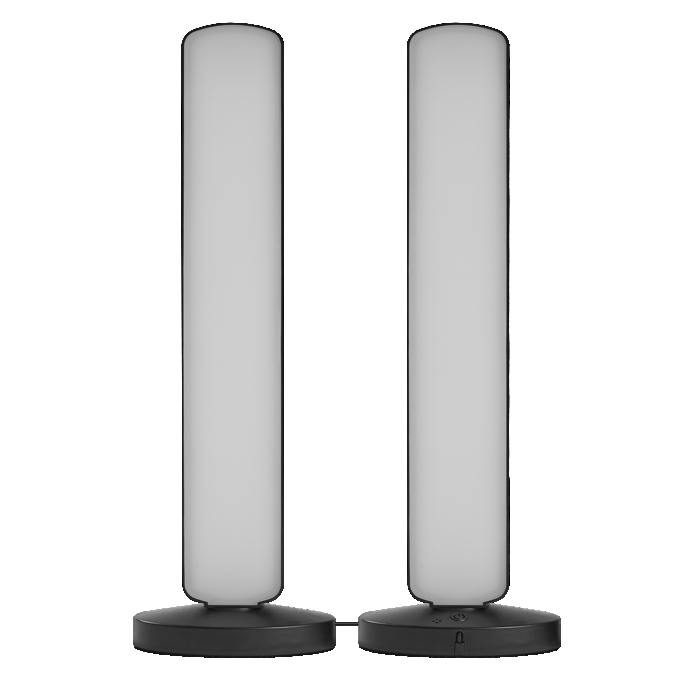

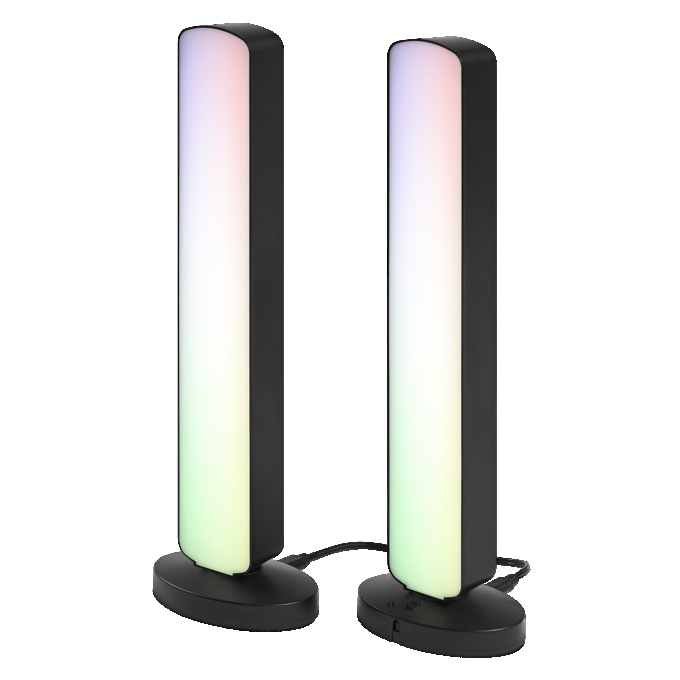

Product image: white background, upright
SMART WIFI MOOD LIGHT BAR RGBTW BK

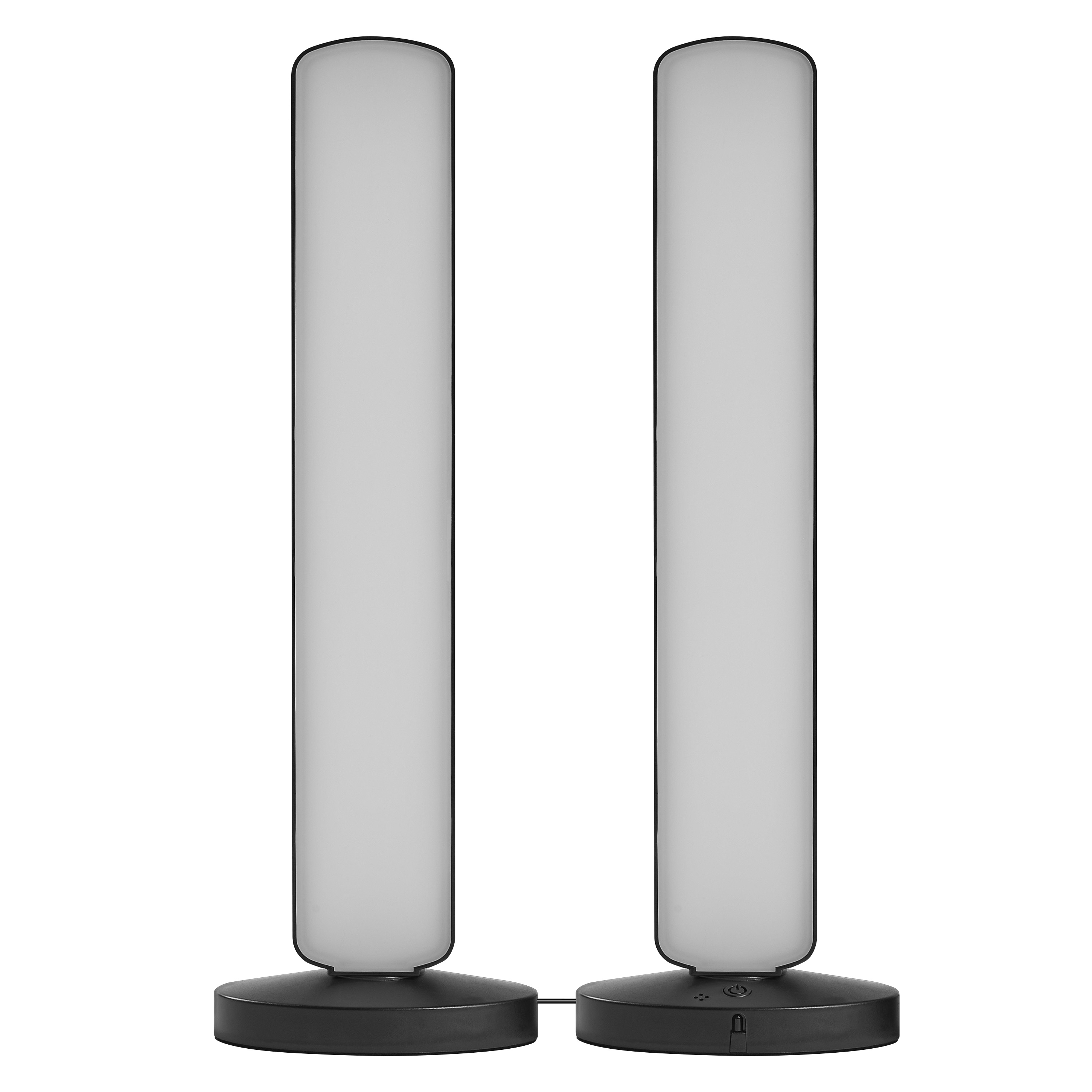

Product image: white background, upright, alternative image
SMART WIFI MOOD LIGHT BAR RGBTW BK
Product image: white background, upright, switched on
SMART WIFI MOOD LIGHT BAR RGBTW BK
Product infographic (application image with text and graphic)
Gaming assortment E-Com-Grafik V2 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Gaming assortment E-Com-Grafik V1 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Entertainment E-Com_Grafik 1200x1200px 2023 EN
Product infographic (application image with text and graphic)
Entertainment E-Com Grafik 1200x1200px 2024 EN

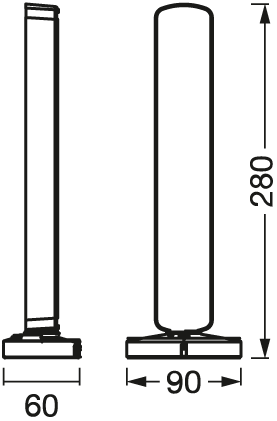

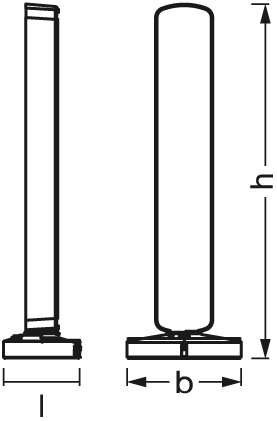

Product line drawing with letters
SMART WIFI MOOD LIGHT BAR RGBTW BK
Product line drawing with numbers
SMART WIFI MOOD LIGHT BAR RGBTW BK

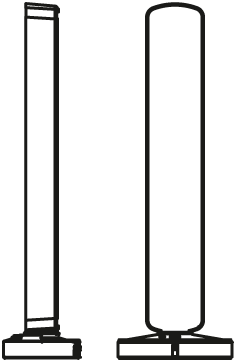

Product line drawing, front, no dimensions
SMART WIFI MOOD LIGHT BAR RGBTW BK

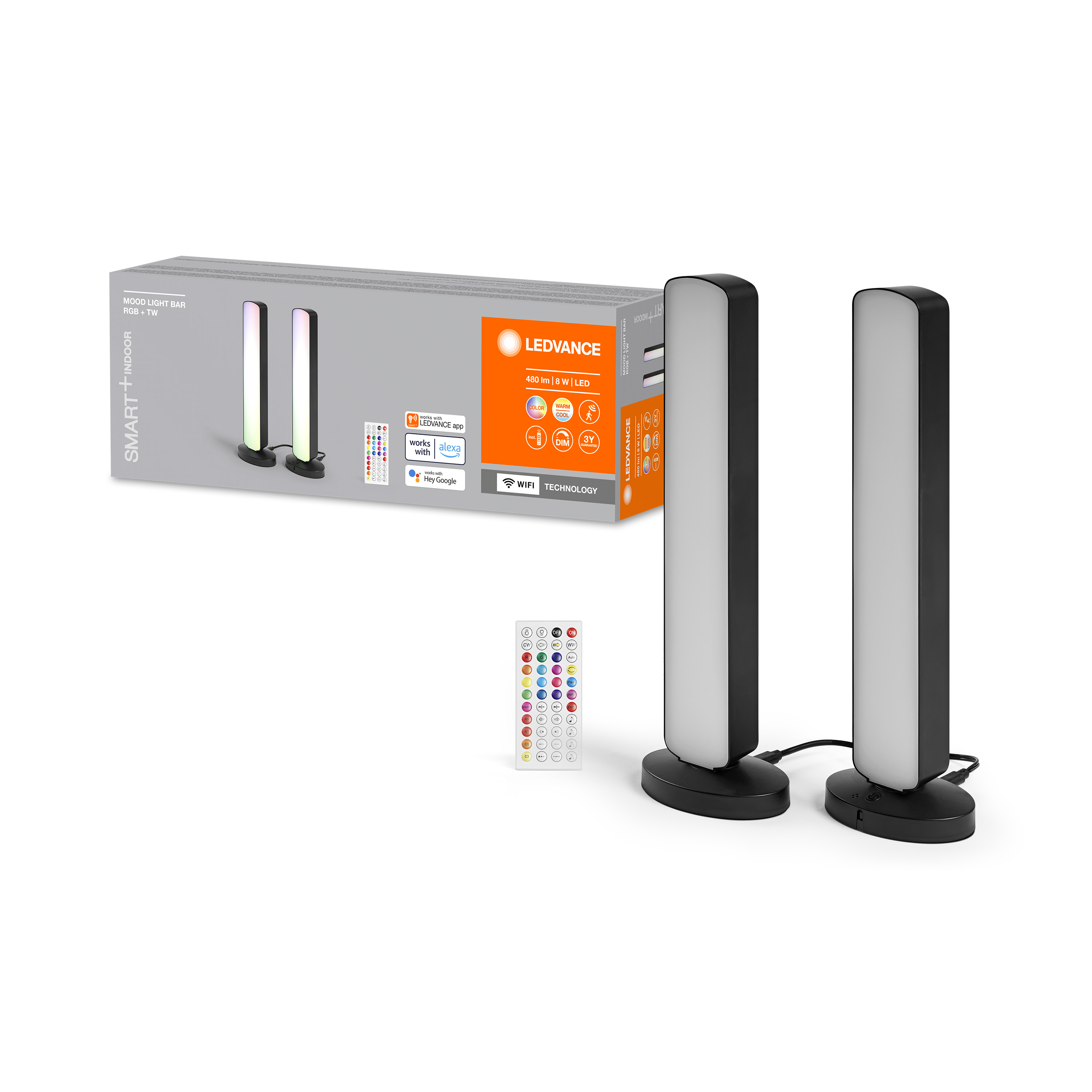

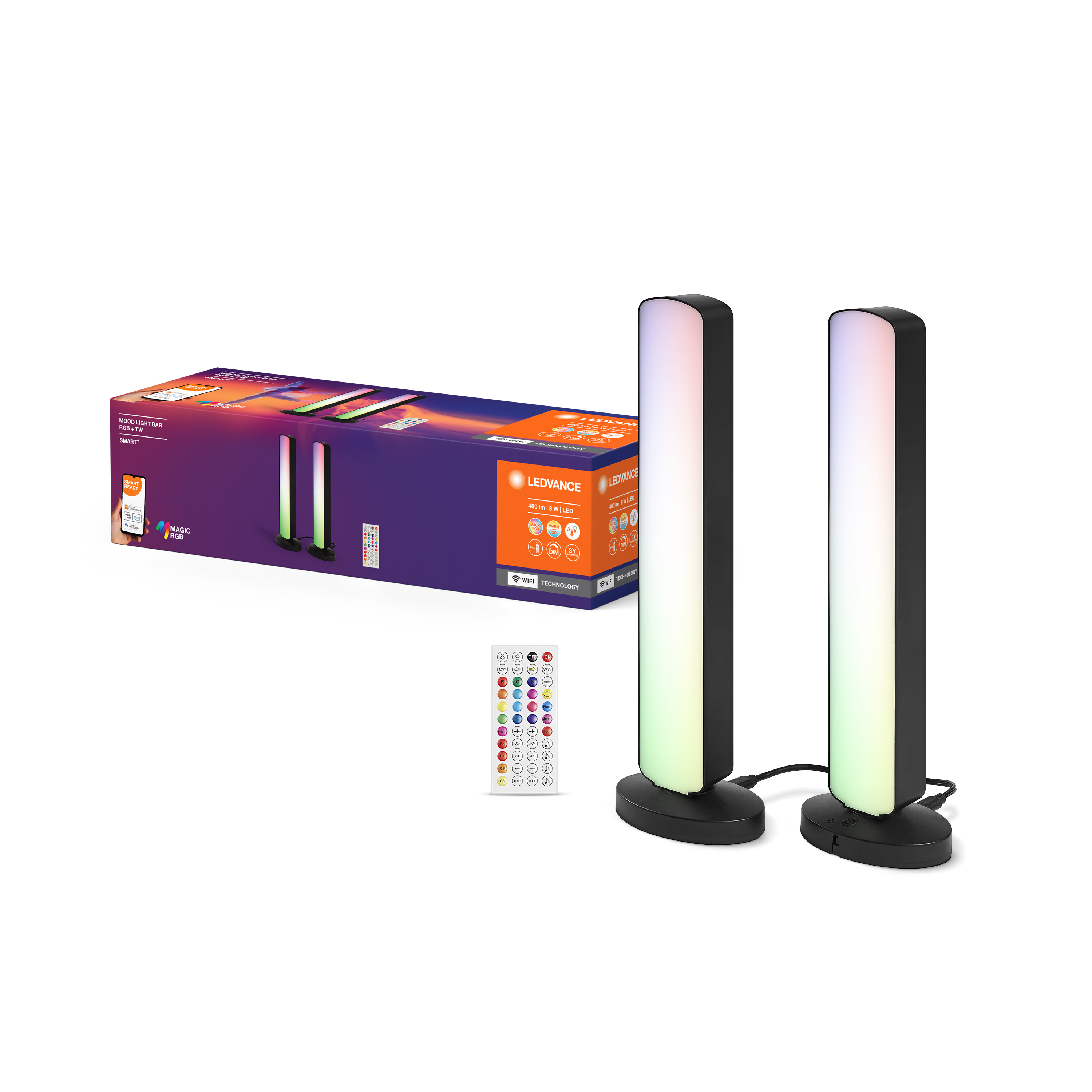

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI MOOD BAR RGBTW BK MiPRC

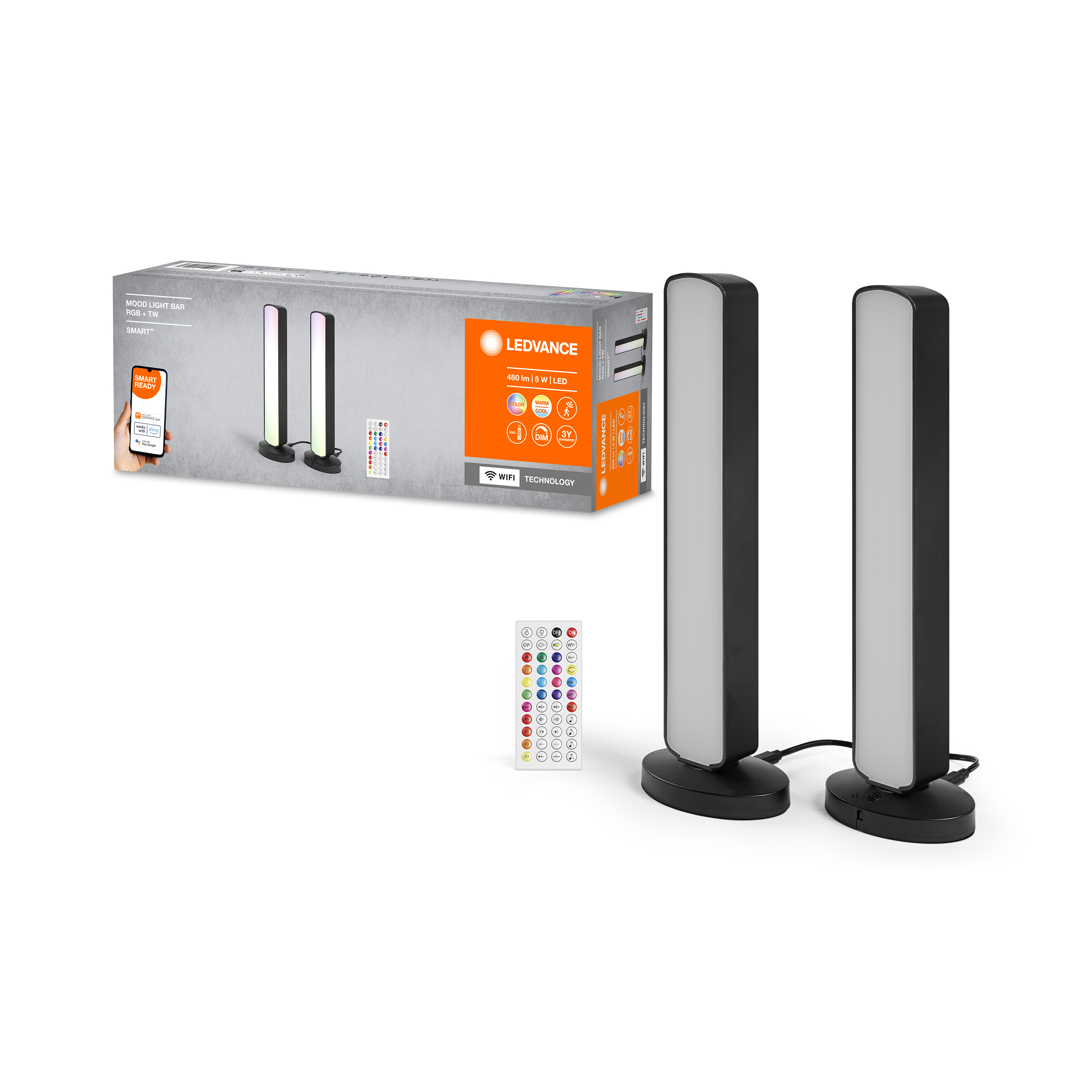

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI MOOD BAR RGBTW BK MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI MOOD BAR RGBTW BK MiPRC LDV
Packaging image, frontal
SH FC WIFI MOOD BAR RGBTW BK MiPRC
Packaging image, spacial
SH FC WIFI MOOD BAR RGBTW BK MiPRC

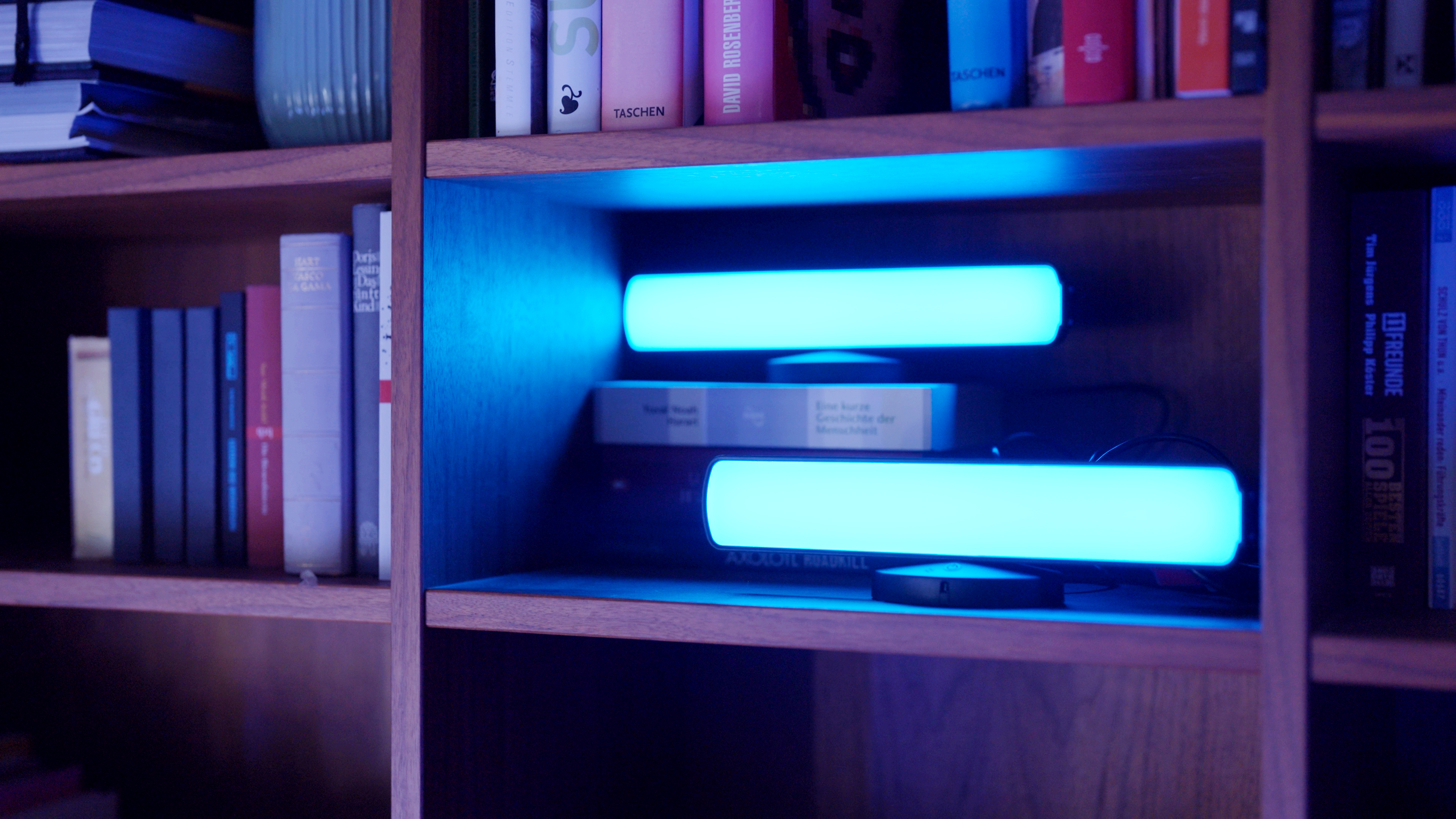

Application pictures
Entertainment SmartPLUS WIFI Mood Light Bar 01

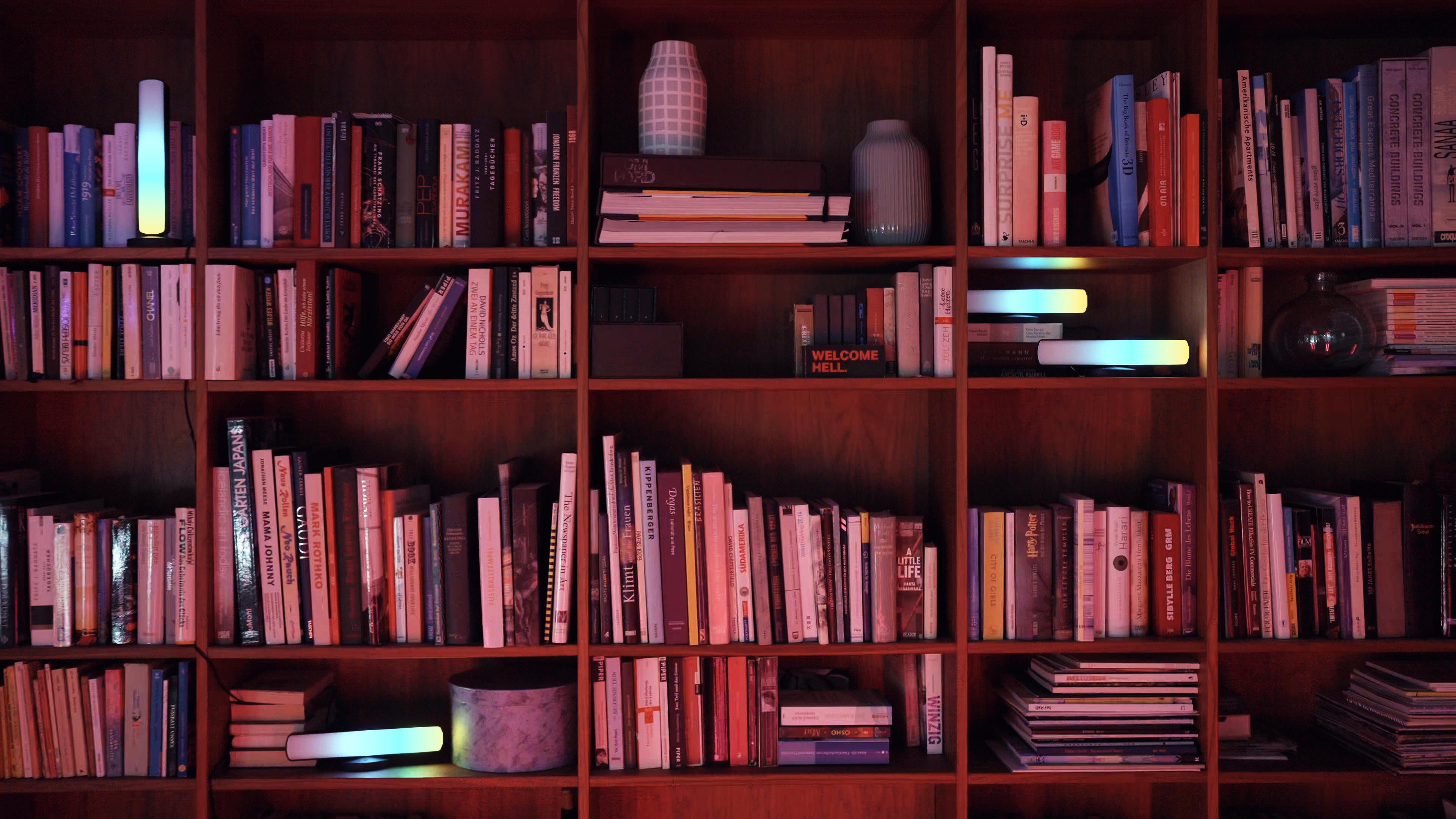

Application pictures
Entertainment SmartPLUS WIFI Mood Light Bar 02

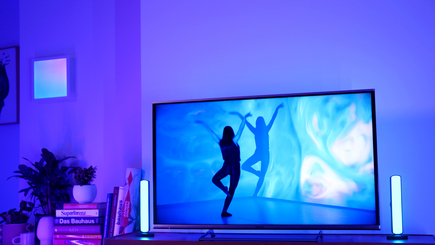

Application pictures
Entertainment SmartPLUS WIFI Mood Light Bar TV blue

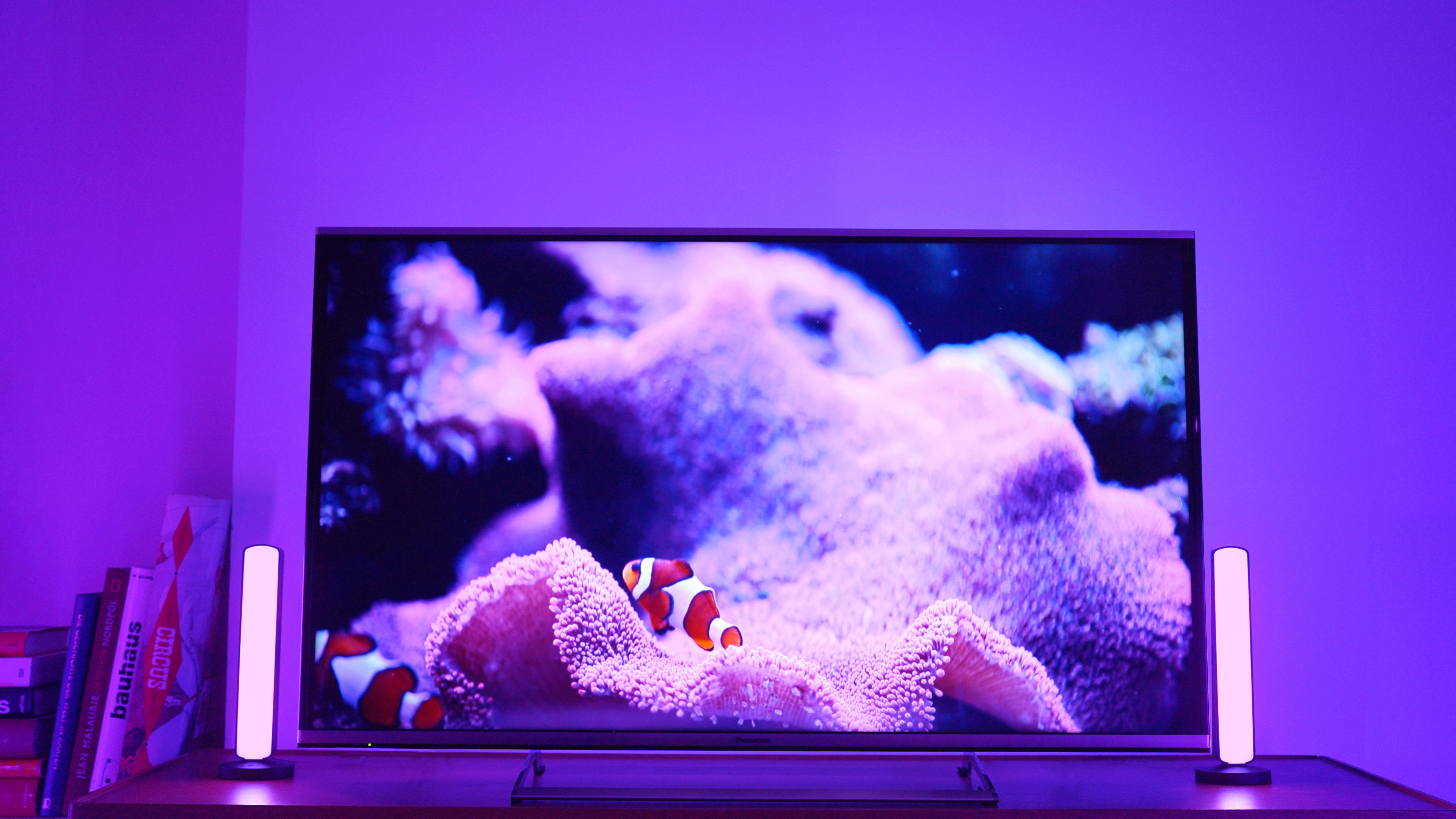

Application pictures
Entertainment SmartPLUS WIFI Mood Light Bar TV purple

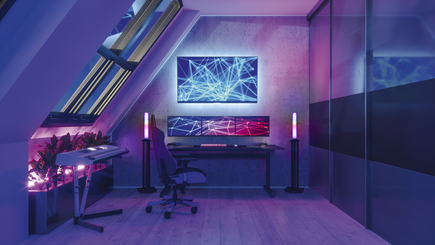

Application pictures Getty
SMART WIFI MOOD LIGHT BAR

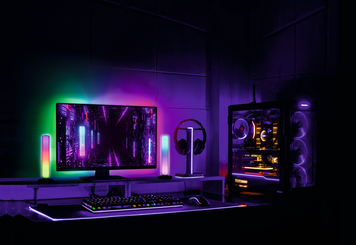

Application pictures Getty
