SMART+ Spot GU10 Dimmable

SMART ZB PAR16 50 4.7W 220V DIM GU10

GTIN: 4099854461804 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Wireless control via app
  • Easy to install and use
  • Contains no mercury
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • General illumination
  • Residential interiors
  • Professional (hotels, bars, boutiques etc.)
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Control via compatible smart home system (gateway and app)
  • Control via voice control available: Google Assistant or Amazon Alexa, depending on the smart home system in use
  • Network protocol: ZigBee 3.0
  • Dimmable
  • Lifetime: up to 20,000 h
  • For full functionality connection to a compatible smart home System (gateway and app) required
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 4.7 W
Construction wattage 4.70 W
Nominal voltage 220…240 V
Nominal current 38 mA
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.50
Claimed equiv. conventional lamp power 50 W
Operating mode AC Mains
Photometrical data
Lumen main.fact.at end of nom.life time 0.95
Standard deviation of color matching ≤6 sdcm
Nominal luminous flux 350 lm
Luminous flux 350 lm
Luminous efficacy 74 lm/W
Luminous intensity 600 cd
Color temperature 2700 K
Color rendering index Ra 80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.4
Light technical data
Beam angle 45 °
Starting time < 0.5 s
Warm-up time (60 %) ‹ 0.50 s
Dimensions & Weight
Product weight 43.00 g
Diameter 50.00 mm
Maximum diameter 50 mm
Length 54.00 mm
Width 50.00 mm
Height 50.00 mm
Outer bulb [PICOS] PAR51
Lifespan
Number of switching cycles 100000
Lifespan 20000 h
Lumen maintenance at end of service lifetime 0.95
Colors & materials
Housing color Transparent
Body material Glass
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Additional product data
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Base (standard designation) GU10
Capabilities
Dimmable Yes 1)
1) Via App
Certificates & Standards
Energy efficiency class F 1)
Energy consumption 5.00 kWh/1000h
Standards CE, EAC, UKCA
Type of protection IP20
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional DLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) GU10
Connected light source (CLS) Yes
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power < 0.5 W
Networked standby power for CLS <0.5
Claim of equivalent power Yes
Chromaticity coordinate x 0.4578
Chromaticity coordinate y 0.4101
R9 Colour rendering index 1
Beam angle correspondence NARROW_CONE_90
Survival factor 0.90
Displacement factor 0 W
LED light source replaces a fluorescent light source No
EPREL ID 1160675
Model number AC41289
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854461804 Folding box
1
56 mm x 78 mm x 82 mm 65.00 g 0.36 dm³
4099854461811 Shipping box
4
162 mm x 122 mm x 96 mm 333.00 g 1.90 dm³
Extended installation guide
SMARTZB 220-240V DIMFS1
Declarations of conformity
SMART ZB DIM A60 / B40 / P40 / PAR16
EU Data Act
SMART ZigBee Lamps and Luminaires

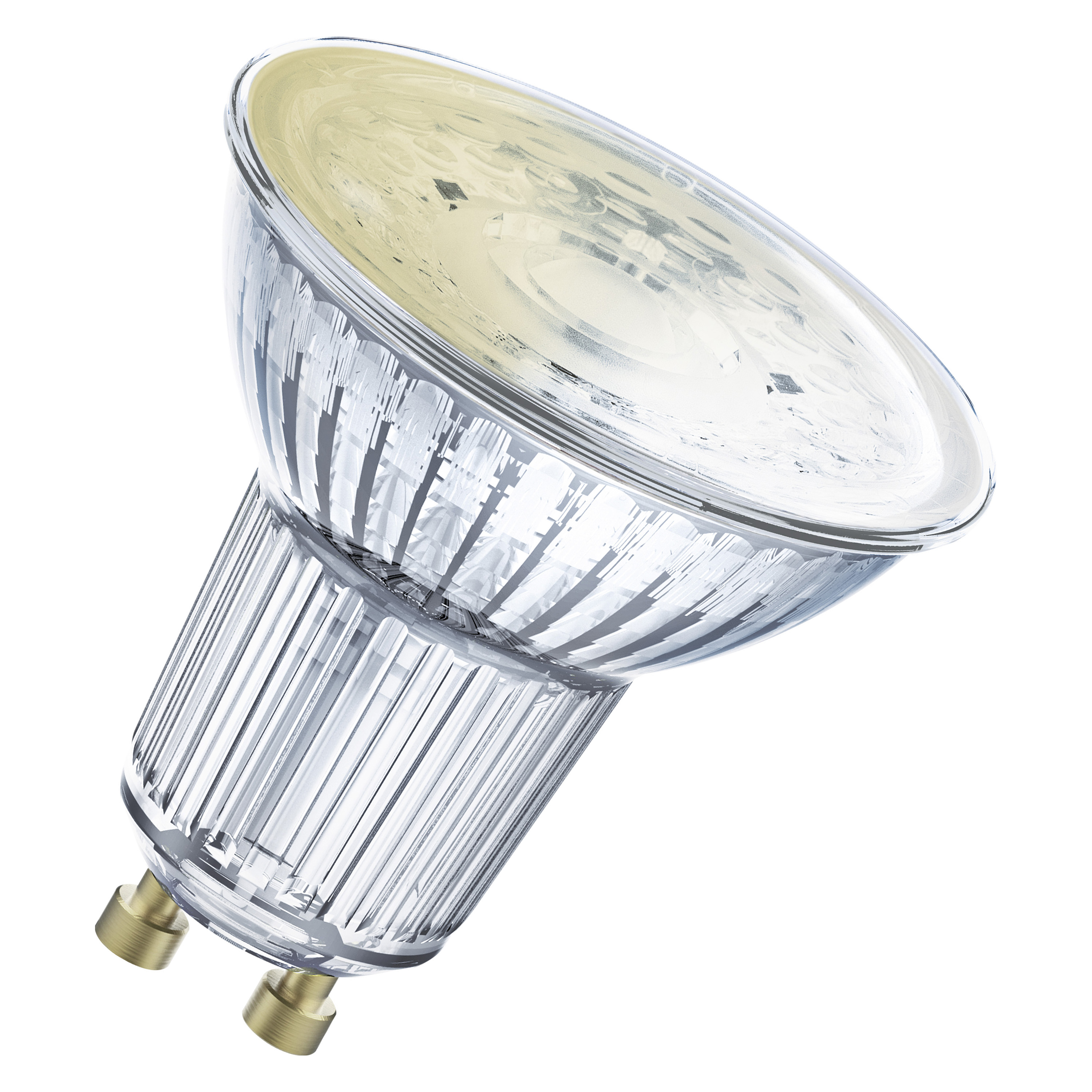

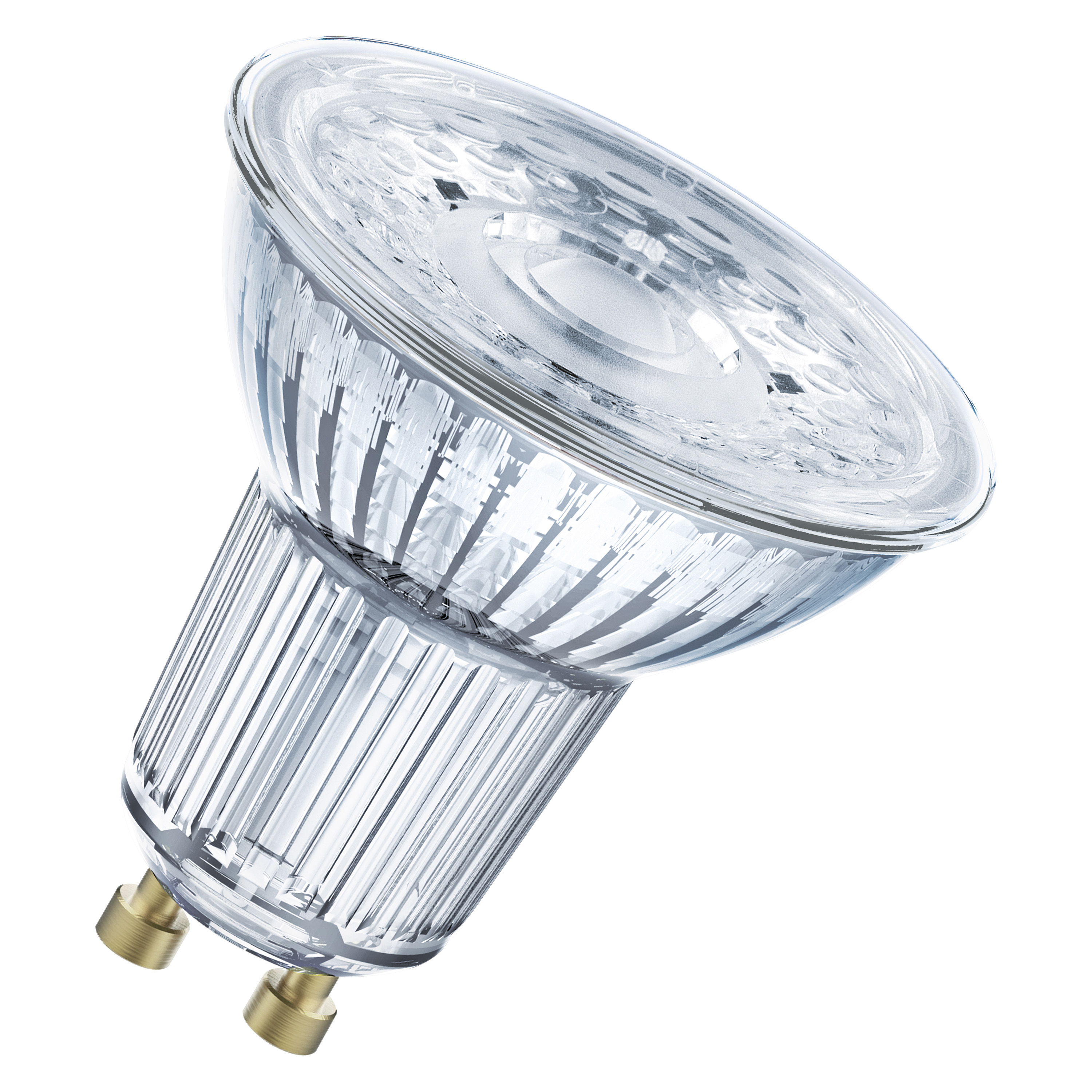

Product image: white background, diagonal with OSRAM logo
SMARTZBPAR16 GU10
Product image: white background, diagonal with OSRAM logo
SMARTZBPAR16 GU10

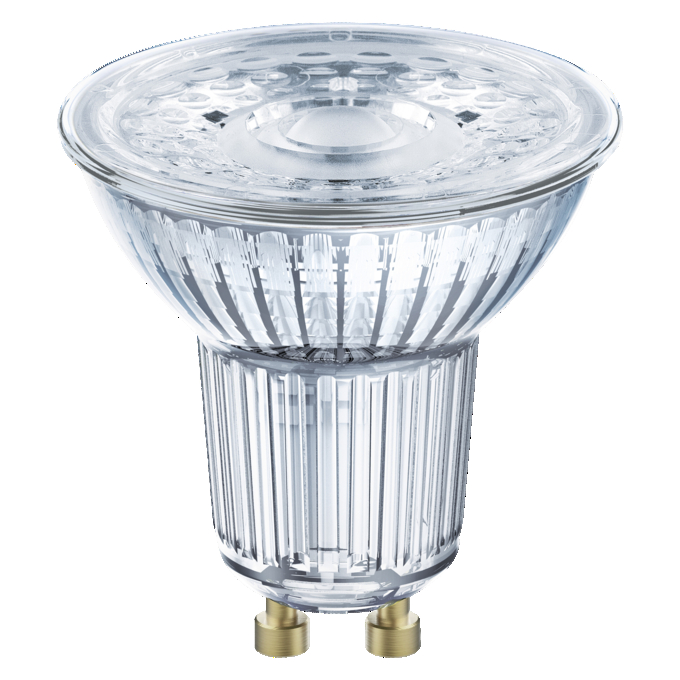

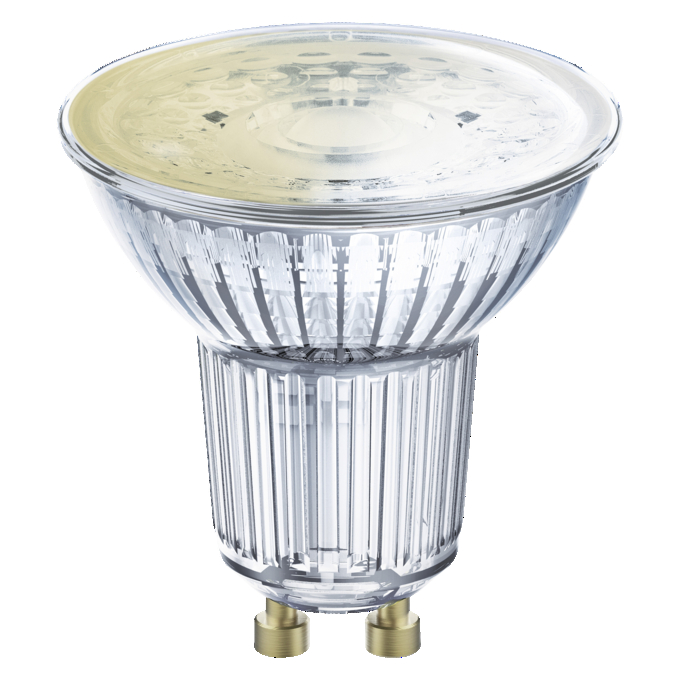

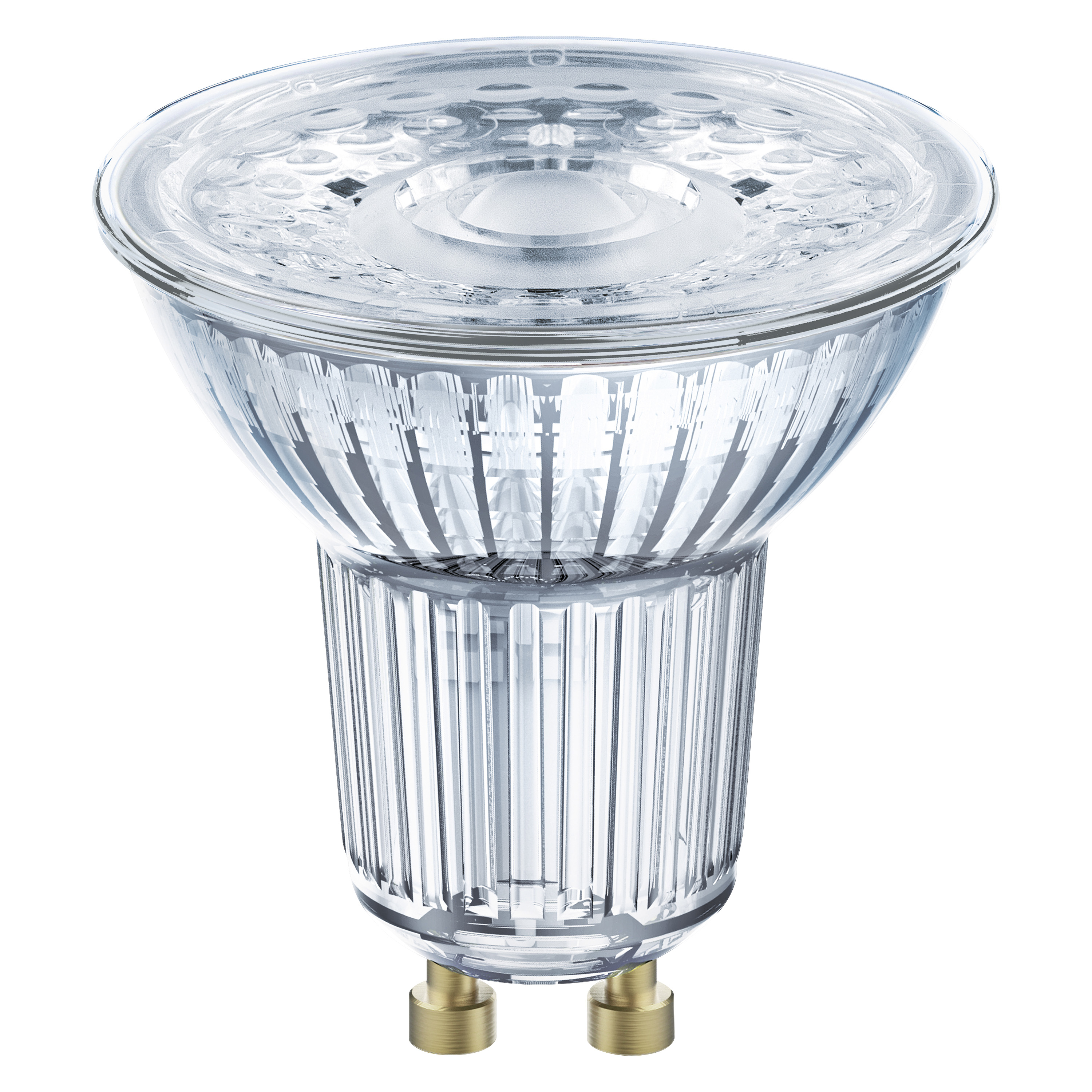

Product image: white background, upright, OSRAM logo
SMARTZBPAR16 GU10
Product image: white background, upright, OSRAM logo
SMARTZBPAR16 GU10
Product infographic (application image with text and graphic)
Bluethooth Zigbee assortment E-Com-Grafik 1200x1200 2023 EN
Product infographic (application image with text and graphic)
SmartPlus assortment E-Com-Grafik V2 1200x1200 2023 EN
Product infographic (application image with text and graphic)
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
Product line drawing with letters
SMART+ SPOT GU10 PAR16
Product line drawing with numbers
SMART+ SPOT GU10 PAR16
Product line drawing, front, no dimensions
SMART+ SPOT GU10 PAR16

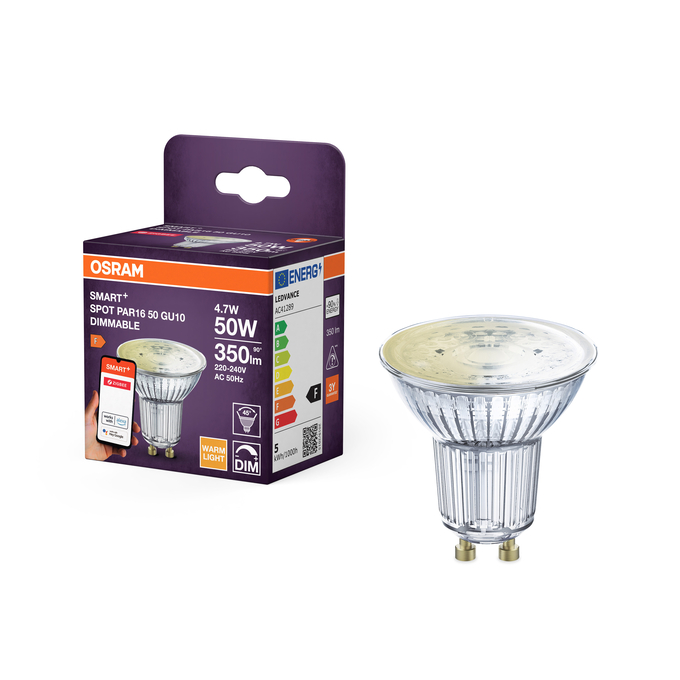

Combo Shot = Product Beauty Shot + Packaging Image
