PRODUCT DETAILS

Product benefits
  • Integrates conventional electric equipment into compatible smart home systems
  • Enables switching of conventional light sources and other electric devices
  • Simple connection of electric devices via standard socket
Areas of application
  • Wherever non-smart devices need to be integrated into compatible smart home systems
Product features
  • Control via compatible smart home system or on/off button on the device
  • Control via voice control available: Google Assistant or Amazon Alexa, depending on the smart home system in use
  • Network protocol: ZigBee 3.0
  • Scheduling
  • For full functionality, connection to a compatible smart home System (gateway and app) required
  • High switching power up to 3,680W / 16A EU version and 2,990W / 13A UK version
Equipment / Accessories
  • Control via app requires a compatible Smart home system
Safety advice
  • Disconnect devices which generate heat from the mains, i.e. from the SMART+ Plug, after use in order to avoid them being accidentally switched on.
  • Very high capacitive and inductive loads may in some cases lead to destruction of the device or reduction in the number of switching cycles.
  • Do not use the SMART+ Plug in conjunction with medical equipment.
  • To be connected to an automatic circuit breaker (max. 13 A).
Electrical data
Nominal voltage 230 V
Mains frequency 50 Hz
Dimensions & Weight
Product weight 80.00 g
Length 64 mm
Width 55 mm
Height 55 mm
Lifespan
Number of switching cycles 100000
Colors & materials
Product color White
Body material Plastic
Temperatures & operating conditions
Ambient temperature range -20…40 °C
Capabilities
Compatible smart home technology Amazon Alexa, Google Assistant, Philips Hue
Certificates & Standards
Protection class I
Type of protection IP20
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075729285 Folding box
1
61 mm x 96 mm x 154 mm 169.00 g 0.90 dm³
4058075729292 Shipping box
4
211 mm x 167 mm x 141 mm 796.00 g 4.97 dm³
Extended installation guide
SMART PLUG UK
Declarations of conformity
SMART ZB PLUG UK

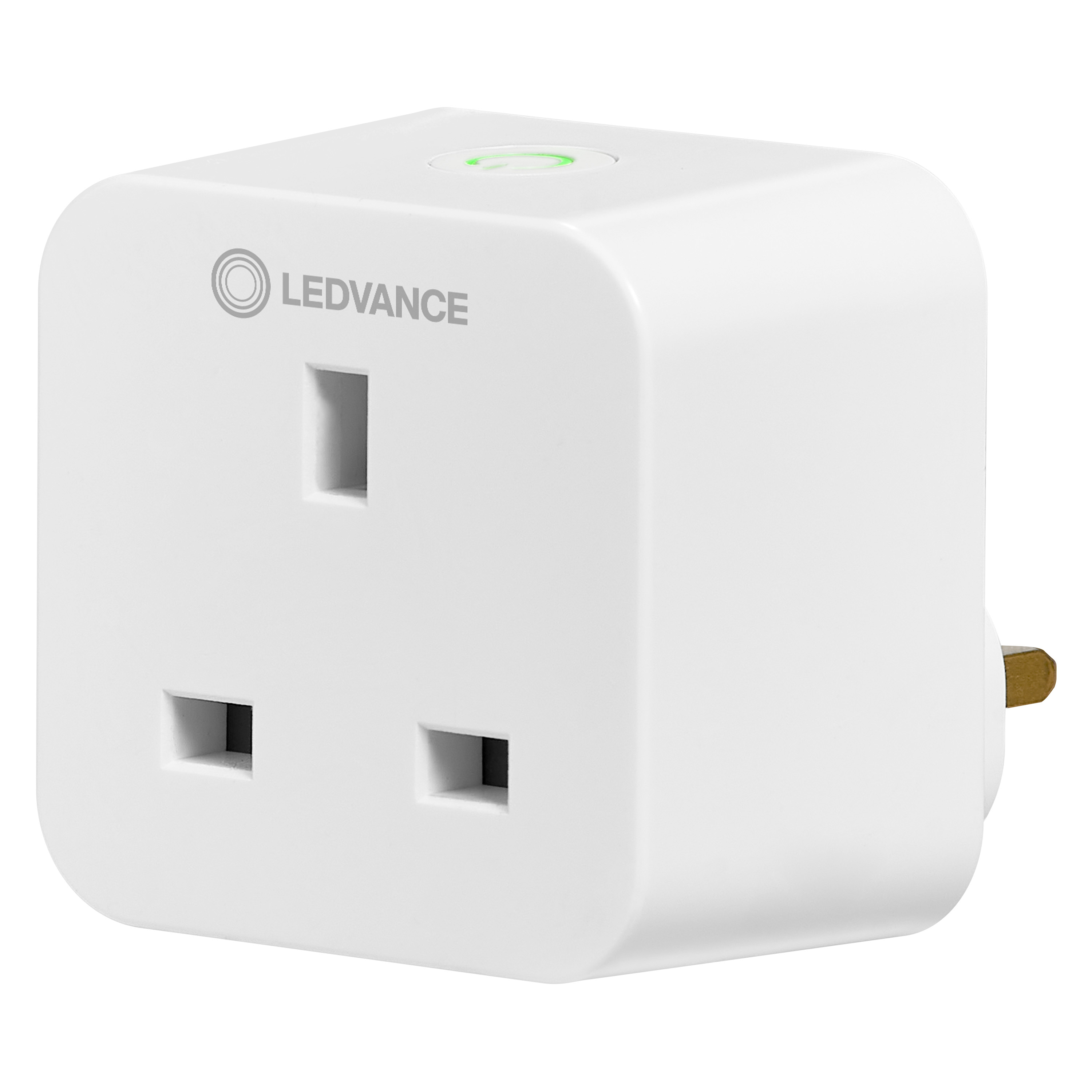

Product image: white background, upright
SMART ZB PLUG UK
Product image: white background, upright, switched on
SMART ZB PLUG UK
Product infographic (application image with text and graphic)
SmartPlus WIFI PLUG assortment E-Com-Grafik
Product infographic (application image with text and graphic)
SmartPlus WIFI PLUG assortment E-Com-Grafik V1 1200x1200 2023 EN
Product infographic (application image with text and graphic)
SmartPlus assortment E-Com-Grafik V1 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V1 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Bluethooth Zigbee assortment E-Com-Grafik 1200x1200 2023 EN
Product line drawing with letters
SMART ZB PLUG UK
Product line drawing with numbers
SMART ZB PLUG UK

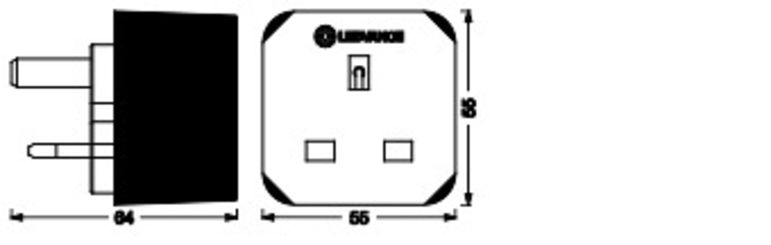

Product line drawing, front, no dimensions
SMART ZB PLUG UK

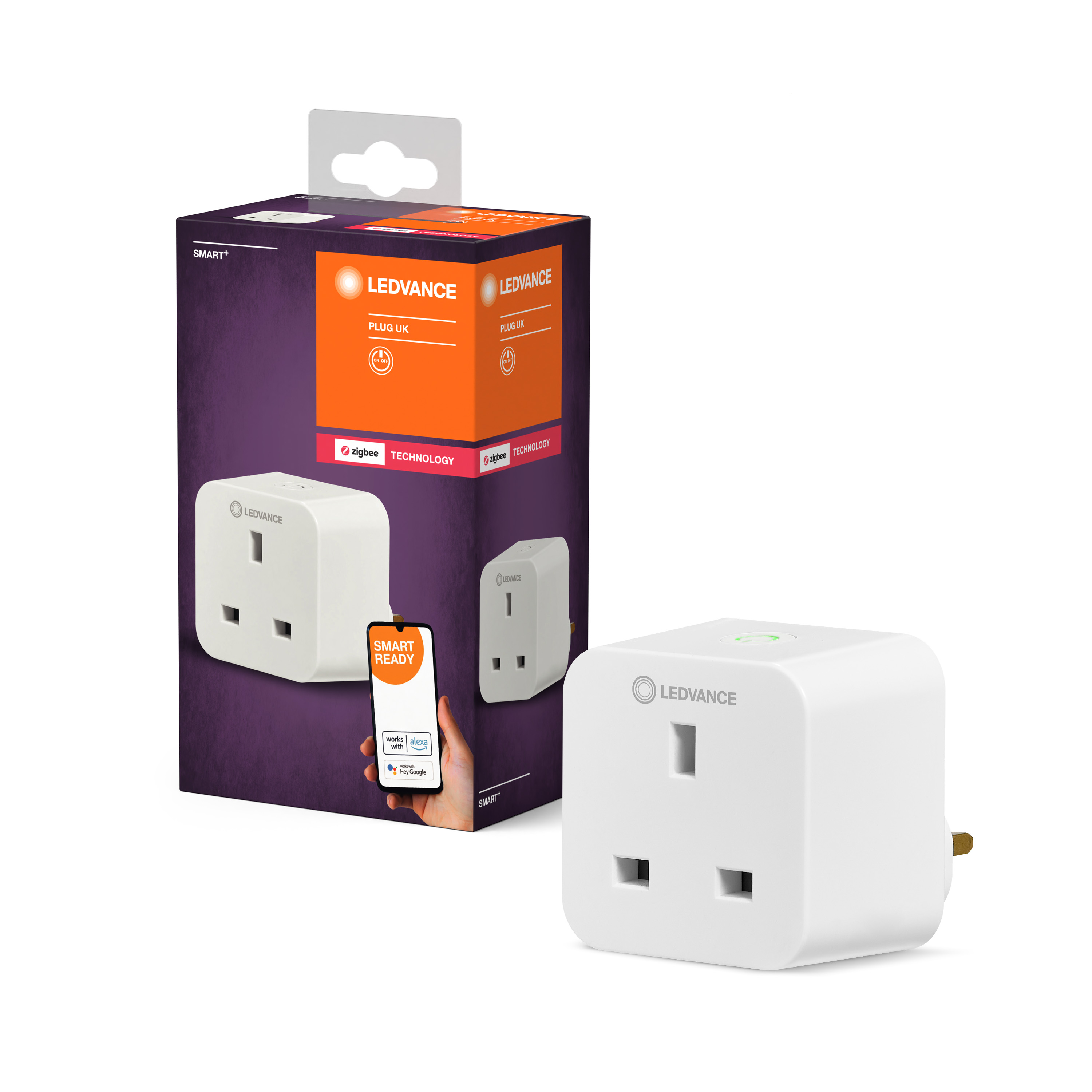

Combo Shot = Product Beauty Shot + Packaging Image
SH FC ZB PLUG UK MiPRC

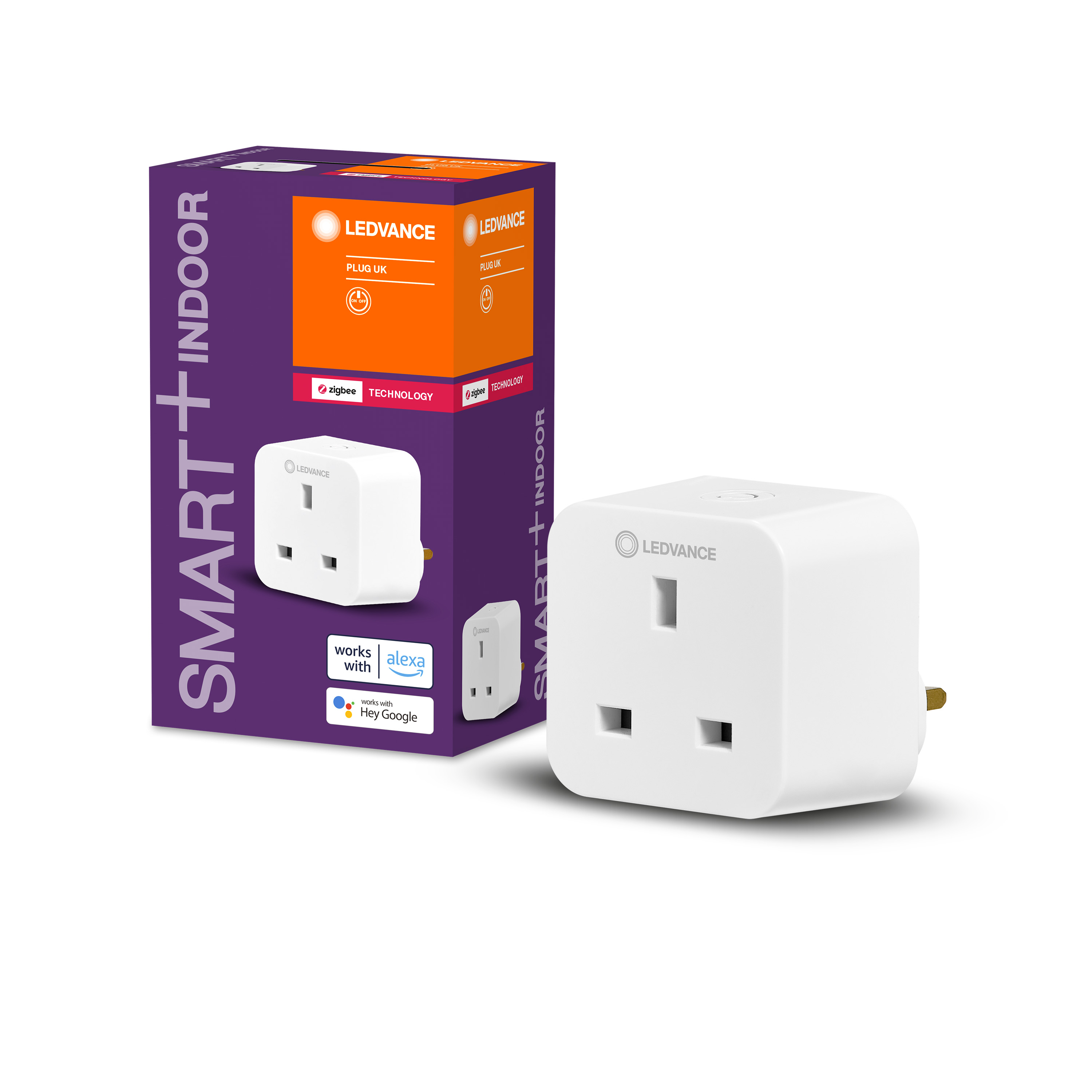

Combo Shot = Product Beauty Shot + Packaging Image
SH FC ZB PLUG UK MiPRC

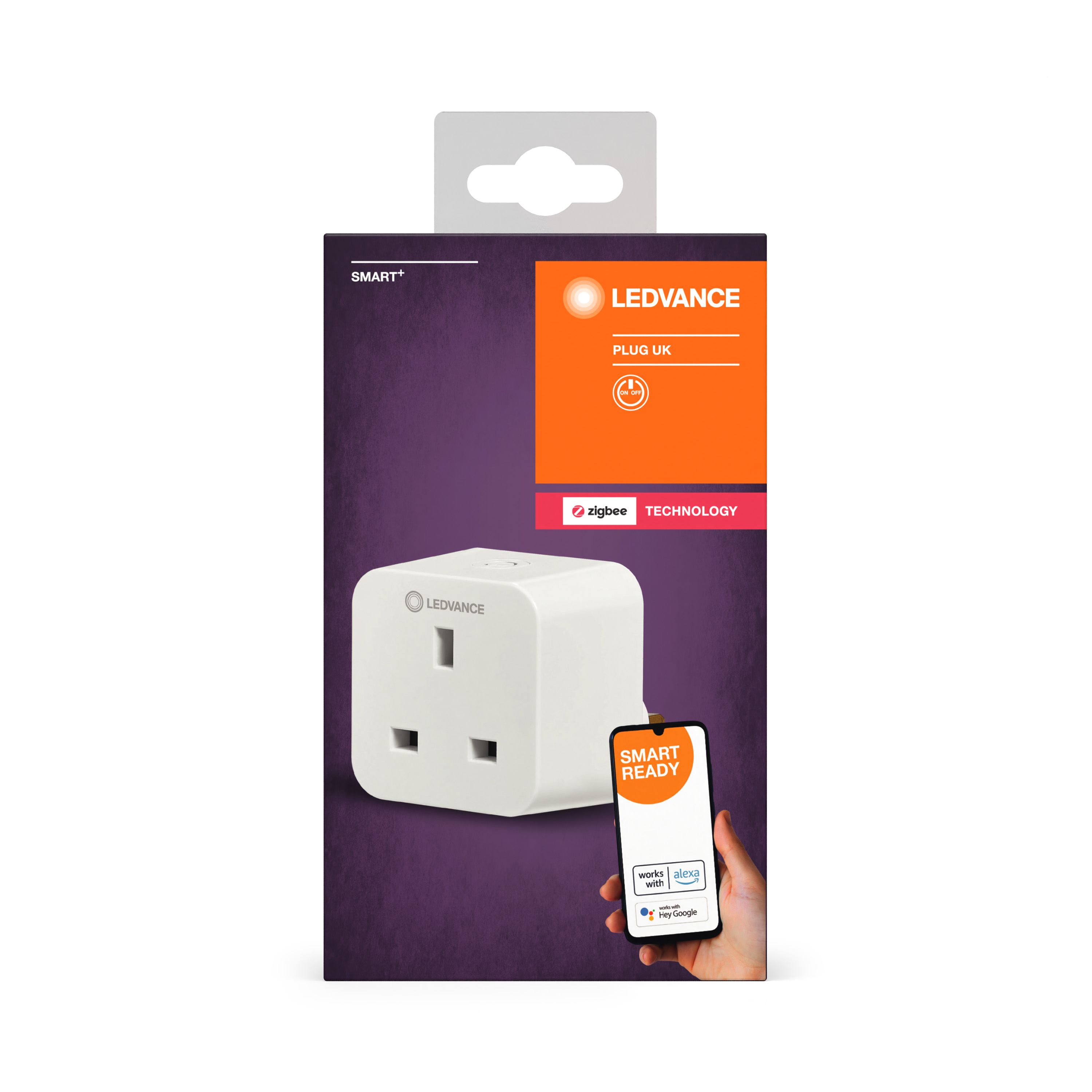

Packaging image, frontal
SH FC ZB PLUG UK MiPRC

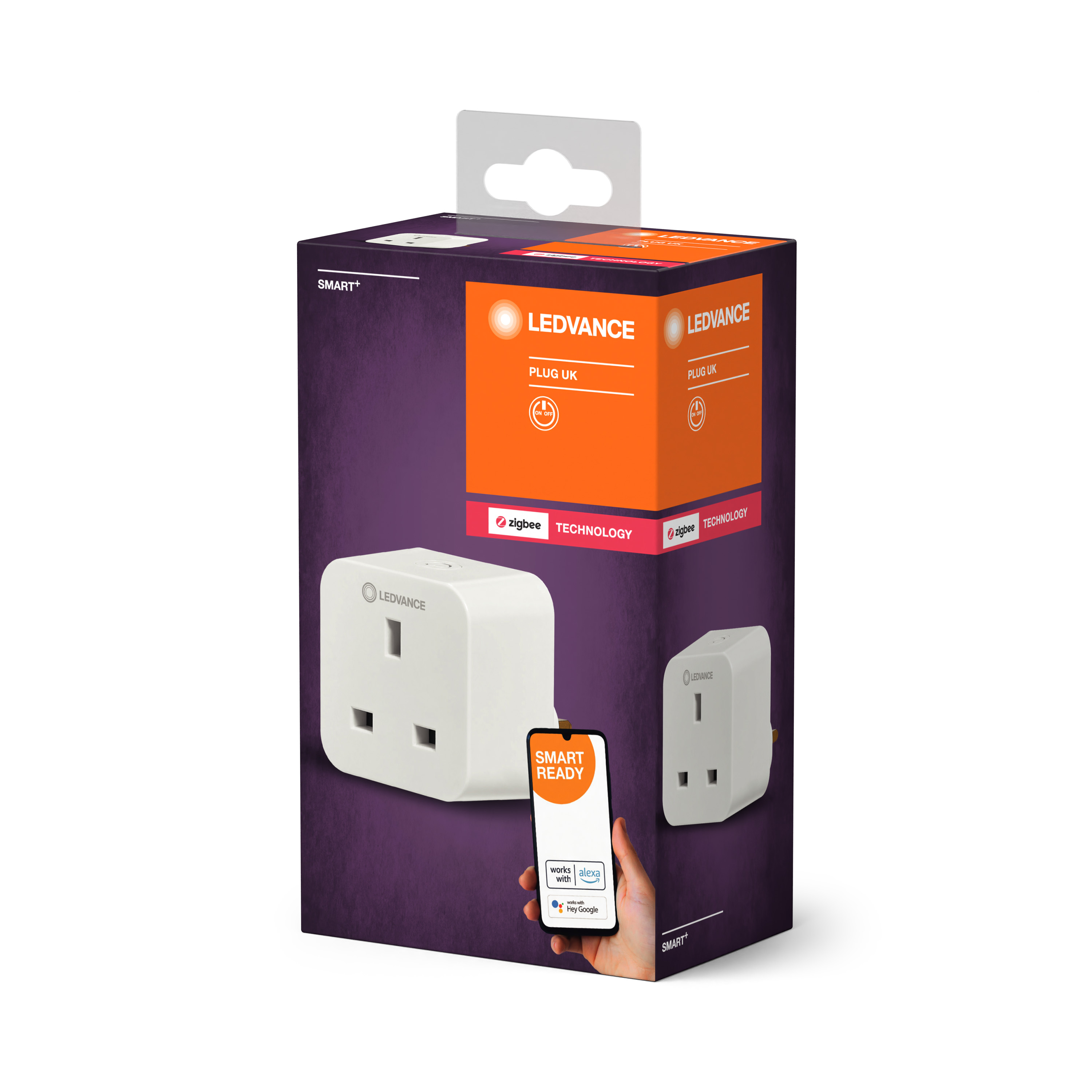

Packaging image, spacial
SH FC ZB PLUG UK MiPRC
Application pictures
Smart+ Wifi Plug
