PLANON™ Frameless

PLANON Frameless On-Off 1200x100 35 W 3000 K

GTIN: 4058075257214 Folding box / 1 Show all packages
Download data sheet
Contact sales
5-year warranty

PRODUCT DETAILS

Product benefits
  • Homogenous light distribution
  • Easy and quick installation
Areas of application
  • Indoor applications
  • Decorative domestic lighting
  • Wall and ceiling surface mounting
Product features
  • Ceiling luminaire with advanced LED technology
  • Available in square and rectangular form
  • Color temperature: 3,000 K
  • Aluminum housing, frosted PMMA diffuser
Equipment / Accessories
  • Complete mounting and connecting accessories included
  • Driver included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
Nominal wattage 35.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 160.000 mA
Power factor λ ≥0.90
Protection class I
Operating mode Mains voltage
Photometrical data
Luminous flux 1600 lm
Luminous efficacy 46 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Beam angle 120 °
Dimensions & Weight
Length 1195.00 mm
Height 60.00 mm
Width 100.00 mm
Product weight 3500.00 g
Materials & Colors
Product color White
Housing color White
Body material Aluminum
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material PMMA
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -25…+35 °C
Type of connection Screw terminal
Type of protection IP20
Dimmable No
Mounting type Surface
Mounting location Ceiling
Application environment Indoor
Lifespan
Number of switching cycles 15000
Certificates & Standards
Standards CE, EAC, REACH, RoHS
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075257214 Folding box
1		 83 mm x 1,223 mm x 130 mm 3710.00 g 13.20 dm³
4058075257221 Shipping box
5		 1,240 mm x 420 mm x 145 mm 19290.00 g 75.52 dm³
User instruction / safety instructions
User instruction PLANON FRAMELESS
PDF (390.21 KB)
Legal information
Legal insert D - Battery dimmable
PDF (2.71 MB)
Declarations of conformity
CE Declaration Planon (R) Frameless
PDF (731.51 KB)

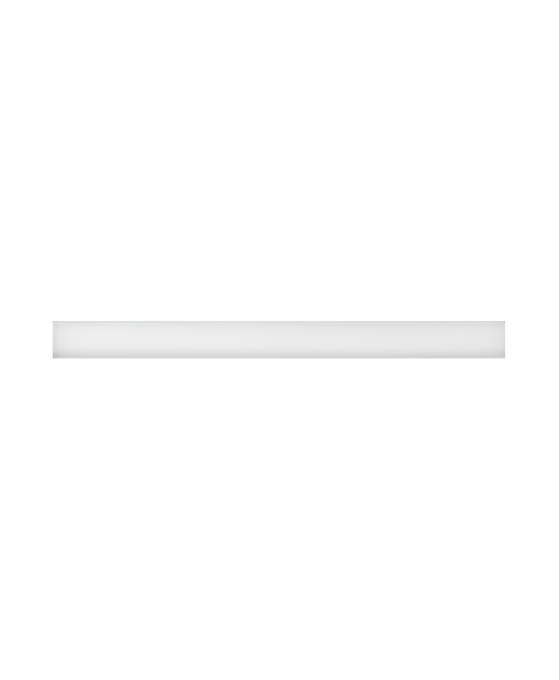

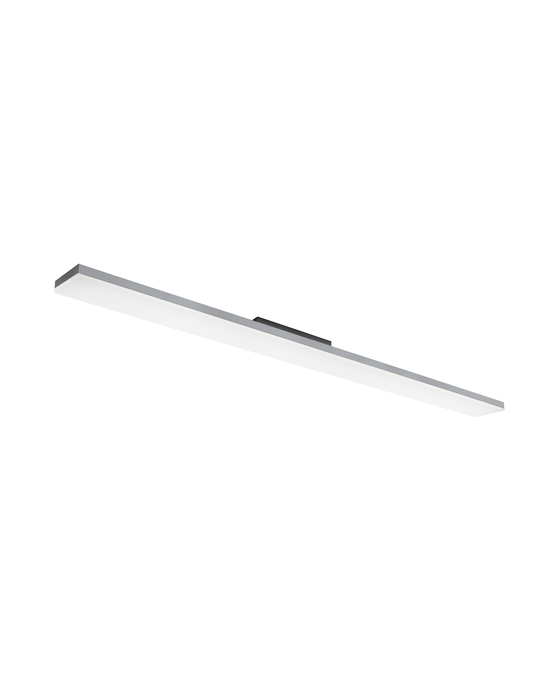

Product image: white background, upright
PLANON FRL 1200x100 35 W 830
TIF (6.3 MB)

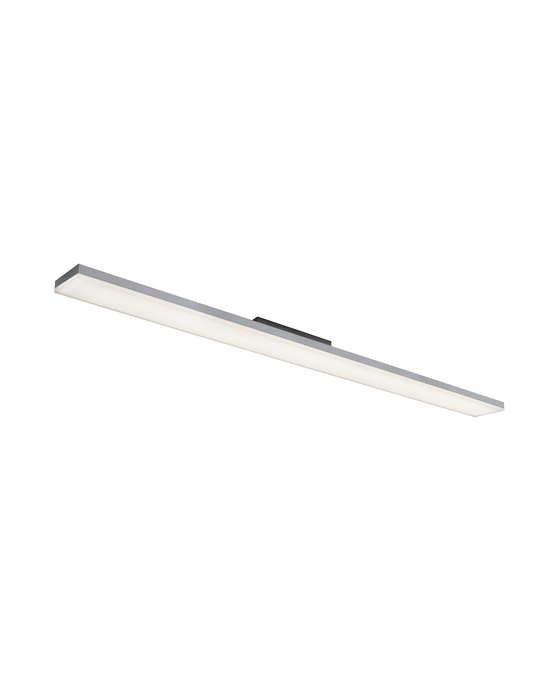

Product image: white background, upright, alternative image
PLANON FRL 1200x100 35 W 830
TIF (8.73 MB)

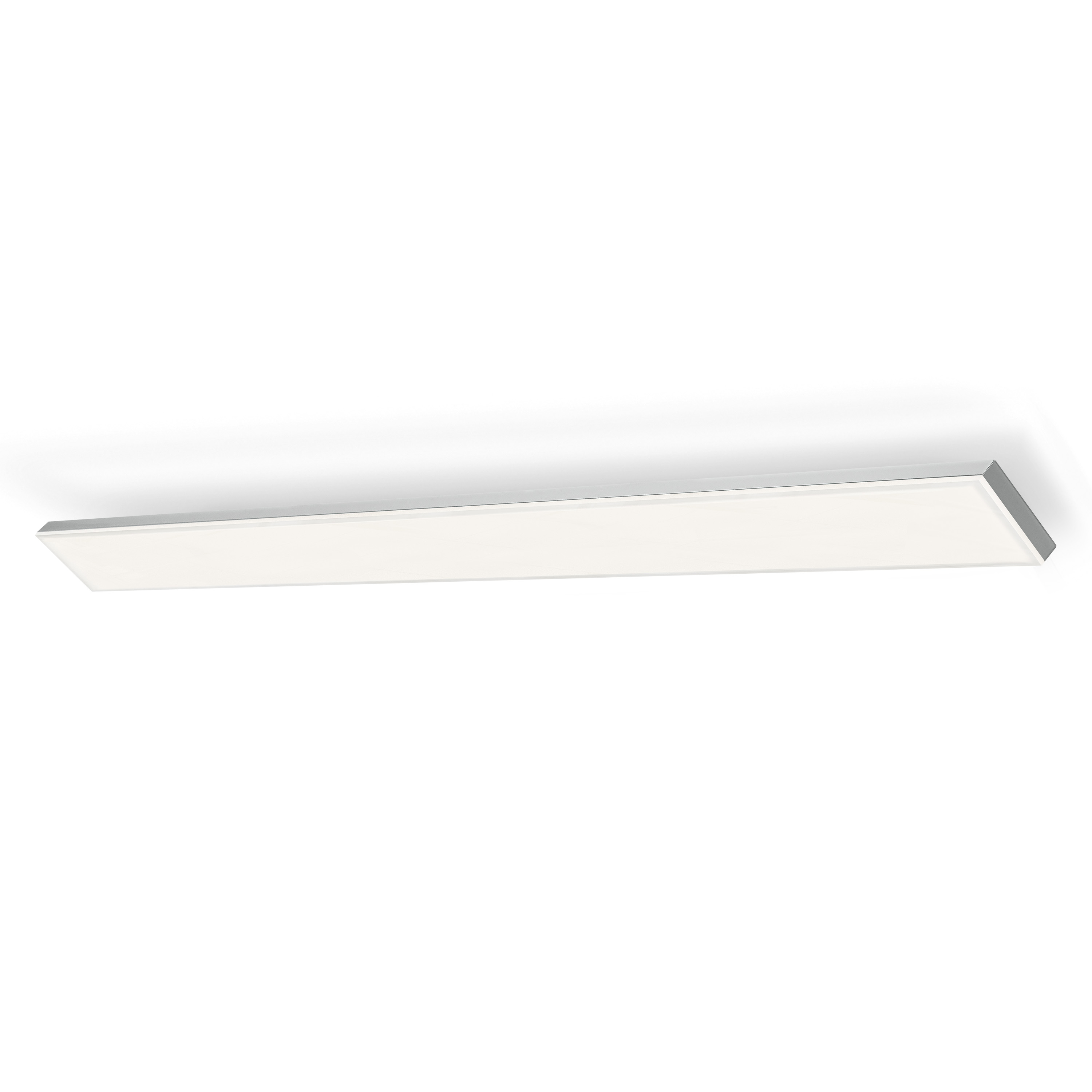

Product image: white background, upright, alternative image
PLANON FRAMELESS 120x10
JPG (352.8 KB)
Product image: white background, upright, switched on
PLANON FRL 1200x100 35 W 830
TIF (7.23 MB)
Product line drawing with letters
PLANON FRL 1200x100 35 W 830
SVG (7.07 KB)
Product line drawing with numbers
PLANON FRL 1200x100 35 W 830
SVG (7.19 KB)
Product line drawing, front, no dimensions
PLANON FRL 1200x100 35 W 830
SVG (2.48 KB)

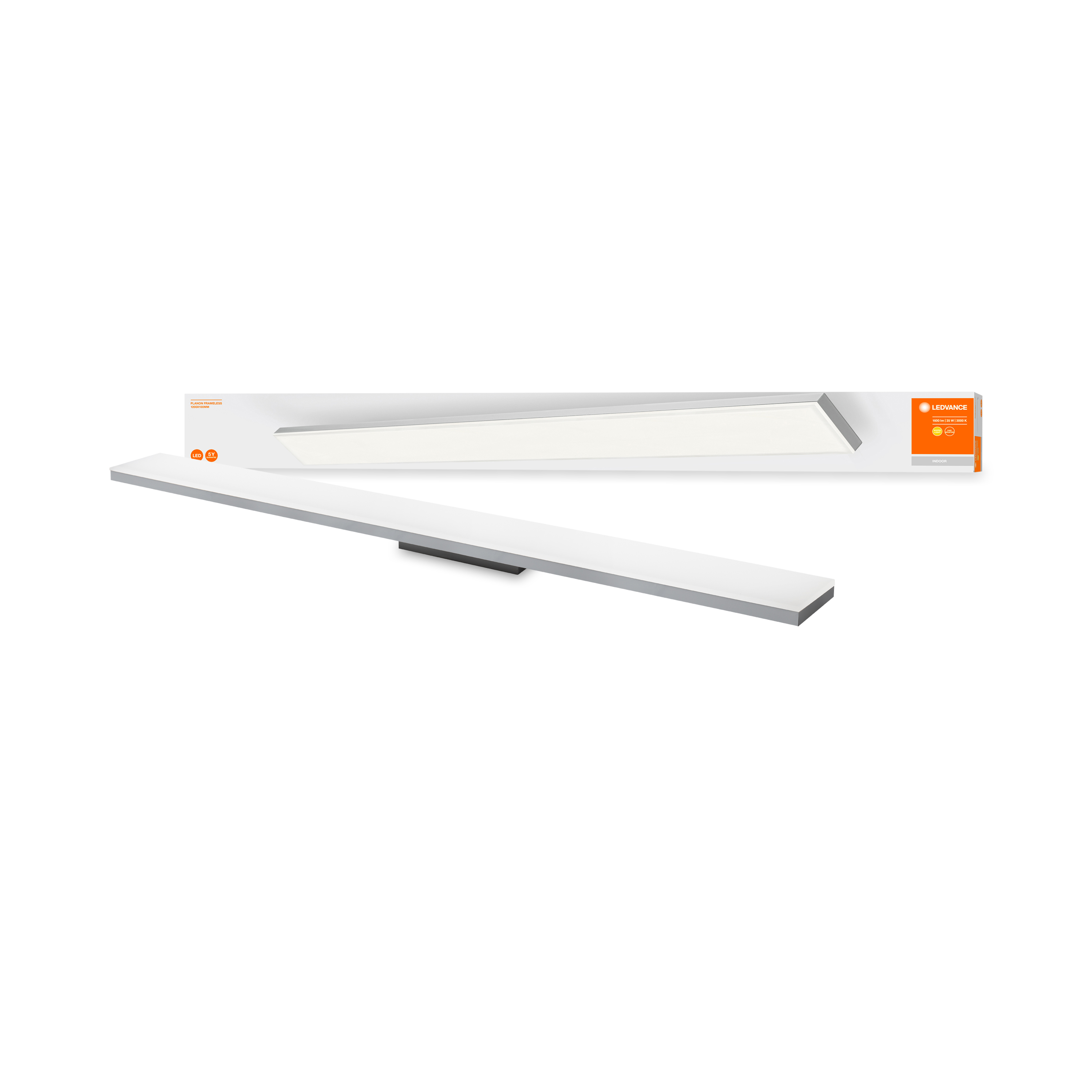

Combo Shot = Product Beauty Shot + Packaging Image
PLANON FRAMELESS 1200X100 35W 830
JPG (828.11 KB)

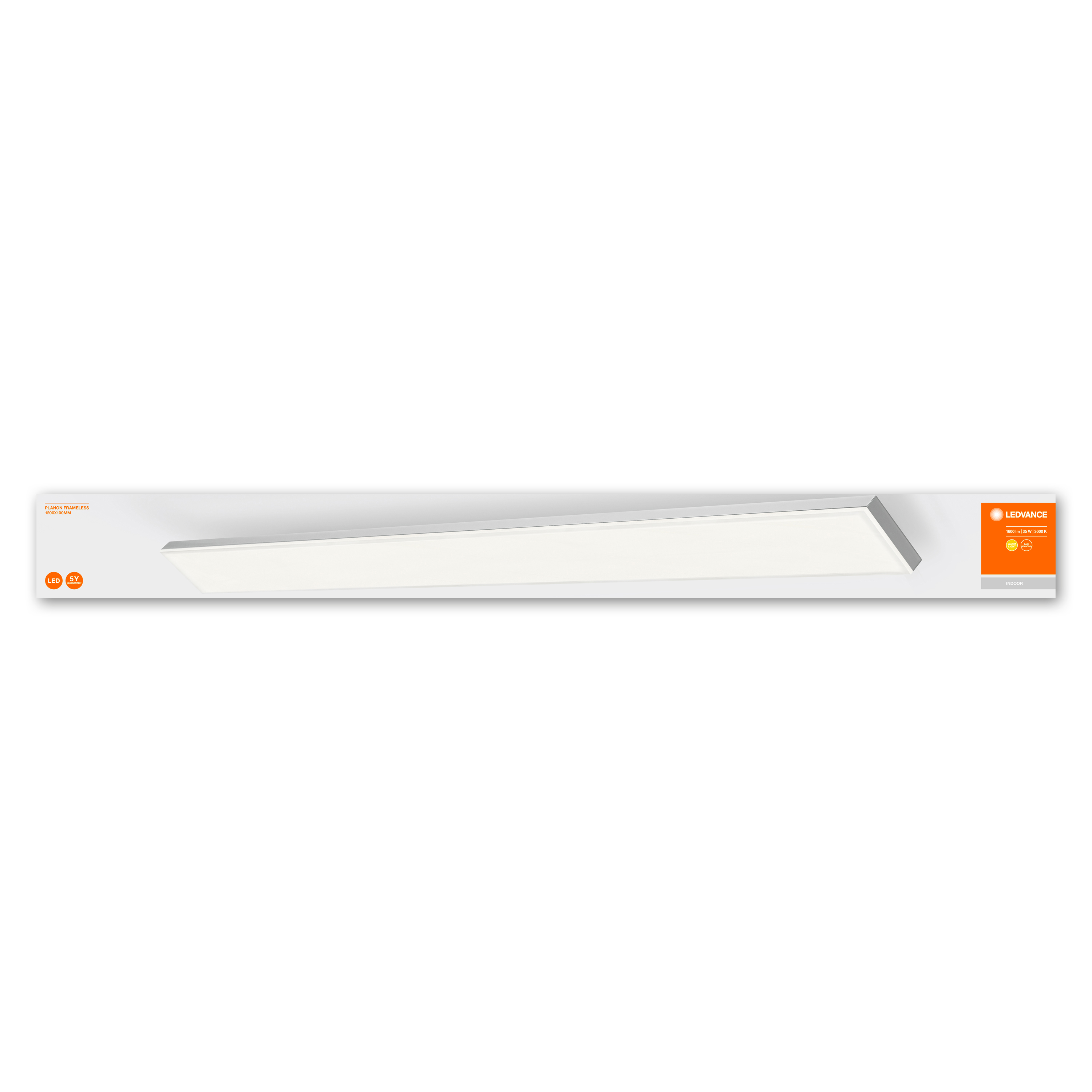

Packaging image, frontal
LUM FC PL FL 120x10 MiPRC LDV Front
JPG (815.62 KB)

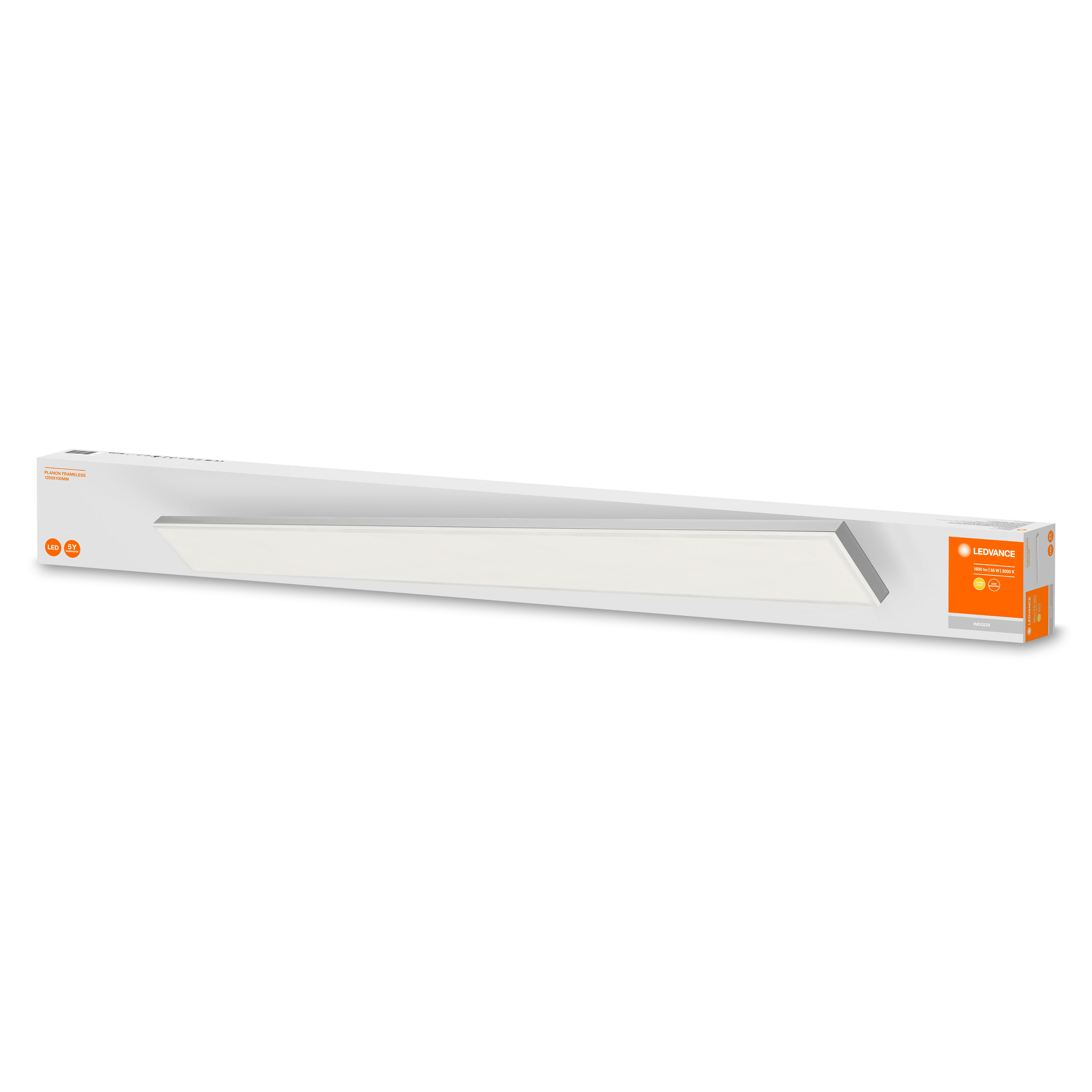

Packaging image, spacial
LUM FC PL FL 120x10 MiPRC LDV Side
JPG (361.69 KB)

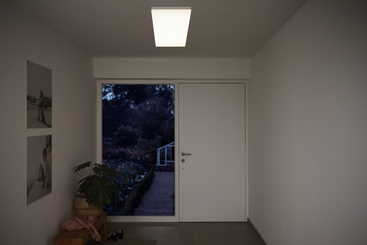

Application pictures
