SENSOR WALL 110DEG IP44 DG

SENSOR WALL 110DEG

GTIN: 4058075244757 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

PRODUCT DETAILS

Product benefits

Sensor for optimized energy savings

Areas of application

Outdoor
Corridors, entrance areas
Garages
Basement
Arcade passage

Product features

Switch-on by movement
Type of protection: IP44
Protection class: II

Safety advice

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
Check wall-ceiling for suitability. If uncertain, seek professional advice.

Electrical data

Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Protection class	II

Dimensions & Weight

Length	60.00 mm
Height	72.00 mm
Width	77.00 mm
Product weight	89.00 g

Materials & Colors

Product color	Dark grey
Body material	Polycarbonate (PC)
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-10…+40 °C
Temperature range at storage	-25…+70 °C
Type of connection	Screw terminal, 3-Pole
Type of protection	IP44
Dimmable	No
Mounting type	Surface
Mounting location	Wall
Replaceable light source	No

Lifespan

Lifespan L70/B50 at 25 °C

50000 h ¹⁾

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Sensor

Type of sensor	Light, Motion
Sensor technology	Passive infrared (PIR)
Sensor detection angle	110 °
Sensor controlled switching time	2 s…15 min
Detection range of motion sensor	12 m
Detection threshold of daylight sensor	1…1000 lx

Certificates & Standards

Standards

CE, EAC, UKCA

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075244757	Folding box 1	67 mm x 80 mm x 94 mm	112.00 g	0.50 dm³
4058075244764	Shipping box 8	170 mm x 144 mm x 204 mm	1273.00 g	4.99 dm³

User instruction / safety instructions
SENSOR WALL 110DEG

PDF (1.18 MB)

Declarations of conformity
SENSOR CEILING WALL

PDF (4.24 MB)

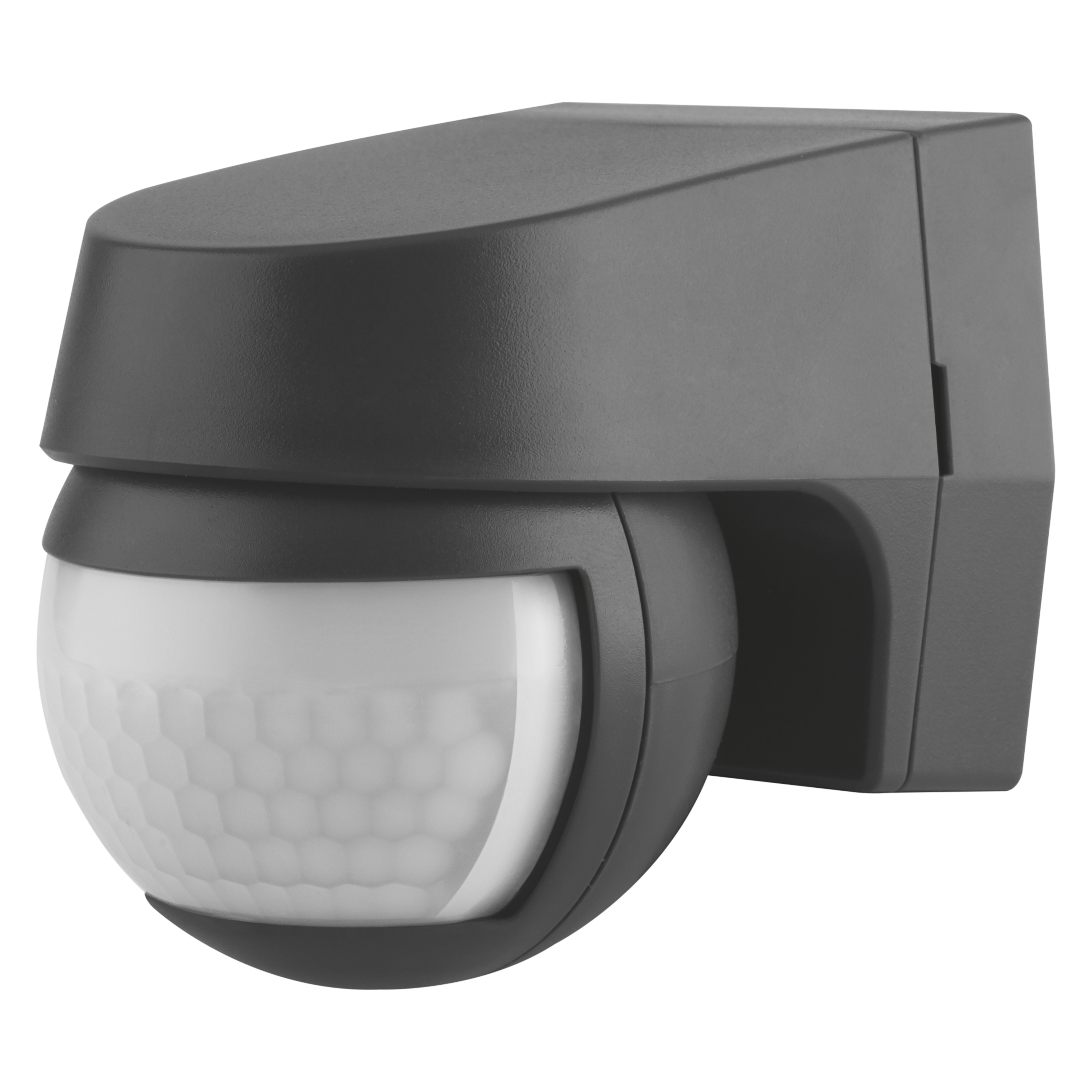

Product image: white background, diagonal
SENSOR W 110DEG IP44 DG

JPG (1.97 MB)

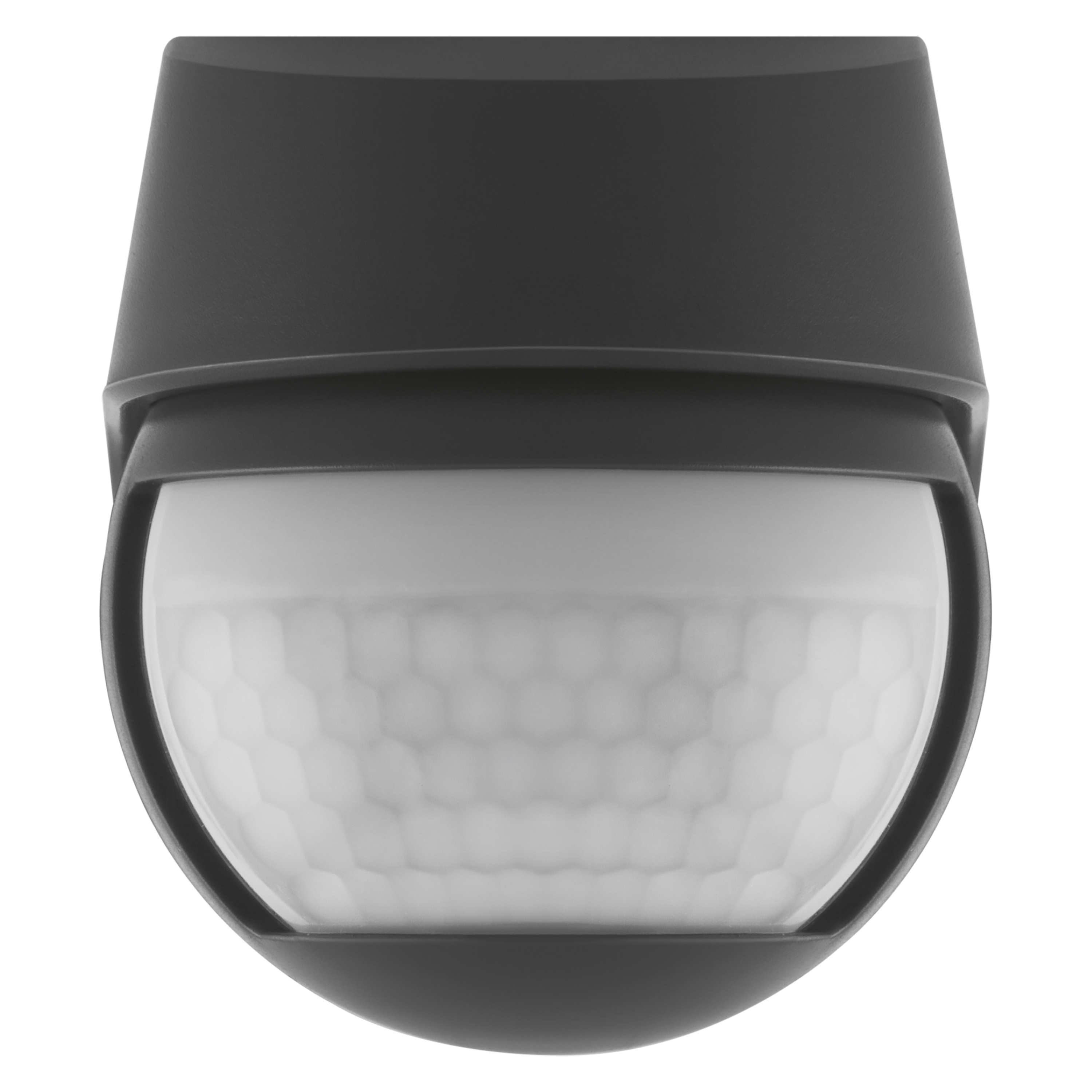

Product image: white background, upright
SENSOR W 110DEG IP44 DG

JPG (1.82 MB)

Product line drawing with letters
SENSOR W 110DEG IP44

SVG (13.17 KB)

Product line drawing with numbers
SENSOR W 110DEG IP44

SVG (16.86 KB)

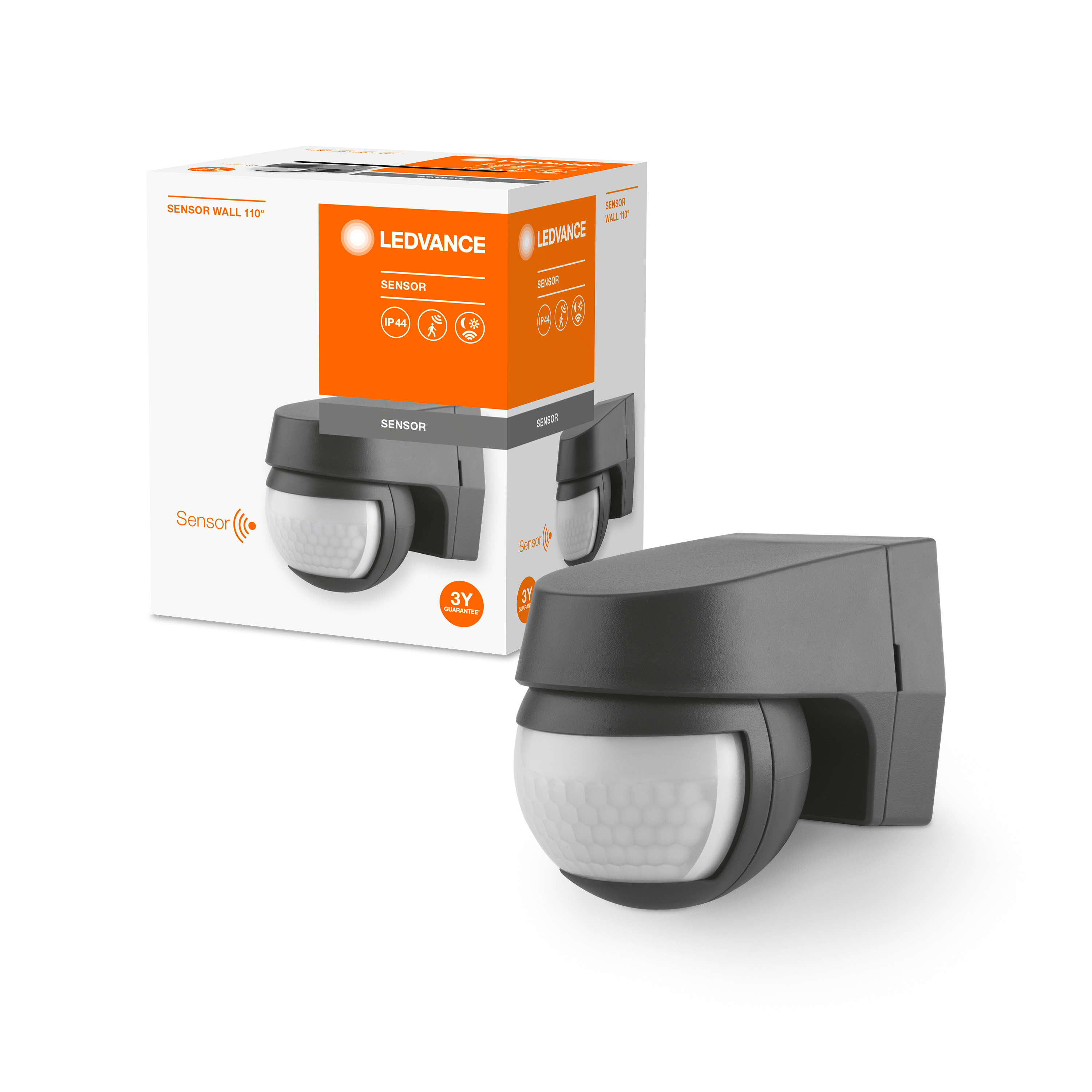

Combo Shot = Product Beauty Shot + Packaging Image
