ENDURA CLASSIC TRADITION ALU
ENDURA Classic Tradition 33cm E27 Gold
GTIN: 4058075206342
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High flexibility in the choice of the light source thanks to E27 socket
- Easy and quick installation
Areas of application
- Outdoor use (IP44)
- Building facades
- Entrance lighting
- Patios, balconies
- Pathway lighting
- Driveways
Product features
- Die-cast aluminum housing
- Diffuser made of clear polycarbonate
- Available with and without motion sensor
- Available as wall and bollard luminaires
- Suitable for smart applications thanks to compatibility with SMART+ lamps
Equipment / Accessories
- Complete mounting and connecting accessories included
- No light sources included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | I |
| Operating mode | Mains voltage |
Dimensions & Weight
| Length | 170.00 mm |
| Height | 325.00 mm |
| Width | 170.00 mm |
| Product weight | 555.00 g |
Materials & Colors
| Product color | Black/Gold |
| Housing color | Black/Gold |
| Body material | Aluminum |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+85 °C |
| Type of connection | Screw terminal |
| Type of protection | IP44 |
| Dimmable | No |
| Mounting type | Standing |
| Mounting location | Floor |
| Application environment | Outdoor |
| With light source | No |
| Holder designation | E27 |
Certificates & Standards
| Standards | CE, EAC, UKCA |
Additional product data
| Product remark | Maximum bulb wattage: 60 W |
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075206342 | Folding box 1 |
194 mm x 194 mm x 346 mm | 622.00 g | 13.02 dm³ |
| 4058075206359 | Shipping box 4 |
403 mm x 403 mm x 365 mm | 3238.00 g | 59.28 dm³ |
User instruction / safety instructions
ENDURA® Classic TRADITION 33 CM ALU E27
ENDURA® Classic TRADITION 33 CM ALU E27
Legal information
Legal insert I-Outdoor
Legal insert I-Outdoor
Declarations of conformity
CE Declaration Endura Classic Trad
CE Declaration Endura Classic Trad

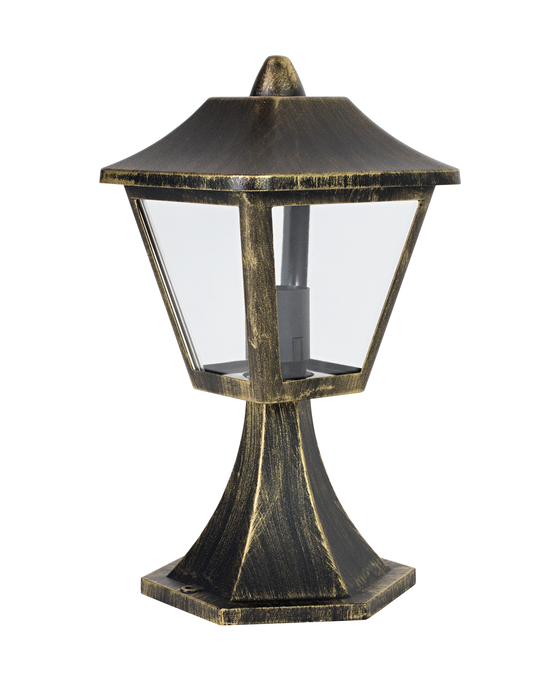

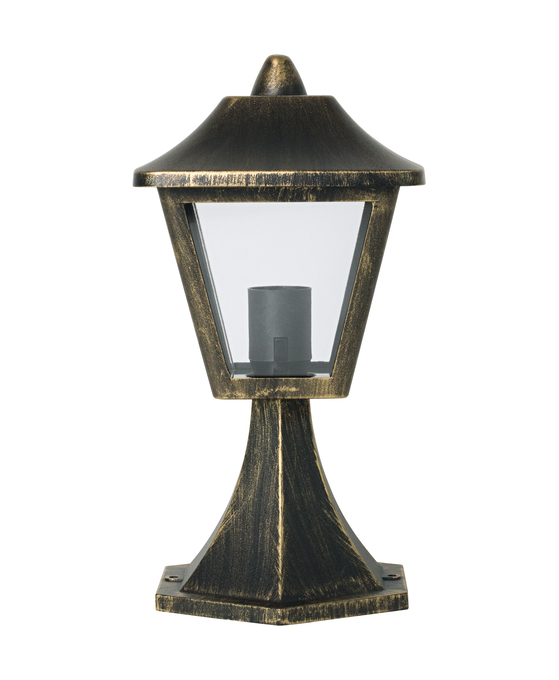

Product image: white background, upright
ENDURA CLASSIC TRAD 33CM ALU E27GD
ENDURA CLASSIC TRAD 33CM ALU E27GD
Product image: white background, upright, alternative image
ENDURA CLASSIC TRAD 33CM ALU E27GD
ENDURA CLASSIC TRAD 33CM ALU E27GD

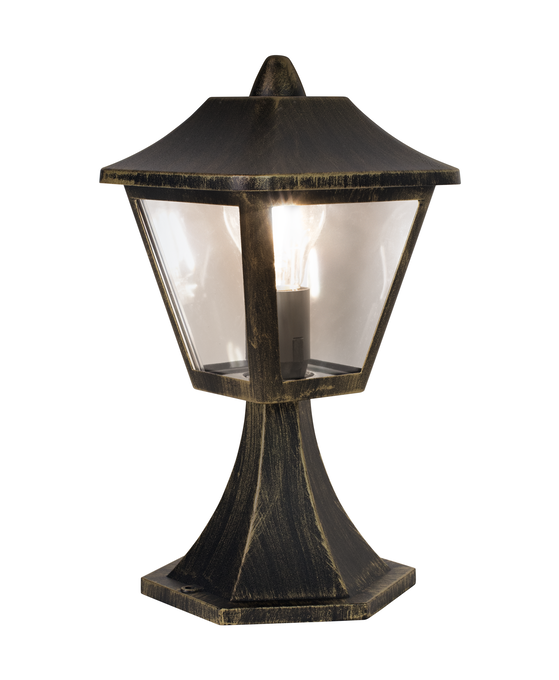

Product image: white background, upright, switched on
ENDURA CLASSIC TRAD 33CM ALU E27GD
ENDURA CLASSIC TRAD 33CM ALU E27GD
Product line drawing with letters
ENDURA CLASSIC TRAD 33CM ALU E27GD
ENDURA CLASSIC TRAD 33CM ALU E27GD
Product line drawing with numbers
ENDURA CLASSIC TRAD 33CM ALU E27GD
ENDURA CLASSIC TRAD 33CM ALU E27GD
Product line drawing, front, no dimensions
ENDURA CLASSIC TRAD 33CM ALU E27GD
ENDURA CLASSIC TRAD 33CM ALU E27GD

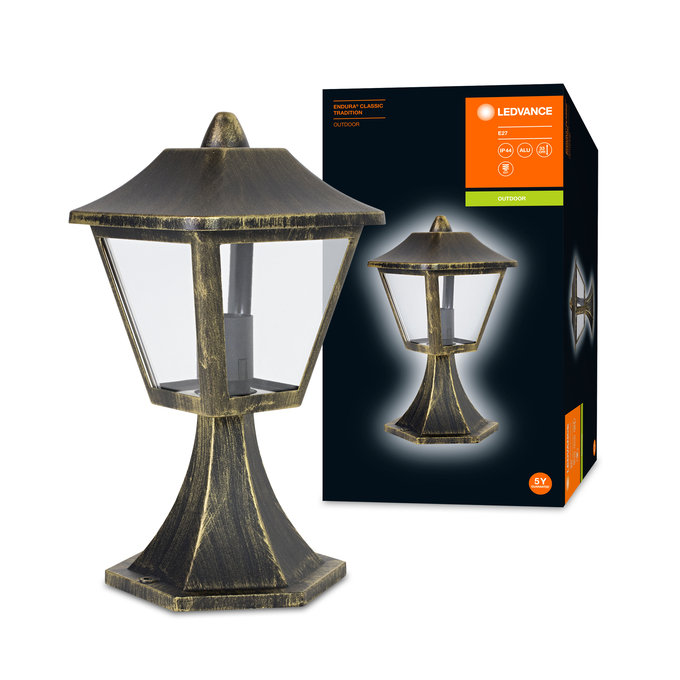

Combo Shot = Product Beauty Shot + Packaging Image
ENDURA CLASSIC TRAD 33CM ALU E27GD
ENDURA CLASSIC TRAD 33CM ALU E27GD

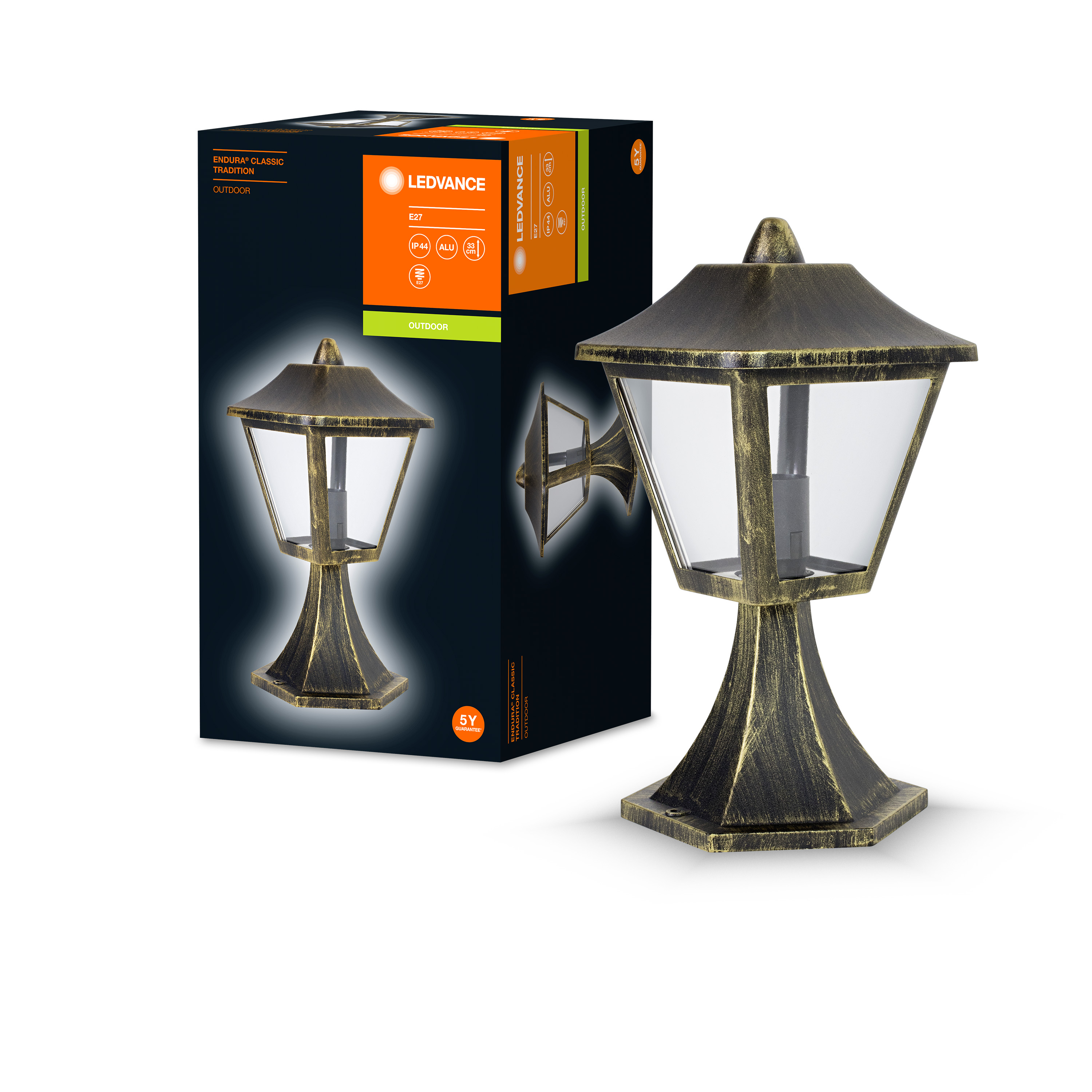

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EC TRA 33CM ALU GD MIPRC
LUM FC EC TRA 33CM ALU GD MIPRC

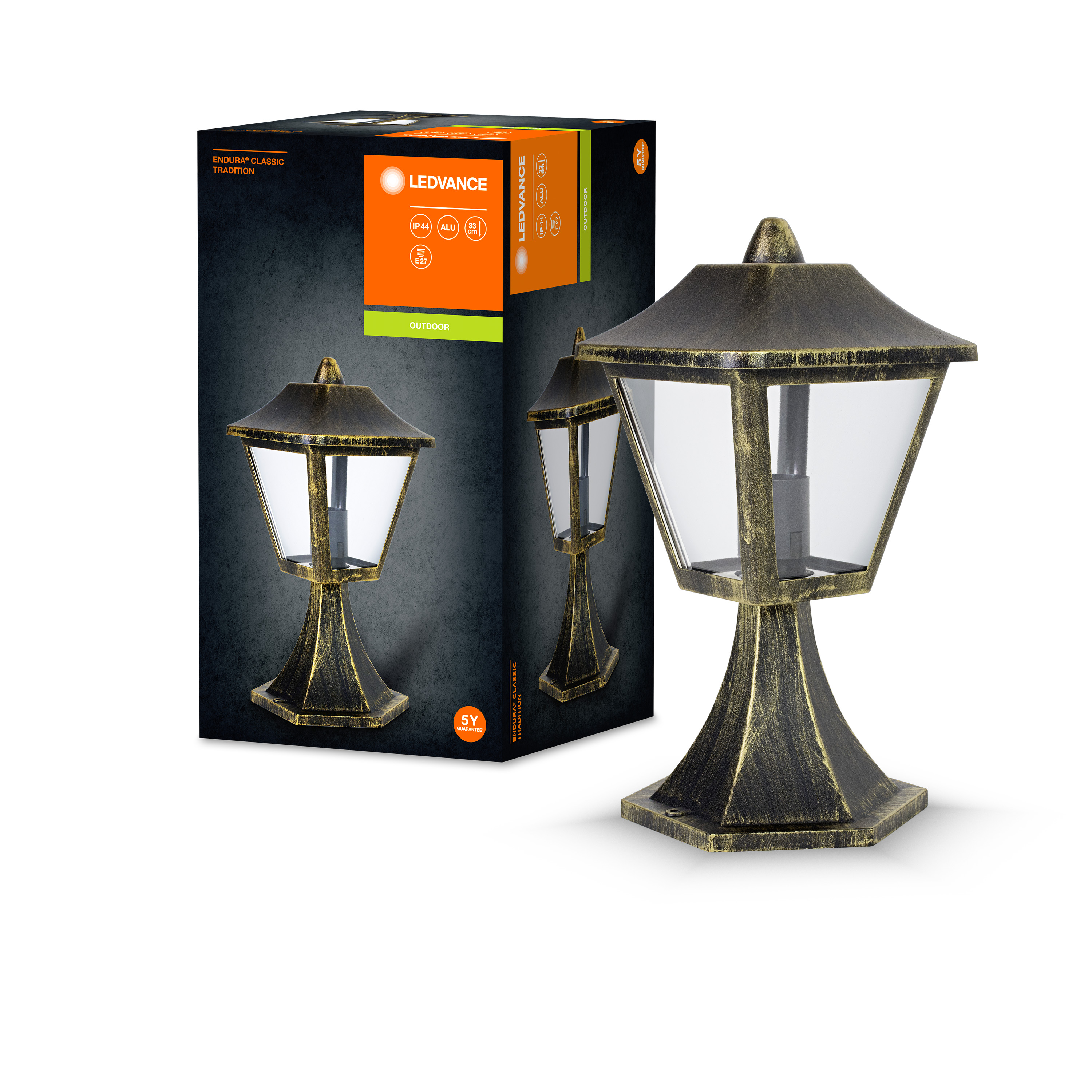

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EN CLA 33CM ALU E27 GD MIPRC
LUM FC EN CLA 33CM ALU E27 GD MIPRC
Packaging image, frontal
LUM FC EC TRAD 33CM ALU E27 BKGD MIPRC LDV Front
LUM FC EC TRAD 33CM ALU E27 BKGD MIPRC LDV Front
Packaging image, spacial
LUM FC EC TRAD 33CM ALU E27 BKGD MIPRC LDV Side
LUM FC EC TRAD 33CM ALU E27 BKGD MIPRC LDV Side
Application pictures

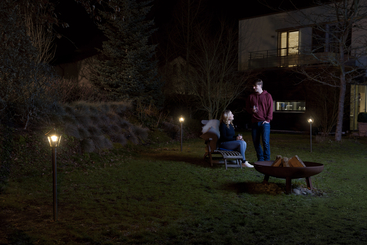

Endura Classic Tradition 330mm Alu E27 BK_GD-01 application night with luminaire and person
Endura Classic Tradition 330mm Alu E27 BK_GD-01 application night with luminaire and person
Application pictures

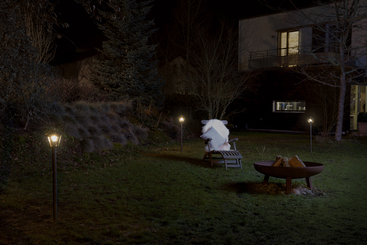

Endura Classic Tradition 330mm Alu E27 BK_GD-02 application night with luminaire
Endura Classic Tradition 330mm Alu E27 BK_GD-02 application night with luminaire
Application pictures

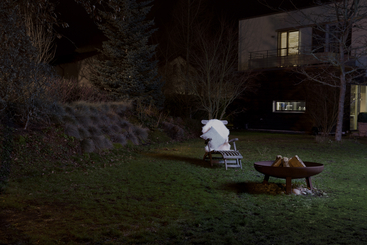

Endura Classic Tradition 330mm Alu E27 BK_GD-03 application night
Endura Classic Tradition 330mm Alu E27 BK_GD-03 application night
Application pictures

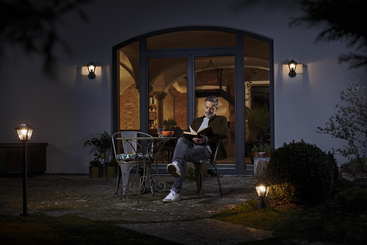

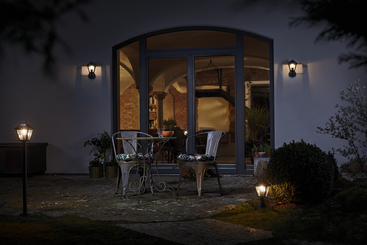

ENDURA CLASSIC Tradition Up
ENDURA CLASSIC Tradition Up
Application pictures
ENDURA CLASSIC Tradition Up
ENDURA CLASSIC Tradition Up
| EAN | ELDAS number |
|---|---|
| 4058075206342 | 941797990 |
