ENDURA STYLE FLARE
ENDURA Style Lantern Flare Wall 7W
GTIN: 4058075478039
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
- Energy-efficient thanks to LED technology
Areas of application
- Building facades
- Entrance lighting
- Patios, balconies
Product features
- Bright and functional outdoor LED luminaires
- Housing material: aluminum
- Type of protection: IP44
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
| Nominal wattage | 7.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Power factor λ | > 0.5 |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 470 lm |
| Total luminous flux of contained light sources | 780 lm |
| Luminous efficacy | 67 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Beam angle | 230.00 ° |
Dimensions & Weight
| Length | 98.00 mm |
| Height | 331.00 mm |
| Width | 68.00 mm |
| Product weight | 850.00 g |
Materials & Colors
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP44 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Outdoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075478039 | Folding box 1 |
117 mm x 87 mm x 354 mm | 929.00 g | 3.60 dm³ |
| 4058075478046 | Shipping box 4 |
368 mm x 248 mm x 199 mm | 4121.00 g | 18.16 dm³ |
User instruction / safety instructions
ENDURA STYLE LANTERN FLARE
ENDURA STYLE LANTERN FLARE
Declarations of conformity
ENDURA STYLE LANTERNFLAREWALL 7WDG LEDV
ENDURA STYLE LANTERNFLAREWALL 7WDG LEDV
Product datasheet -> old version of product
4058075478039 ENDURA STYLE LANTERN FLARE Wall 7W en old
4058075478039 ENDURA STYLE LANTERN FLARE Wall 7W en old

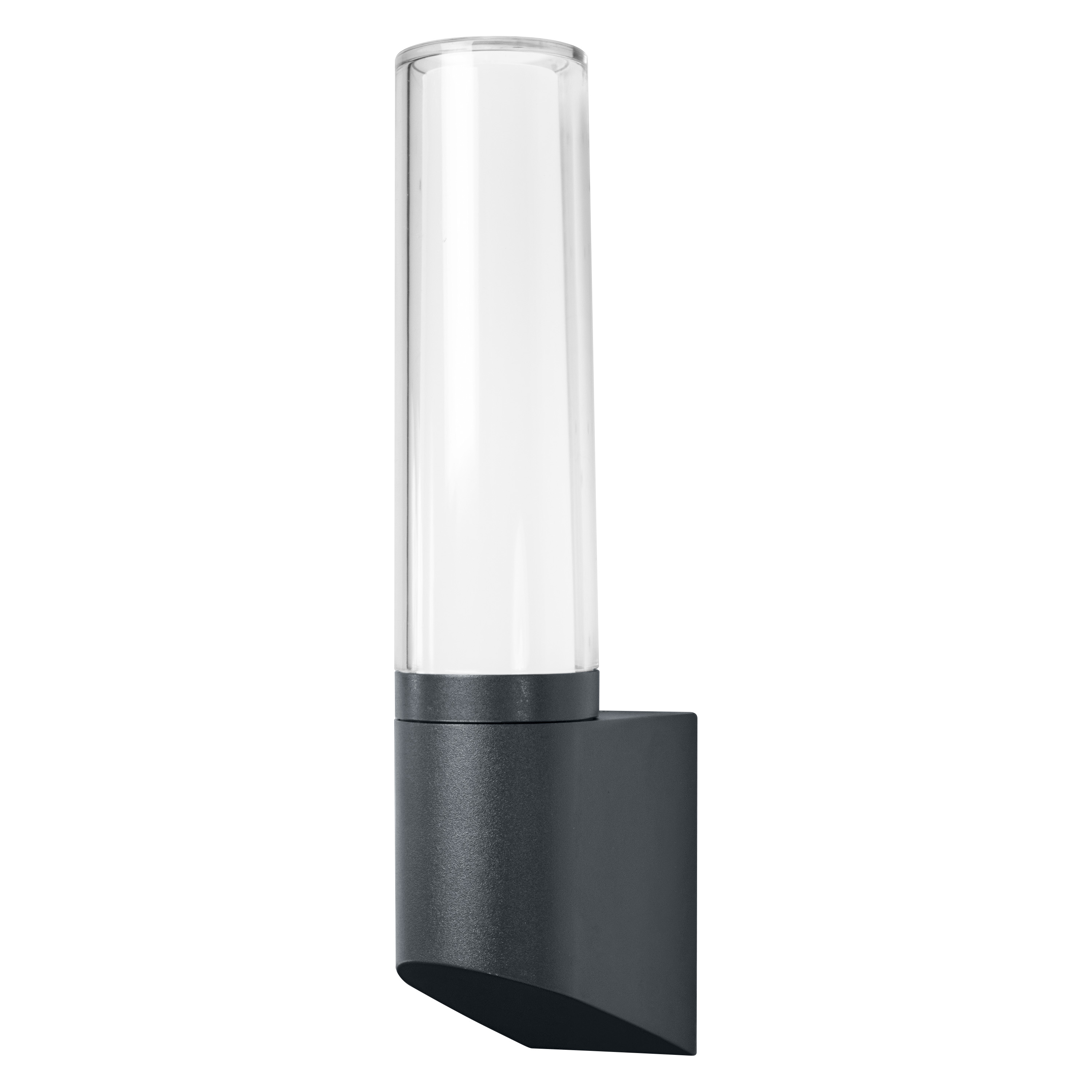

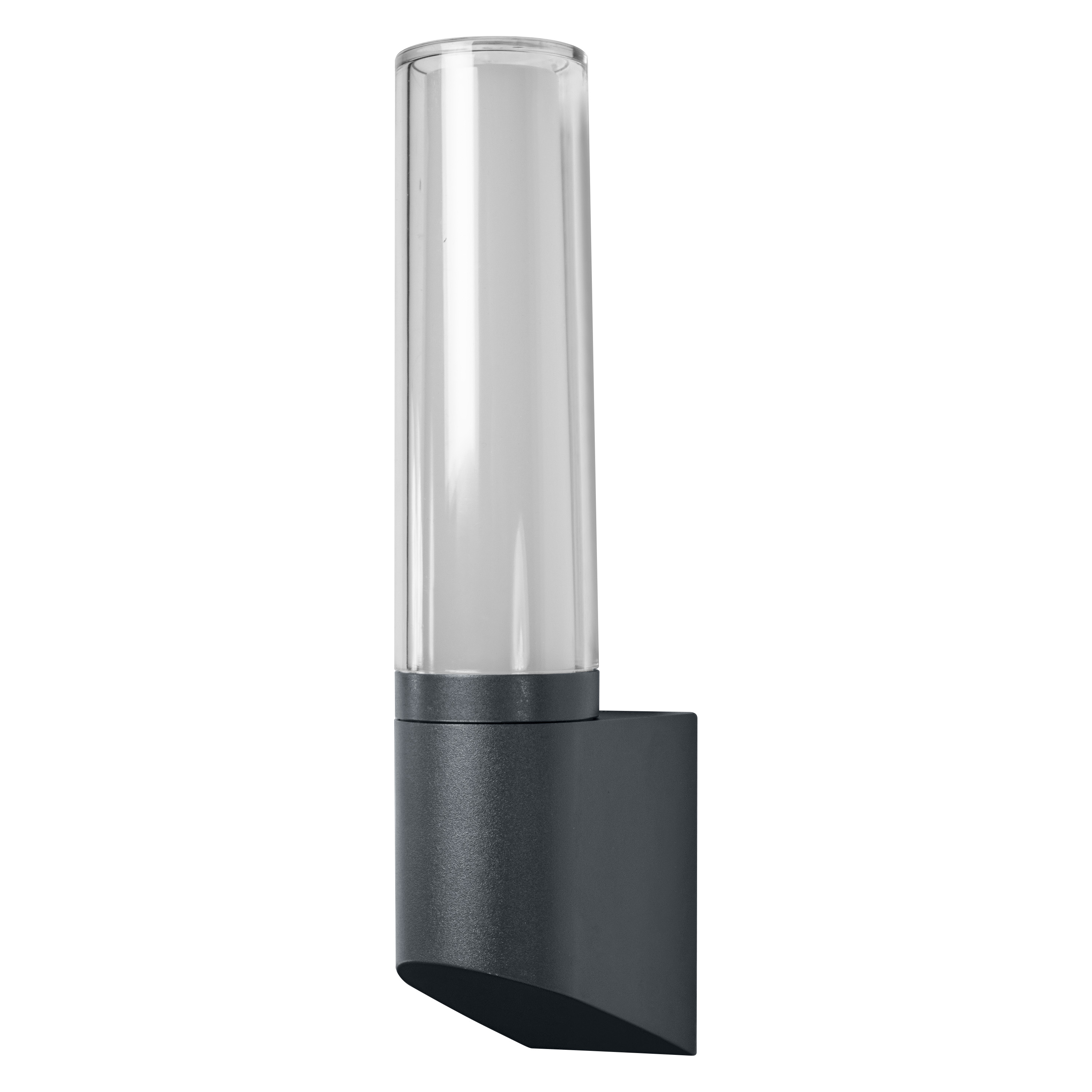

Product image: white background, upright
ENDURA STYLE LANTERN FLAREWALL 8WDG
ENDURA STYLE LANTERN FLAREWALL 8WDG

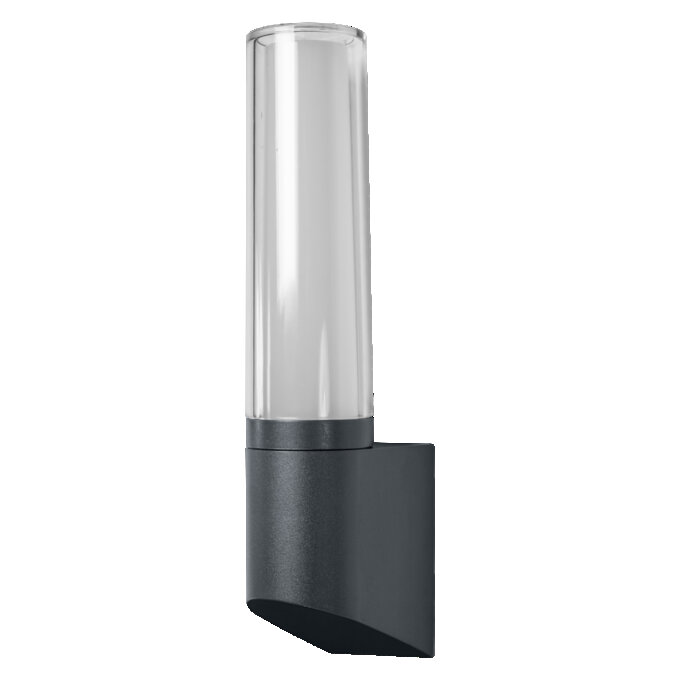

Product image: white background, upright, alternative image
ENDURA STYLE LANTERN FLAREWALL 8WDG
ENDURA STYLE LANTERN FLAREWALL 8WDG

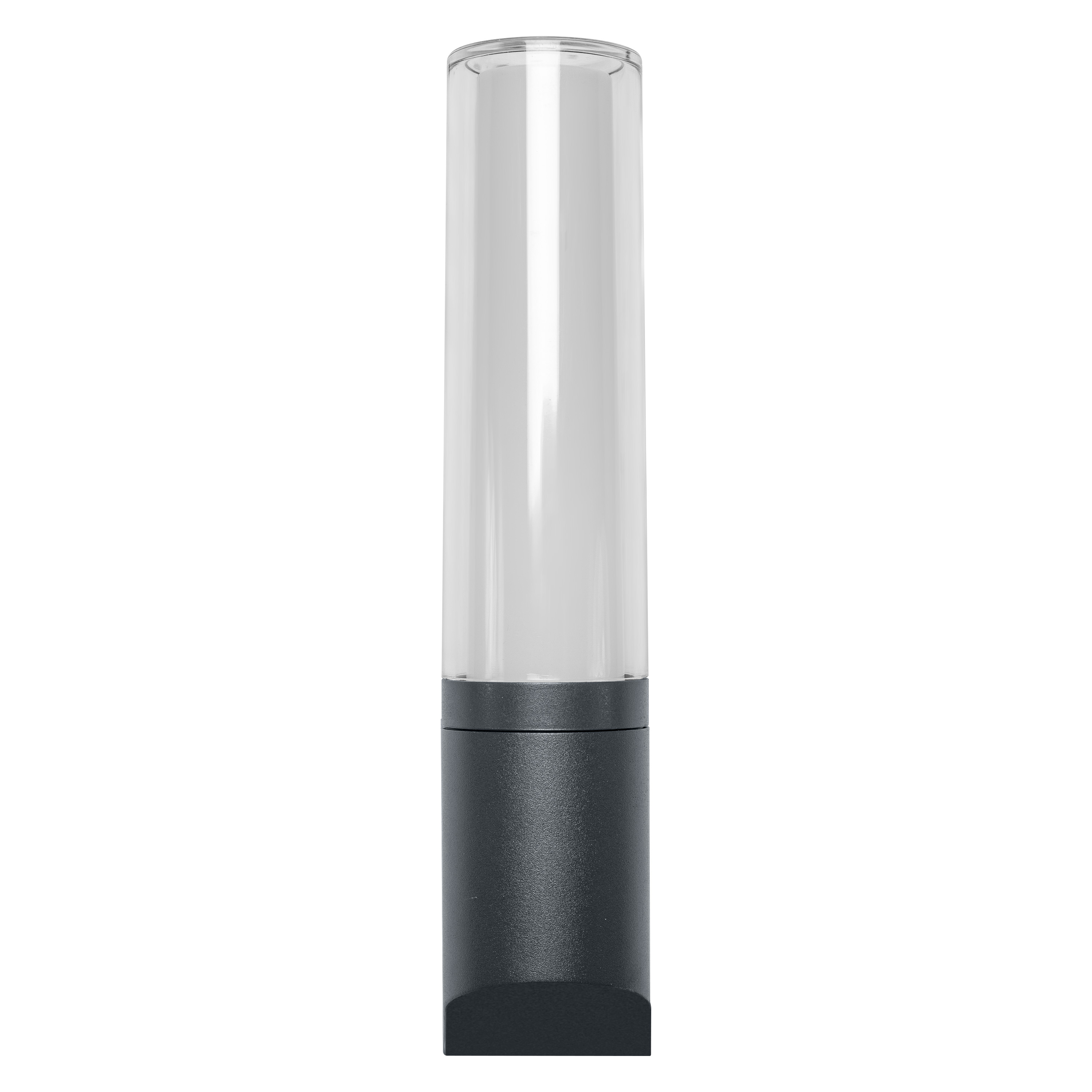

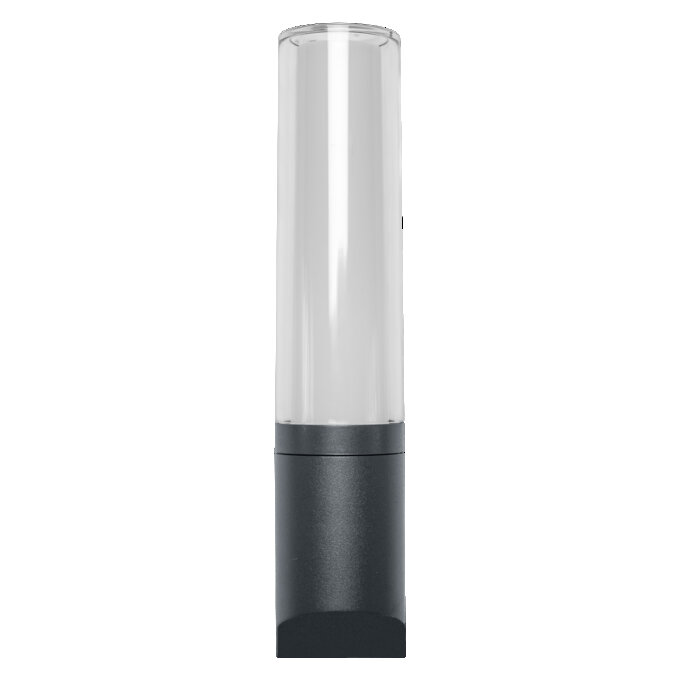

Product image: white background, upright, switched on
ENDURA STYLE LANTERN FLAREWALL 8WDG
ENDURA STYLE LANTERN FLAREWALL 8WDG
Product line drawing with letters
ENDURA STYLE LANTERN FLAREWALL 8WDG
ENDURA STYLE LANTERN FLAREWALL 8WDG
Product line drawing with numbers
ENDURA STYLE LANTERN FLAREWALL 8WDG
ENDURA STYLE LANTERN FLAREWALL 8WDG
Product line drawing, front, no dimensions
ENDURA STYLE LANTERN FLAREWALL 8WDG
ENDURA STYLE LANTERN FLAREWALL 8WDG

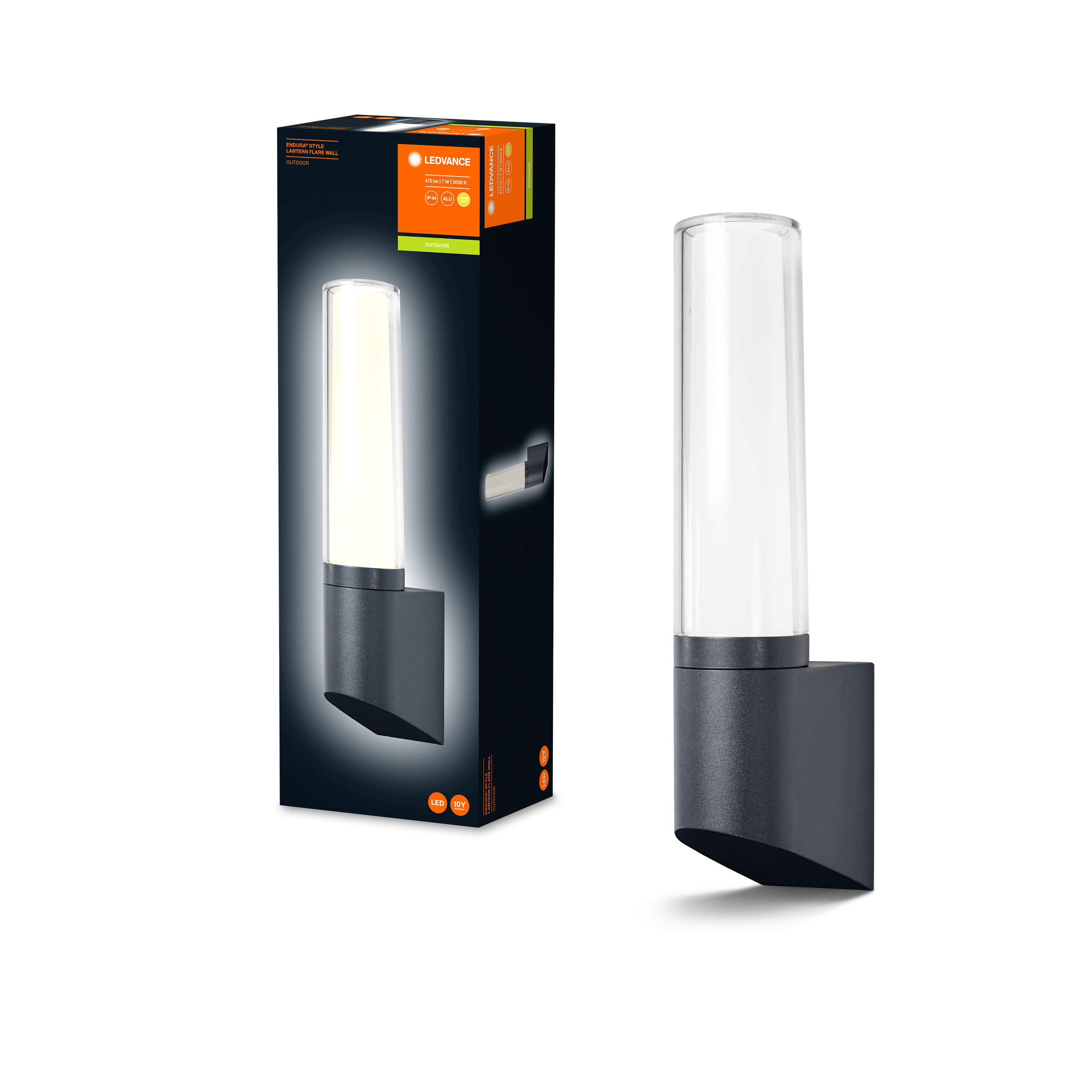

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC ES LANTERN FLARE WALL 7 MiPRC
LUM FC ES LANTERN FLARE WALL 7 MiPRC

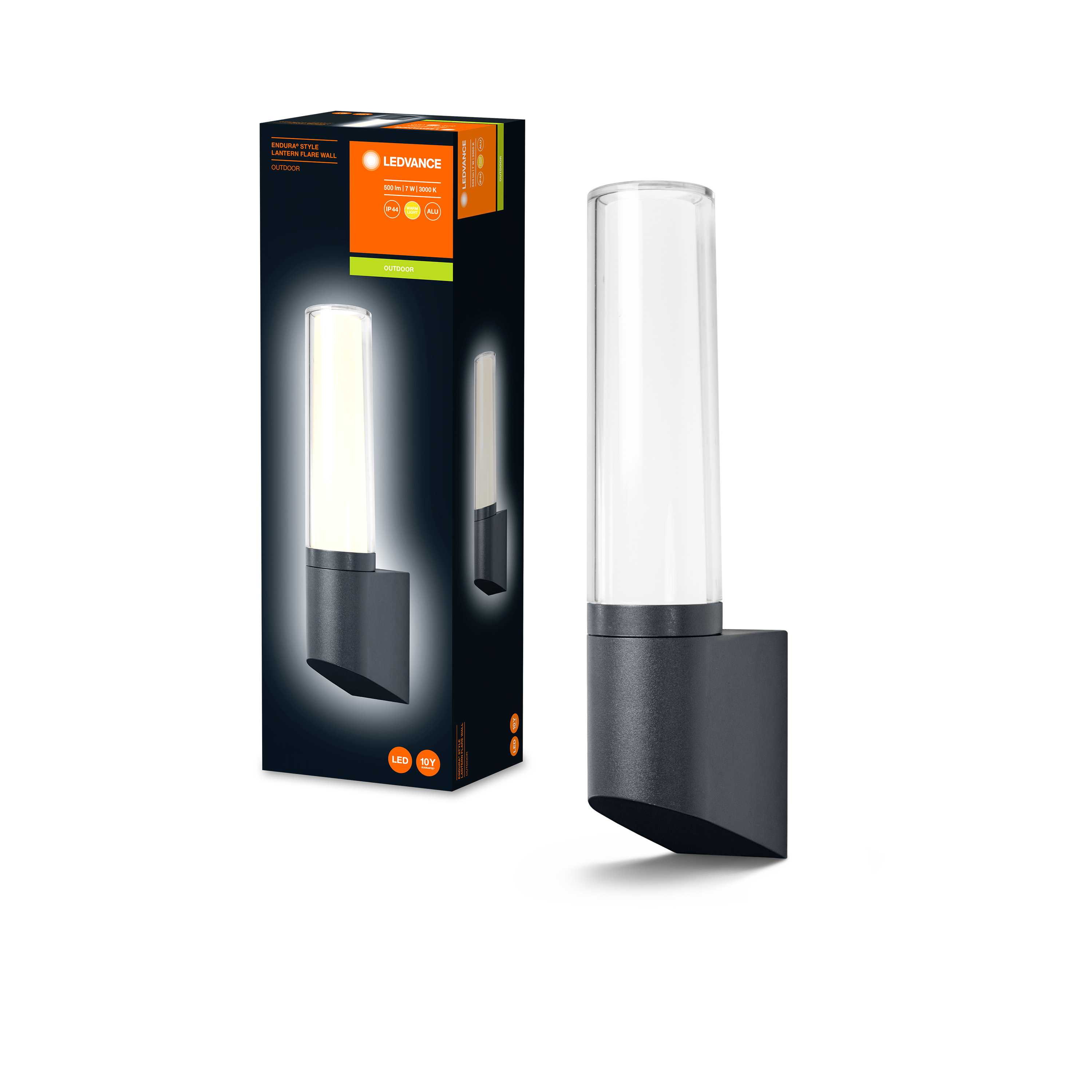

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC ES LANTERN FLARE WALL MiPRC
LUM FC ES LANTERN FLARE WALL MiPRC

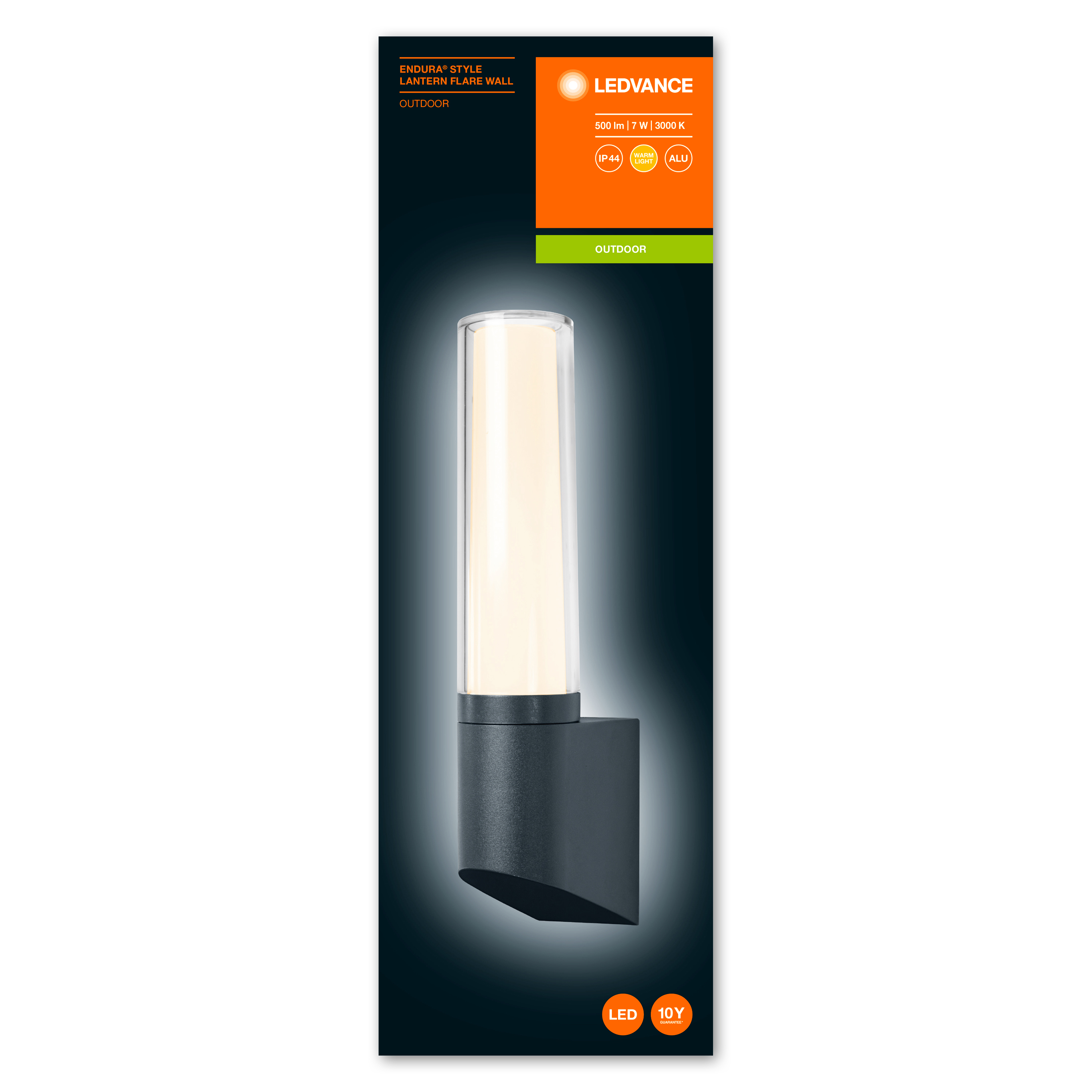

Packaging image, frontal
LUM FC ES LANTERN FLARE WALL 7 MiPRC
LUM FC ES LANTERN FLARE WALL 7 MiPRC

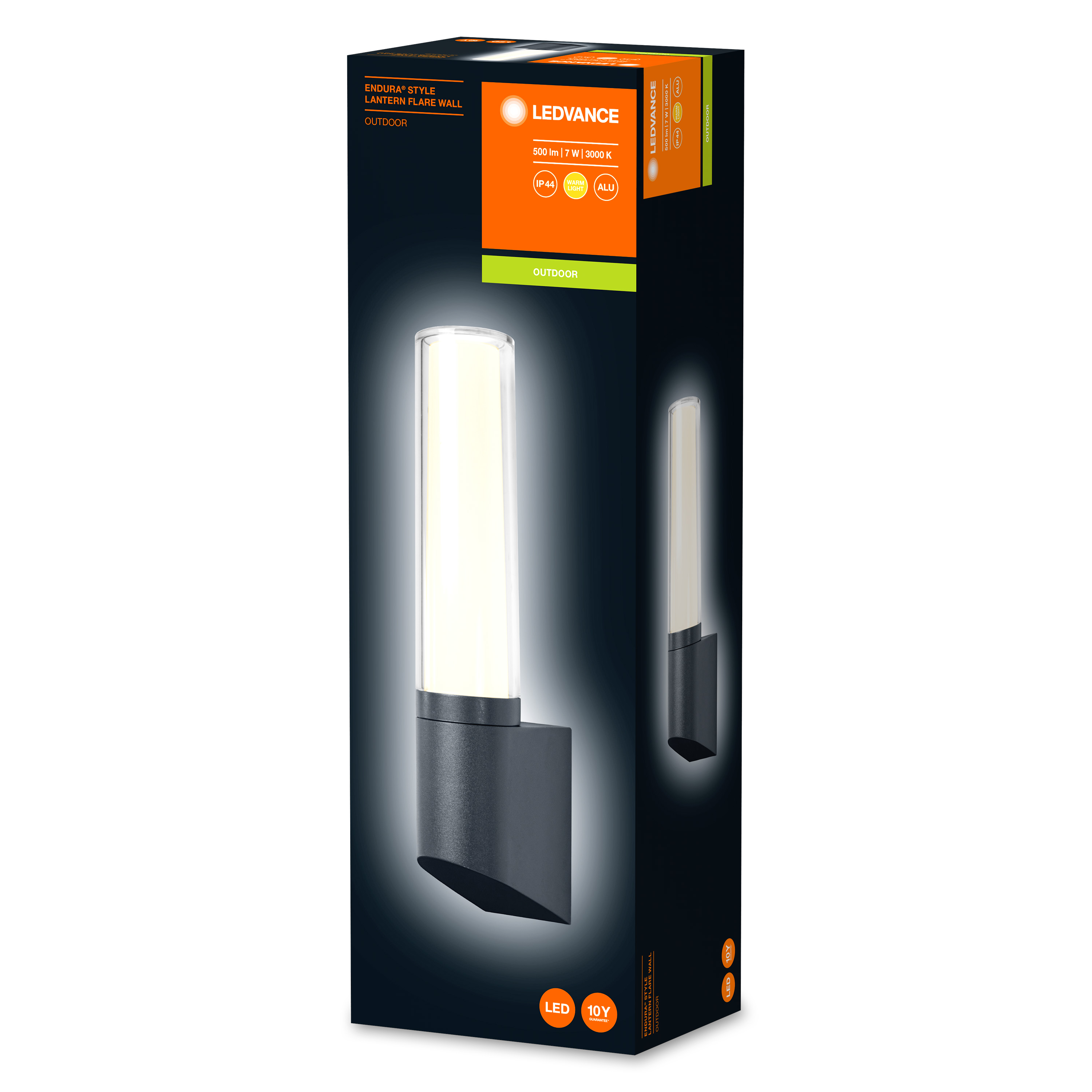

Packaging image, spacial
LUM FC ES LANTERN FLARE WALL 7 MiPRC
LUM FC ES LANTERN FLARE WALL 7 MiPRC

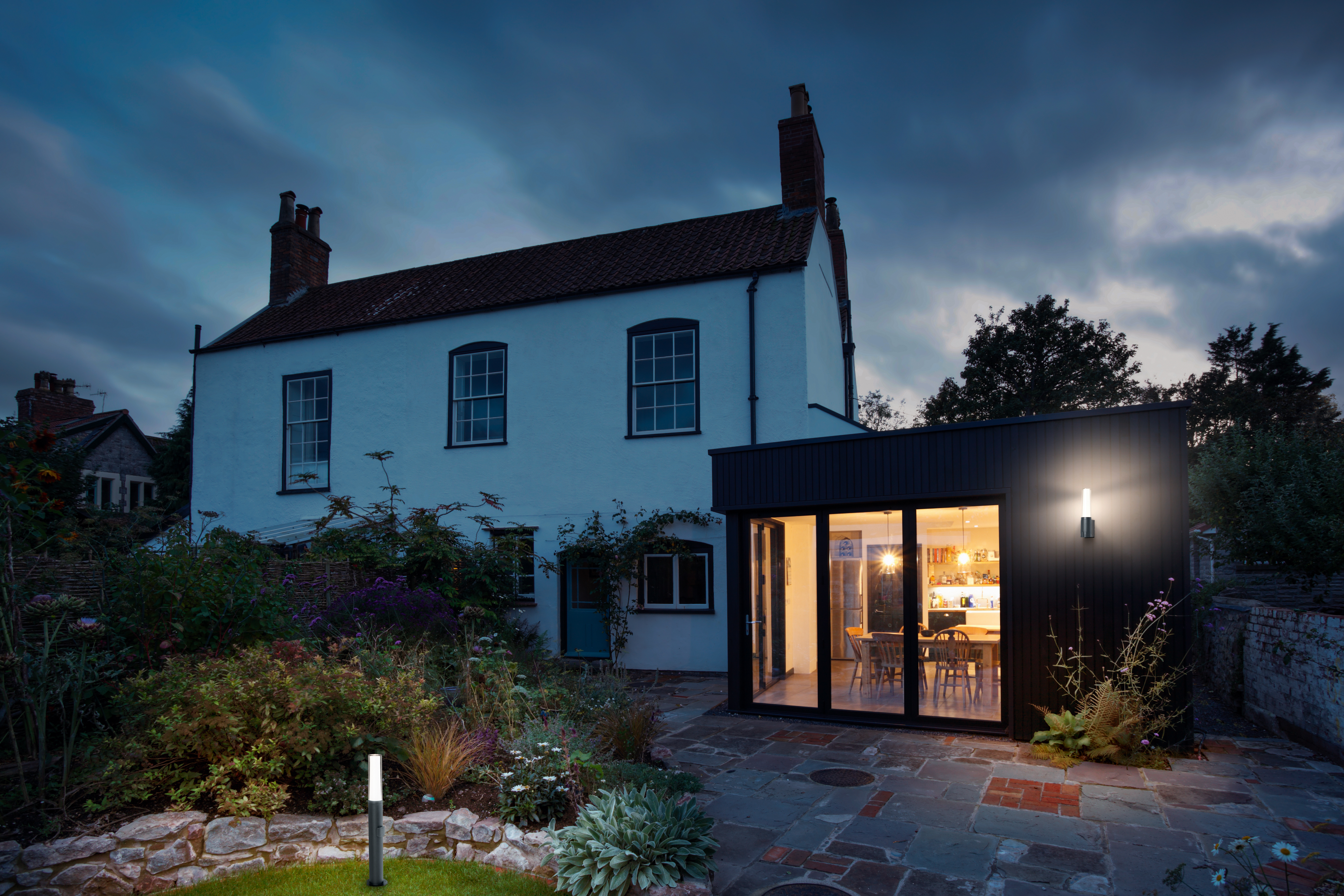

Application pictures
