NEW
Office Line Desk Retro
Office Line Desk Retro 9W 830 Dimmable White
GTIN: 4058075842861
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Switching and stepless dimming via turning the ring on the luminaire head
- Two joints allow the position to be precisely adjusted
- A large area can be illuminated due to the long arm
- Swivable luminaire head for individual orientation of light source
Areas of application
- Living areas
- Tables, Desks
- Home offices
Product features
- Desk luminaire in retro design and with long lamp arm
- Light color: Warm White
- Lifetime up to 25,000 h
Equipment / Accessories
- Equipped with 1.6 m cable and plug
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Electrical data
| Nominal wattage | 9 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 47.000 mA |
| Inrush current | 3.0 A |
| Inrush current time Th50 | 100 µs |
| Power factor λ | > 0.7 |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 617 lm |
| Total luminous flux of contained light sources | 900 lm |
| Luminous efficacy | 69 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 110 ° |
Dimensions & Weight
| Length | 193.00 mm |
| Height | 650.00 mm |
| Width | 500.00 mm |
| Product weight | 3073.00 g |
| Cable length | 1600 mm |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel|Plastic |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Temperature range at storage | -20…+80 °C |
| Type of connection | Plug type C (EU) |
| Type of protection | IP20 |
| Dimmable | Yes |
| Type of dimming | LEA/TR.EDG |
| Mounting type | Standing |
| Application environment | Indoor |
| Adjustable | Yes |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, EAC |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Available from January 2025 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075842861 | Folding box 1 |
187 mm x 247 mm x 423 mm | 3325.00 g | 19.54 dm³ |
| 4058075842878 | Shipping box 2 |
390 mm x 263 mm x 450 mm | 7376.00 g | 46.16 dm³ |
User instruction / safety instructions
Office line desk retro D BK_WT
Office line desk retro D BK_WT
Legal information
Legal insert Office line
Legal insert Office line
Declarations of conformity
CE Declaration Desk Retro
CE Declaration Desk Retro

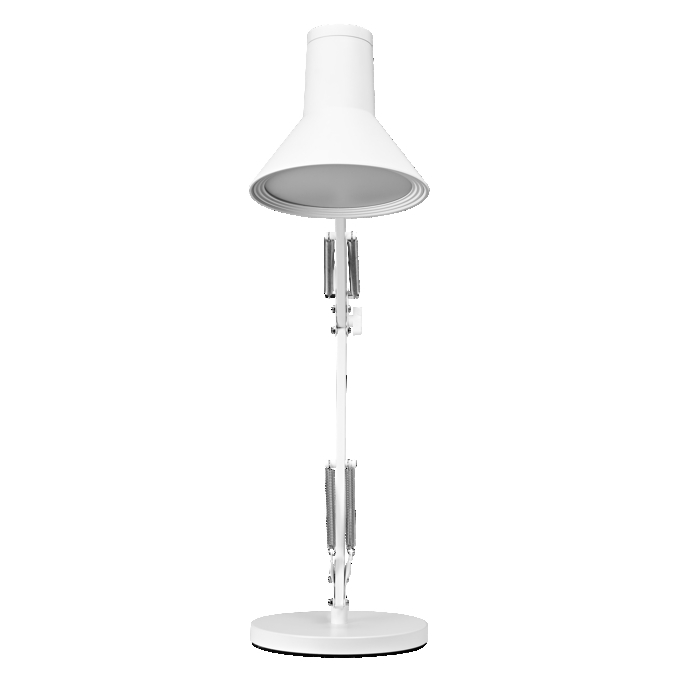

Product image: white background, upright
OFFICE LINE DESK RETRO 9W 830 D WT
OFFICE LINE DESK RETRO 9W 830 D WT

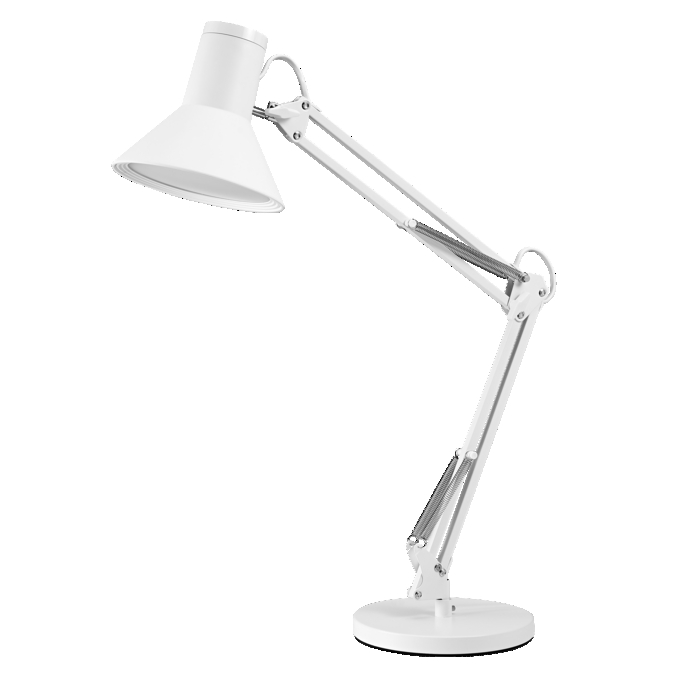

Product image: white background, upright, alternative image
OFFICE LINE DESK RETRO 9W 830 D WT
OFFICE LINE DESK RETRO 9W 830 D WT

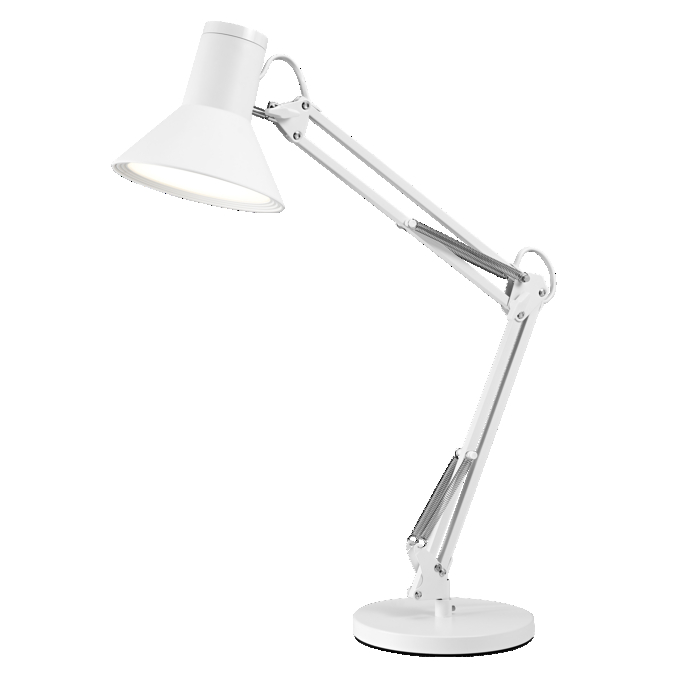

Product image: white background, upright, switched on
OFFICE LINE DESK RETRO 9W 830 D WT
OFFICE LINE DESK RETRO 9W 830 D WT
Product infographic (application image with text and graphic)
Office luminaires e-Com graphic 1200x1200px 2024 EN
Office luminaires e-Com graphic 1200x1200px 2024 EN
Product line drawing with letters
OFFICE LINE DESK RETRO 9W 830 D
OFFICE LINE DESK RETRO 9W 830 D
Product line drawing with numbers
OFFICE LINE DESK RETRO 9W 830 D
OFFICE LINE DESK RETRO 9W 830 D
Product line drawing, front, no dimensions
OFFICE LINE DESK RETRO 9W 830 D
OFFICE LINE DESK RETRO 9W 830 D

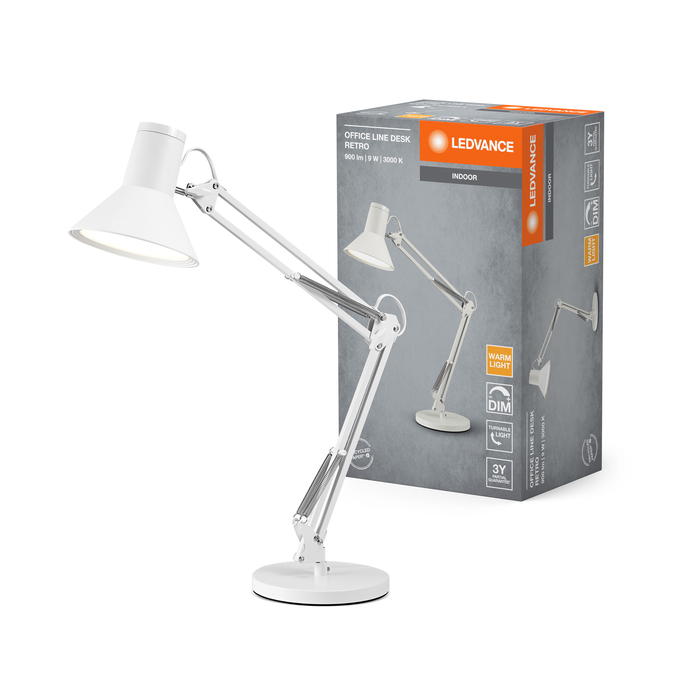

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC OL DESK RETRO D WT
LUM FC OL DESK RETRO D WT
Packaging image, frontal
LUM FC OL DESK RETRO D WT
LUM FC OL DESK RETRO D WT
Packaging image, spacial
LUM FC OL DESK RETRO D WT
LUM FC OL DESK RETRO D WT

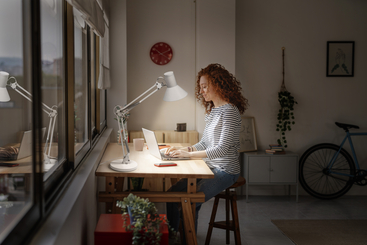

Application pictures Getty
