LINEARLED MOBILE MAGNET

LINEAR LED MOBILE MAGNET USB CCT

GTIN: 4058075844124 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Attractive and functional design
  • Can easily be moved to where light is needed thanks to battery operation
  • Economical operation due to low power consumption
  • Accessories for flexible mounting options included
Areas of application
  • Undercabinet lighting
  • Living rooms
  • Indoor
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • This product is not a toy. It should not be left unattended in the hands of children or operated by children.
  • Not designed as a replacement for conventional lighting in private household.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Electrical data
Nominal wattage 4.20 W
Nominal voltage 5 V
Nominal current 1000 mA
Protection class III
Operating mode Battery
Photometrical data
Luminous flux 200 lm
Luminous efficacy 47 lm/W
Color temperature 3000 K / 4000 K / 6500 K
Light color (designation) Warm white, Cool Daylight
Color rendering index Ra > 80
Beam angle 110 °
Dimensions & Weight
Length 280.00 mm
Height 48.00 mm
Width 40.00 mm
Product weight 180.00 g
Materials & Colors
Product color Black
Housing color Black
Body material Plastic
Cover material Polycarbonate (PC)
Application & Mounting
Temperature range at storage -20…+80 °C
Type of connection Plug type C (EU)
Type of protection IP20
Dimmable Yes
Mounting type Surface
Mounting location Cabinet undersides
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 30000 h 1)
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
BATTERY
Battery size [GMS] 18650
Nominal voltage of battery 5 V
Battery charging time 2.5 h
Certificates & Standards
Standards CE, EAC, UKCA
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075844124 Folding box
1
47 mm x 57 mm x 288 mm 238.00 g 0.77 dm³
4099854372025 Shipping box
6
336 mm x 157 mm x 133 mm 1659.00 g 7.02 dm³
User instruction / safety instructions
LINEARLED MOBILE MAGNET USB CCT
Declarations of conformity
LINEARLED MOBILE

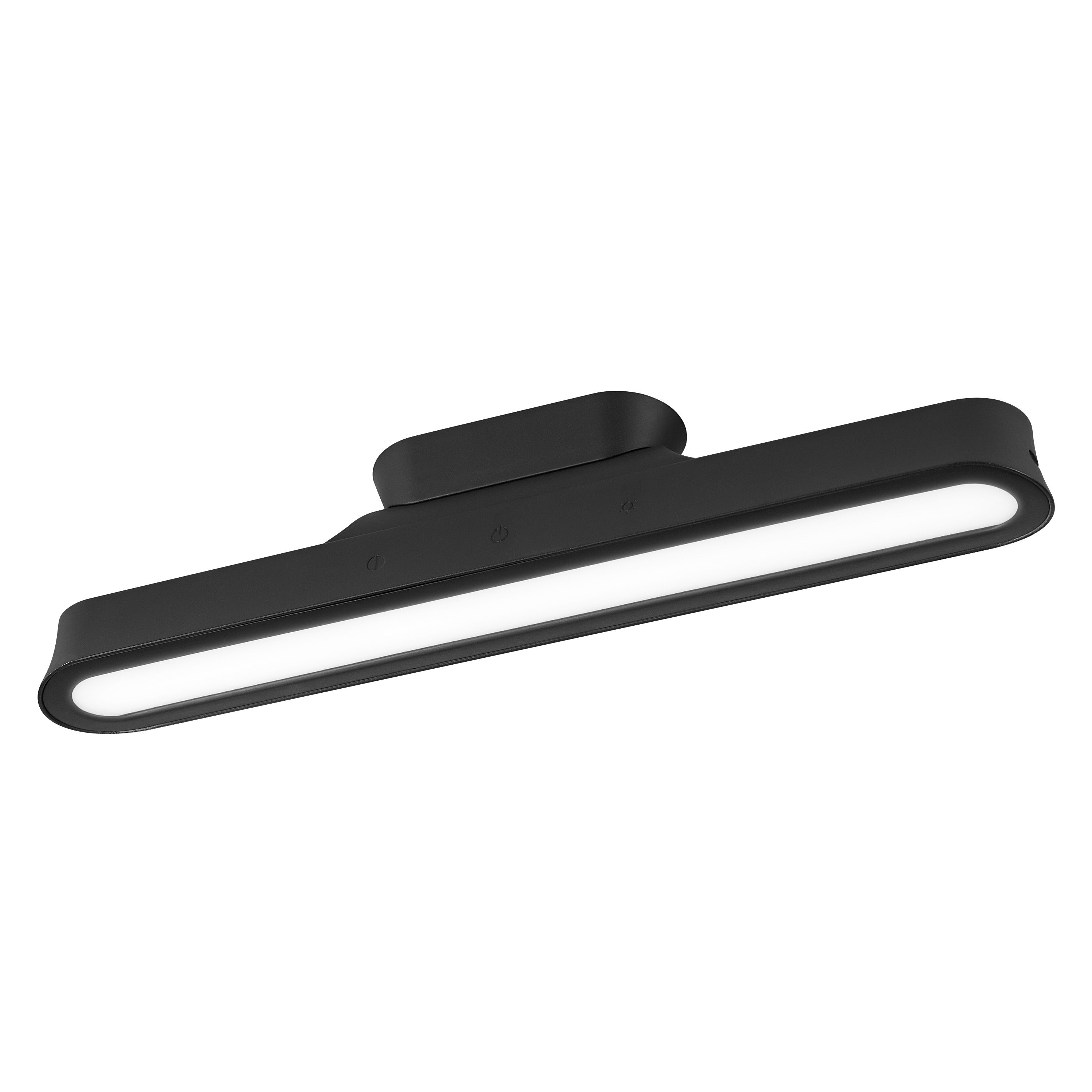

Product image: white background, upright
LINEARLED MOBILE MAGNET USB CCT_images
Product image: white background, upright, alternative image
LINEARLED MOBILE MAGNET USB CCT_images
Product image: white background, upright, switched on
LINEARLED MOBILE MAGNET USB CCT_images
Product line drawing with letters
LINEARLED MOBILE MAGNET USB CCT
Product line drawing with numbers
LINEARLED MOBILE MAGNET USB CCT

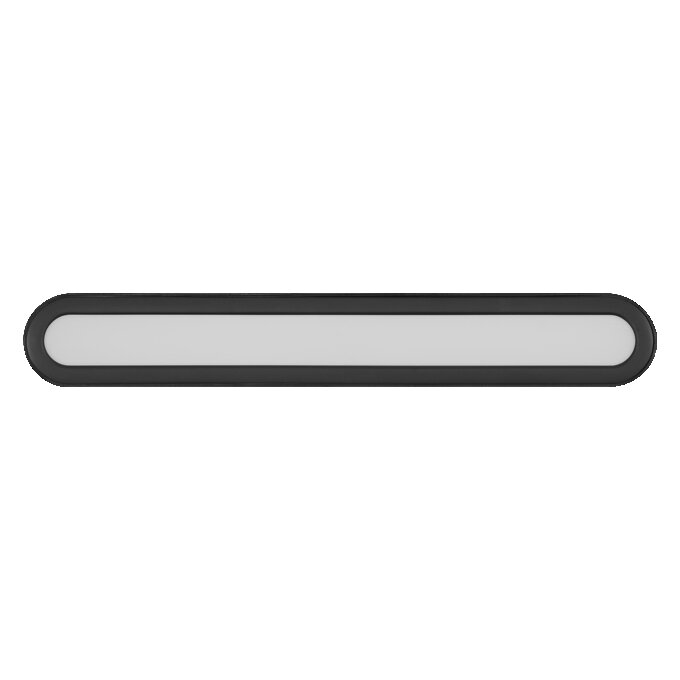

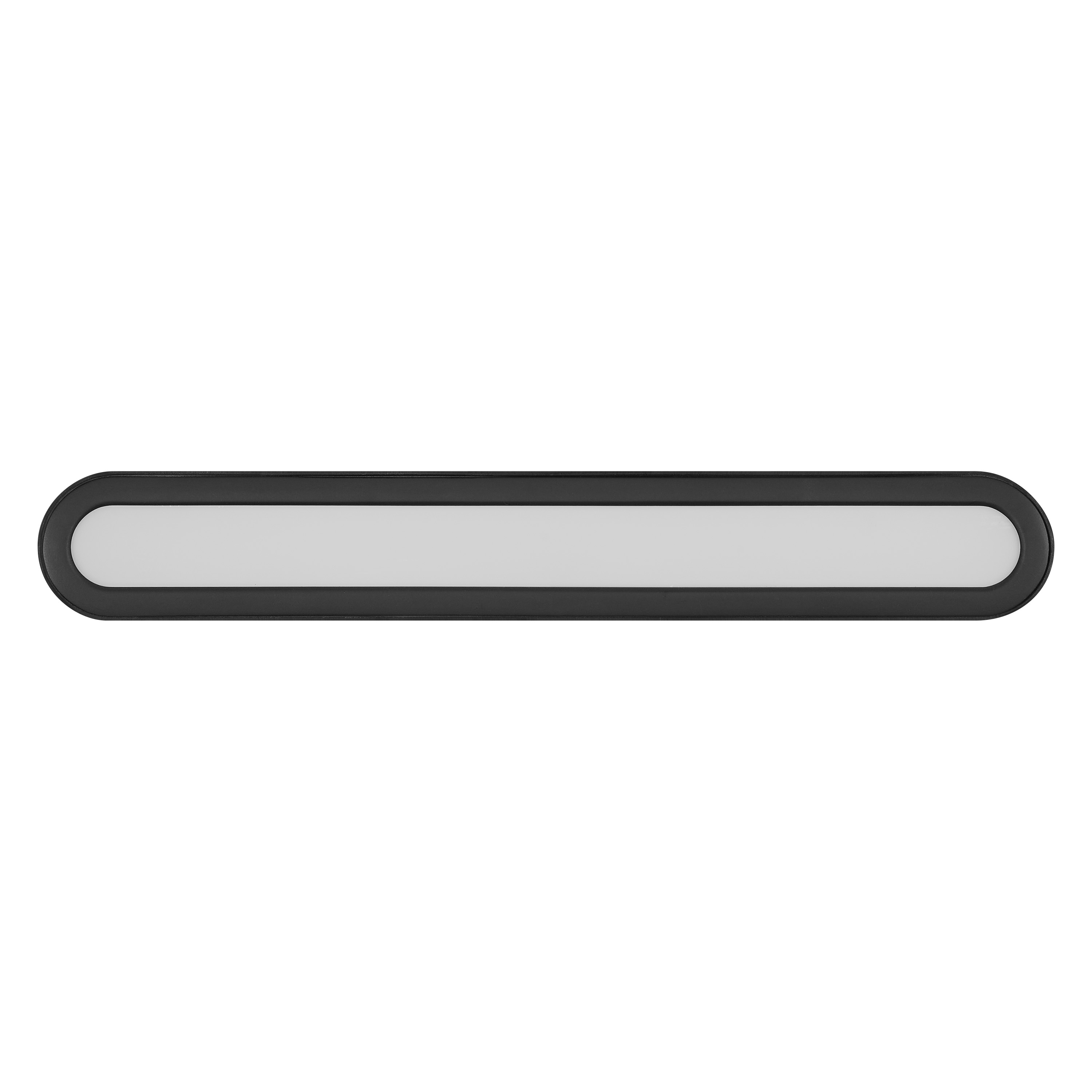

Product line drawing, front, no dimensions
LINEARLED MOBILE MAGNET USB CCT

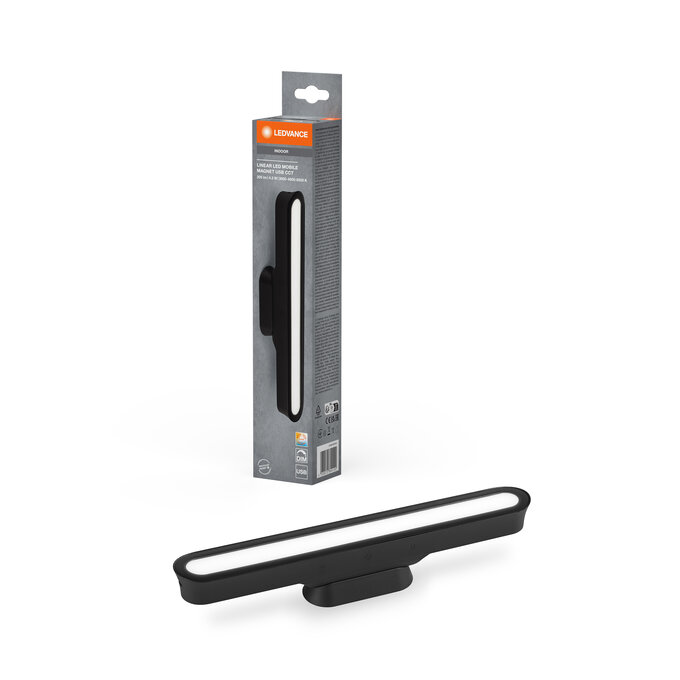

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC LIN MOB MAGNET USB CCT
Packaging image, frontal
LUM FC LIN MOB MAGNET USB CCT
Packaging image, spacial
LUM FC LIN MOB MAGNET USB CCT

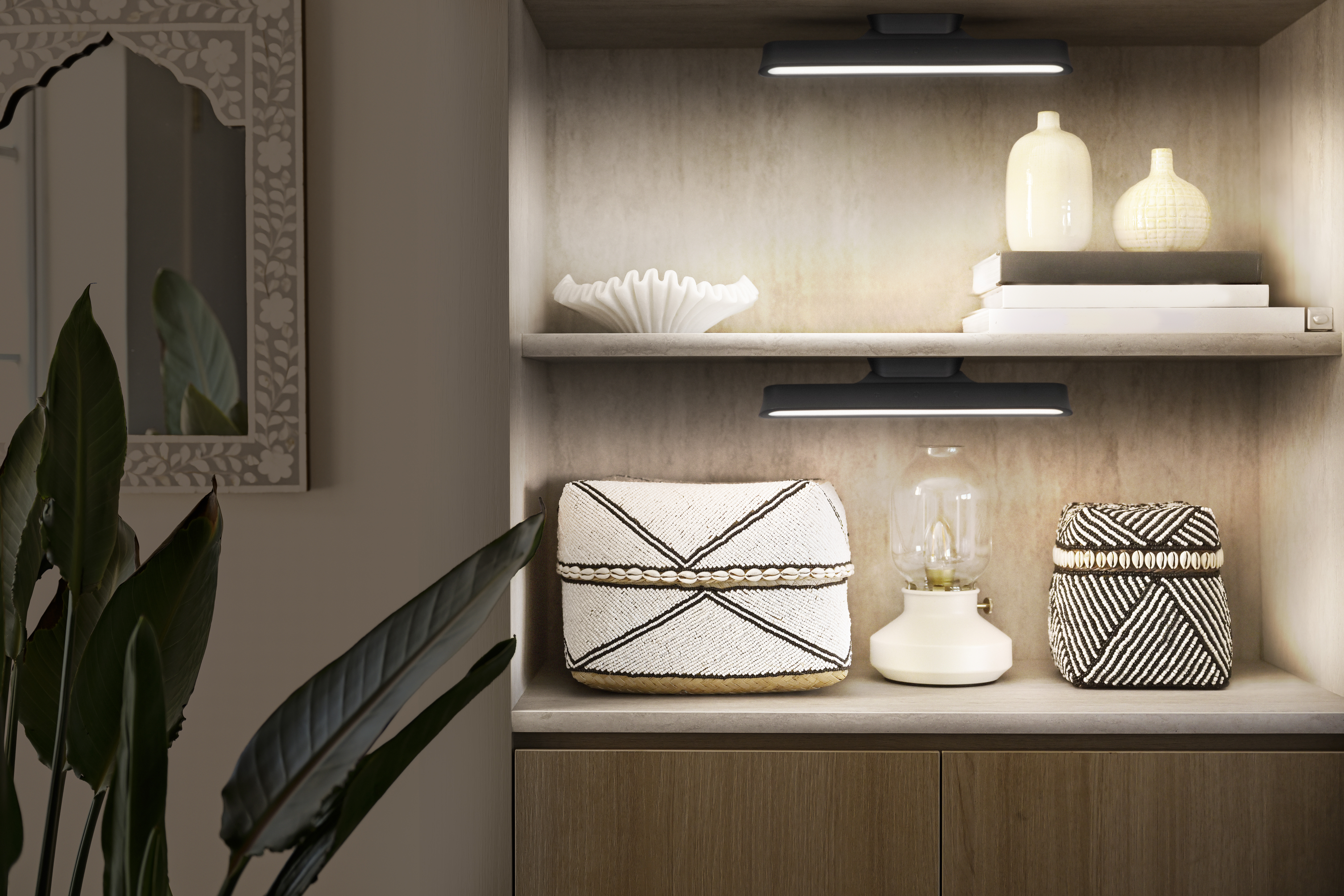

Application pictures Getty
LINEAR MOBILE MAGNET USB CCT
