LED VALUE BATTEN
LED Value Batten 600 mm 10 W 4000 K
GTIN: 4058075268142
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Excellent price/performance ratio
- High energy savings compared to luminaires that use conventional light sources
- Functional and minimalistic design
Areas of application
- Indoor applications
- Ceiling and wall surface mounting
- Corridors, stairwells, basements
- General indoor illumination
Product features
- Replacement for traditional T8 luminaires
- Wall and ceiling batten luminaire
- Material: Aluminium (Housing), Polycarbonate (Diffusor)
- Lifetime up to 30,000 h
- Color temperature: 4,000 K
- Luminaire efficacy: up to 100 lm/W
- Lengths available: 0.6 m, 1.2 m, 1.5 m
Equipment / Accessories
- Mounting clips included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 10.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 75.000 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 51 |
| Max. number of luminaires per miniature circuit breaker C16 | 79 |
| Power factor λ | > 0.5 |
| Total harmonic distortion | 110 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 1000 lm |
| Total luminous flux of contained light sources | 1300 lm |
| Luminous efficacy | 100 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | <5 % |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 150 ° |
Dimensions & Weight
| Length | 634.00 mm |
| Height | 44.00 mm |
| Width | 29.00 mm |
| Product weight | 210.00 g |
Materials & Colors
| Product color | Silver |
| Housing color | Silver |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Screw terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Additional info can be provided per individual request |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075268142 | Folding box 1 |
44 mm x 30 mm x 634 mm | 219.00 g | 0.84 dm³ |
| 4058075268159 | Shipping box 20 |
660 mm x 165 mm x 205 mm | 5036.00 g | 22.32 dm³ |
User instruction / safety instructions
LED VALUE BATTEN
LED VALUE BATTEN
Legal information
Legal insert B-not dimmable
Legal insert B-not dimmable
Declarations of conformity
CE Declaration LED Value Batten
CE Declaration LED Value Batten
Product datasheet -> old version of product
4058075268142 LED Value Batten 600 mm 10 W 4000 K en old
4058075268142 LED Value Batten 600 mm 10 W 4000 K en old

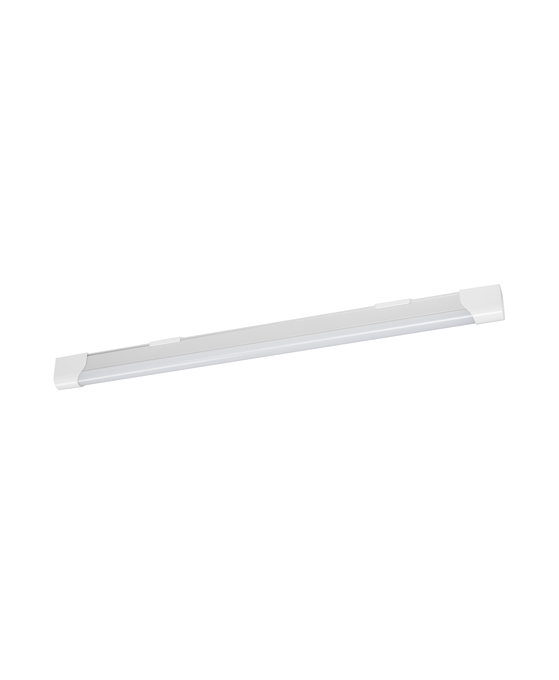

Product image: white background, diagonal
LED VALUE BATTEN 0,6M 10W/840
LED VALUE BATTEN 0,6M 10W/840

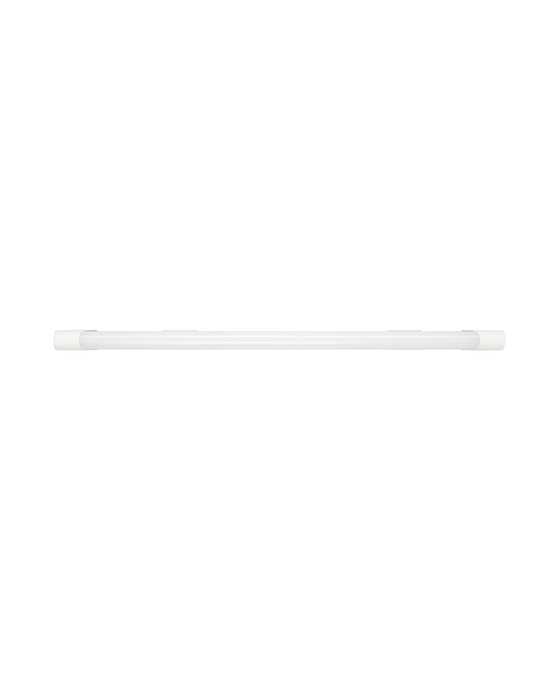

Product image: white background, horizontal
LED VALUE BATTEN 0,6M 10W/840
LED VALUE BATTEN 0,6M 10W/840

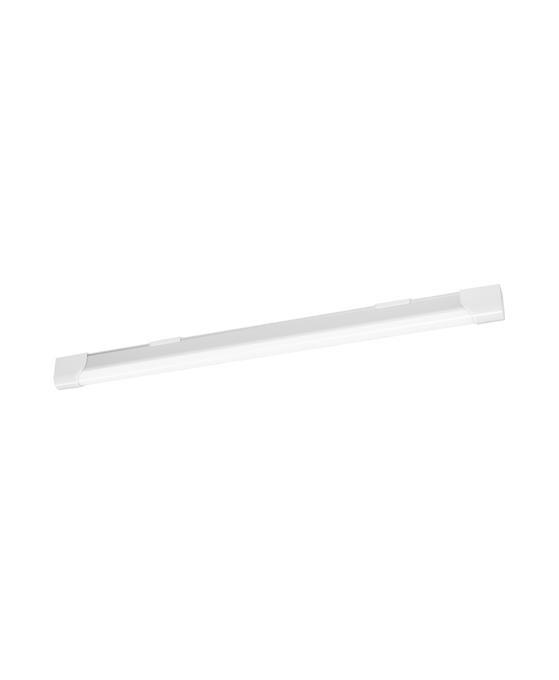

Product image: white background, upright, switched on
LED VALUE BATTEN 0,6M 10W/840
LED VALUE BATTEN 0,6M 10W/840
Product line drawing with letters
LED VALUE BATTEN 0,6M 10W/840
LED VALUE BATTEN 0,6M 10W/840
Product line drawing with numbers
LED VALUE BATTEN 0,6M 10W/840
LED VALUE BATTEN 0,6M 10W/840
Product line drawing, front, no dimensions
LED VALUE BATTEN 0,6M 10W/840
LED VALUE BATTEN 0,6M 10W/840

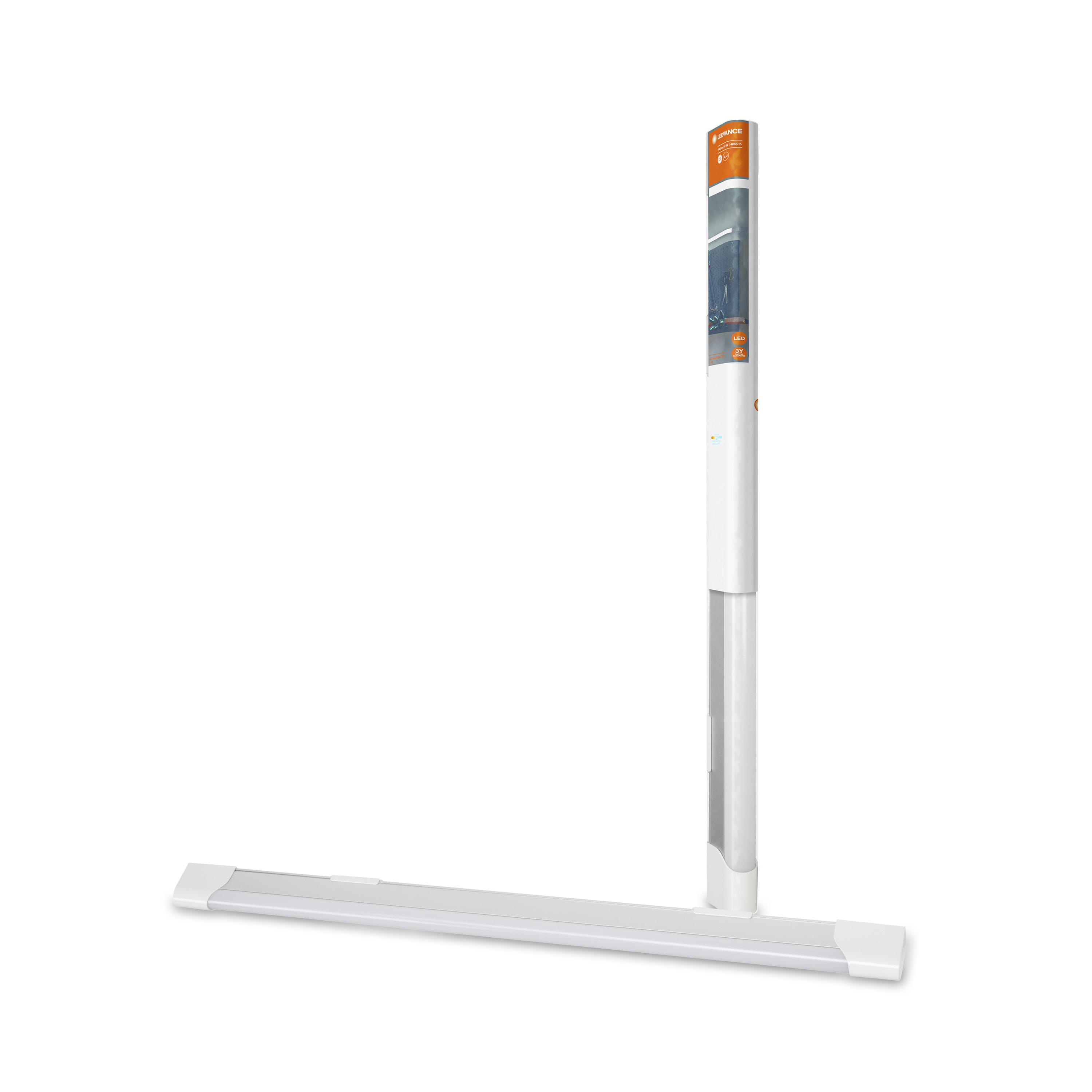

Combo Shot = Product Beauty Shot + Packaging Image
LED VALUE BATTEN 0.6M 10W-840
LED VALUE BATTEN 0.6M 10W-840

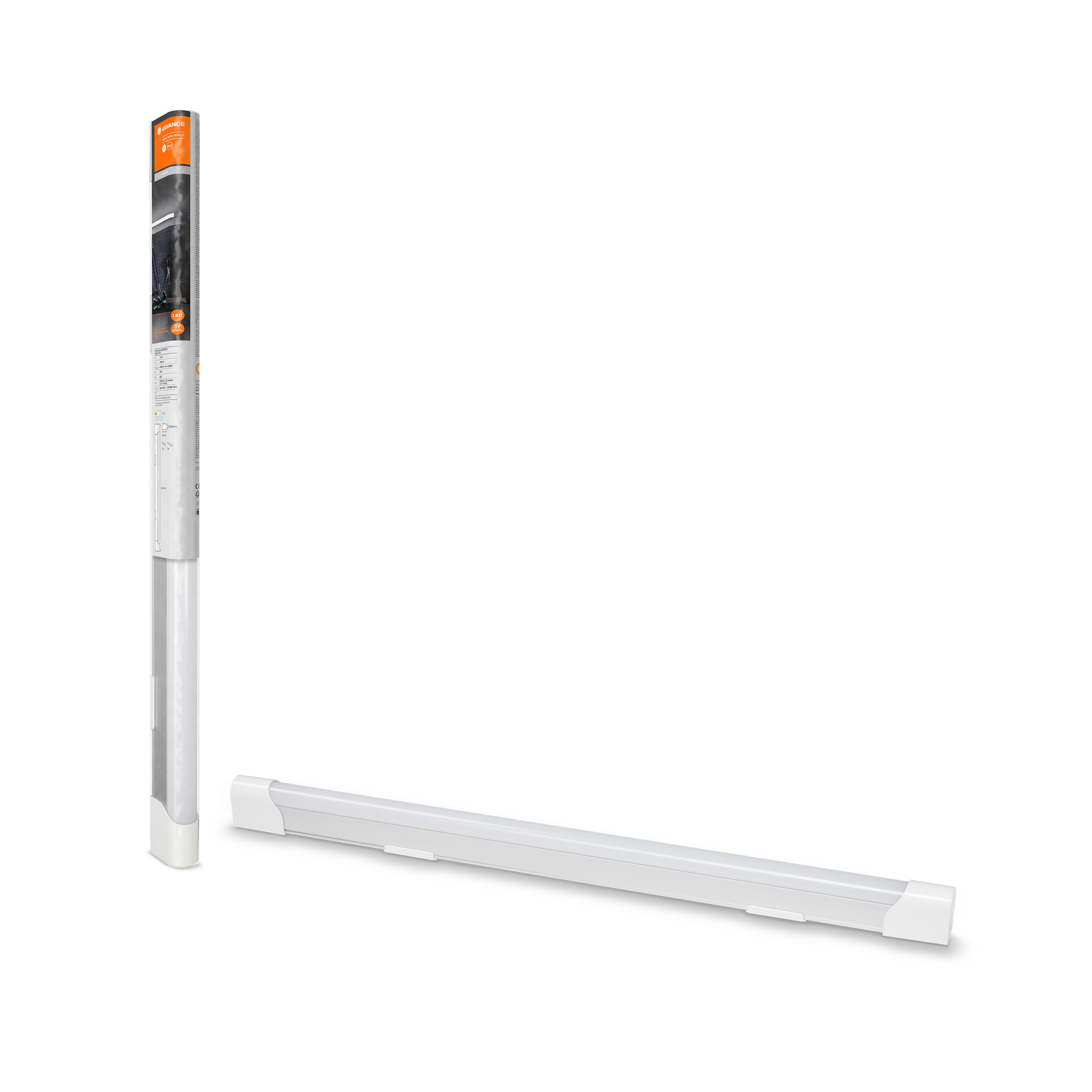

Combo Shot = Product Beauty Shot + Packaging Image
LUM ADTP LED V BATTEN 60 10W MiPRC
LUM ADTP LED V BATTEN 60 10W MiPRC

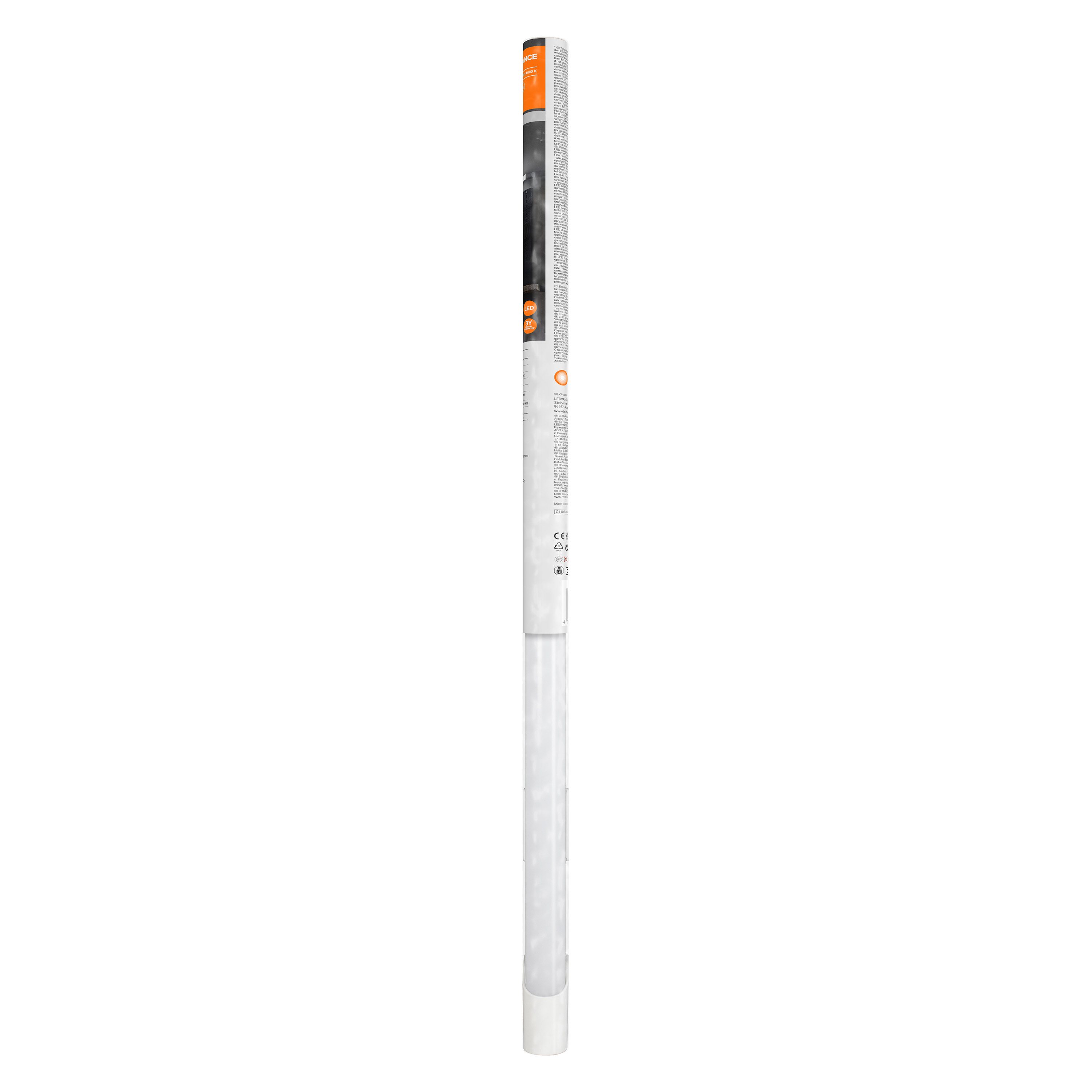

Packaging image, frontal
LUM AdTp VALUE BATTEN 06 10W MiPRC Front
LUM AdTp VALUE BATTEN 06 10W MiPRC Front
Packaging image, spacial
LUM AdTp VALUE BATTEN 06 10W MiPRC Side
LUM AdTp VALUE BATTEN 06 10W MiPRC Side

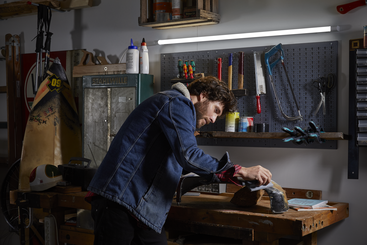

Application pictures
