Decor Felt
Decor Felt Cylinder Pendant 28W 830 Dark Gray
GTIN: 4058075841567
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Eye-catching luminaire made of felt
- Design delights your home with a warm atmosphere
- Lampshade made of recycled materials
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
Product features
- Housing material: felt
- Textile cable
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 28.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 117.000 mA |
| Inrush current | 0.117 A |
| Max. number of luminaires per miniature circuit breaker B16 | 109 |
| Max. number of luminaires per miniature circuit breaker C10 | 68 |
| Max. number of luminaires per miniature circuit breaker C16 | 109 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | 65 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 1000 lm |
| Total luminous flux of contained light sources | 2400 lm |
| Luminous efficacy | 35 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | < 5 sdcm |
| Flickering metric (Pst LM) | 0.36 |
| Stroboscope effect metric (SVM) | 0.2 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 100 ° |
Dimensions & Weight
| Diameter | 500.00 mm |
| Height | 1500.00 mm |
| Product weight | 1650.00 g |
Materials & Colors
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Felt|Steel |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Suspended |
| With light source | No |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075841567 | Folding box 1 |
152 mm x 522 mm x 523 mm | 2159.00 g | 41.50 dm³ |
| 4058075841574 | Shipping box 2 |
538 mm x 320 mm x 550 mm | 5503.00 g | 94.69 dm³ |
User instruction / safety instructions
DECOR FELT CYLINDER PEND 28W 830 DG
DECOR FELT CYLINDER PEND 28W 830 DG
Declarations of conformity
DECOR LUM
DECOR LUM

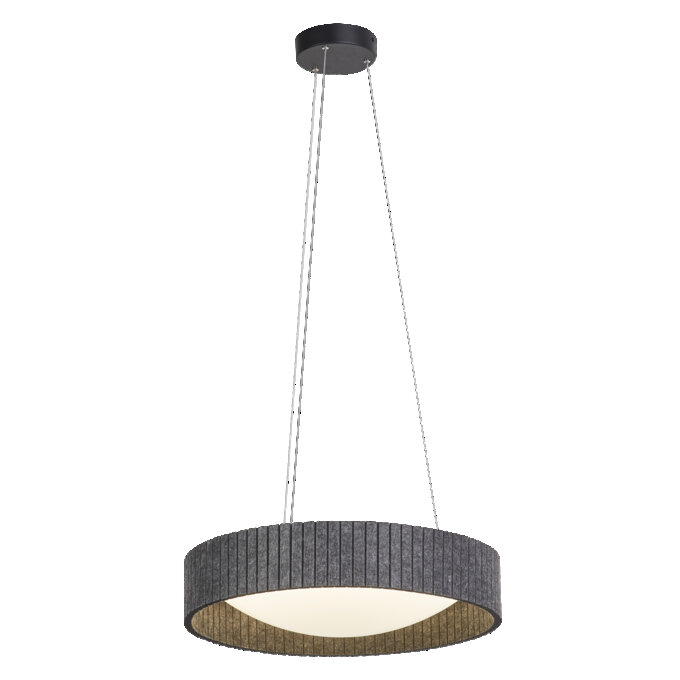

Product image: white background, upright
DECOR FELT CYLINDER PEND 28W 830 DG
DECOR FELT CYLINDER PEND 28W 830 DG

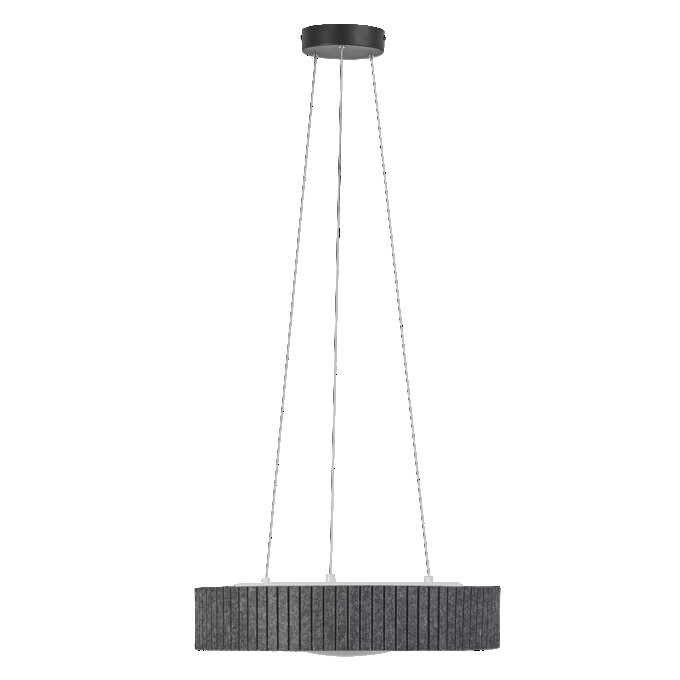

Product image: white background, upright, alternative image
DECOR FELT CYLINDER PEND 28W 830 DG
DECOR FELT CYLINDER PEND 28W 830 DG
Product image: white background, upright, switched on
DECOR FELT CYLINDER PEND 28W 830 DG
DECOR FELT CYLINDER PEND 28W 830 DG
Product line drawing with letters
DECOR FELT CYLINDER PEND 28W 830 DG
DECOR FELT CYLINDER PEND 28W 830 DG
Product line drawing with numbers
DECOR FELT CYLINDER PEND 28W 830 DG
DECOR FELT CYLINDER PEND 28W 830 DG
Product line drawing - technical
DECOR FELT CYLINDER PEND 28W 830 DG
DECOR FELT CYLINDER PEND 28W 830 DG

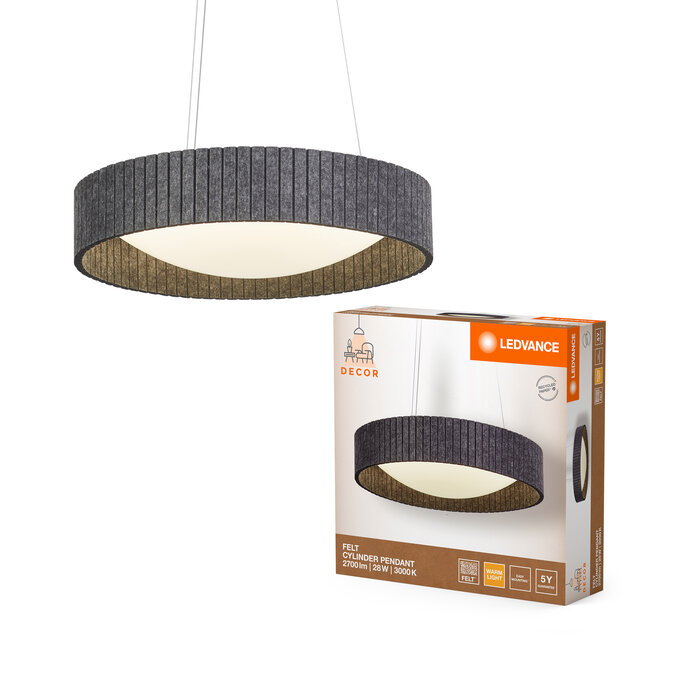

Combo Shot = Product Beauty Shot + Packaging Image
FC1 LUM DECOR FELT CYLINDER PENDANT 28W
FC1 LUM DECOR FELT CYLINDER PENDANT 28W
Packaging image, frontal
FC1 LUM DECOR FELT CYLINDER PENDANT 28W
FC1 LUM DECOR FELT CYLINDER PENDANT 28W
Packaging image, spacial
FC1 LUM DECOR FELT CYLINDER PENDANT 28W
FC1 LUM DECOR FELT CYLINDER PENDANT 28W
Product infographic with environment and dimensions
DECORLUM
DECORLUM
Product image with graphic and measurements
DECORLUM
DECORLUM

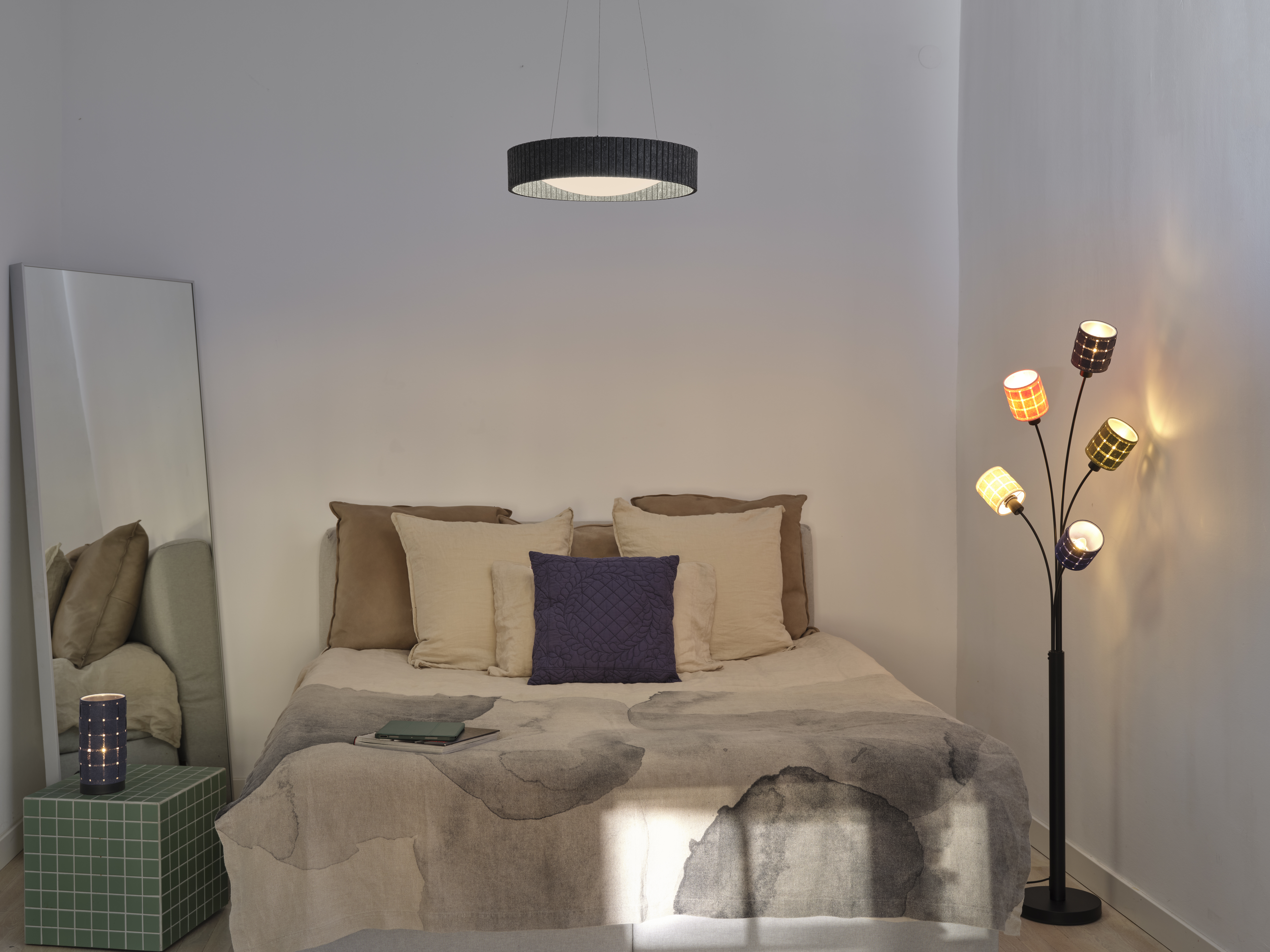

Application pictures
DECOR FABULOUS FABRICS Concept
DECOR FABULOUS FABRICS Concept

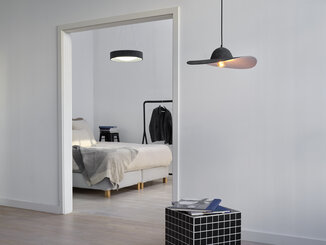

Application pictures
DECOR FELT CYCLINDER & HAT Family
DECOR FELT CYCLINDER & HAT Family

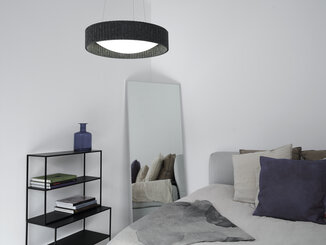

Application pictures
DECOR FELT CYCLINDER PEND 28W 830 DG Ambient
DECOR FELT CYCLINDER PEND 28W 830 DG Ambient
Application pictures
DECOR FELT CYCLINDER PEND 28W 830 DG Closeup 1
DECOR FELT CYCLINDER PEND 28W 830 DG Closeup 1
Application pictures
DECOR FELT CYCLINDER PEND 28W 830 DG Closeup 2
DECOR FELT CYCLINDER PEND 28W 830 DG Closeup 2

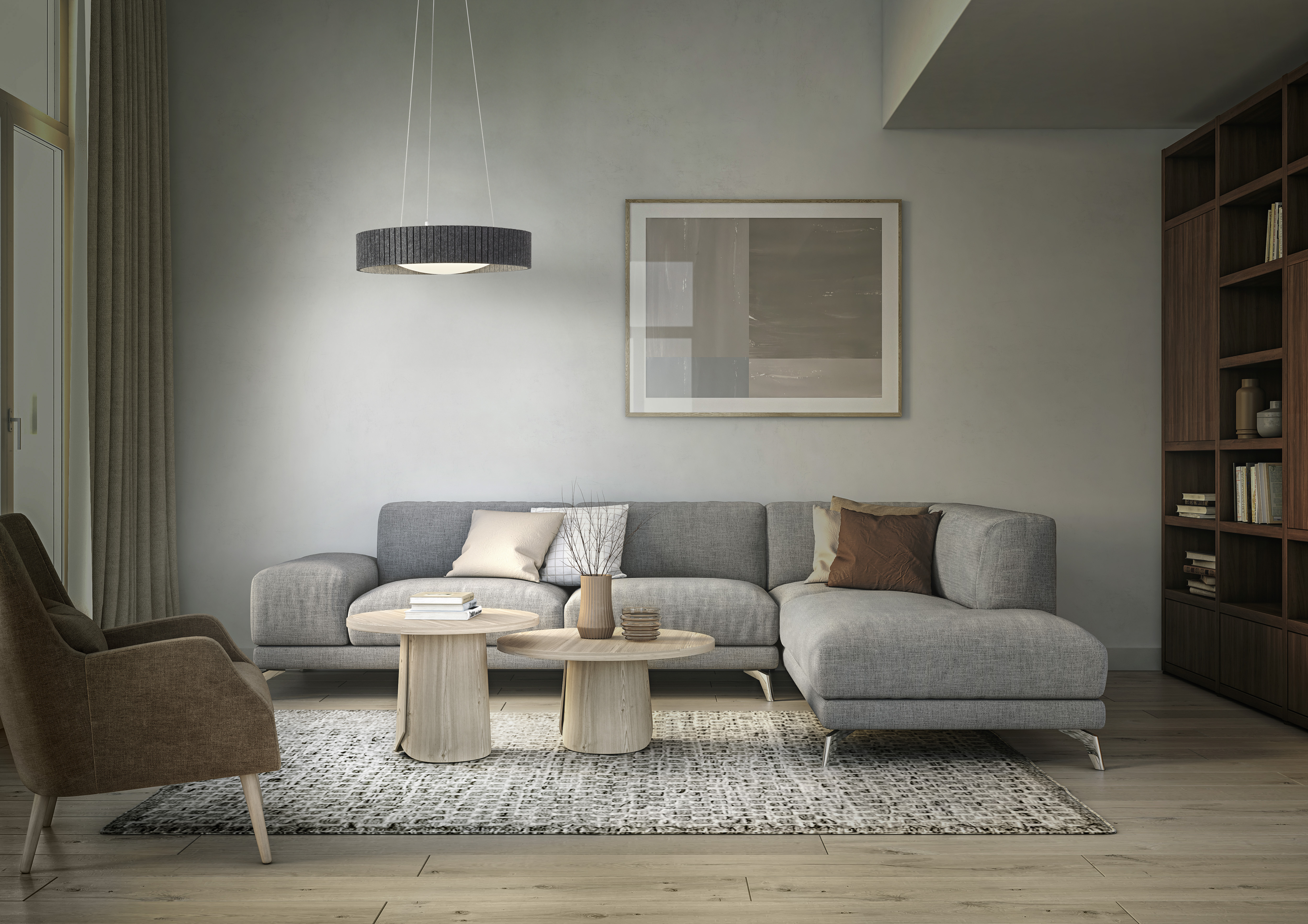

Application pictures Getty
