Decor Circle
Decor Circle 3XPendant PL 20W Click CCT Black
GTIN: 4058075838642
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High-quality look and feel
- Minimalistic design with elegant decorative lighting
- Different types of luminaires with the same design language maintain a consistent style at home
- Easy mounting
- Highly versatile due to selectable CCT
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Bedrooms
Product features
- Housing material: acrylic
- High-power LED
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 20.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 95.000 mA |
| Inrush current | 0.095 A |
| Inrush current time Th50 | 186 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 19 |
| Max. number of luminaires per miniature circuit breaker C10 | 16 |
| Max. number of luminaires per miniature circuit breaker C16 | 25 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | 80 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 1300 lm |
| Total luminous flux of contained light sources | 2400 lm |
| Luminous efficacy | 65 lm/W |
| Color temperature | 3000 K / 4200 K / 6500 K |
| Reference control setting of contained light source (Kelvin) | 3000 K |
| Light color (designation) | Warm White, Cool White, Cool Daylight |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | < 1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
Dimensions & Weight
| Length | 280.00 mm |
| Height | 1210.00 mm |
| Width | 200.00 mm |
| Product weight | 1120.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Polymethylmethacrylate (PMMA) |
| Cover material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Suspended |
| With light source | Yes |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075838642 | Folding box 1 |
257 mm x 257 mm x 318 mm | 1450.00 g | 21.00 dm³ |
| 4058075838659 | Shipping box 4 |
535 mm x 270 mm x 660 mm | 6999.00 g | 95.34 dm³ |
User instruction / safety instructions
DECOR CIRCLE PEND PL CLICKCCT LEDV
DECOR CIRCLE PEND PL CLICKCCT LEDV
Legal information
DECOR DRUMS/CIRCLE
DECOR DRUMS/CIRCLE
Declarations of conformity
DECOR LUM
DECOR LUM

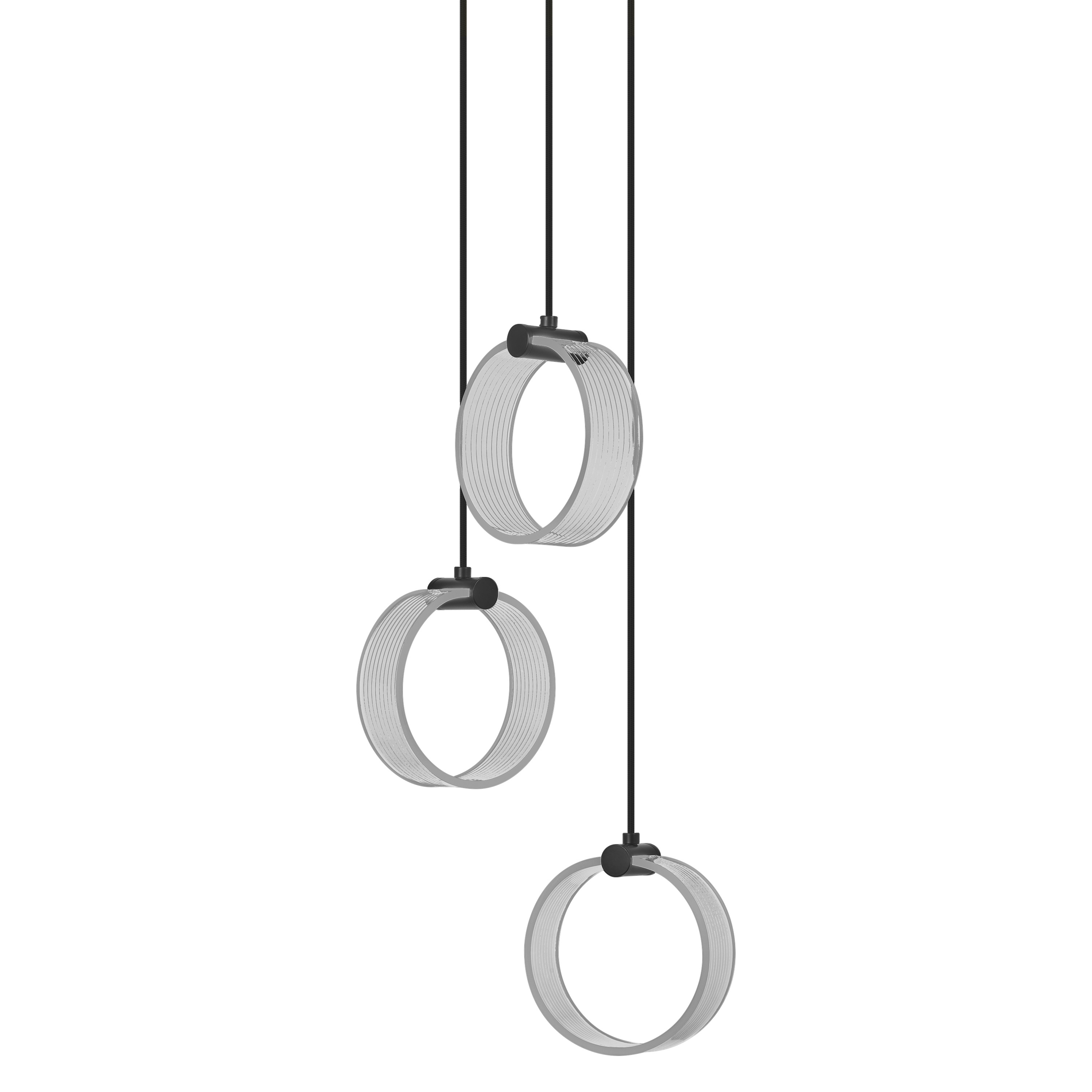

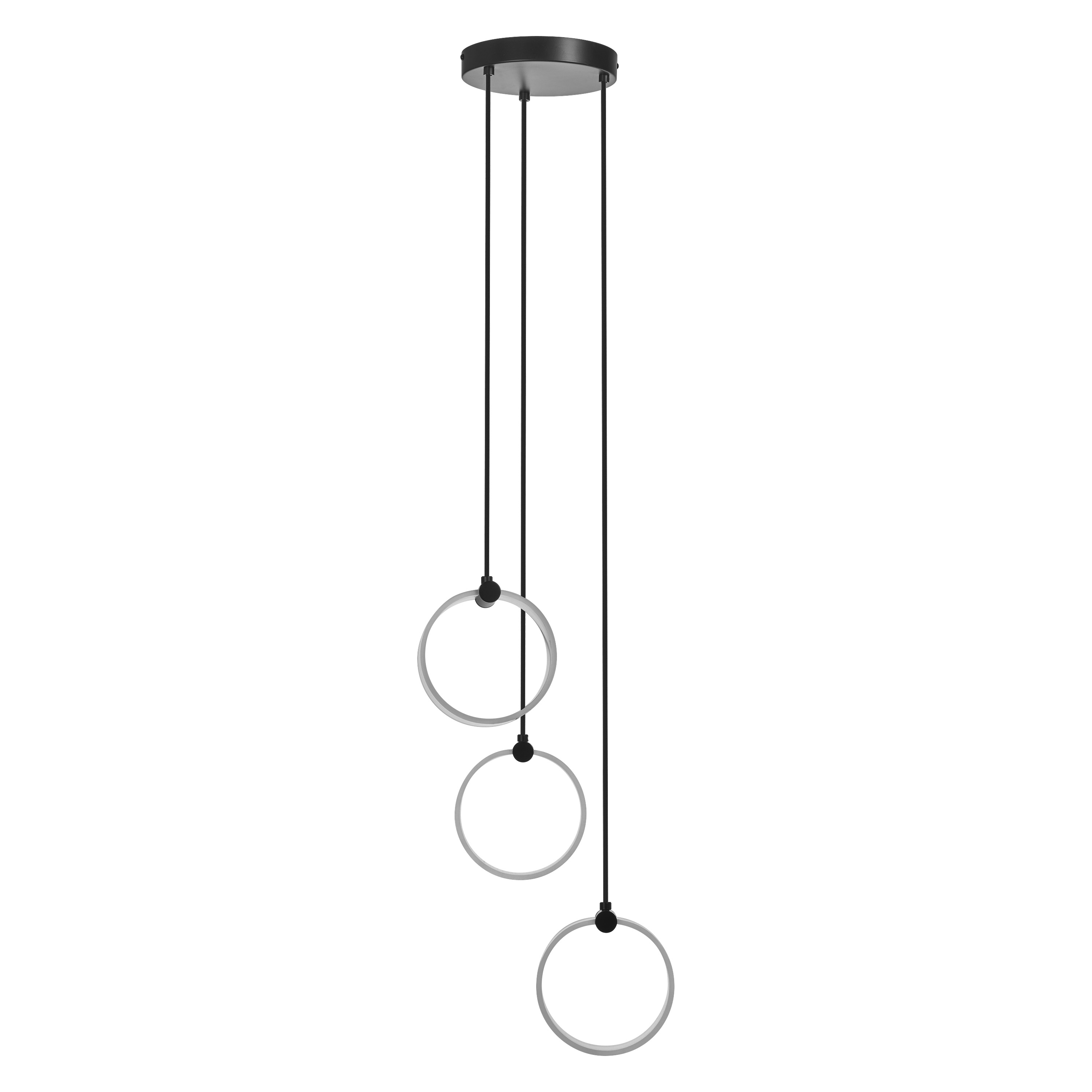

Product image: white background, upright
DECOR CIRCLE 3XPEND PL 18W CLICKCCT
DECOR CIRCLE 3XPEND PL 18W CLICKCCT
Product image: white background, upright, alternative image
DECOR CIRCLE 3XPEND PL 18W CLICKCCT
DECOR CIRCLE 3XPEND PL 18W CLICKCCT

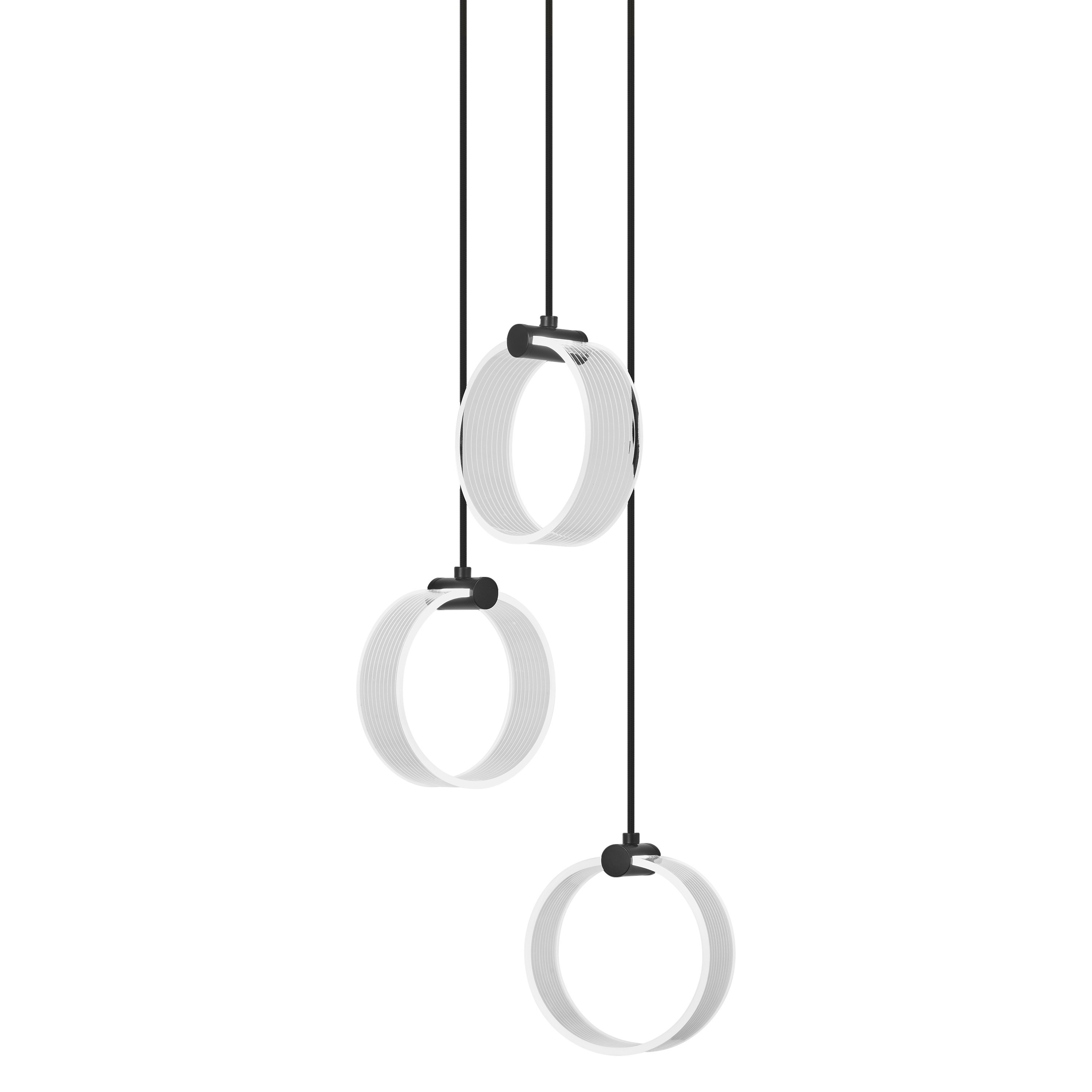

Product image: white background, upright, switched on
DECOR CIRCLE 3XPEND PL 18W CLICKCCT
DECOR CIRCLE 3XPEND PL 18W CLICKCCT
Product line drawing with letters
DECOR CIRCLE 3XPEND PL 18W CLICKCCT
DECOR CIRCLE 3XPEND PL 18W CLICKCCT
Product line drawing with numbers
DECOR CIRCLE 3XPEND PL 18W CLICKCCT
DECOR CIRCLE 3XPEND PL 18W CLICKCCT
Product line drawing - technical
DECOR CIRCLE 3XPEND PL 18W CLICKCCT
DECOR CIRCLE 3XPEND PL 18W CLICKCCT

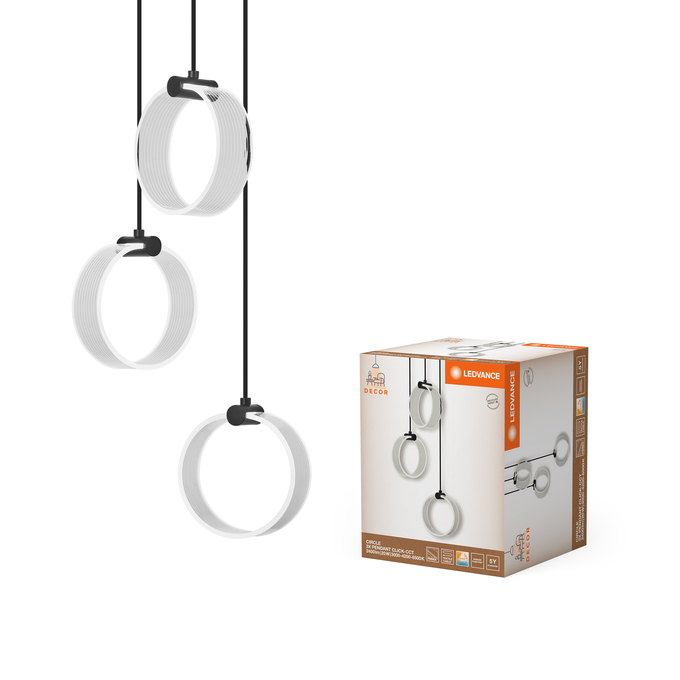

Combo Shot = Product Beauty Shot + Packaging Image
LUM DECOR CIRCLE 3XPENDANT PL 18W
LUM DECOR CIRCLE 3XPENDANT PL 18W
Packaging image, frontal
LUM DECOR CIRCLE 3XPENDANT PL 18W
LUM DECOR CIRCLE 3XPENDANT PL 18W
Packaging image, spacial
LUM DECOR CIRCLE 3XPENDANT PL 18W
LUM DECOR CIRCLE 3XPENDANT PL 18W
Product infographic with environment and dimensions
DECORLUM
DECORLUM
Product image with graphic and measurements
DECORLUM
DECORLUM
Application pictures
DECOR LUMINAIRES DECOR CIRCLE 3XPEND PL CLOSE-UP
DECOR LUMINAIRES DECOR CIRCLE 3XPEND PL CLOSE-UP

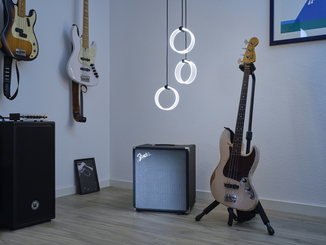

Application pictures
DECOR CIRCLE 3XPEND PL 18W CLICKCCT Ambient cool daylight
DECOR CIRCLE 3XPEND PL 18W CLICKCCT Ambient cool daylight
Application pictures
DECOR CIRCLE 3XPEND PL 18W CLICKCCT Ambient cool white
DECOR CIRCLE 3XPEND PL 18W CLICKCCT Ambient cool white
Application pictures
DECOR CIRCLE 3XPEND PL 18W CLICKCCT Ambient warm white
DECOR CIRCLE 3XPEND PL 18W CLICKCCT Ambient warm white
Application pictures
DECOR CIRCLE 3XPEND PL 18W CLICKCCT Closeup 1
DECOR CIRCLE 3XPEND PL 18W CLICKCCT Closeup 1
Application pictures
DECOR CIRCLE 3XPEND PL 18W CLICKCCT Closeup 2
DECOR CIRCLE 3XPEND PL 18W CLICKCCT Closeup 2
Application pictures
DECOR GLOWING SIMPLICITY Concept
DECOR GLOWING SIMPLICITY Concept
Application pictures Getty
DECOR CIRCLE 3XPEND PL 18W CLICKCCT 5500K
DECOR CIRCLE 3XPEND PL 18W CLICKCCT 5500K
Application pictures Getty
DECOR CIRCLE 3XPEND PL 18W CLICKCCT 3000K
DECOR CIRCLE 3XPEND PL 18W CLICKCCT 3000K

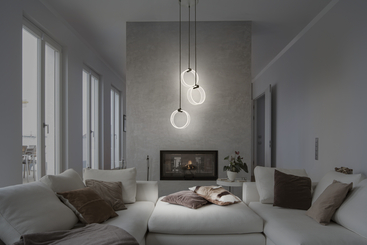

Application pictures Getty
