LEDstixx USB

Ledstixx USBC IP44 Silver

GTIN: 4099854668715 Blister / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Very homogenous light
  • Multiple mounting options
  • Can be removed from the holder for use as a portable light
  • Can be rotated and swiveled for optimum illumination
Areas of application
  • Bathrooms
  • Where light is required but a socket is not available
Product features
  • Integrated rechargeable lithium battery which can be charged via USB cable
  • Dimmable in three steps by repeated switching
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • This product is not a toy. It should not be left unattended in the hands of children or operated by children.
  • Not designed as a replacement for conventional lighting in private household.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Electrical data
Nominal wattage 3.00 W
Nominal voltage 5 V
Nominal current 600.000 mA
Protection class III
Operating mode Battery
Photometrical data
Luminous flux 150 lm
Luminous efficacy 50 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Standard deviation of color matching 6 sdcm
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 110 °
Dimensions & Weight
Length 206.00 mm
Height 17.00 mm
Width 17.00 mm
Product weight 86.00 g
Cable length 15.0 mm
Materials & Colors
Product color Silver
Housing color Silver
Body material Aluminum
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+60 °C
Type of connection USB Type-C
Type of protection IP44
Dimmable No
Mounting type Surface
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 30000 h 1)
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
BATTERY
Battery size [GMS] Others
Nominal voltage of battery 3.7 V
Battery charging time 2.5 h
Certificates & Standards
Standards CE, UKCA
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854668715 Blister
1
140 mm x 32 mm x 400 mm 112.00 g 1.79 dm³
4099854668722 Shipping box
6
413 mm x 243 mm x 153 mm 920.00 g 15.35 dm³
Legal information
Safety Insert DECOR HELPER AND NIGHTLUX
Legal information
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
LEDSTIXX_LINEARLED MOBILE HANGER

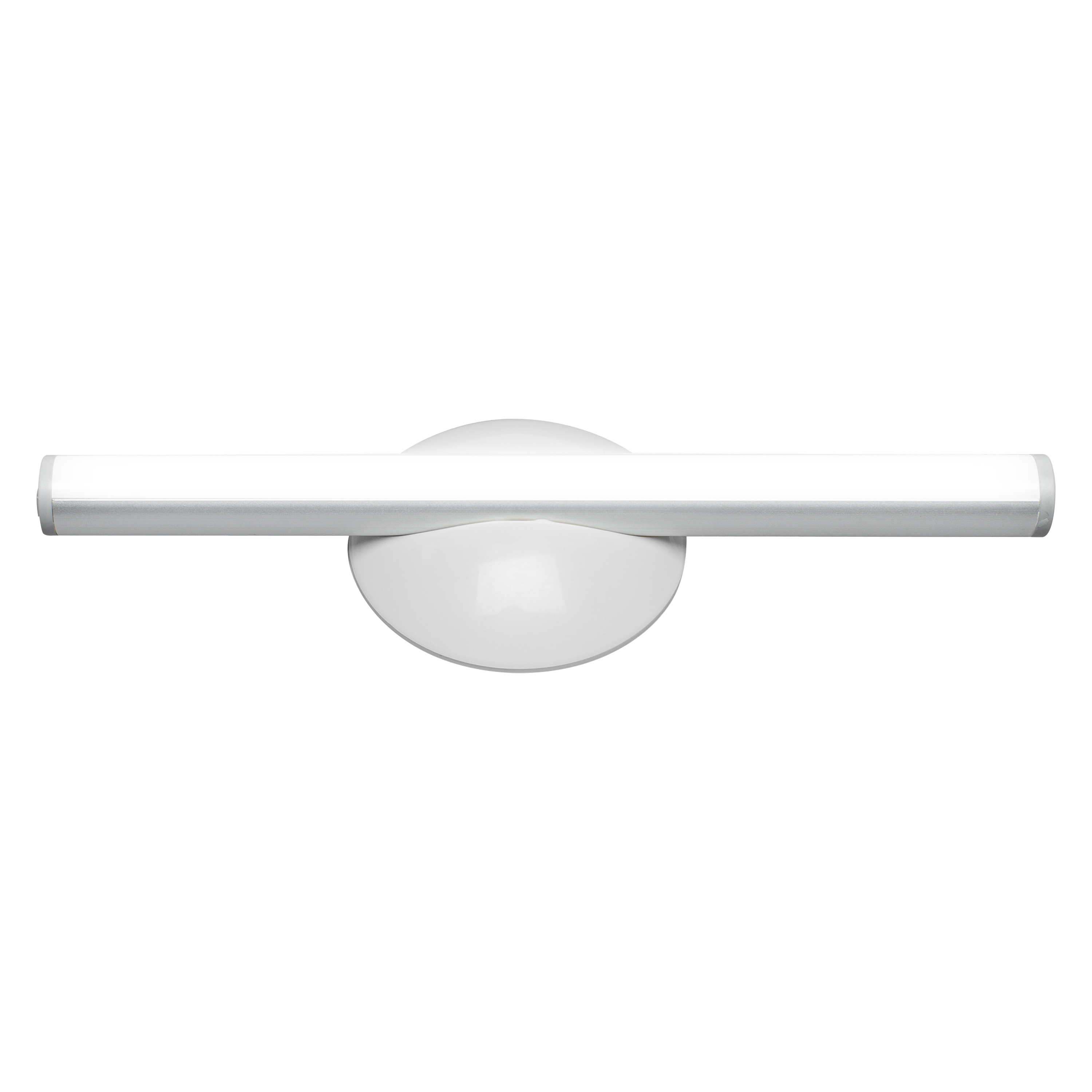

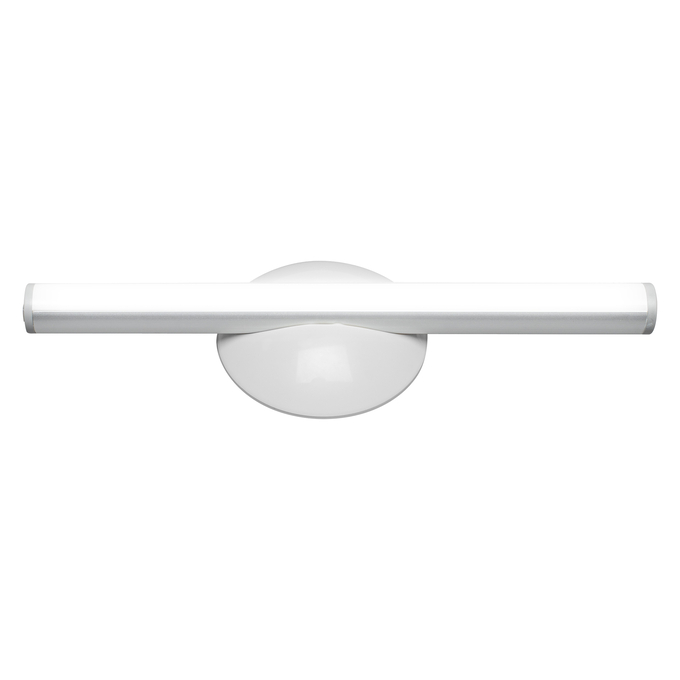

Product image: white background, upright
LEDSTIXX USB SI

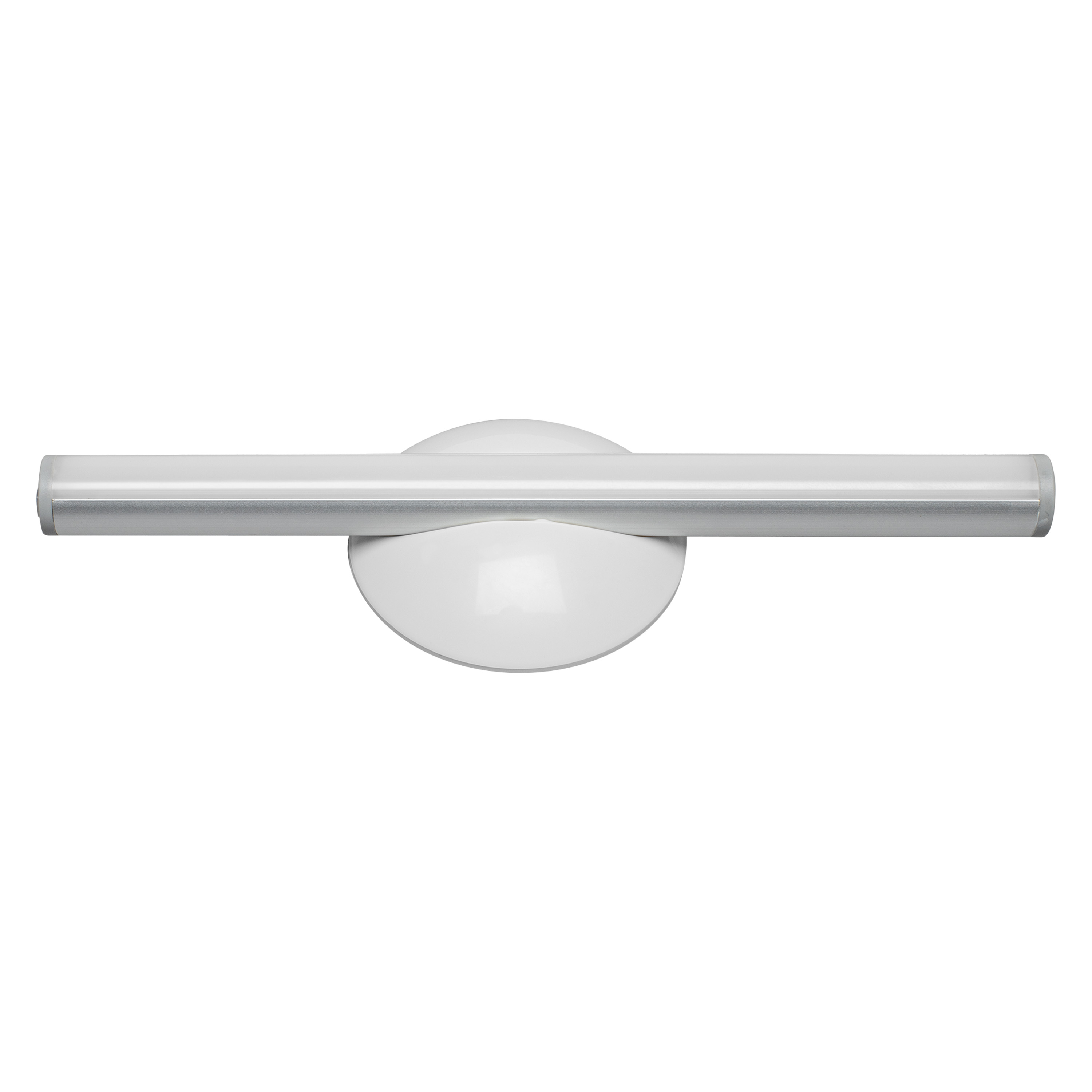

Product image: white background, upright, alternative image
LEDSTIXX USB SI

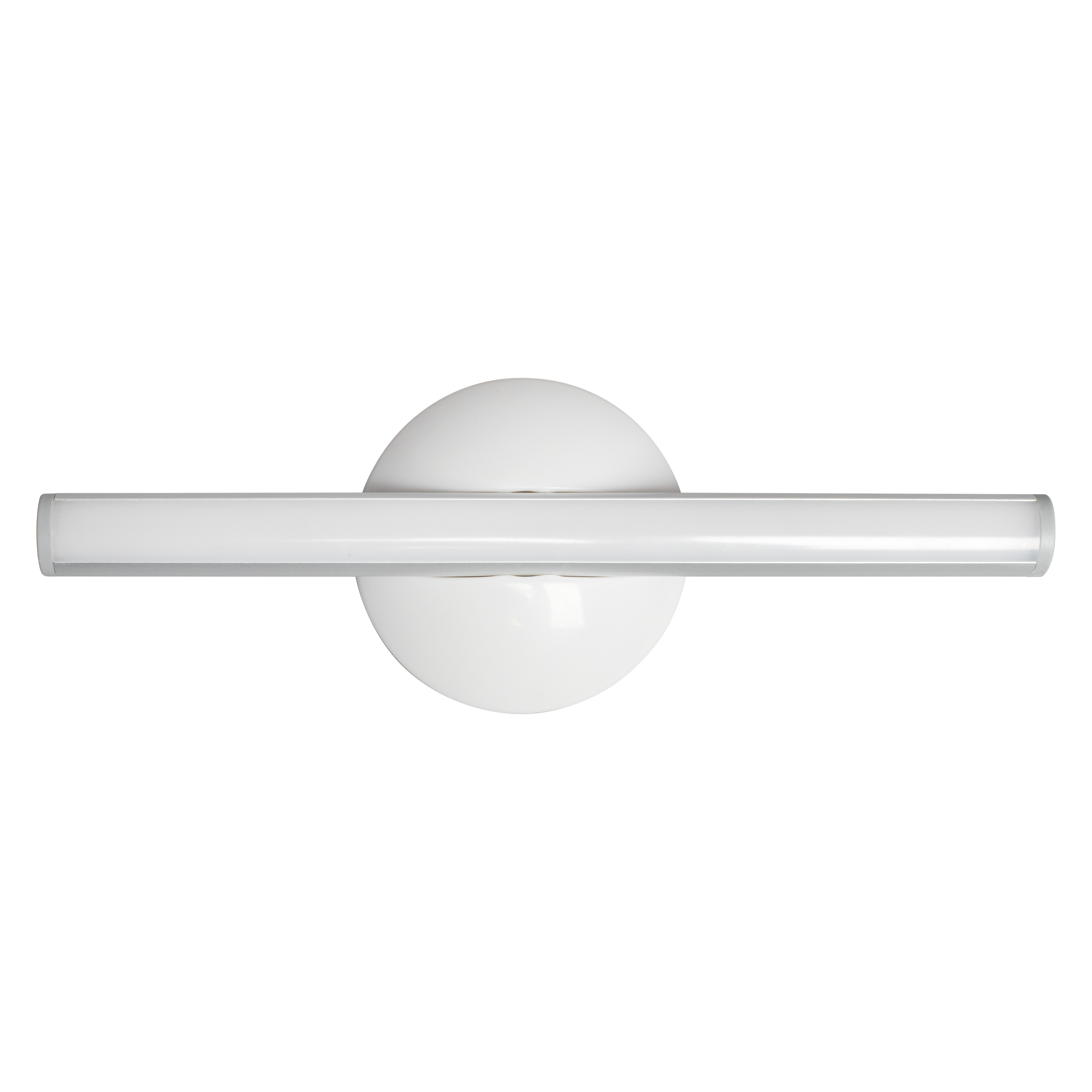

Product image: white background, upright, switched on
