Decor Spot Hornet
Decor Spot Hornet 3X2.8W 827 E14 Black
GTIN: 4058075847781
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- On/off switch on 1-spot model for convenient operation
- Sustainable solution thanks to exchangeable light sources
- Easy mounting
- Dimmable OSRAM LED lamps included
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Bedrooms
Product features
- Housing material: metal and fabric
- Luminaire family features five versions with up to 4 spot heads
- Adjustable heads
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 2.80 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 39.000 mA |
| Inrush current | 0.039 A |
| Inrush current time Th50 | 160 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 328 |
| Max. number of luminaires per miniature circuit breaker C10 | 205 |
| Max. number of luminaires per miniature circuit breaker C16 | 328 |
| Power factor λ | 0.90 |
| Total harmonic distortion | < 70 % |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 300 lm |
| Total luminous flux of contained light sources | 750 lm |
| Luminous efficacy | 35.7 lm/W |
| Color temperature | 2700 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | 0,7 |
| Stroboscope effect metric (SVM) | 0,25 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 285.00 ° |
Dimensions & Weight
| Length | 625.00 mm |
| Height | 225.00 mm |
| Width | 120.00 mm |
| Product weight | 950.00 g |
Materials & Colors
| Product color | Black/Gold |
| Housing color | Black/Gold |
| Body material | Steel|Polyester cotton |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
| Holder designation | E14 |
Lifespan
| Lifespan L70/B50 at 25 °C | 15000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Emergency lighting
| Type of emergency operation test | None |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
Additional product data
| Product remark | Maximum bulb wattage: 5 W LED |
| Number of illuminants | 3 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075847781 | Folding box 1 |
132 mm x 162 mm x 619 mm | 1229.00 g | 13.24 dm³ |
| 4058075847798 | Shipping box 4 |
632 mm x 276 mm x 348 mm | 5817.00 g | 60.70 dm³ |
User instruction / safety instructions
DECOR SPOT HORNET E14
DECOR SPOT HORNET E14
Declarations of conformity
LUM DECOR SPOT HORNET
LUM DECOR SPOT HORNET
Product image: white background, upright
DECOR SPOT HORNET 3X40W E14 side off with lamps
DECOR SPOT HORNET 3X40W E14 side off with lamps
Product image: white background, upright, alternative image

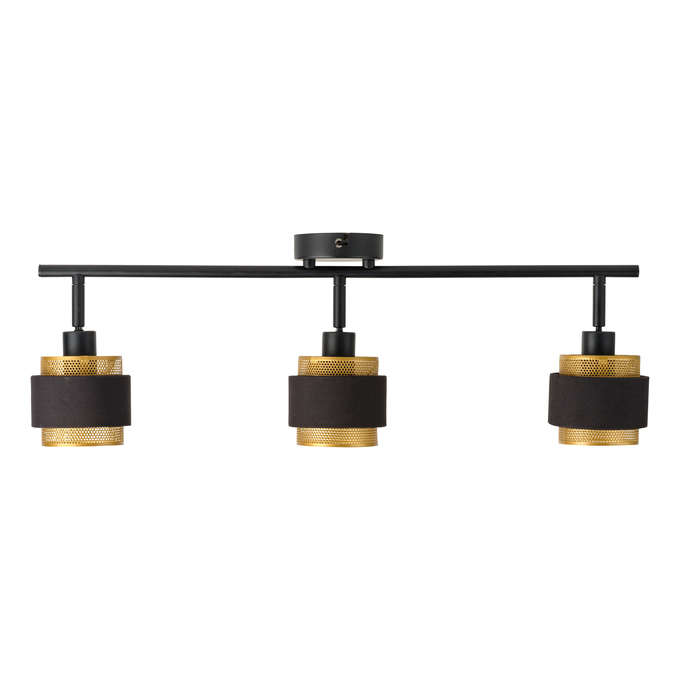

DECOR SPOT HORNET 3X40W E14 front
DECOR SPOT HORNET 3X40W E14 front
Product image: white background, upright, alternative image

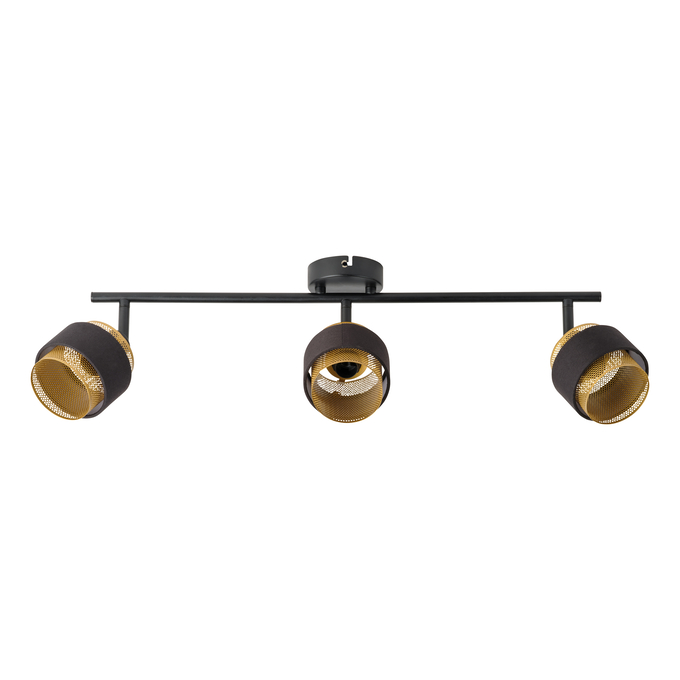

DECOR SPOT HORNET 3X40W E14 side off
DECOR SPOT HORNET 3X40W E14 side off
Product image: white background, upright, switched on

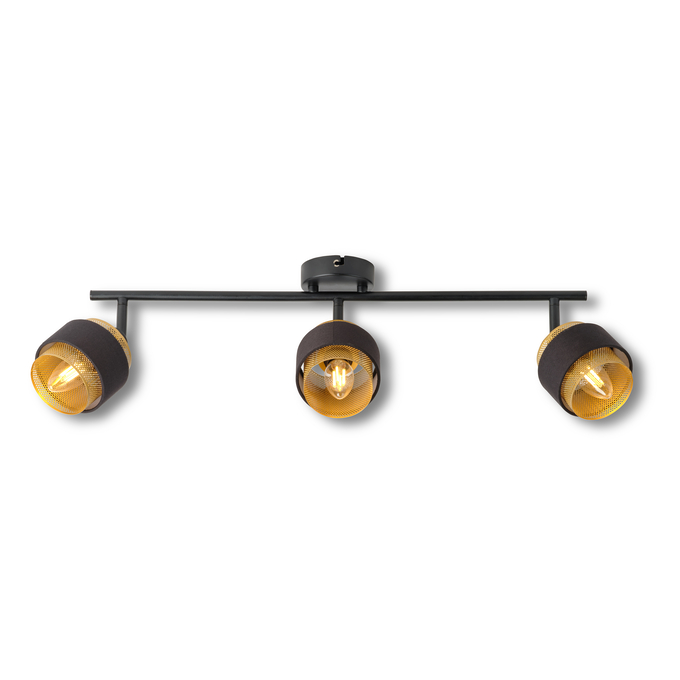

DECOR SPOT HORNET 3X40W E14 side on
DECOR SPOT HORNET 3X40W E14 side on
Product line drawing with letters
DECOR SPOT HORNET 3X2.8W 827 E14
DECOR SPOT HORNET 3X2.8W 827 E14
Product line drawing with numbers
DECOR SPOT HORNET 3X2.8W 827 E14
DECOR SPOT HORNET 3X2.8W 827 E14
Product line drawing - technical
DECOR SPOT HORNET 3X2.8W 827 E14
DECOR SPOT HORNET 3X2.8W 827 E14

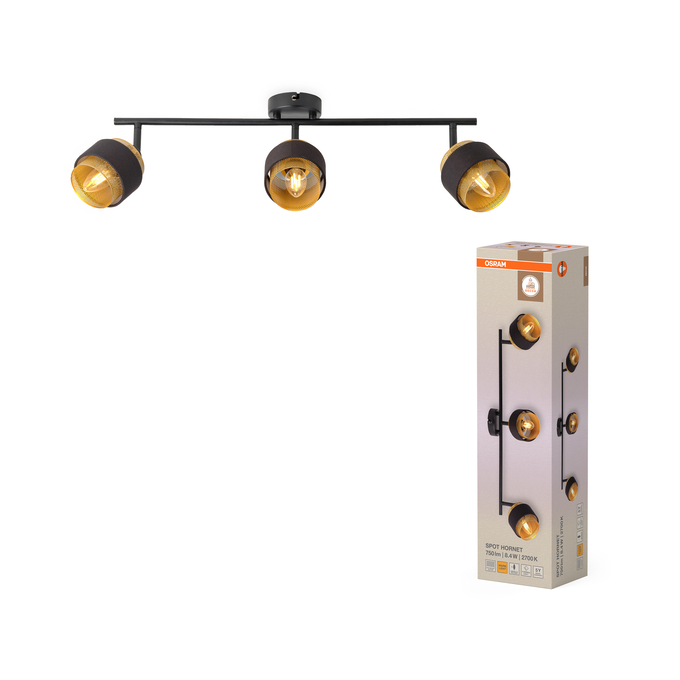

Combo Shot = Product Beauty Shot + Packaging Image
FC DECOR24 SPOT HORNET 3X2.8W 827 E14
FC DECOR24 SPOT HORNET 3X2.8W 827 E14
Packaging image, frontal
FC DECOR24 SPOT HORNET 3X2.8W 827 E14
FC DECOR24 SPOT HORNET 3X2.8W 827 E14
Packaging image, spacial
FC DECOR24 SPOT HORNET 3X2.8W 827 E14
FC DECOR24 SPOT HORNET 3X2.8W 827 E14
Application pictures

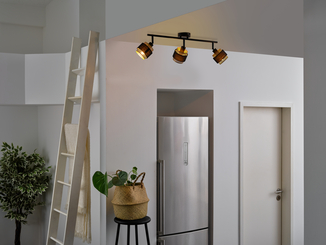

DECOR SPOT HORNET 3X40W E14 ambient
