Bulkhead

LED Bulkhead 6W 4000K Black

GTIN: 4099854428678 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy and quick installation
  • Energy-efficient thanks to LED technology
Areas of application
  • Outdoor
  • Basements, garages, warehouses
Product features
  • Bright and functional outdoor LED luminaires
  • Type of protection: IP54
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
Electrical data
Nominal wattage 6.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 52.000 mA
Power factor λ > 0.5
Protection class II
Operating mode Mains voltage
Photometrical data
Luminous flux 420 lm
Total luminous flux of contained light sources 600 lm
Luminous efficacy 76 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Beam angle 120 °
Dimensions & Weight
Length 117.00 mm
Height 168.00 mm
Width 70.00 mm
Product weight 175.00 g
Materials & Colors
Product color Black
Housing color Black
Body material Polycarbonate (PC)
Cover material Acrylonitrile butadiene styrene (ABS)
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Type of connection Screw terminal
Type of protection IP54
Protection class IK (shock resistance) IK06
Dimmable No
Mounting type Surface
Application environment Outdoor
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 30000 h 1)
Number of switching cycles 25000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
Standards CE, UKCA, EAC
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable
Additional product data
Number of illuminants empty
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854428678 Folding box
1		 78 mm x 124 mm x 177 mm 288.00 g 1.71 dm³
4099854428685 Shipping box
8		 327 mm x 263 mm x 196 mm 2300.00 g 16.86 dm³
User instruction / safety instructions
LED BULKHEAD
PDF (544.56 KB)
Legal information
Safety insert G11219279
PDF (163.54 KB)
Declarations of conformity
LED BULKHEAD 6W 840 BK              LEDV
PDF (298.81 KB)
Product image: white background, diagonal
LED BULKHEAD 6W BK
TIF (1.68 MB)
Product image: white background, upright
LED BULKHEAD 6W BK
TIF (1.36 MB)
Product image: white background, upright, switched on
LED BULKHEAD 6W BK
TIF (896.05 KB)
Product line drawing with letters
LED BULKHEAD 6W
SVG (13.7 KB)
Product line drawing with letters
LED BULKHEAD 6W
SVG (18.51 KB)
Product line drawing with numbers
LED BULKHEAD 6W
SVG (13.82 KB)
Product line drawing with numbers
LED BULKHEAD 6W
SVG (20.42 KB)
Product line drawing, front, no dimensions
LED BULKHEAD 6W
SVG (9.24 KB)
Product line drawing, front, no dimensions
LED BULKHEAD 6W
SVG (10.53 KB)
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC LED BULKHEAD 6W BK
JPG (1.07 MB)

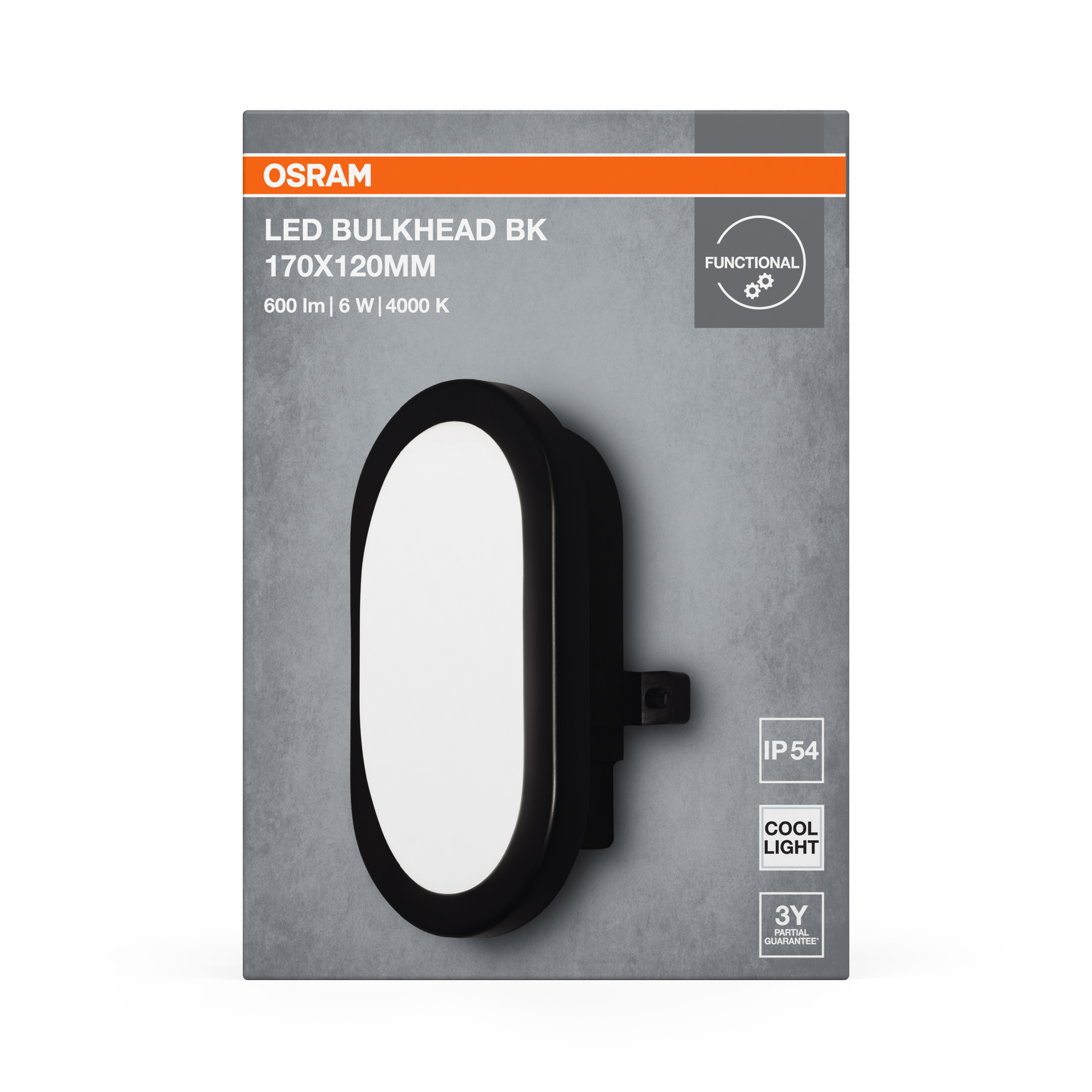

Packaging image, frontal
LUM FC LED BULKHEAD 6W BK
JPG (1.22 MB)

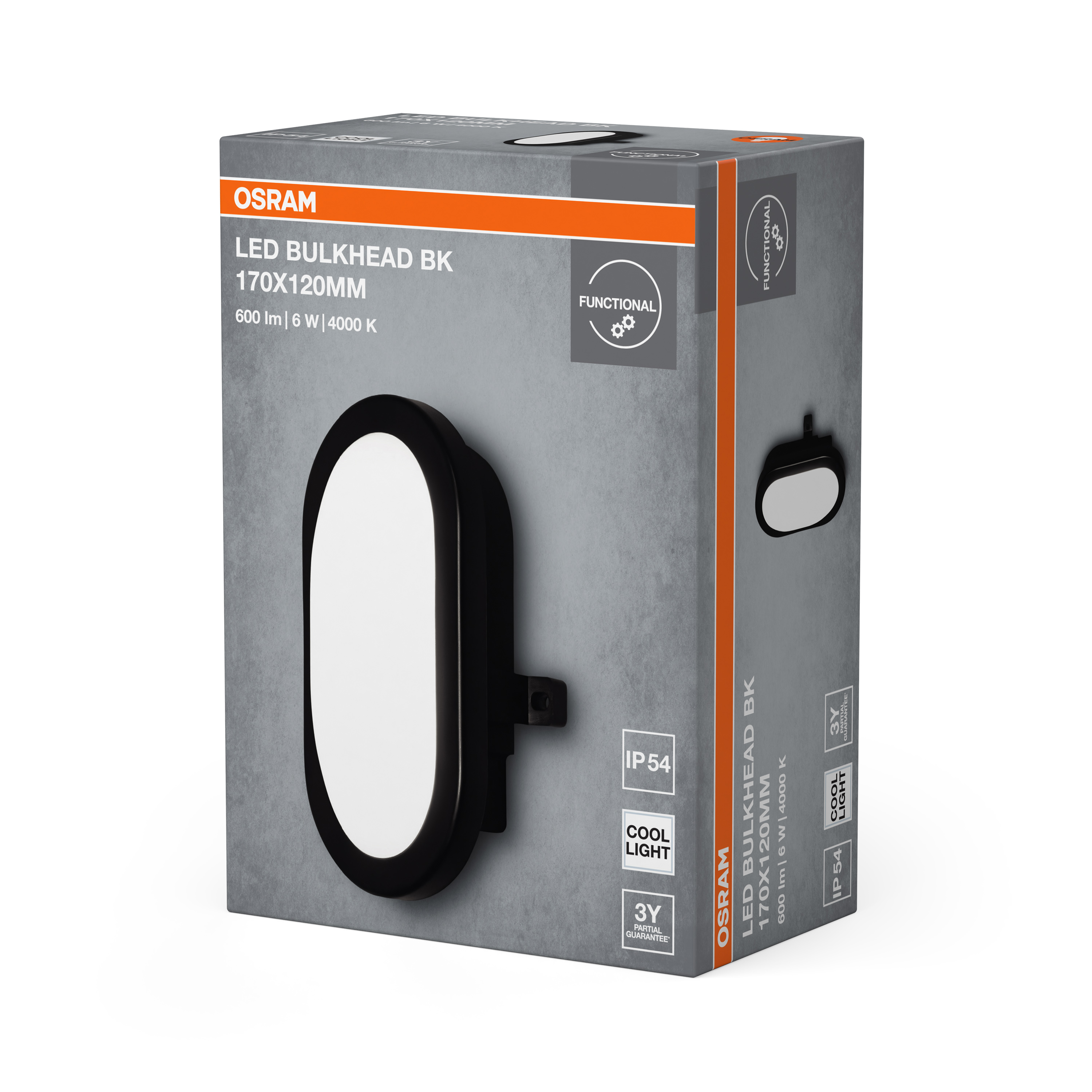

Packaging image, spacial
