Office Line Curve
OFFICE LINE CURVE SUSPENDED 0.6M 24W 840
GTIN: 4099854536779
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Attractive and functional design for office applications
- Suspended mounting to light up the working surface
- Rope for easy on/off
- Length of rope can be flexibly shortened
Areas of application
- Office lighting
Product features
- Lifetime up to 30,000 h
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 24.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 129.000 mA |
| Inrush current time Th50 | 2.6 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 17 |
| Max. number of luminaires per miniature circuit breaker C16 | 22 |
| Power factor λ | > 0.70 |
| Total harmonic distortion | < 90 % |
| Protection class | II |
| Operating mode | Electronic control gear (ECG) |
Photometrical data
| Luminous flux | 2100 lm |
| Total luminous flux of contained light sources | 3030 lm |
| Luminous efficacy | 85 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 98 ° |

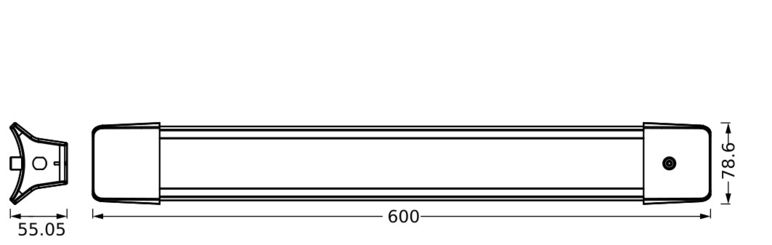

Dimensions & Weight
| Length | 600.00 mm |
| Height | 55.05 mm |
| Width | 78.60 mm |
| Product weight | 500.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Push button terminal, 2-pole |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Suspended |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854536779 | Folding box 1 |
82 mm x 127 mm x 673 mm | 687.00 g | 7.01 dm³ |
| 4099854536786 | Shipping box 4 |
685 mm x 275 mm x 185 mm | 3780.00 g | 34.85 dm³ |
User instruction / safety instructions
OFFICE LINE CURVE SUSPENSION
OFFICE LINE CURVE SUSPENSION
Legal information
Safety insert G11219279
Safety insert G11219279
Declarations of conformity
CE Declaration Office Line
CE Declaration Office Line

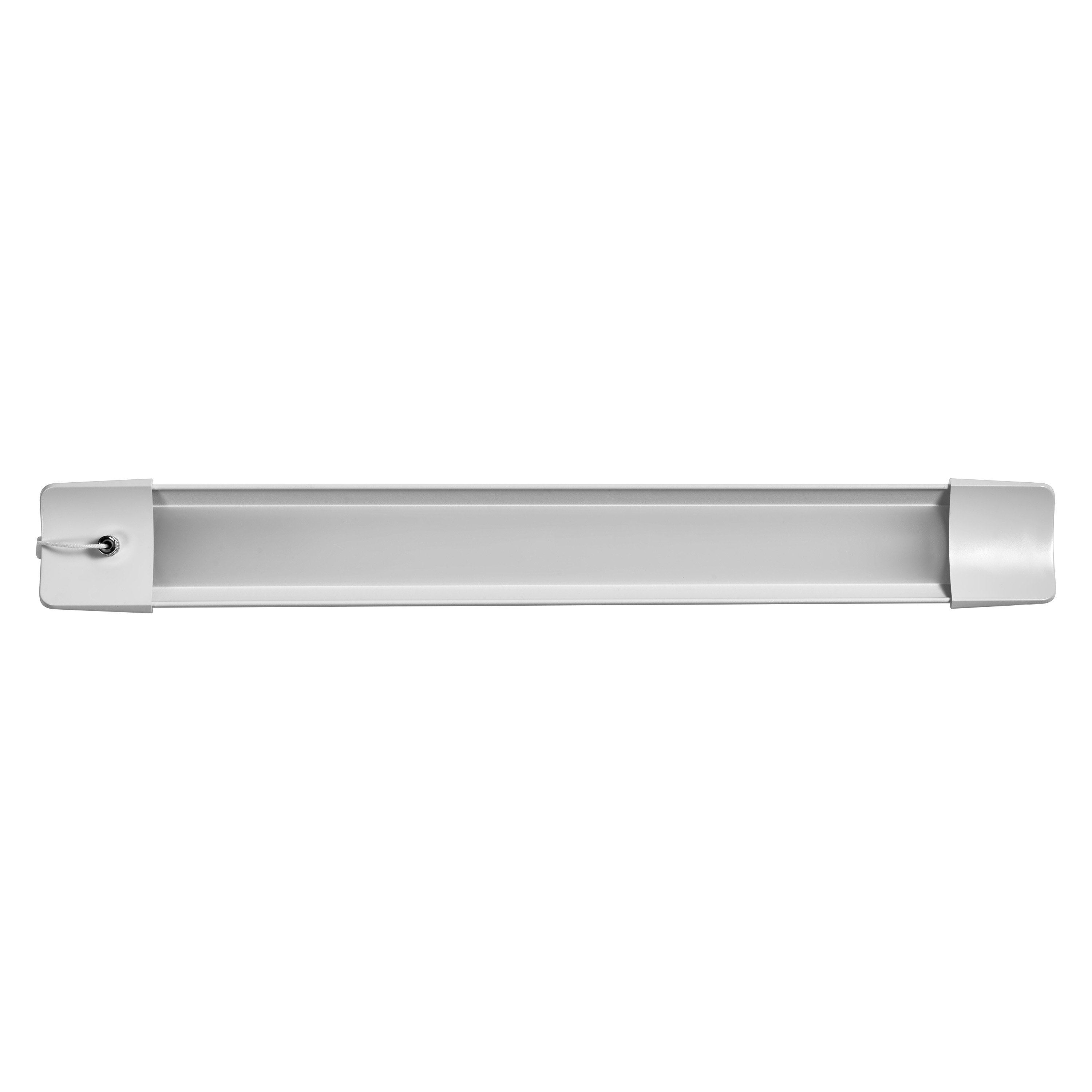

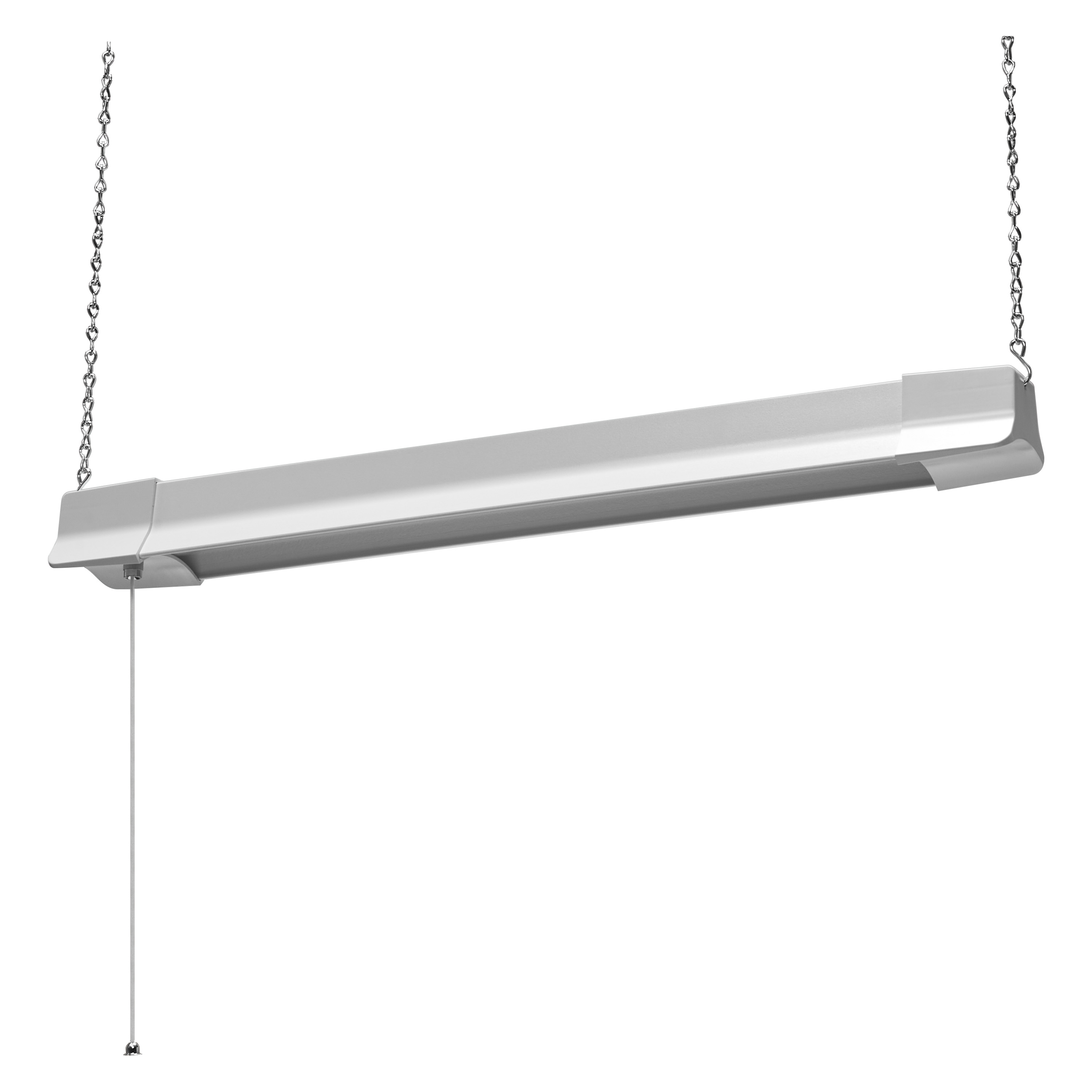

Product image: white background, upright
OFFICE LINE CURVE SUSP 0.6M 24W 840
OFFICE LINE CURVE SUSP 0.6M 24W 840

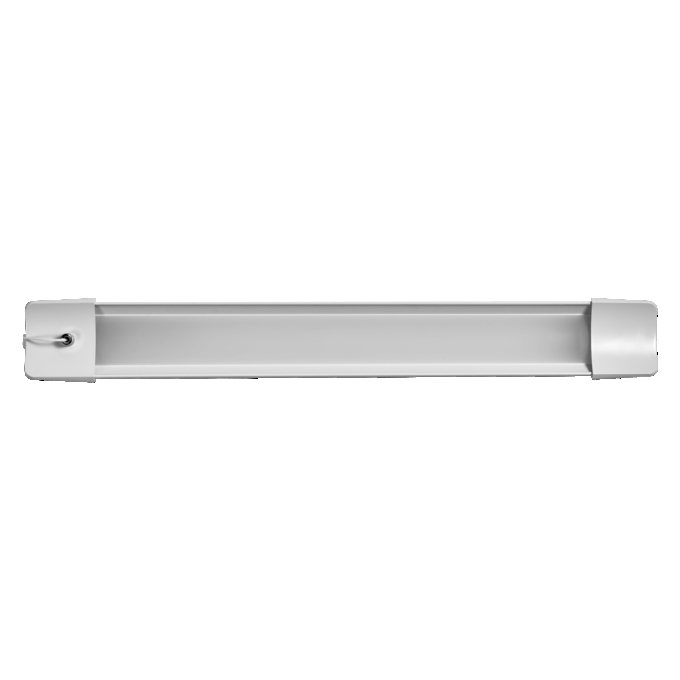

Product image: white background, upright, alternative image
OFFICE LINE CURVE SUSP 0.6M 24W 840
OFFICE LINE CURVE SUSP 0.6M 24W 840

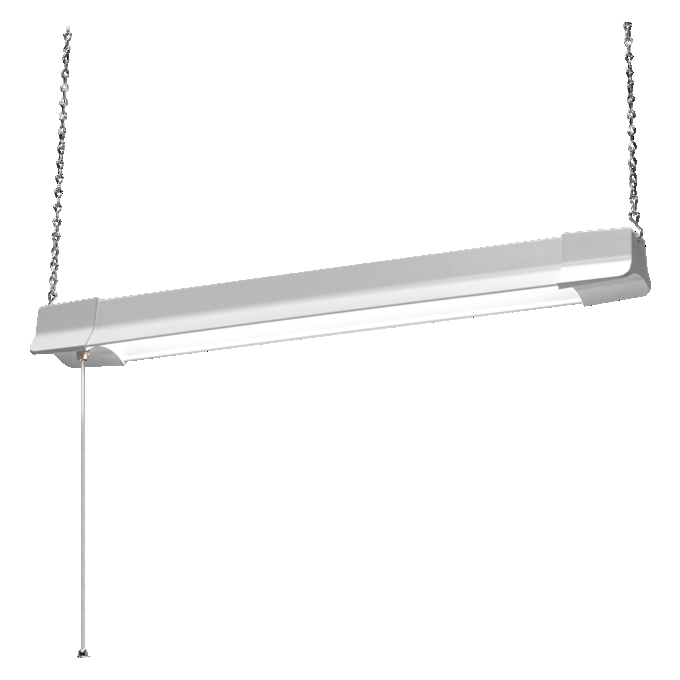

Product image: white background, upright, switched on
OFFICE LINE CURVE SUSP 0.6M 24W 840
OFFICE LINE CURVE SUSP 0.6M 24W 840
Product infographic (application image with text and graphic)
Office luminaires e-Com graphic 1200x1200px 2024 EN
Office luminaires e-Com graphic 1200x1200px 2024 EN
Product line drawing with letters
OFFICE LINE CURVE SUSP 0.6M 24W 840
OFFICE LINE CURVE SUSP 0.6M 24W 840
Product line drawing with numbers
OFFICE LINE CURVE SUSP 0.6M 24W 840
OFFICE LINE CURVE SUSP 0.6M 24W 840
Product line drawing, front, no dimensions
OFFICE LINE CURVE SUSP 0.6M 24W 840
OFFICE LINE CURVE SUSP 0.6M 24W 840

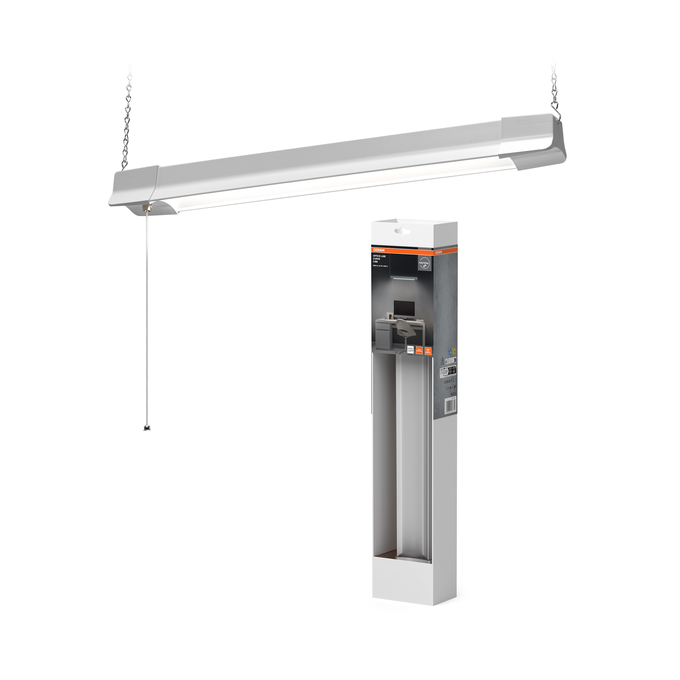

Combo Shot = Product Beauty Shot + Packaging Image
LUM IN OL CURVE SUSP 600 24W OSRAM
LUM IN OL CURVE SUSP 600 24W OSRAM
Packaging image, frontal
LUM IN OL CURVE SUSP 600 24W OSRAM
LUM IN OL CURVE SUSP 600 24W OSRAM
Packaging image, spacial
LUM IN OL CURVE SUSP 600 24W OSRAM
LUM IN OL CURVE SUSP 600 24W OSRAM

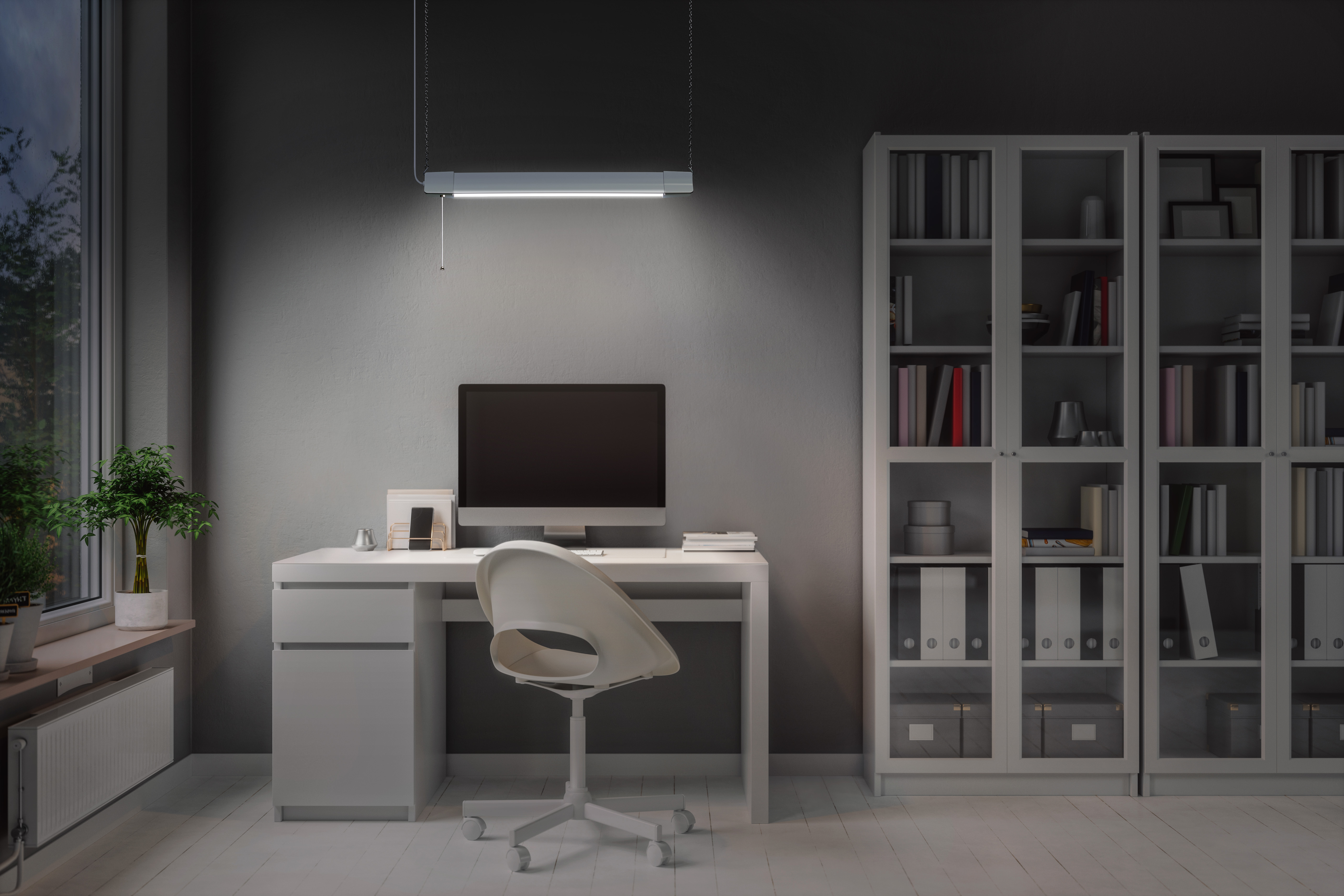

Application pictures Getty
