Office Line Panel Ellipse
Office Line Panel Ellipse 57W 940 White
GTIN: 4099854464898
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Suspended mounting to light up the working surface
- Ambient light on the luminaire base
- Click-DIM: dimmable in three steps by repeated switching
- High CRI value of >90 for natural-looking colors
- With a UGR value of <19, the luminaire meets the requirements for VDU workstations and reduces eye strain
Areas of application
- Office lighting
- Home offices
- Indoor applications
Product features
- Modern design for office applications
- Lifetime up to 30,000 h
- Color temperature: 4,000 K
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 57.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 245.000 mA |
| Inrush current time Th50 | 28.1 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 51 |
| Max. number of luminaires per miniature circuit breaker C10 | 32 |
| Max. number of luminaires per miniature circuit breaker C16 | 51 |
| Power factor λ | 0.90 |
| Total harmonic distortion | < 10 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 3000 lm |
| Total luminous flux of contained light sources | 6336 lm |
| Luminous efficacy | 50 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 90 |
| Standard deviation of color matching | ≤6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 102.00 ° |
| UGR | < 19 |
Dimensions & Weight
| Length | 1000.00 mm |
| Height | 1500.00 mm |
| Width | 200.00 mm |
| Product weight | 3600.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Plastic |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | 3 DIM |
| Mounting type | Suspended |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854464898 | Folding box 1 |
102 mm x 272 mm x 1,183 mm | 4664.00 g | 32.82 dm³ |
| 4099854464904 | Shipping box 2 |
1,196 mm x 290 mm x 229 mm | 10655.00 g | 79.43 dm³ |
User instruction / safety instructions
OFFICE LINE PANEL ELLIPSE
OFFICE LINE PANEL ELLIPSE
Legal information
Safety insert G11220441
Safety insert G11220441
Declarations of conformity
CE Declaration Office Panel LUM
CE Declaration Office Panel LUM

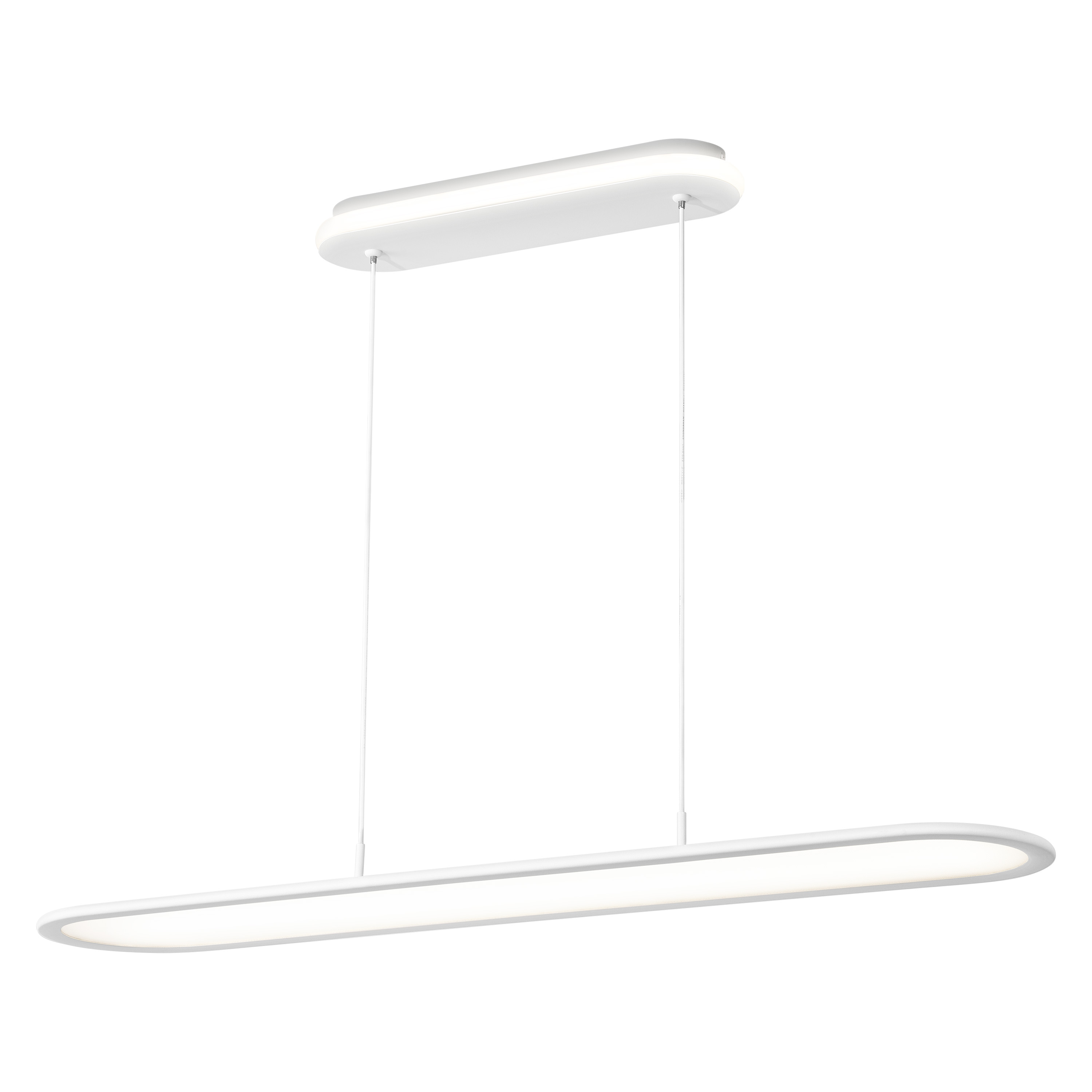

Product image: white background, upright
OFFICE LINE PANEL ELLIPSE 57W940DWT
OFFICE LINE PANEL ELLIPSE 57W940DWT
Product image: white background, upright, alternative image
OFFICE LINE PANEL ELLIPSE 57W940DWT
OFFICE LINE PANEL ELLIPSE 57W940DWT
Product image: white background, upright, switched on
OFFICE LINE PANEL ELLIPSE 57W940DWT
OFFICE LINE PANEL ELLIPSE 57W940DWT
Product line drawing with letters
OFFICE LINE PANEL ELLIPSE 57W940D
OFFICE LINE PANEL ELLIPSE 57W940D
Product line drawing with numbers
OFFICE LINE PANEL ELLIPSE 57W940D
OFFICE LINE PANEL ELLIPSE 57W940D
Product line drawing, front, no dimensions
OFFICE LINE PANEL ELLIPSE 57W940D
OFFICE LINE PANEL ELLIPSE 57W940D
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC OL PANEL ELLIPSE D WT OSRAM
LUM FC OL PANEL ELLIPSE D WT OSRAM
Packaging image, frontal
LUM FC OL PANEL ELLIPSE D WT OSRAM
LUM FC OL PANEL ELLIPSE D WT OSRAM
Packaging image, spacial
LUM FC OL PANEL ELLIPSE D WT OSRAM
LUM FC OL PANEL ELLIPSE D WT OSRAM

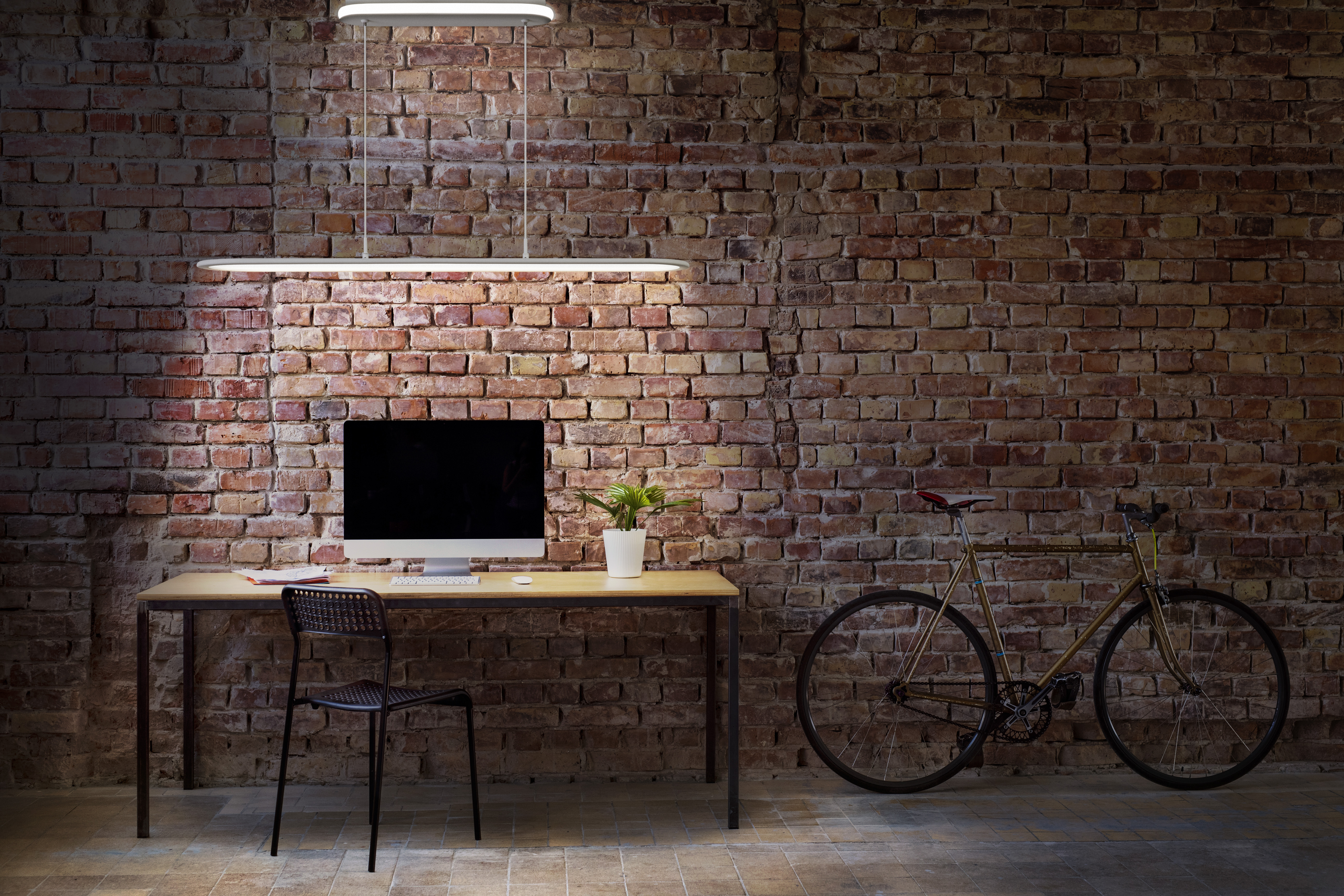

Application pictures Getty
