Office Line cuboid ceiling
Office Line Cuboid Ceiling 30W 840 DIM Black
GTIN: 4099854464775
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Linear luminaire in timeless design
- 3 step dimming via switch on top of the luminaire
- High quality metal housing
Areas of application
- Office lighting
- Indoor applications
- Home offices
- General indoor illumination
- Kitchens, workspaces
Product features
- Lifetime up to 100,000 h
- Color temperature: 4,000 K
- Material: Aluminium (Housing), Polycarbonate (Diffuser)
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 30.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 136.000 mA |
| Inrush current time Th50 | 153.8 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 24 |
| Max. number of luminaires per miniature circuit breaker C10 | 25 |
| Max. number of luminaires per miniature circuit breaker C16 | 40 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 3100 lm |
| Total luminous flux of contained light sources | 4200 lm |
| Luminous efficacy | 100 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 105 ° |
Dimensions & Weight
| Length | 1126.00 mm |
| Height | 70.00 mm |
| Width | 41.00 mm |
| Product weight | 1270.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | 3 DIM |
| Mounting type | Surface |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Number of switching cycles | 50000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854464775 | Folding box 1 |
101 mm x 71 mm x 1,184 mm | 2165.00 g | 8.49 dm³ |
| 4099854464782 | Shipping box 4 |
1,285 mm x 240 mm x 180 mm | 8660.00 g | 55.51 dm³ |
User instruction / safety instructions
OFFICE LINE CUBOID
OFFICE LINE CUBOID
Legal information
Safety insert G11222027
Safety insert G11222027
Declarations of conformity
OFFICE LINE CUBOID
OFFICE LINE CUBOID
Product image: white background, upright
OFFICE LINE CUBOID CLG 30W 840DIMBK
OFFICE LINE CUBOID CLG 30W 840DIMBK
Product image: white background, upright, alternative image
OFFICE LINE CUBOID CLG 30W 840DIMBK
OFFICE LINE CUBOID CLG 30W 840DIMBK
Product image: white background, upright, switched on
OFFICE LINE CUBOID CLG 30W 840DIMBK
OFFICE LINE CUBOID CLG 30W 840DIMBK
Product line drawing with letters
OFFICE LINE CUBOID CLG 30W 840DIM
OFFICE LINE CUBOID CLG 30W 840DIM
Product line drawing with numbers
OFFICE LINE CUBOID CLG 30W 840DIM
OFFICE LINE CUBOID CLG 30W 840DIM
Product line drawing, front, no dimensions
OFFICE LINE CUBOID CLG 30W 840DIM
OFFICE LINE CUBOID CLG 30W 840DIM

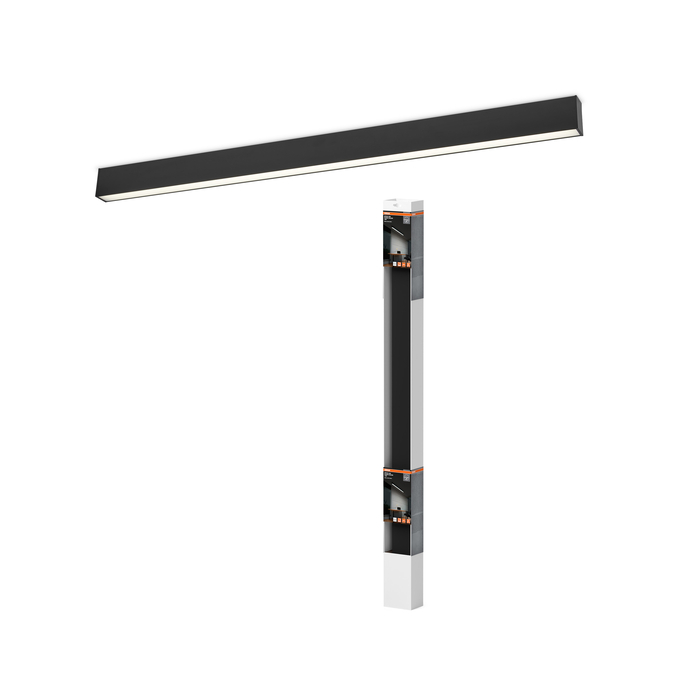

Combo Shot = Product Beauty Shot + Packaging Image
