Essentials Damp Proof Integrated Extrusion
Damp proof Essential Extrusion 36W 1200mm 840
GTIN: 4099854428739
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy installation
- Suitable for use in dusty and damp outdoor locations thanks to high IP rating
Areas of application
- Basements, garages, warehouses
Product features
- Robust damp-proof luminaire made from the same mold
- Easy connectable cable gland
Equipment / Accessories
- All required accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 36.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 160.000 mA |
| Inrush current time Th50 | 103 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 45 |
| Max. number of luminaires per miniature circuit breaker C10 | 37 |
| Max. number of luminaires per miniature circuit breaker C16 | 59 |
| Power factor λ | ≥0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 4320 lm |
| Total luminous flux of contained light sources | 5000 lm |
| Luminous efficacy | 120 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 5 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 140 ° |
Dimensions & Weight
| Length | 1240.00 mm |
| Height | 47.70 mm |
| Width | 36.70 mm |
| Product weight | 364.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Cable, 2-pole |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Surface |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Number of illuminants | Not relevant |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854428739 | Folding box 1 |
42 mm x 54 mm x 1,247 mm | 381.00 g | 2.83 dm³ |
| 4099854428746 | Shipping box 6 |
1,275 mm x 135 mm x 120 mm | 2938.00 g | 20.66 dm³ |
User instruction / safety instructions
DAMP PROOF ESSENTIAL EXTRUSION
DAMP PROOF ESSENTIAL EXTRUSION
Legal information
Safety insert G11219279
Safety insert G11219279
Declarations of conformity
DP ESSENTIAL EXTRUSION 840
DP ESSENTIAL EXTRUSION 840

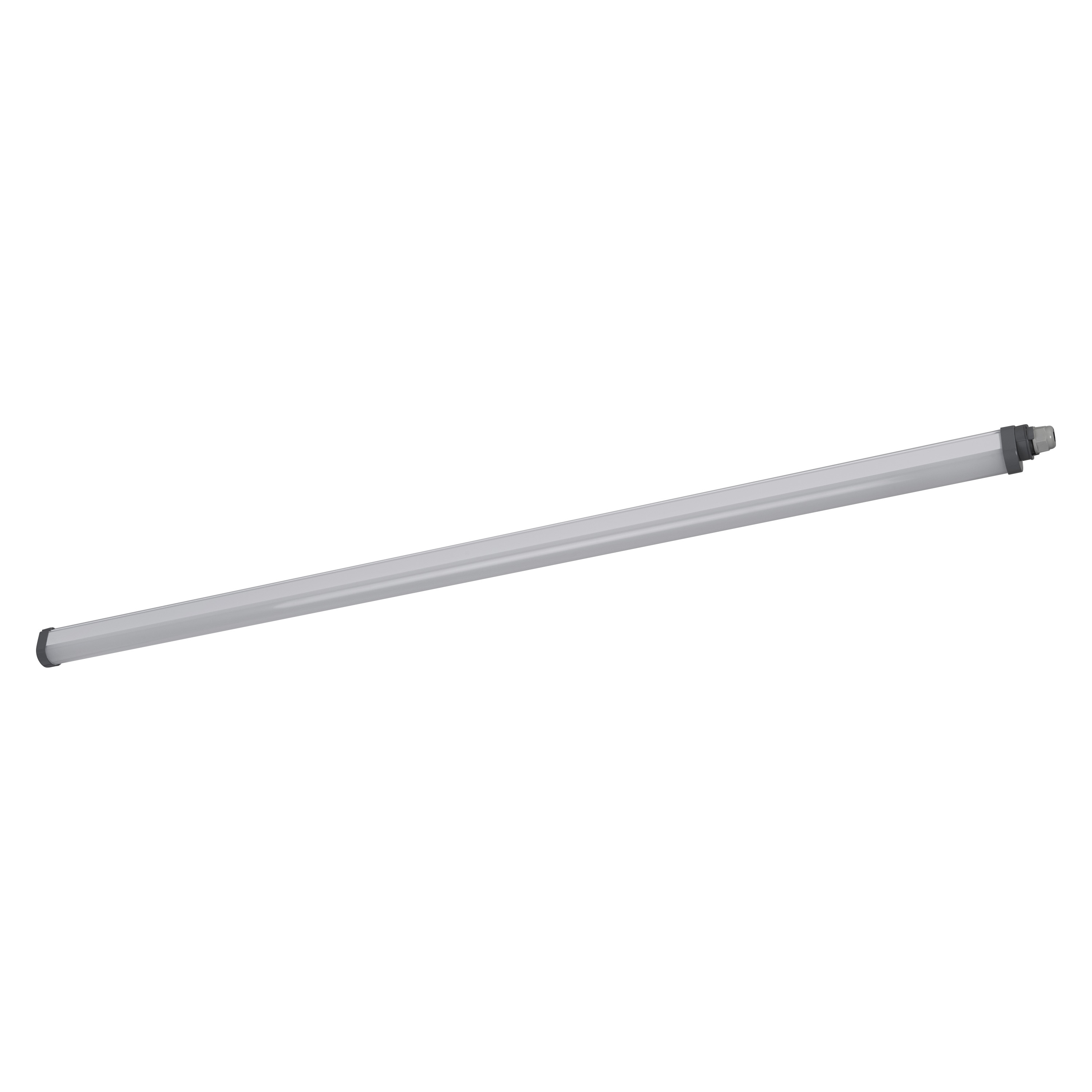

Product image: white background, upright
DP ESSENTIAL EXTRUSION 120CM 36W840
DP ESSENTIAL EXTRUSION 120CM 36W840

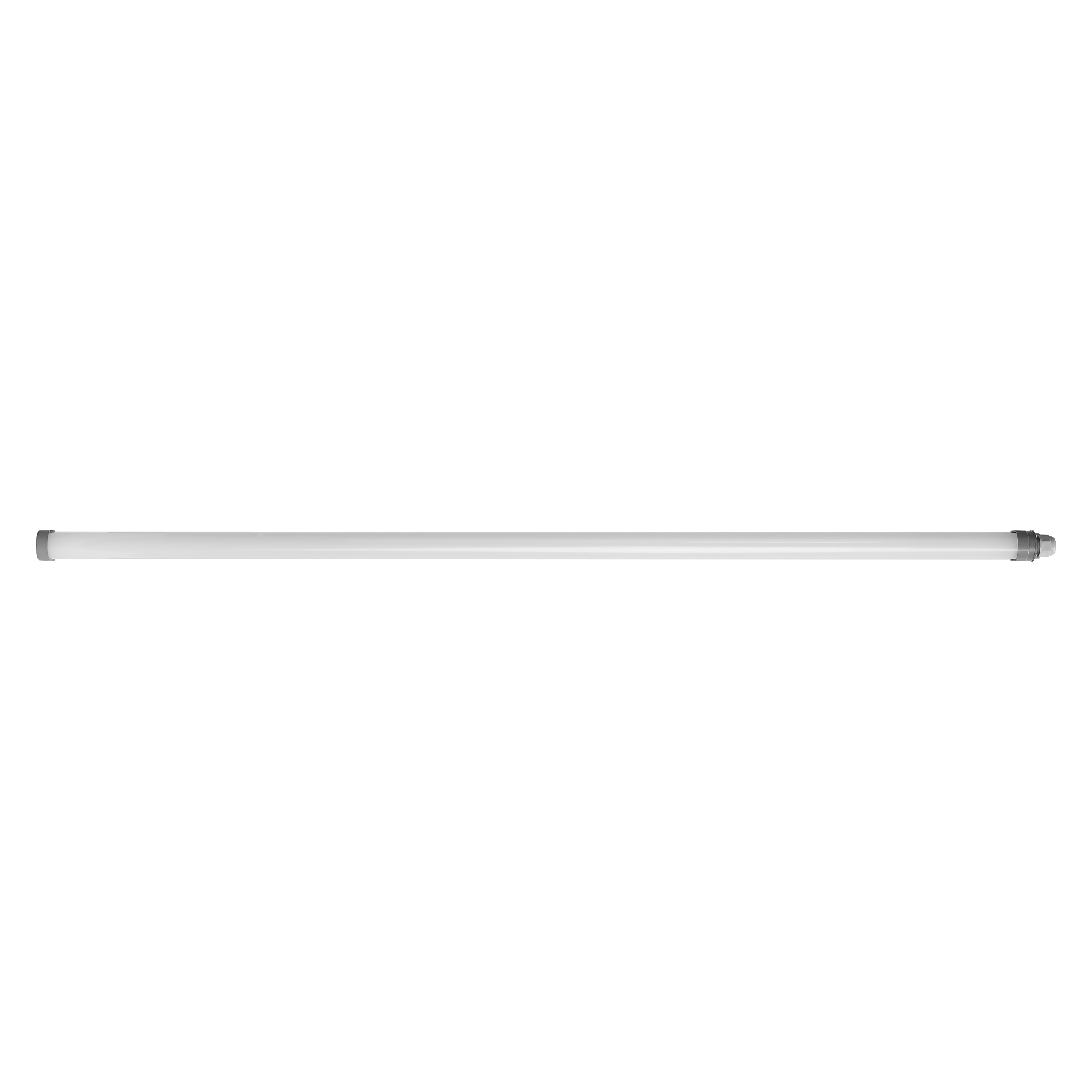

Product image: white background, upright, alternative image
DP ESSENTIAL EXTRUSION 120CM 36W840
DP ESSENTIAL EXTRUSION 120CM 36W840

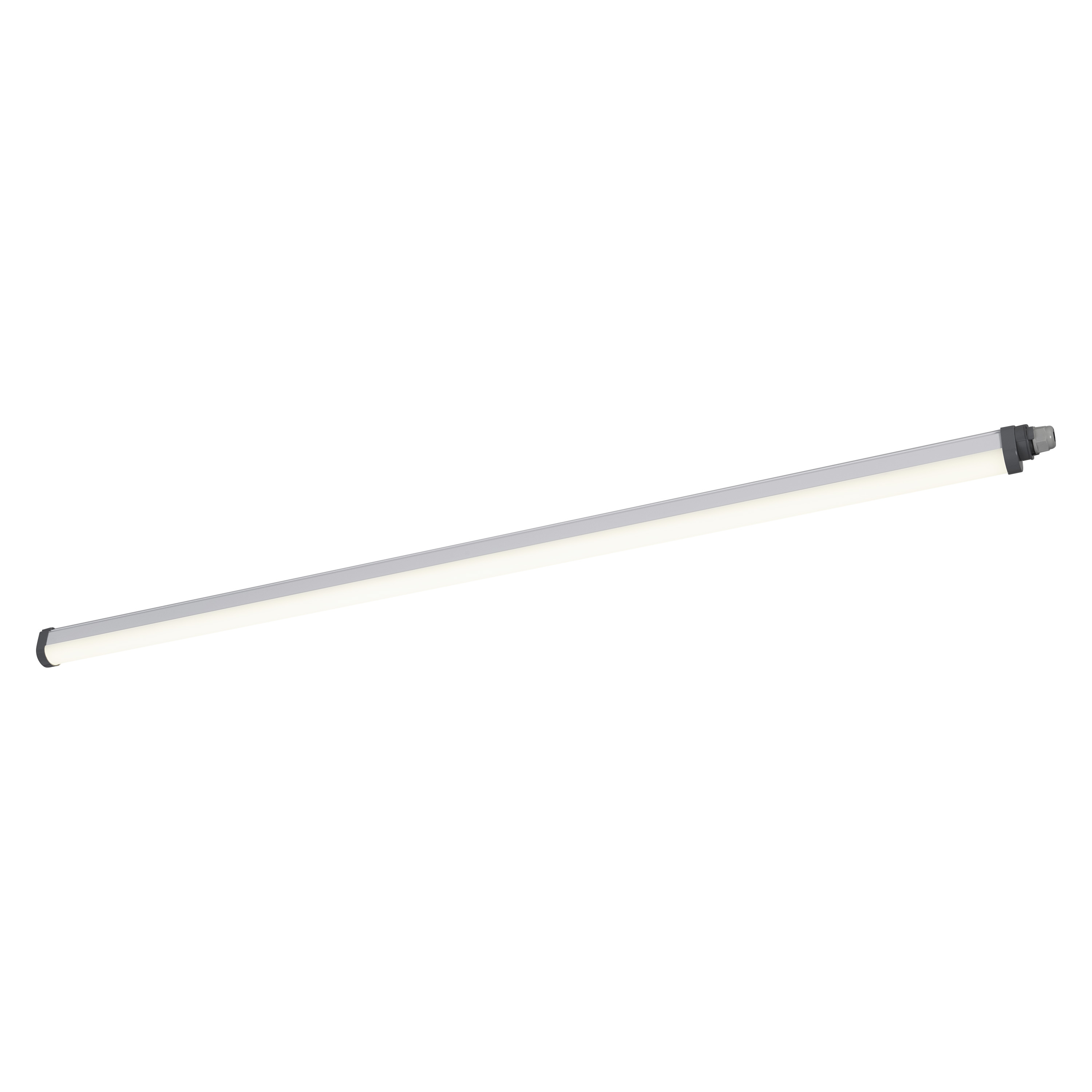

Product image: white background, upright, switched on
