Submarine Integrated
Submarine Integrated 1.2M 36W 4000K
GTIN: 4099854428937
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
- Very homogenous light
- Extremely bright
Areas of application
- Basements, garages, warehouses
Product features
- Dust-protected and jet-proof (IP65)
- Not dimmable
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 36.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 157.000 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 27 |
| Max. number of luminaires per miniature circuit breaker C16 | 38 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 3000 lm |
| Total luminous flux of contained light sources | 3600 lm |
| Luminous efficacy | 83 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 5 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 1180.00 mm |
| Height | 66.00 mm |
| Width | 86.00 mm |
| Product weight | 1210.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Number of switching cycles | 25000 |
Certificates & Standards
| Standards | CE, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854428937 | Folding box 1 |
89 mm x 1,210 mm x 69 mm | 1500.00 g | 7.43 dm³ |
| 4099854428944 | Shipping box 8 |
1,230 mm x 200 mm x 304 mm | 12000.00 g | 74.78 dm³ |
User instruction / safety instructions
SUBMARINE LED I
SUBMARINE LED I
Legal information
Safety insert G11219279
Safety insert G11219279
Declarations of conformity
CE Declaration SubMARINE LED I
CE Declaration SubMARINE LED I
Product image: white background, upright
SubMARINE LED integrated
SubMARINE LED integrated
Product line drawing with letters
PG SubMARINE LED
PG SubMARINE LED
Product line drawing with numbers
PG SubMARINE LED i 1.2m 840 MIPRC
PG SubMARINE LED i 1.2m 840 MIPRC
Product line drawing, front, no dimensions
PG SubMARINE LED
PG SubMARINE LED
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC SUBMARINE LED 1200
LUM FC SUBMARINE LED 1200

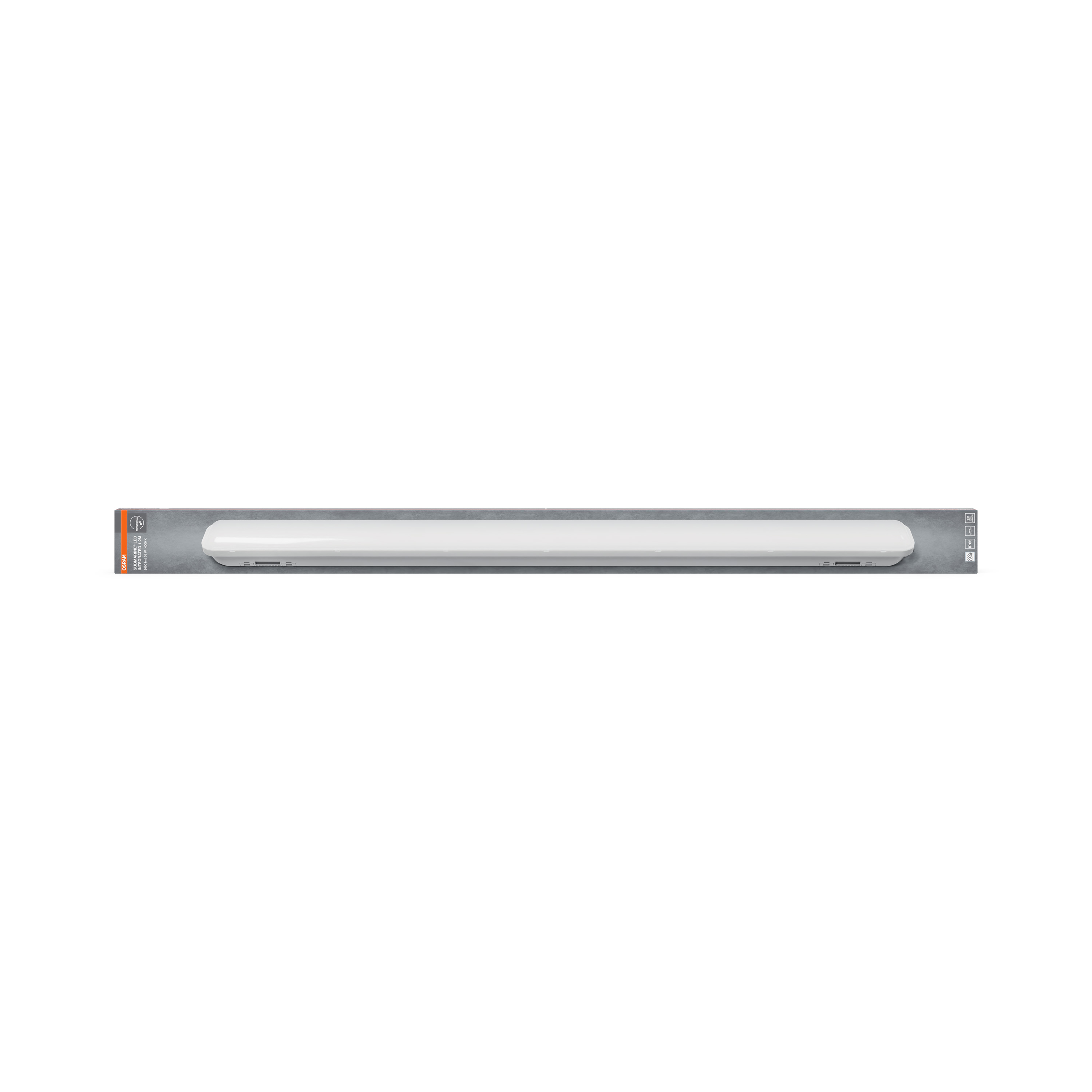

Packaging image, frontal
LUM FC SUBMARINE LED 1200
LUM FC SUBMARINE LED 1200

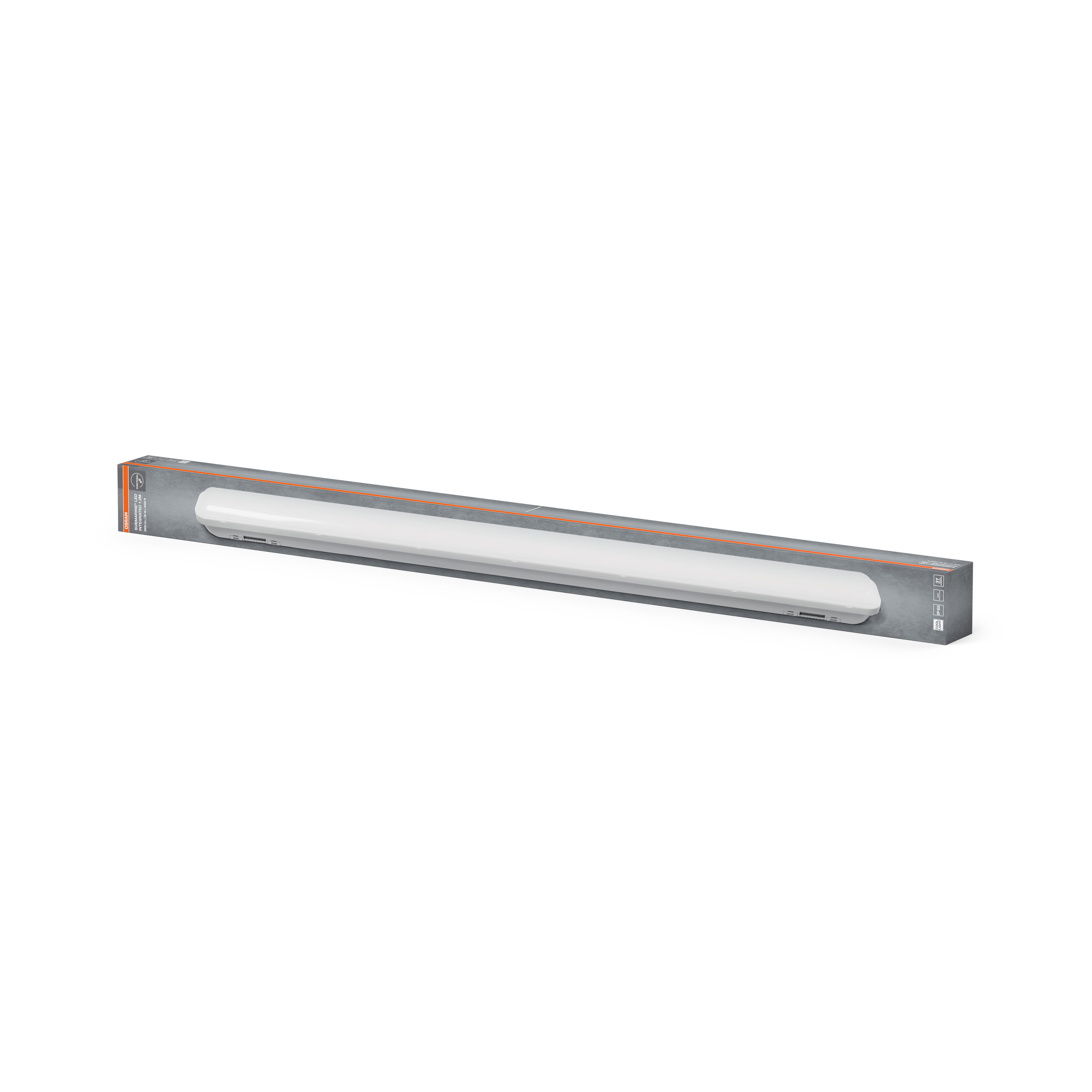

Packaging image, spacial
