LED Retrofit CLASSIC ST

LEDISON CLAS ST 55 6.5 W/2700 K E27

GTIN: 4058075269804 Blister / 1 Show all packages
Download data sheet
Contact sales
5-year warranty

PRODUCT DETAILS

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lamps with innovative LED "filament" technology
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED lamps for line voltage
  • Not dimmable
  • Lifetime up to 15,000 h
  • Beam angle: up to 360°
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 6.5 W
Construction wattage 6.50 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 55 W
Nominal current 52 mA
Type of current AC
Inrush current 3.9 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 60
Max. lamp number on MCB B16 A 100
Power factor λ > 0.50
Photometrical data
Luminous flux 730 lm
Nominal useful luminous flux 90° 730 lm
Luminous efficacy 112 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Light technical data
Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 143.00 mm
Diameter 64.00 mm
Maximum diameter 64 mm
Product weight 46.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 50 °C
Lifespan
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data
Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Certificates & Standards
Energy efficiency class E 1)
Energy consumption 7.00 kWh/1000h
Type of protection IP20
Standards CE
Photobiological safety group acc. to EN62778 RG1
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
Order reference LEDISON556,5W/8
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E27
Correlated colour temperature type SINGLE_VALUE
Length 143.00 mm
Height 64.00 mm
Width 64.00 mm
EPREL ID 1403385
Model number AC24308
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075269804 Blister
1		 67 mm x 140 mm x 185 mm 74.00 g 1.74 dm³
4058075269811 Shipping box
6		 416 mm x 153 mm x 201 mm 652.00 g 12.79 dm³
Declarations of conformity
EC Declaration of Conformity Classic E Lamp
PDF (487.27 KB)
PRODUCT DATASHEET
LED STAR CL Edison GL FR 55 non-dim 6,5W/827 E27
PDF (222.19 KB)
Product image: white background, diagonal
LEDISON GL FR E27
JPG (1.13 MB)
Product image: white background, upright
LEDISON GL FR E27
JPG (959.97 KB)
Product line drawing with letters
LEDISON GL FR E27
SVG (7.58 KB)
Product line drawing, front, no dimensions
LEDISON GL FR E27
SVG (4.68 KB)

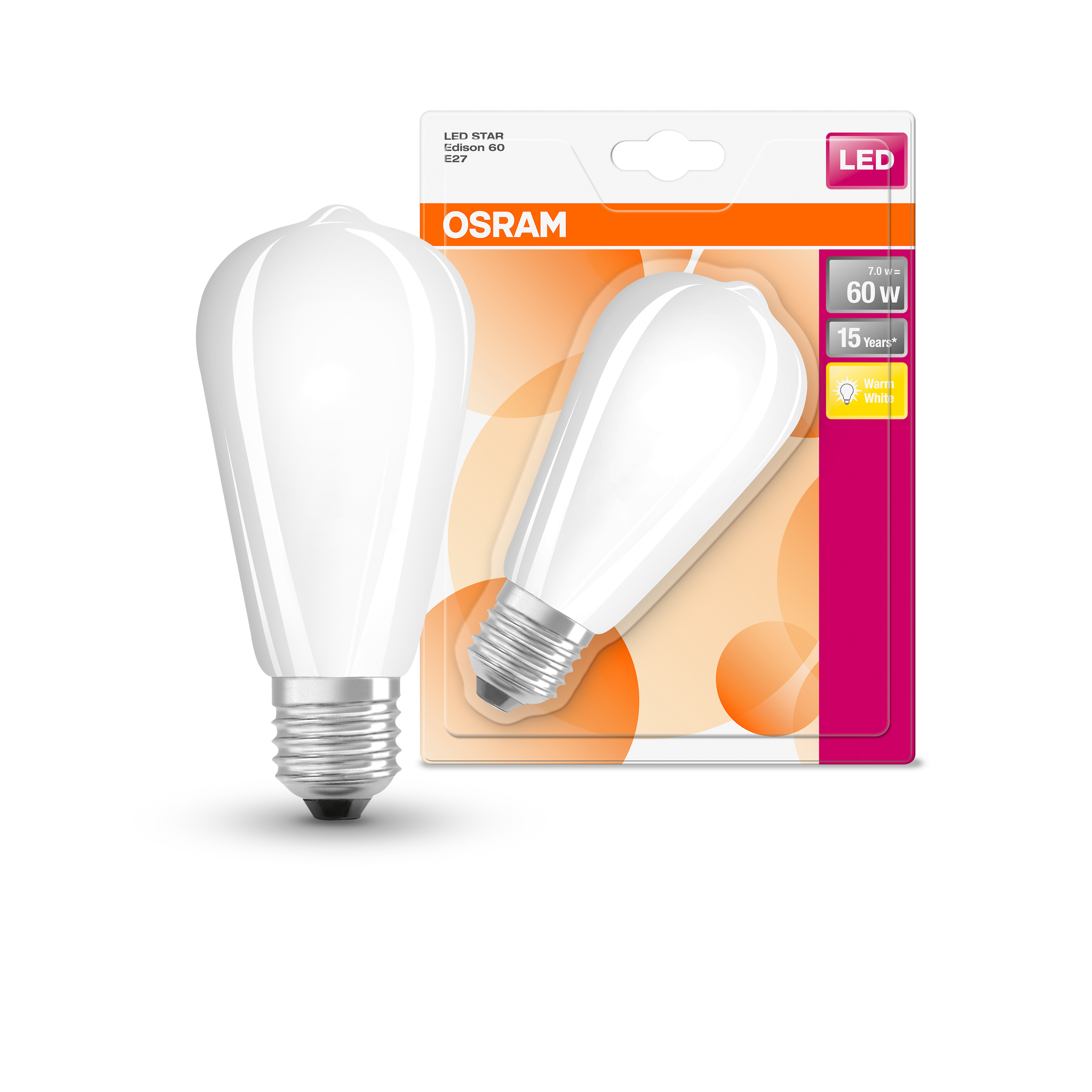

Combo Shot = Product Beauty Shot + Packaging Image
