LED Retrofit RGBW lamps with remote control

ST PAR 16 25 120 ° 4.5 W/2700 K GU10 FR

GTIN: 4058075045750 Blister / 1 Show all packages
Download data sheet
Contact sales
5-year warranty

PRODUCT DETAILS

Product benefits
  • Easy installation
  • Lower energy consumption than incandescent or halogen lamps
  • Individual control
  • No app or smartphone required to control the lamp
  • Comfortable and intuitive infrared remote control
  • Switching, dimming in 4 steps and color control with the push of a button
  • Color loops for dynamic color changes
Areas of application
  • Domestic applications
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Lifetime up to 25,000 h
  • Allows for control of colors, saturation and dimming levels
  • Wide range of controllable light colors including white
  • Four dynamic effects: Flash, Strobe, Smooth, Mode
  • Dimmable via remote control
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 4.5 W
Construction wattage 4.50 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 25 W
Nominal current 36 mA
Type of current AC
Inrush current 4.6 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 250
Max. lamp number on MCB B16 A 420
Power factor λ 0.40
Photometrical data
Luminous flux 250 lm
Nominal useful luminous flux 90° 250 lm
Luminous efficacy 55 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Light technical data
Beam angle 120 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 56.00 mm
Diameter 50.00 mm
Maximum diameter 50 mm
Product weight 30.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 80 °C
Lifespan
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data
Base (standard designation) GU10
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
BATTERY
Battery size [GMS] CR2025
Capabilities
Dimmable Yes
Certificates & Standards
Energy efficiency class G 1)
Energy consumption 5.00 kWh/1000h
Type of protection IP20
Standards CE, CB, ERP
Photobiological safety group acc. to EN62778 RG0
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
Order reference LSPR1625REM4,5W
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) GU10
Correlated colour temperature type SINGLE_VALUE
Length 56.00 mm
Height 50.00 mm
Width 50.00 mm
EPREL ID 1403055
Model number AC24783
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075045750 Blister
1		 52 mm x 140 mm x 185 mm 67.00 g 1.35 dm³
4058075045767 Shipping box
6		 322 mm x 154 mm x 201 mm 640.00 g 9.97 dm³
PRODUCT DATASHEET
LSPR1625REM4,5W/827230 VFRGU106XBLI1OSRAM
PDF (212 KB)
Product image: white background, diagonal with OSRAM logo
LSPAR1625REM 5W/827 230VFRGU10XBLI1OSRAM
TIF (8.27 MB)
Product image: white background, diagonal
LSPAR1625REM 5W/827 230VFRGU10XBLI1OSRAM
TIF (8.79 MB)
Product image: white background, horizontal, OSRAM logo
LSPAR1625REM 5W/827 230VFRGU10XBLI1OSRAM
TIF (72.71 MB)
Product image: white background, horizontal
LSPAR1625REM 5W/827 230VFRGU10XBLI1OSRAM
TIF (27.02 MB)
Product image: white background, upright
LSPAR1625REM 5W/827 230VFRGU10XBLI1OSRAM
TIF (8.85 MB)
Product line drawing with letters
LSPAR1625REM 5W/827 230VFRGU10XBLI1OSRAM
SVG (9.51 KB)
Product line drawing with letters
LSPAR1625REM 5W/827 230VFRGU10XBLI1OSRAM
SVG (45.38 KB)
Combo Shot = Product Beauty Shot + Packaging Image
LSPR1625REM 4-5W827 230VFRGU10BLI1
TIF (48.05 MB)

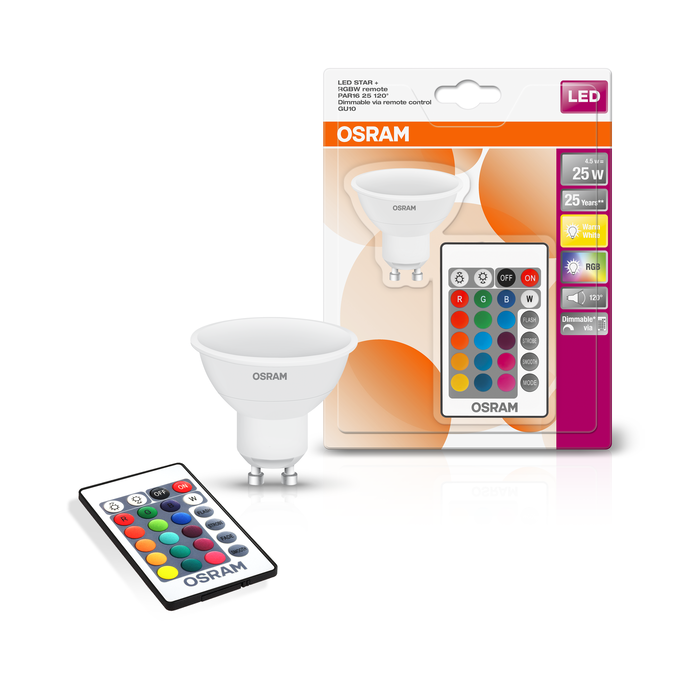

Packaging image, frontal
