SPECIAL OVEN T

SPC.T CL 40W 230V E14

GTIN: 4058075835733 Folding box / 1 Show all packages
5-year warranty

PRODUCT DETAILS

Areas of application
  • Domestic baking ovens
Product features
  • Ambient temperature: up to 300 °C
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
  • Not designed as a replacement for conventional lighting in private household.
Electrical data
Nominal wattage 40 W
Construction wattage 40.00 W
Nominal voltage 230 V
Photometrical data
Luminous flux 300 lm
Luminous efficacy 7 lm/W
Color temperature 2600 K
Color rendering index Ra > 99
Light color 926
Light technical data
Beam angle 360 °
Starting time < 0.5 s
Dimensions & Weight
Overall length 58.00 mm
Diameter 29.00 mm
Product weight 10.75 g
Temperatures & operating conditions
Ambient temperature range ≥ 300 °C
Lifespan
Lifespan L70/B50 at 25 °C 1000 h
Number of switching cycles 1000
Additional product data
Base (standard designation) E14
Mercury-free Yes
Design / version Clear
Capabilities
Dimmable Yes
Certificates & Standards
Energy efficiency class G
Energy consumption 40.00 kWh/1000h
Standards CE, EAC
Country-specific categorizations
Order reference SPC.T OVEN CL 4
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Lighting technology used OTHER
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E14
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power No
Length 58.00 mm
Height 29.00 mm
Width 29.00 mm
Chromaticity coordinate x 0.496
Chromaticity coordinate y 0.416
Beam angle correspondence SPHERE_360
EPREL ID 1744196
Model number AC54735,AC54735
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075835733 Folding box
1
28 mm x 28 mm x 67 mm 16.00 g 0.05 dm³
4058075835740 Shipping box
20
150 mm x 122 mm x 77 mm 351.00 g 1.41 dm³
4058075835757 Shipping box
120
256 mm x 160 mm x 248 mm 2241.00 g 10.16 dm³
Declarations of conformity
CE Declaration of conformity Special T Oven lamp
Product image: white background, diagonal
324400_SPECIAL T BULB PEAR SHAPE
Product line drawing with letters
SPECIAL OVEN T26 57 E14 frosted
Product line drawing with numbers
SPC.T OVEN
Product line drawing - technical
SPECIAL OVEN T26 57 E14 frosted

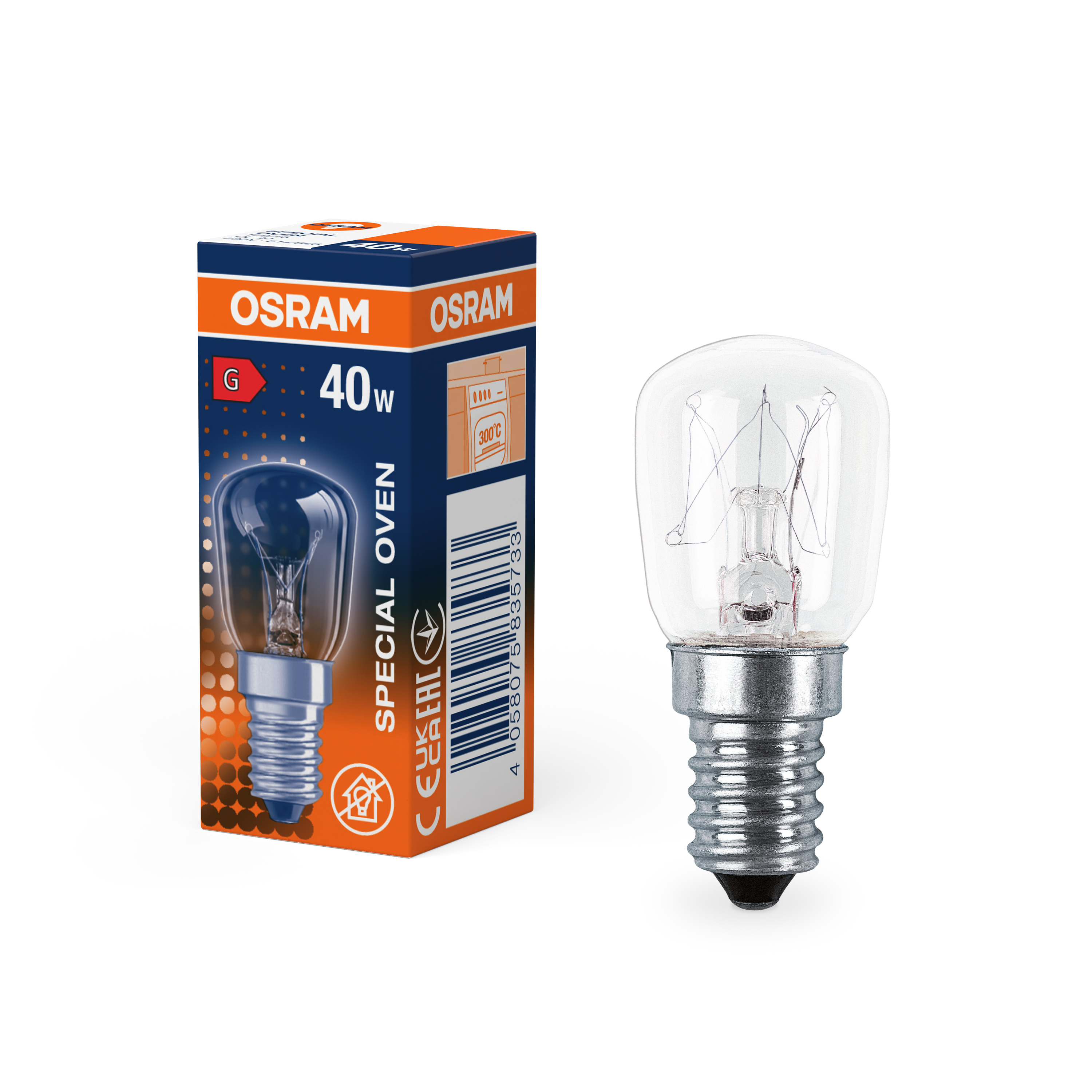

Combo Shot = Product Beauty Shot + Packaging Image
FC1 SPC OVEN T26-58 CL 40W 230V E14

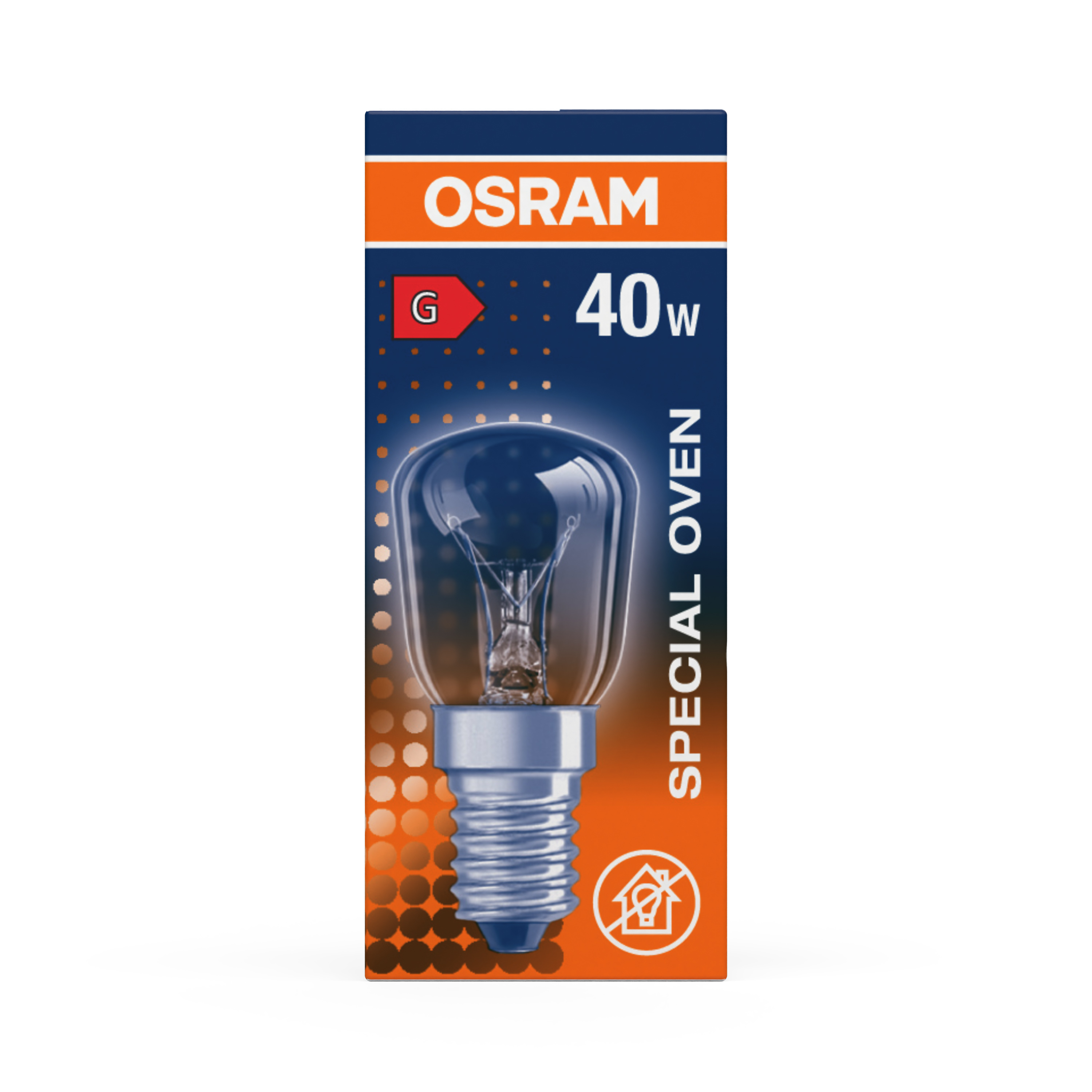

Packaging image, frontal
FC1 SPC OVEN T26-58 CL 40W 230V E14

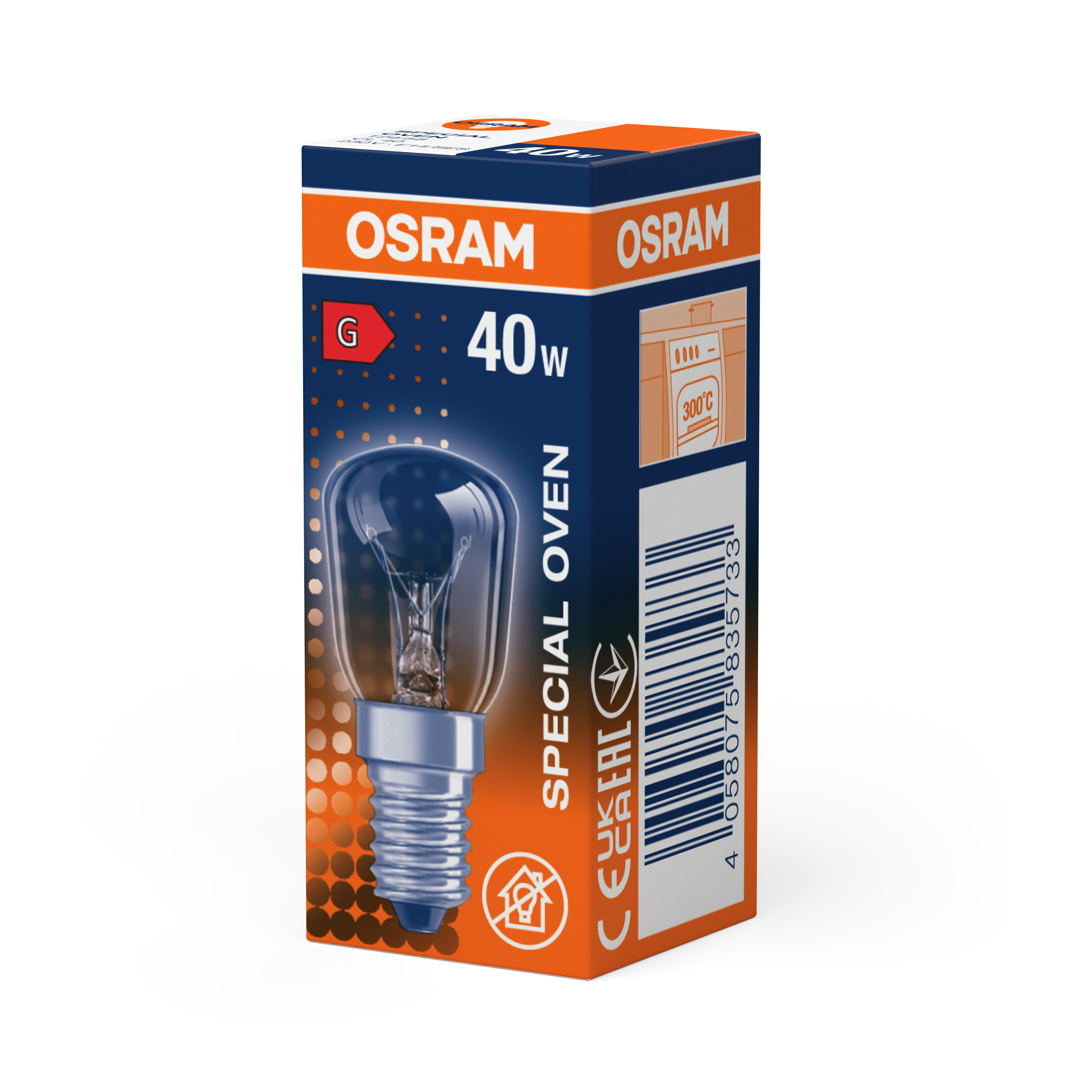

Packaging image, spacial
FC1 SPC OVEN T26-58 CL 40W 230V E14
Energy label
EL-4058075835733-AC547 35
Spectral power distribution
349635_HAL_ohne_UVS
