SPECIAL OVEN T
SPC.T FR 25 W 230 V E14
GTIN: 4050300323596
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Areas of application
- Domestic baking ovens
Product features
- Ambient temperature: up to 300 °C
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
- Not designed as a replacement for conventional lighting in private household.
Electrical data
| Nominal wattage | 25 W |
| Construction wattage | 25.00 W |
| Nominal voltage | 230 V |
Photometrical data
| Luminous flux | 140 lm |
| Luminous efficacy | 5 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Color temperature | 2700 K |
| Color rendering index Ra | > 99 |
| Light color | 927 |
Light technical data
| Starting time | 0 s |
Dimensions & Weight
| Overall length | 57.00 mm |
| Length with base excl. base pins/connection | 57.00 mm |
| Light center length (LCL) | 45,0 mm |
| Diameter | 26,0 mm |
| Product weight | 7.6 g |
Lifespan
| Lifespan L70/B50 at 25 °C | 1000 h |
Additional product data
| Base (standard designation) | E14 |
| Mercury-free | Yes |
| Design / version | Frosted |
Capabilities
| Dimmable | Yes |
Certificates & Standards
| Energy efficiency class | G |
| Energy consumption | 25.00 kWh/1000h |
Country-specific categorizations
| ILCOS | IBT/F-25-230-E14-26 |
| Order reference | SPC.T26/57 FR 2 |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | OTHER |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | E14 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Standby power | 0.00 W |
| Networked standby power for CLS | 0 W |
| Claim of equivalent power | No |
| Length | 55.00 mm |
| Height | 26,0 mm |
| Width | 26,0 mm |
| Chromaticity coordinate x | 0.487 |
| Chromaticity coordinate y | 0.416 |
| Beam angle correspondence | SPHERE_360 |
| EPREL ID | 714464 |
| Model number | AC35398,AC35398 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4050300323596 | Folding box 1 |
61 mm x 27 mm x 27 mm | 12.30 g | 0.04 dm³ |
| 4050300555195 | Bundle 10 |
45 mm x 61 mm x 100 mm | 88.33 g | 0.27 dm³ |
| 4050300555201 | Shipping box 100 |
285 mm x 140 mm x 150 mm | 1331.00 g | 5.99 dm³ |
Declarations of conformity
SPC.T26 57 OVEN
SPC.T26 57 OVEN
Declarations of conformity
OVEN 15W 25W E14
OVEN 15W 25W E14

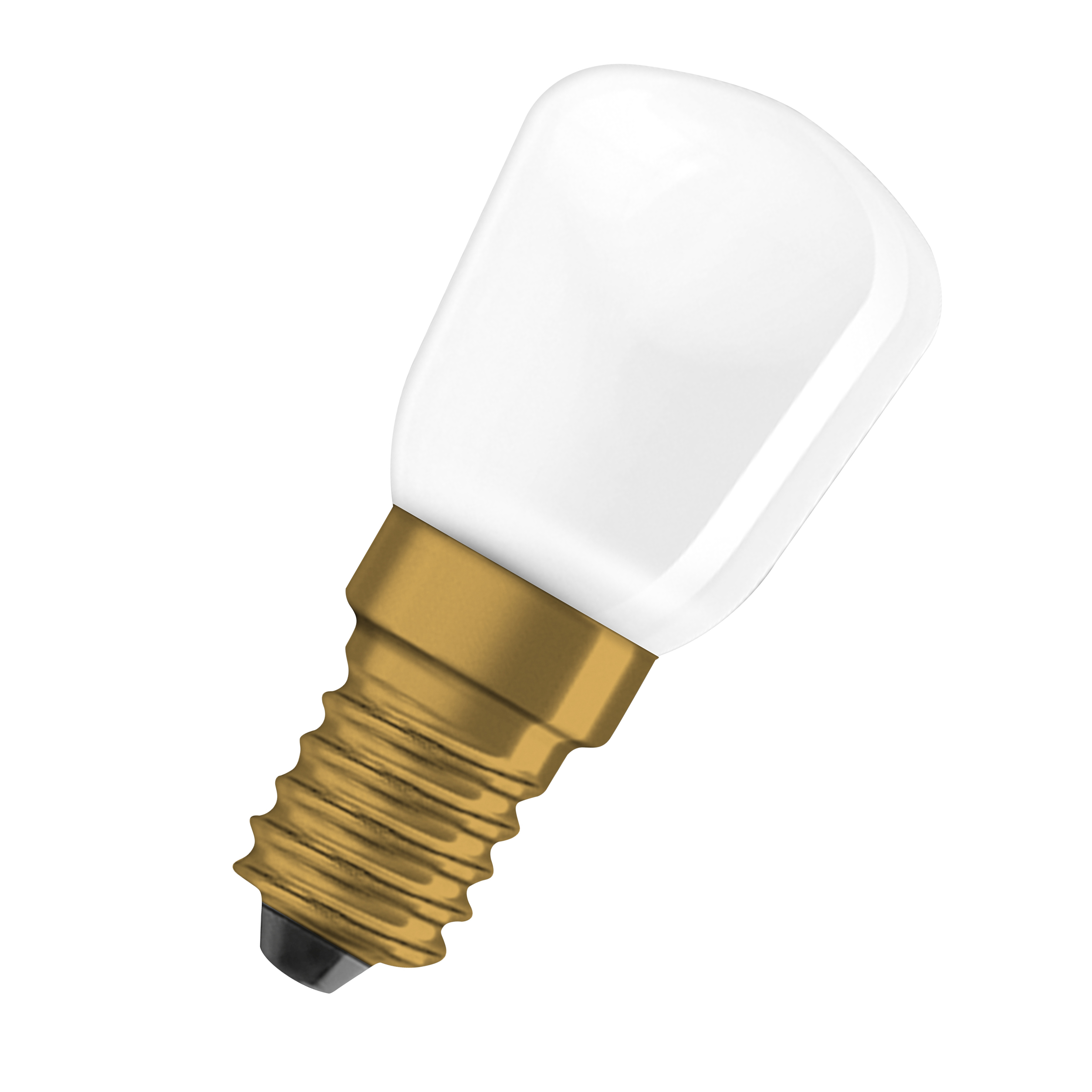

Product image: white background, diagonal with OSRAM logo
SPECIAL OVEN T26 57 E14 frosted
SPECIAL OVEN T26 57 E14 frosted
Product image: white background, diagonal
SPECIAL OVEN T26 57 E14 frosted
SPECIAL OVEN T26 57 E14 frosted

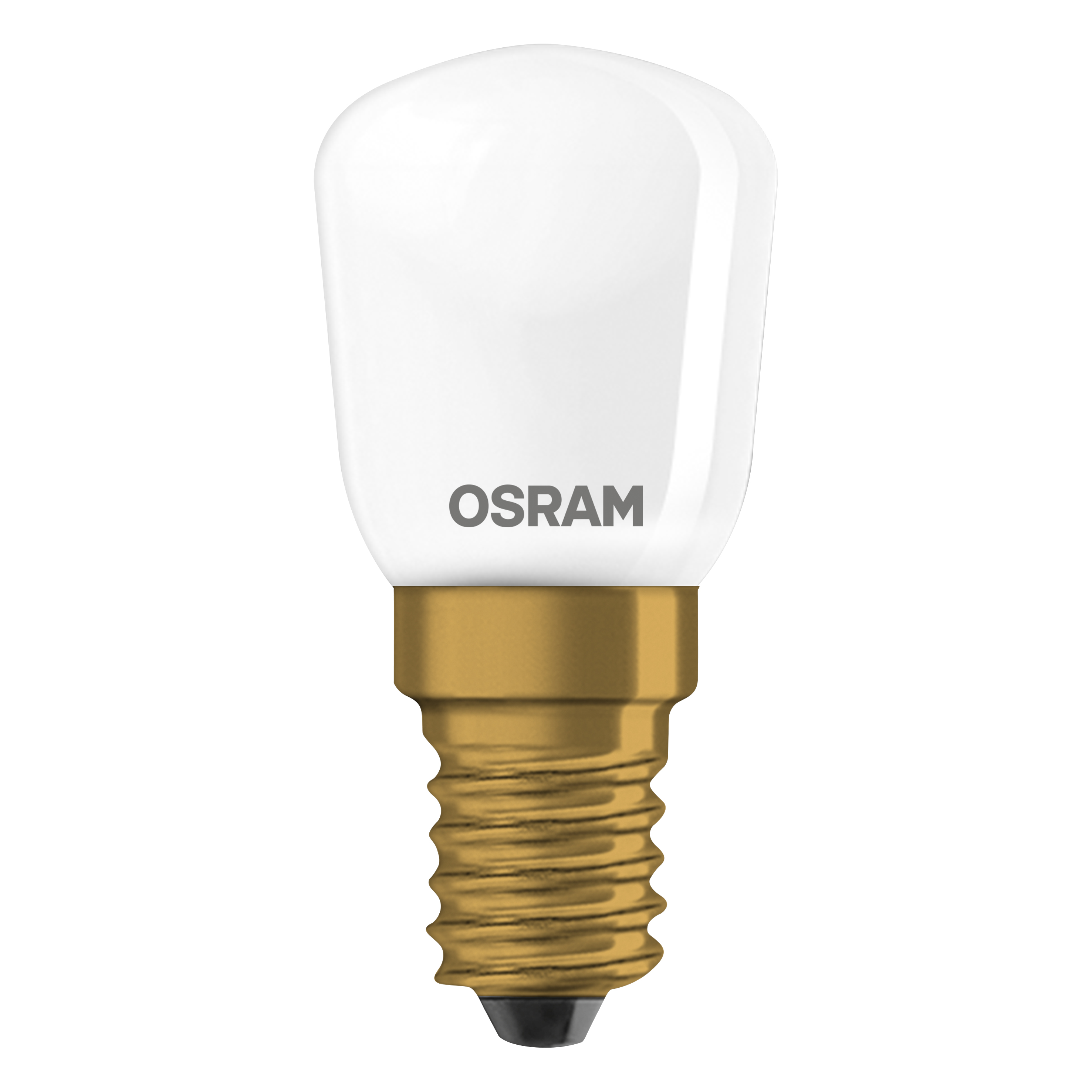

Product image: white background, upright, OSRAM logo
SPECIAL OVEN T26 57 E14 frosted
SPECIAL OVEN T26 57 E14 frosted

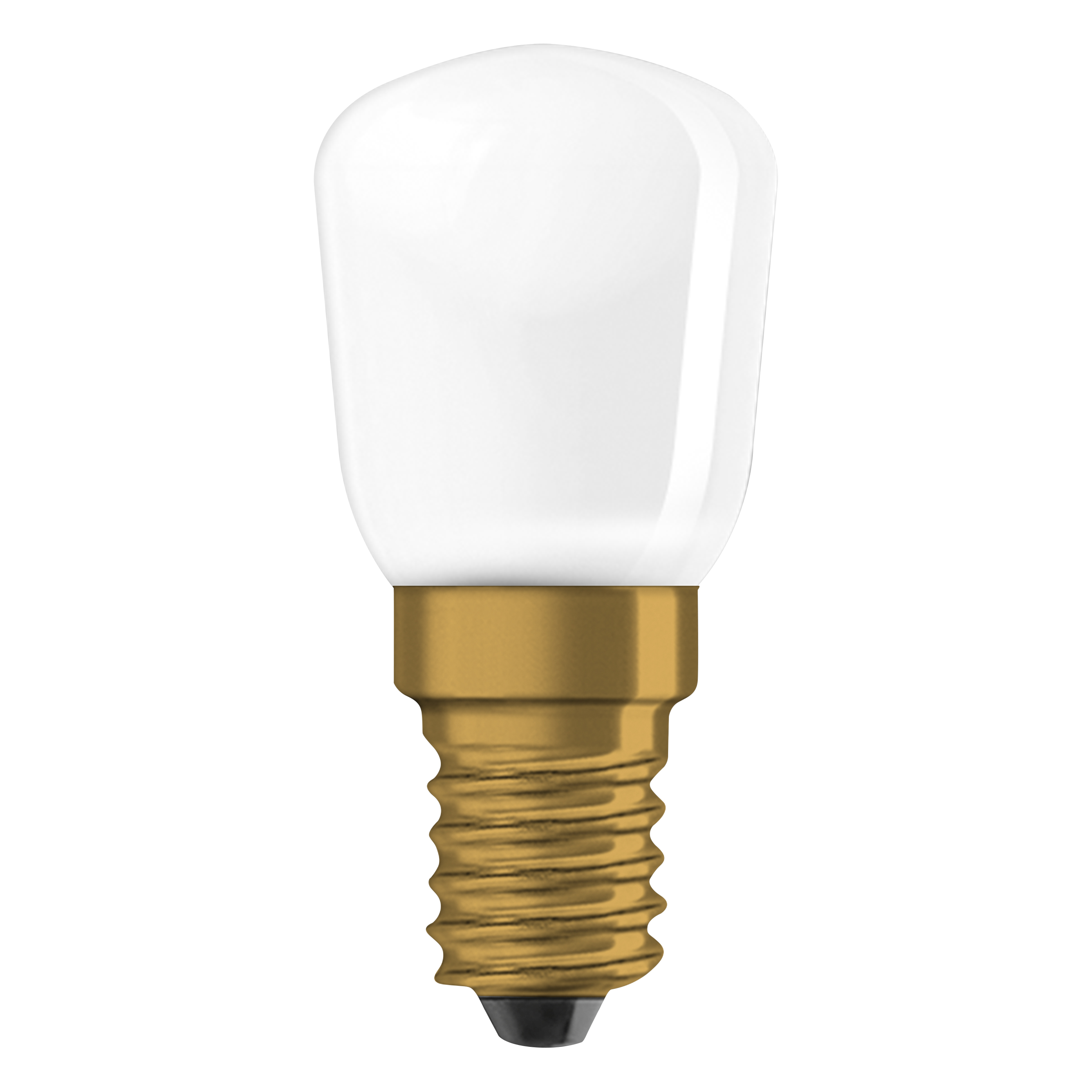

Product image: white background, upright
SPECIAL OVEN T26 57 E14 frosted
SPECIAL OVEN T26 57 E14 frosted
Product line drawing with letters
91_SPECIAL PYGMY T
91_SPECIAL PYGMY T
Product line drawing with letters
SPECIAL OVEN T26 57 E14 frosted
SPECIAL OVEN T26 57 E14 frosted
Product line drawing with numbers
SPECIAL OVEN T26 57 E14 frosted
SPECIAL OVEN T26 57 E14 frosted
Product line drawing, front, no dimensions
15311_SPECIAL PYGMY T
15311_SPECIAL PYGMY T
Product line drawing - technical
SPECIAL OVEN T26 57 E14 frosted
SPECIAL OVEN T26 57 E14 frosted
Combo Shot = Product Beauty Shot + Packaging Image
SPC T26-57 FR 25W 230V E14
SPC T26-57 FR 25W 230V E14

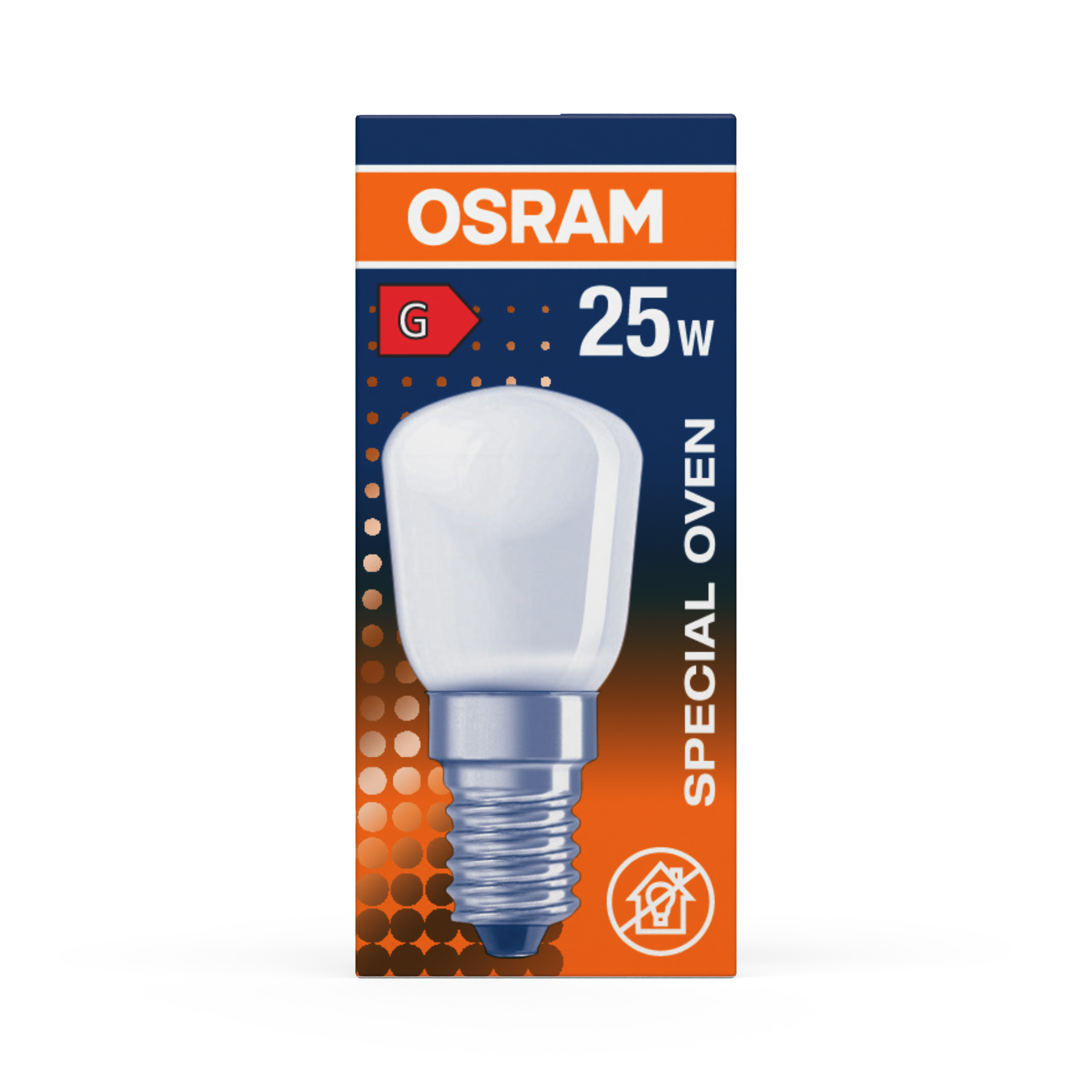

Packaging image, frontal
SPC T26-57 FR 25W 230V E14 MiCh
SPC T26-57 FR 25W 230V E14 MiCh

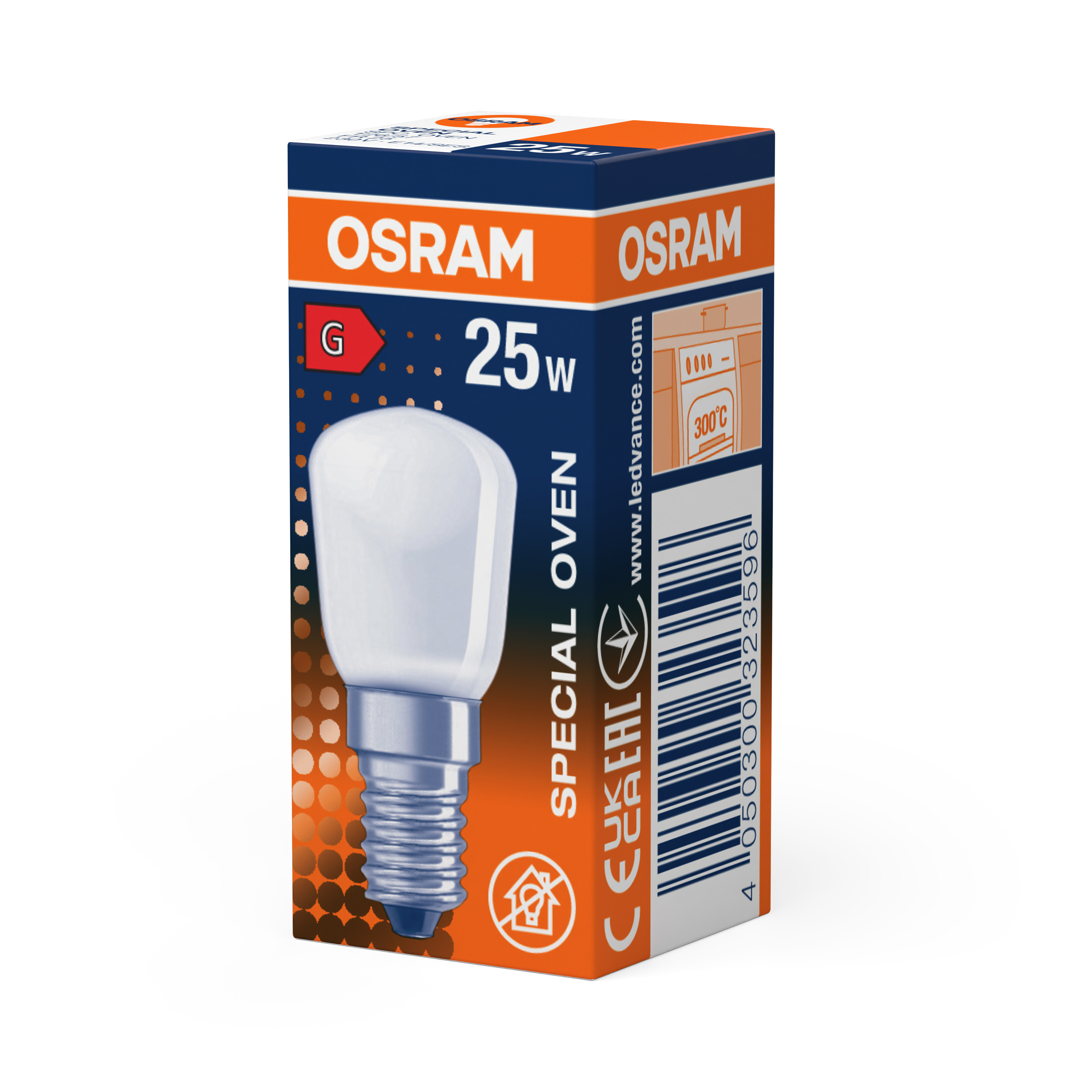

Packaging image, spacial
SPC T26-57 FR 25W 230V E14 MiCh
SPC T26-57 FR 25W 230V E14 MiCh
Energy label
EL-4050300323596-AC353 98
EL-4050300323596-AC353 98
Spectral power distribution
349635_HAL_ohne_UVS
349635_HAL_ohne_UVS
| EAN | SEG number | STK number | ELDAS number |
|---|---|---|---|
| 4050300323596 | 8325588 | 4732525 | 940620171 |
