SPECIAL OVEN T
SPC.T CL 25 W 230 V E14
GTIN: 4050300774664
Blister / 2
Show all packages
5-year warranty
PRODUCT DETAILS
Areas of application
- Domestic baking ovens
Product features
- Ambient temperature: up to 300 °C
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
- Not designed as a replacement for conventional lighting in private household.
Electrical data
| Nominal wattage | 25 W |
| Construction wattage | 25.00 W |
| Nominal voltage | 230 V |
Photometrical data
| Luminous flux | 140 lm |
| Luminous efficacy | 5 lm/W |
| Color temperature | 2700 K |
| Color rendering index Ra | 100 |
| Light color | 1027 |
Light technical data
| Starting time | 0 s |
Dimensions & Weight
| Overall length | 55.00 mm |
| Length with base excl. base pins/connection | 57.00 mm |
| Light center length (LCL) | 45,0 mm |
| Diameter | 26,0 mm |
| Product weight | 7.6 g |
Lifespan
| Lifespan L70/B50 at 25 °C | 1000 h |
Additional product data
| Base (standard designation) | E14 |
| Mercury-free | Yes |
Capabilities
| Dimmable | Yes |
Certificates & Standards
| Energy efficiency class | G |
| Energy consumption | 25.00 kWh/1000h |
Country-specific categorizations
| ILCOS | IBT/C-25-230-E14-26 |
| Order reference | SPC.T26/57 CL 2 |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | OTHER |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | E14 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Claim of equivalent power | No |
| Length | 55.00 mm |
| Height | 26,0 mm |
| Width | 26,0 mm |
| Chromaticity coordinate x | 0.487 |
| Chromaticity coordinate y | 0.416 |
| Beam angle correspondence | SPHERE_360 |
| Displacement factor | 1.00 |
| EPREL ID | 714463 |
| Model number | AC35307,AC35307 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4050300774664 | Blister 2 |
140 mm x 120 mm x 29 mm | 34.00 g | 0.49 dm³ |
| 4050300774671 | Shipping box 20 |
286 mm x 141 mm x 149 mm | 458.00 g | 6.01 dm³ |
Declarations of conformity
OVEN 15W 25W E14
OVEN 15W 25W E14
Product image: white background, diagonal
324400_SPECIAL T BULB PEAR SHAPE
324400_SPECIAL T BULB PEAR SHAPE
Product line drawing with letters
92_SPECIAL PYGMY T
92_SPECIAL PYGMY T
Product line drawing, front, no dimensions
325306_SPECIAL PYGMY T
325306_SPECIAL PYGMY T

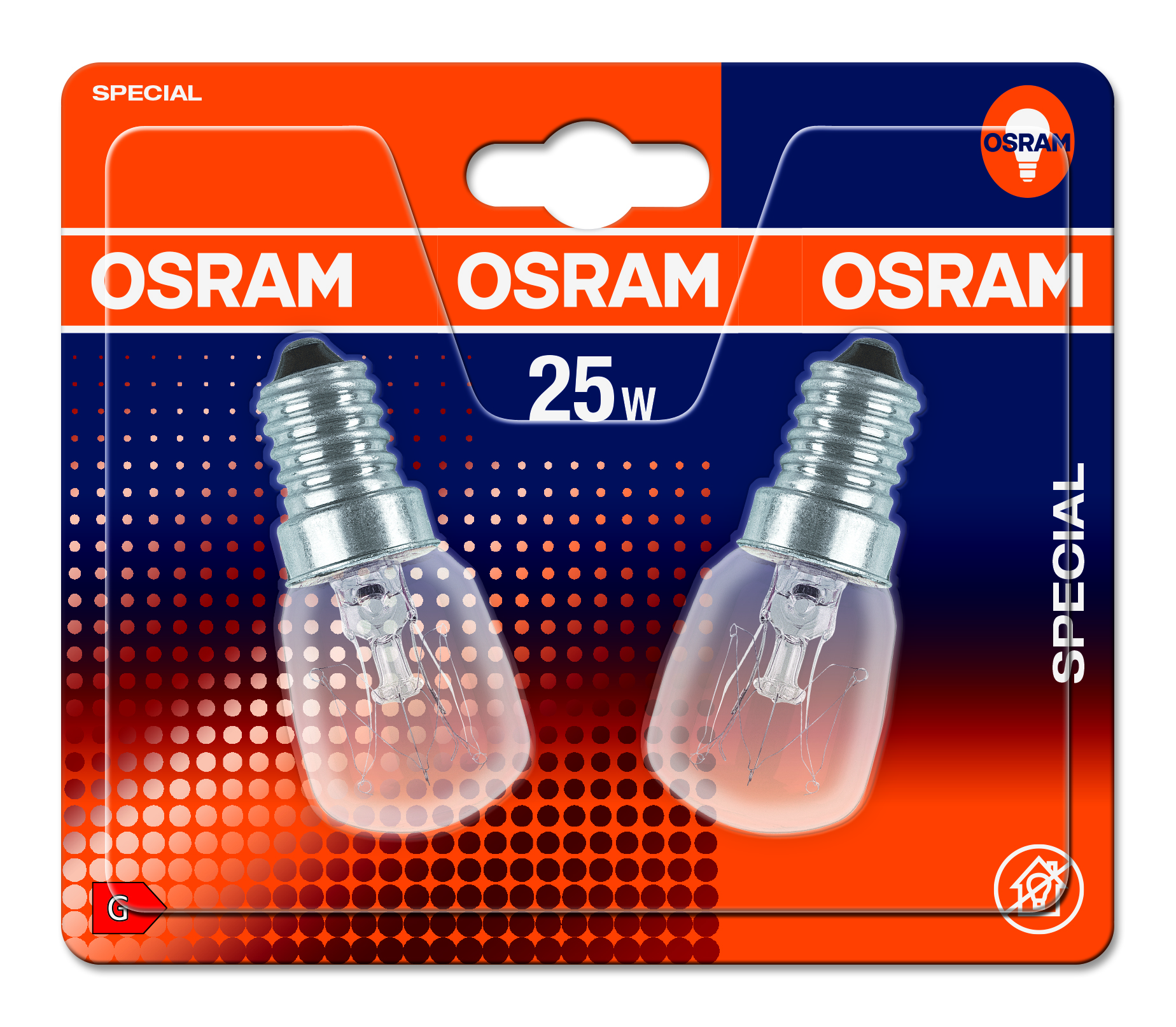

Packaging image, frontal
329559_SPC.T26/57 CL 25W 230V E14 10XBLI2 OSRAM
329559_SPC.T26/57 CL 25W 230V E14 10XBLI2 OSRAM
Packaging image, spacial
SPCT26-57CL25W230VE14
SPCT26-57CL25W230VE14
Energy label
EL-4050300774664-AC353 07
EL-4050300774664-AC353 07
Spectral power distribution
349634_HAL_HV_AK
349634_HAL_HV_AK
| EAN | EFO number |
|---|---|
| 4050300774664 | 3710293 |
