LED ECO CLASSIC A
LED ECO CLAS A 7 W/3000 K E27 GEN1
GTIN: 4058075532526
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Energy savings of up to 88 % (compared to traditional incandescent lamps)
- Excellent price/performance ratio
- No UV and near-IR radiation in the light beam
- Reliable operation thanks to brand quality
Areas of application
- Suitable for indoor applications
Product features
- Base: E27, B22d
- Luminous efficacy: up to 100 lm/W
- Mercury-free lamps
- Lifetime: up to 12,000 h
- Overtemperature protection
Electrical data
| Nominal wattage | 7 W |
| Construction wattage | 7.00 W |
| Nominal voltage | 176…240 V |
| Claimed equiv. conventional lamp power | 60 W |
| Nominal current | 50 mA |
| Type of current | AC |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Power factor λ | 0.50 |
Photometrical data
| Luminous flux | 500 lm |
| Nominal useful luminous flux 90° | 500 lm |
| Luminous efficacy | 71 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 3000 K |
| Color rendering index Ra | ≥80 |
| Light color | 830 |
| Standard deviation of color matching | ≤6 sdcm |
Light technical data
| Beam angle | 200 ° |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 103.00 mm |
| Diameter | 58.00 mm |
| Maximum diameter | 58 mm |
| Product weight | 24.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
Lifespan
| Number of switching cycles | 100000 |
Additional product data
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Product remark | All technical parameters apply to the entire lamp; Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | No |
Certificates & Standards
| Type of protection | IP20 |
Country-specific categorizations
| Order reference | LECLA 7W/830 17 |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E27 |
| Length | 103.00 mm |
| Height | 58.00 mm |
| Width | 58.00 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075532526 | Folding box 1 |
60 mm x 60 mm x 107 mm | 42.00 g | 0.39 dm³ |
| 4058075532533 | Bundle 10 |
600 mm x 60 mm x 107 mm | 430.00 g | 3.85 dm³ |
| 4058075532540 | Shipping box 100 |
617 mm x 322 mm x 243 mm | 5063.00 g | 48.28 dm³ |

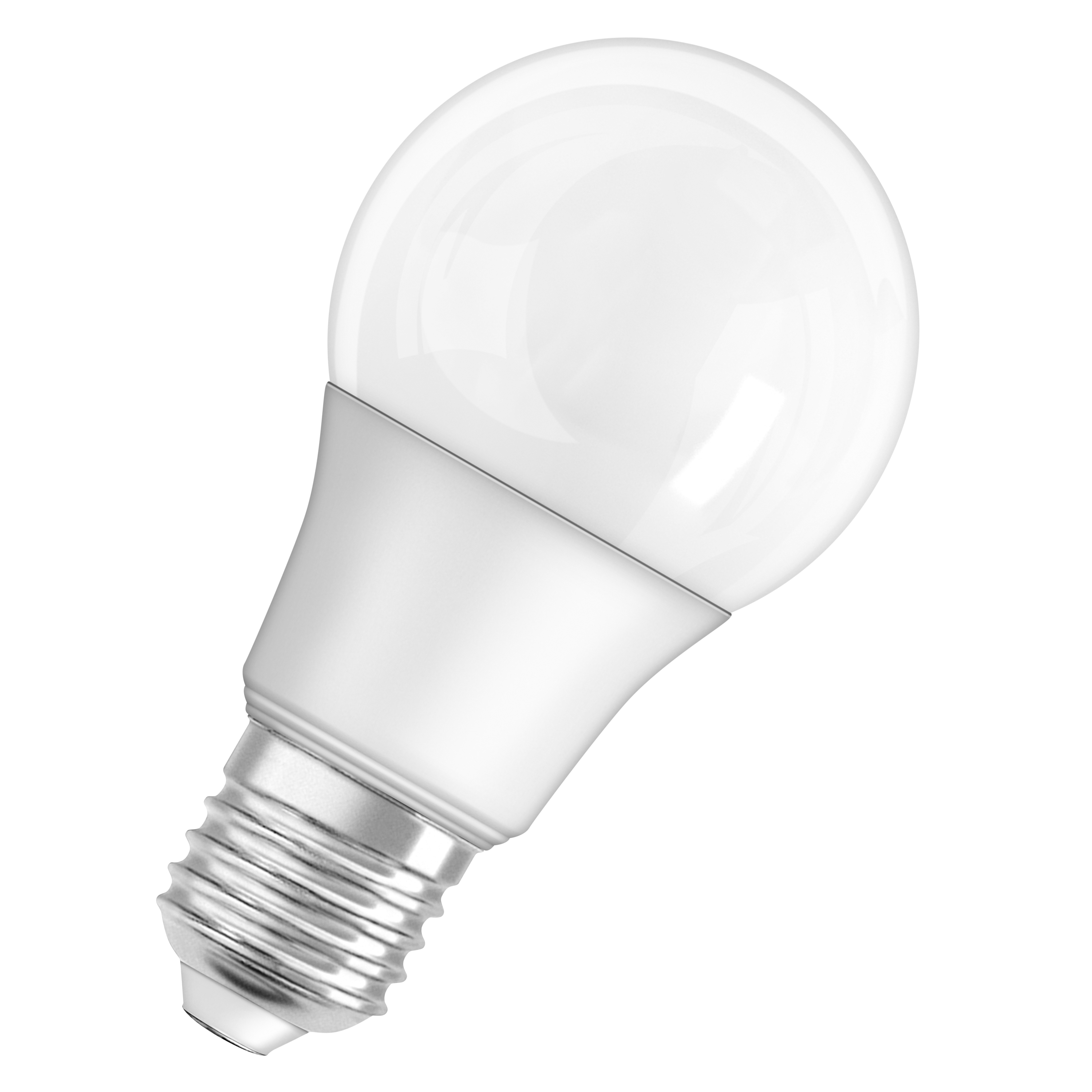

Product image: white background, diagonal
LED ECO CLA 40 60 FR E27 5/7W
LED ECO CLA 40 60 FR E27 5/7W

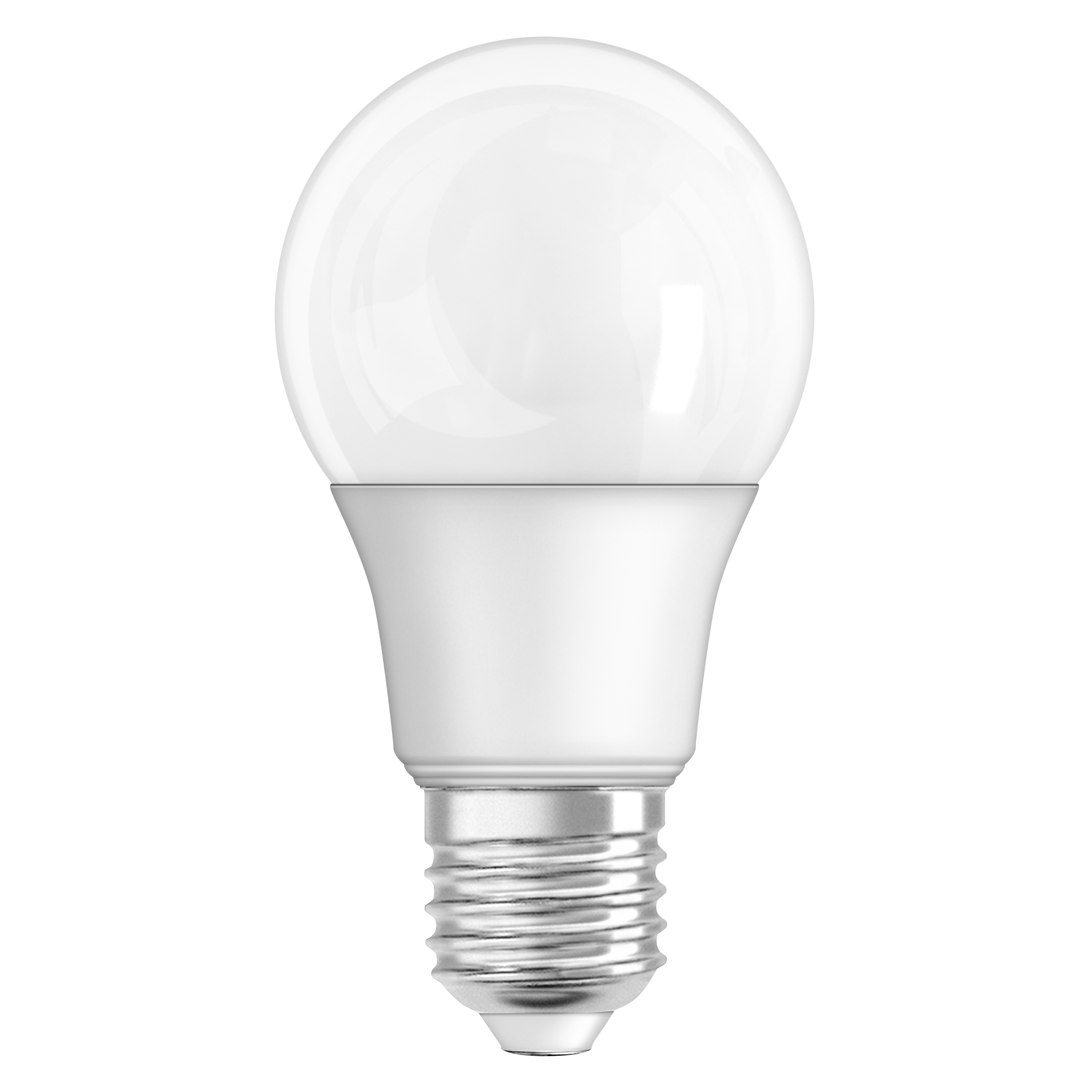

Product image: white background, upright
